ONLINE MONITORING SYSTEM
RAEM system is the latest IIoT-AE product series for remote unattended acoustic wave (acoustic emission) long term monitoring applications. There are a few types of RAEM series products available:
- RAEM1 is a single channel full function version of RAEM.
- RAEM1-6 is a 6-channel integrated clock synchronized version.
- RAEM2 is a single channel time trigger power saving compact version.
The Qingcheng IoT Cloud platform is an cloud platform for RAEM and IoT devices to upload or download data, to display AE waveform, parameters and alarm information, to remote read and write devices, to send alarm notifications to users via SMS and emails and more.
Their maximum sampling speed is 2M samples (or points) per second (S/s) for each channel. More information see “Selection of the Maximum Sampling Speed - The Technical Specification of Acoustic Emission (AE) System”.
-

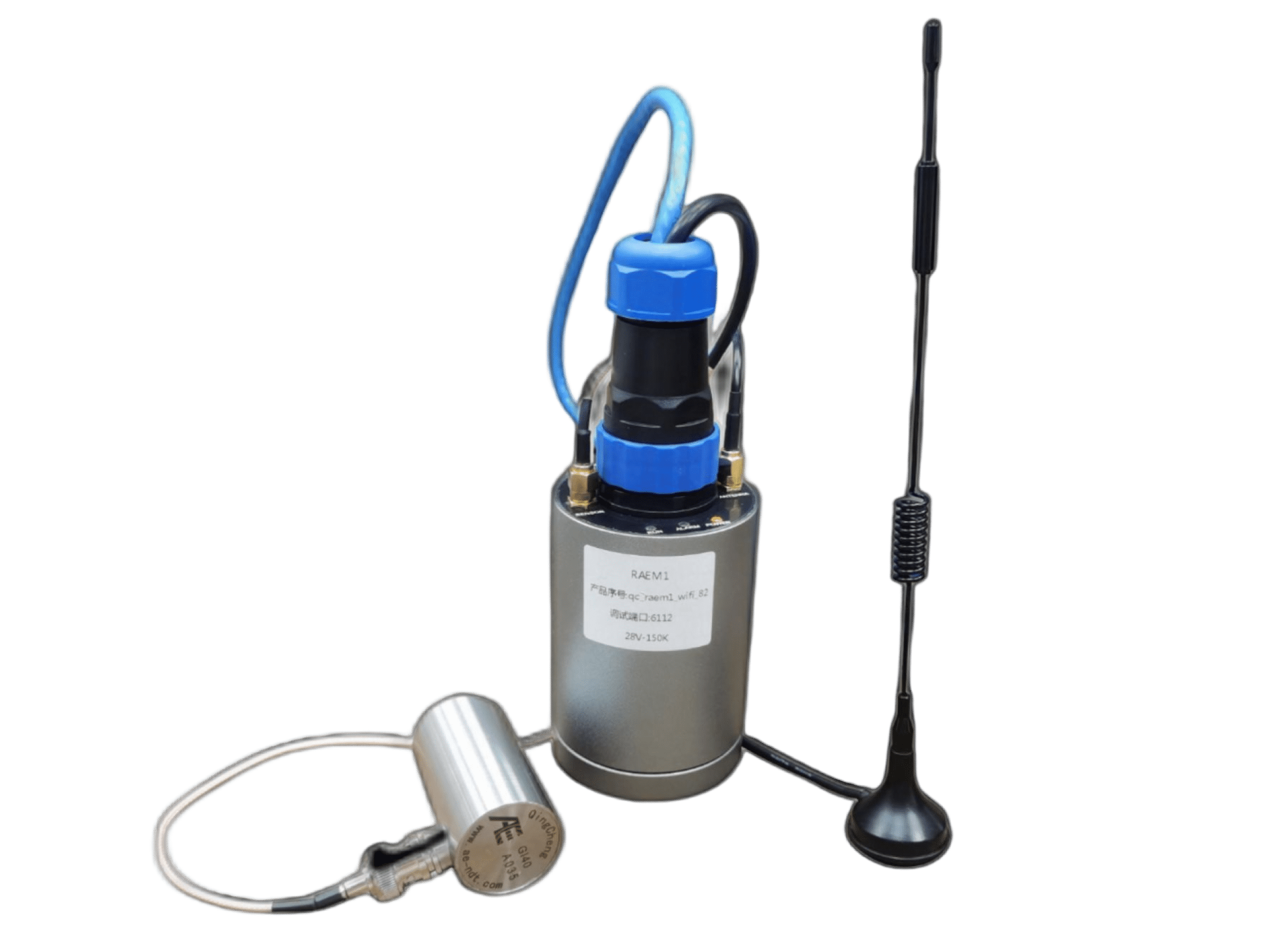

RAEM1 - Full Function Remote Acoustic Wave (Acoustic Emission) Wireless Monitoring System
RAEM1 is based on Acoustic Emission technology and Linux operating system, it could achieve long-term stable running. Combined with Qingcheng IoT cloud platform, it could meet the different requirements of application.
More Information -
RAEM 2 Acoustic Wave (Acoustic Emission) Monitoring System
RAEM2 is an all-in-one condition monitoring system, combining acoustic emission (AE) sensor, battery, data acquisition and process module and communication modules in a small aluminium alloy cylinder.
More Information -

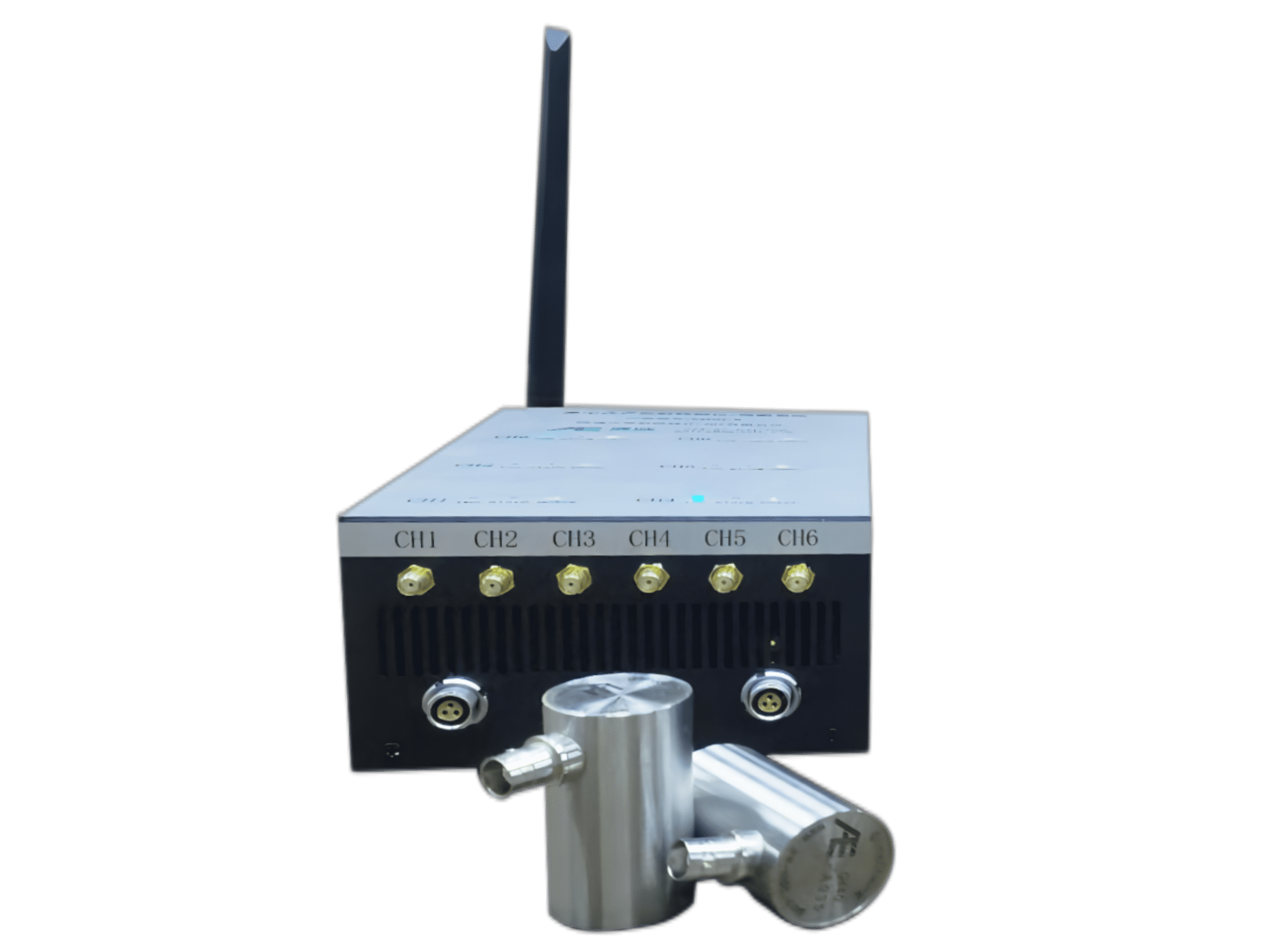

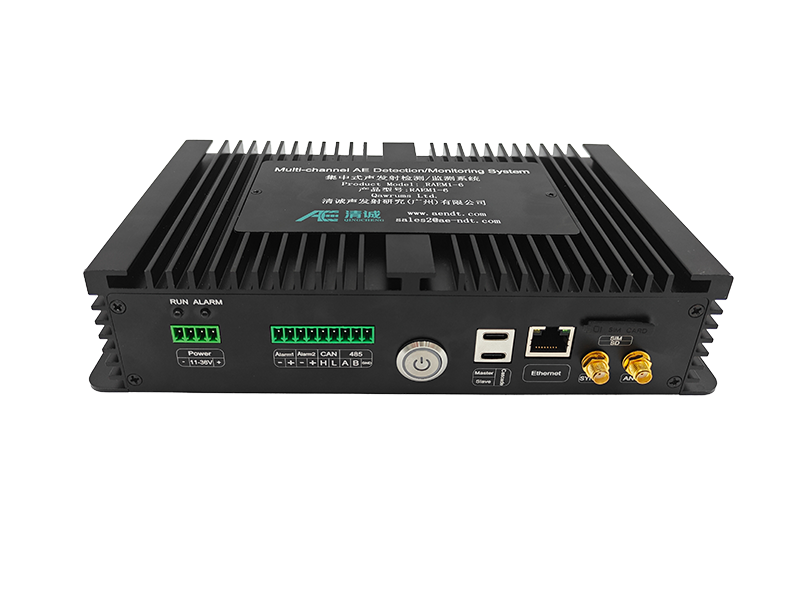

RAEM1-6 - Multi-channel Full Function Acoustic Wave (Acoustic Emission) Monitoring System
RAEM1-6 is a multi-channel AE testing and monitoring system for NDT and condition monitoring. It inherits all the functions from RAEM1. It can be used as a benchtop testing instrument but also as a remote unattended monitoring system.
More Information -
BWM1 Acoustic Wave (Acoustic Emission) Monitoring System for Bridges
BWM1 adopts ARM system architecture, embedded A/D conversion circuit, filtering and conditioning circuit, preamplifier circuit, network port communication, which can be connected to the cloud platform through the router.
More Information -

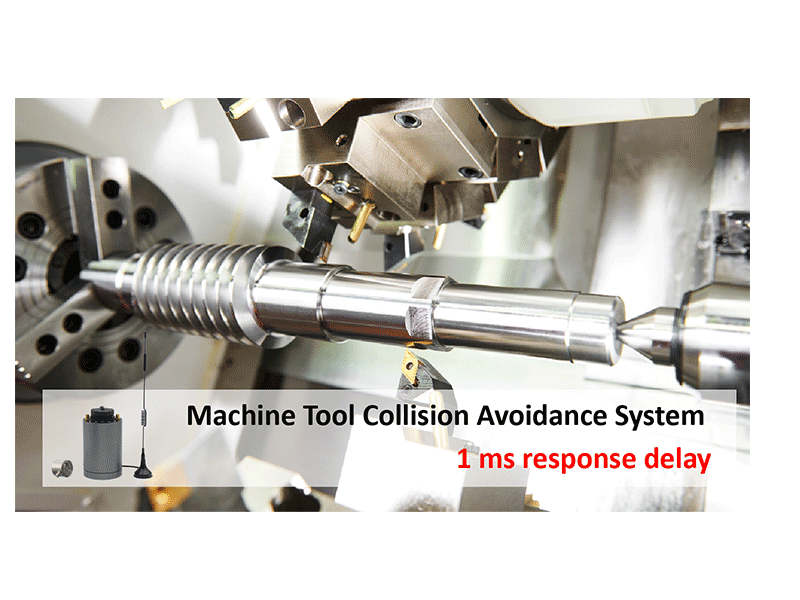

Machine Tool Collision Avoidance System
Qawrums Ltd. has launched a device for detecting and monitoring tool collisions - a machine tool collision avoidance system. When a tool collision occurs, the system rapidly identifies and issues an emergency stop signal within 1ms.
More Information -
QingCheng IoT Cloud Platform
Combines IoT and cloud computing technologies to provide data query, data display, remote configuration, intelligent monitoring and active alarming functions.
More Information
- Totally 1 Page/ 6 Items
