DESKTOP TYPE AE SYSTEM

Compared to the online remote AE systems, desktop type AE systems are connected to and accessible within the local network, either directly by wires or via wireless local networks. Such desktop type AE detection system is normally use with a computer or laptop on a desk or table on site or near the facility. It is usually conducted and real-time controlled by professionals to accurately locate the AE ‘Hits’ sources and analyse the AE data in full aspects.

There are two types of AE systems that can be used as desktop type systems, the SAEU3H multi-channel AE system and the RAEM systems respectively.

SAEU3H is a conventional AE acquisition instrument based on the Windows system. The RAEM series are based on the Linux system which makes it more stable and reliable in the remote monitoring applications. One of the main differences between the two systems is the maximum sampling rate. More information see “Selection of the Maximum Sampling Speed - The Technical Specification of Acoustic Emission (AE) System”.

•

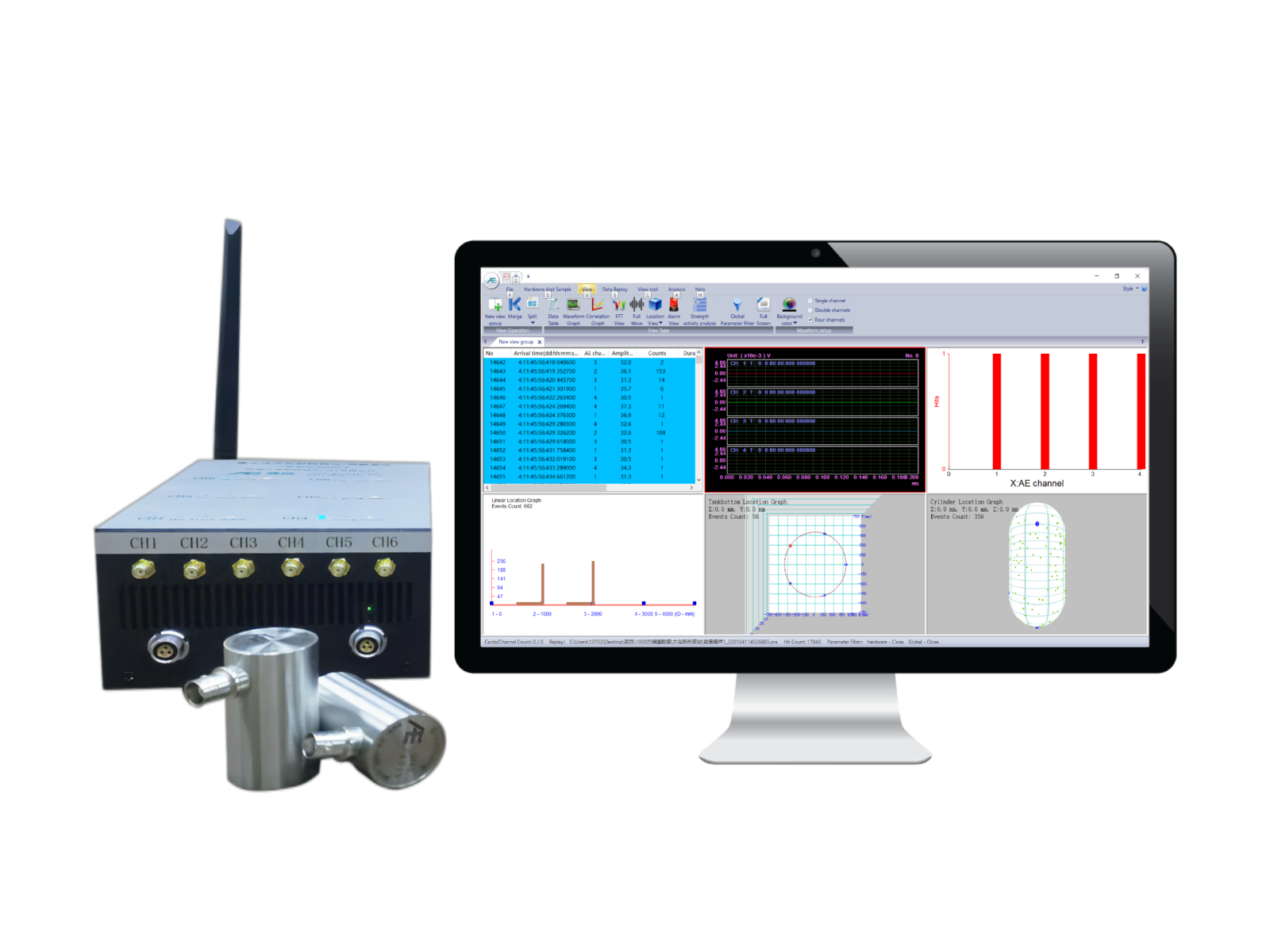

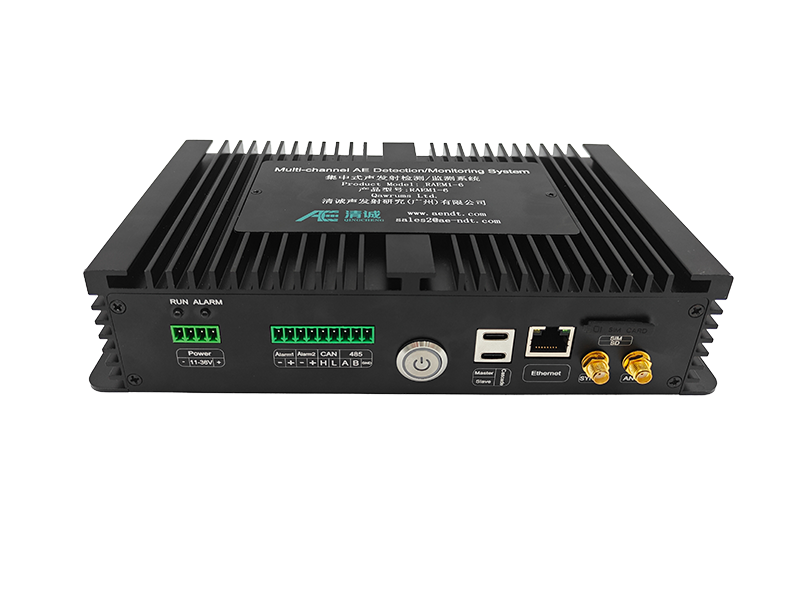

  RAEM1-6 Acoustic Emission Detection System

  RAEM1-6 multi-channel detector was developed based on acoustic wave( acoustic emission) technology and Linux system, combined with SWAE software, it could effectively carry out acoustic emission nondestructive testing for most of the industrial equipm

  More Information
•

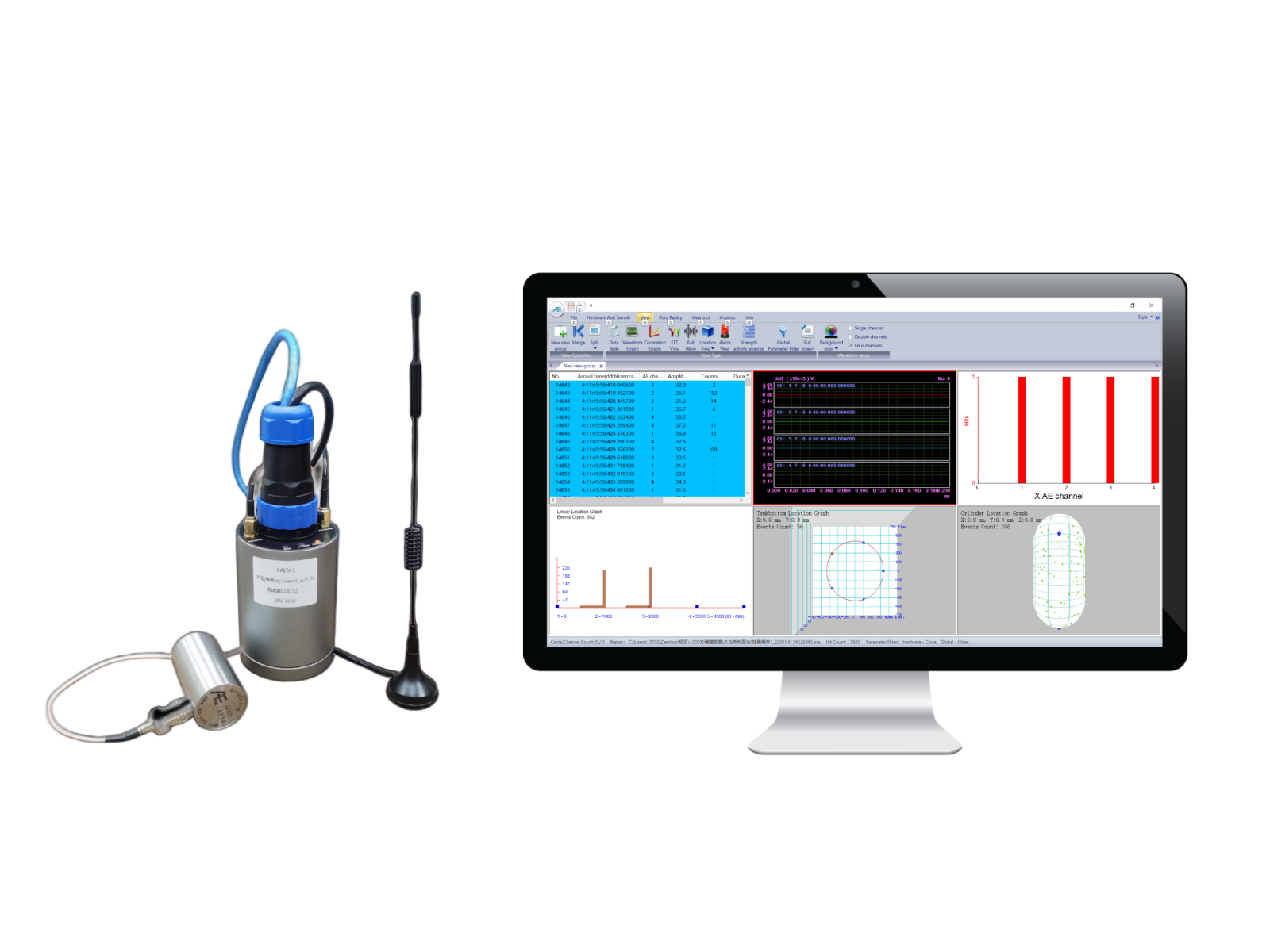

  RAEM1 - Full Function Acoustic Wave (Acoustic Emission) Detection System

  RAEM1 is not only a wireless remote Acoustic Emission monitoring system but also a standalone single channel detection system. Combined with SWAE software, it can effectively carry out acoustic emission nondestructive testing for most of the industr

  More Information
•

  SAEU3H Multi-Channel Acoustic Wave (AE) System

  The multi-channel acoustic wave (acoustic emission) testing system with a maximum sampling rate of 10M points/second per channel; each channel can be independently set; compatible to SWAE analysis software; three types of chassis are available.

  More Information
•

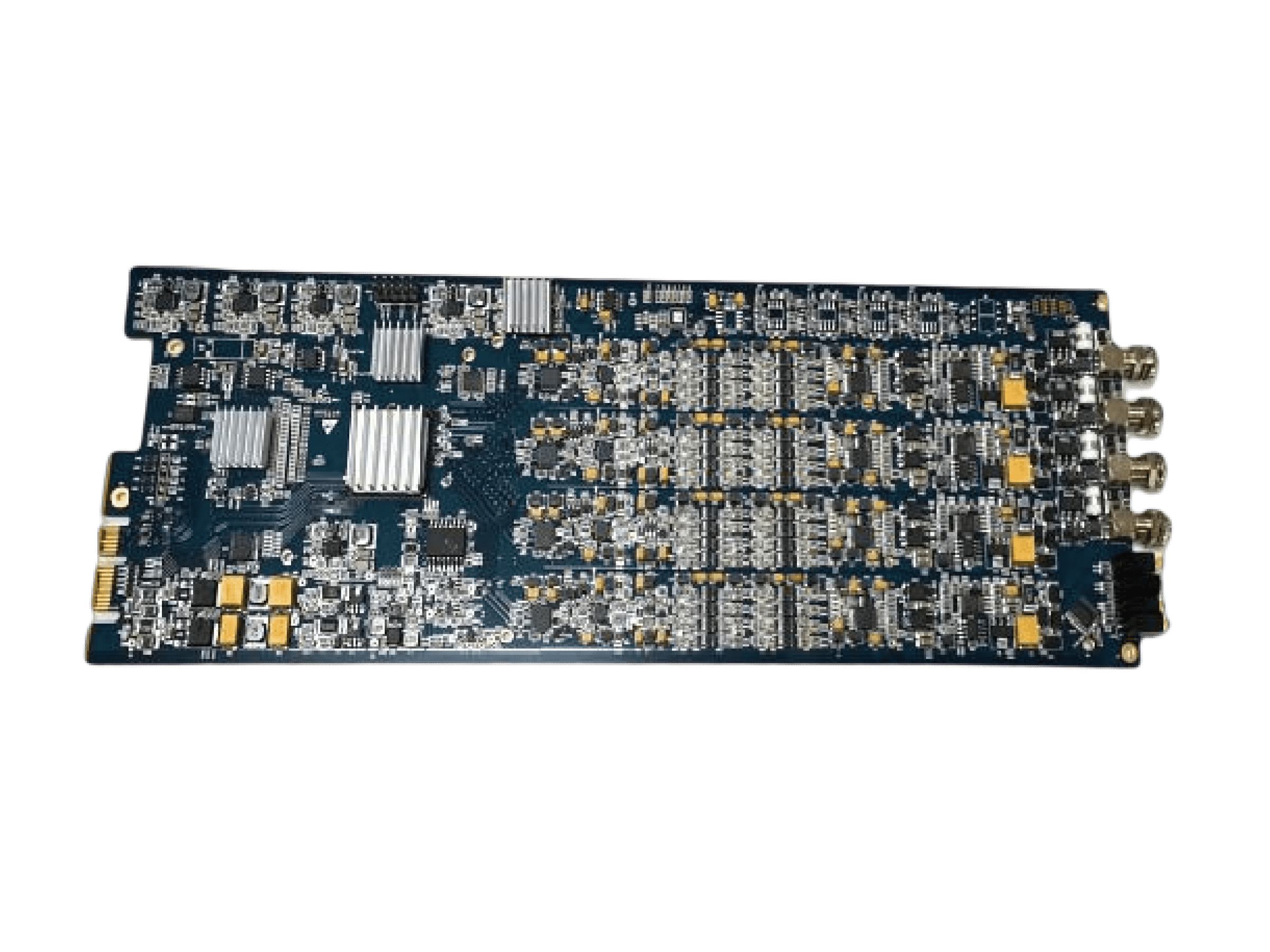

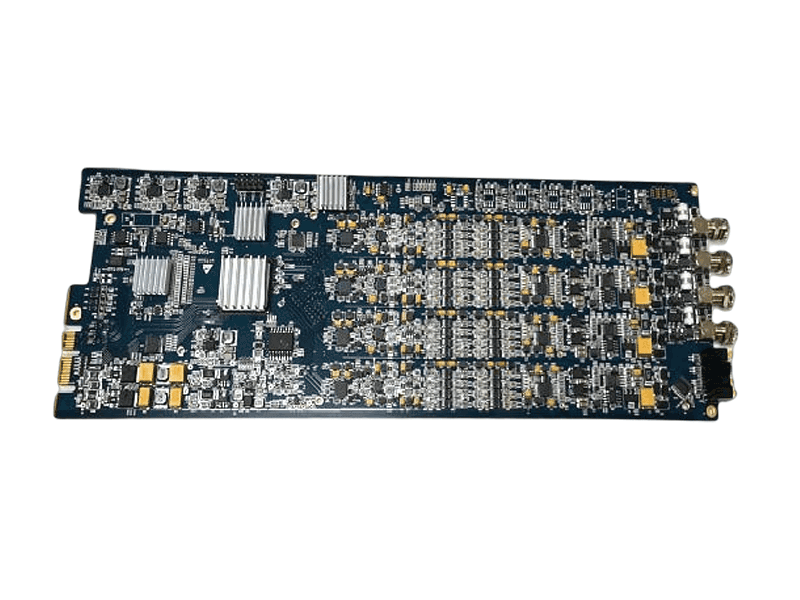

  AE Signal Acquisition and Processing Board

  There are two kinds of AE acquisition and processing boards, standard 4-channel AE board and E X -parameter 4-channel AE board. Both AE boards are compatible with SEAU3H chassis.

  More Information
•

  Multi-Channel AE Chassis

  We have three types of AE chassis, 4-channel, 20-channel and 48-channel, and the chassis can be cascaded into larger systems with more than 100 channels which could meet most requirements of industrial applications and laboratory research.

  More Information
•

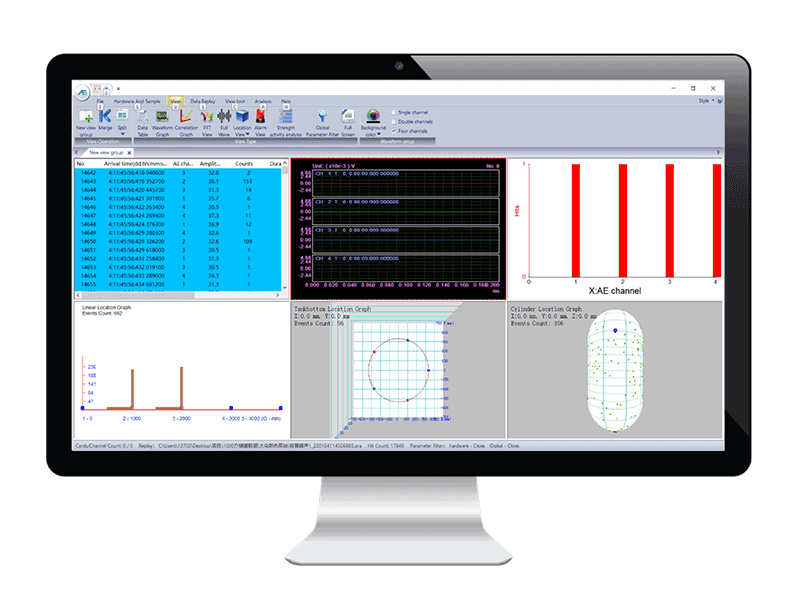

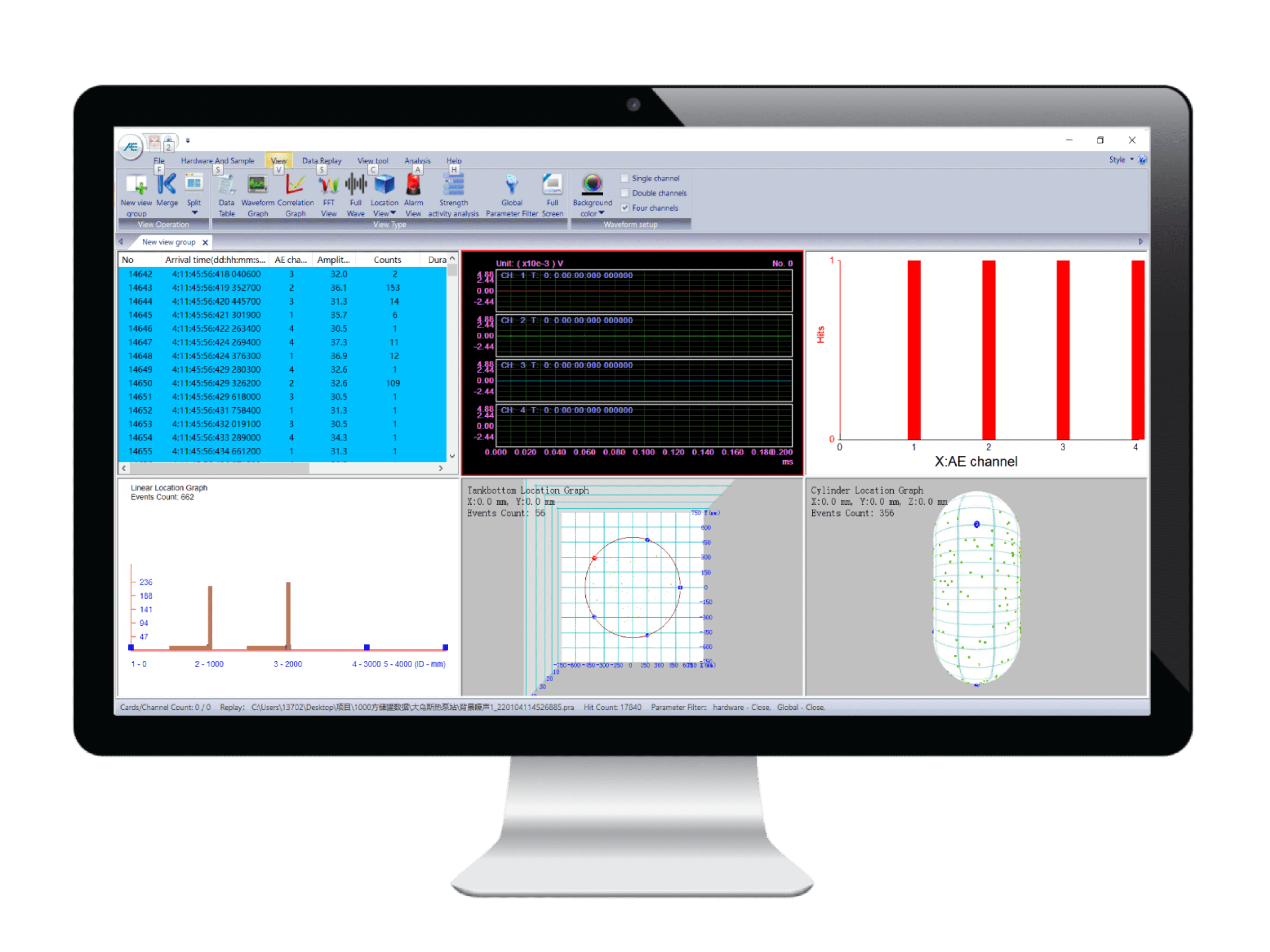

  SWAE Software - Acoustic Emission Signal Acquisition and Analysis

  SWAE software could process, display, store and replay acoustic emission signal feature and waveform. SWAE has a user-friendly interface, and it is easy to learn and operate.

  More Information
•

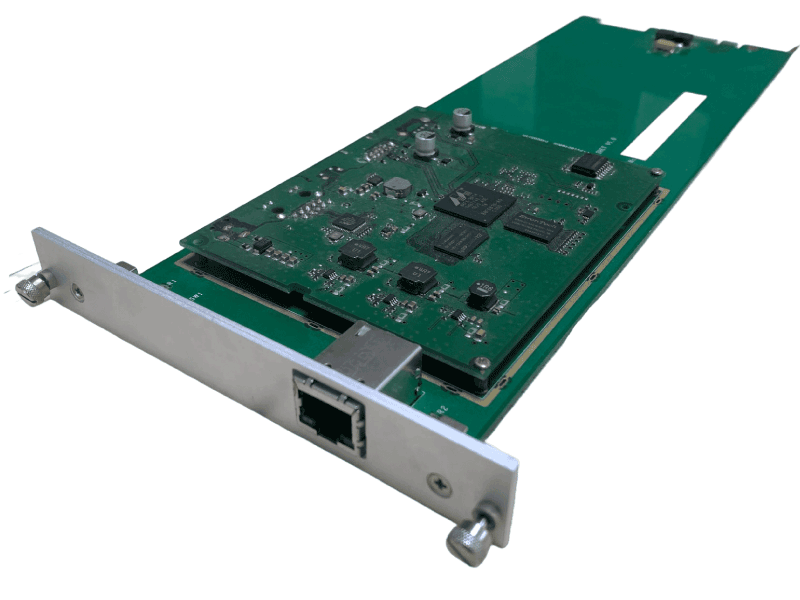

  AE Network communication board for multi-channel chassis

  For some special needs of the occasion to use,we have a Network Communication Board to chose, which could be a substitute of USB 3.0 port on the chassis.

  More Information
