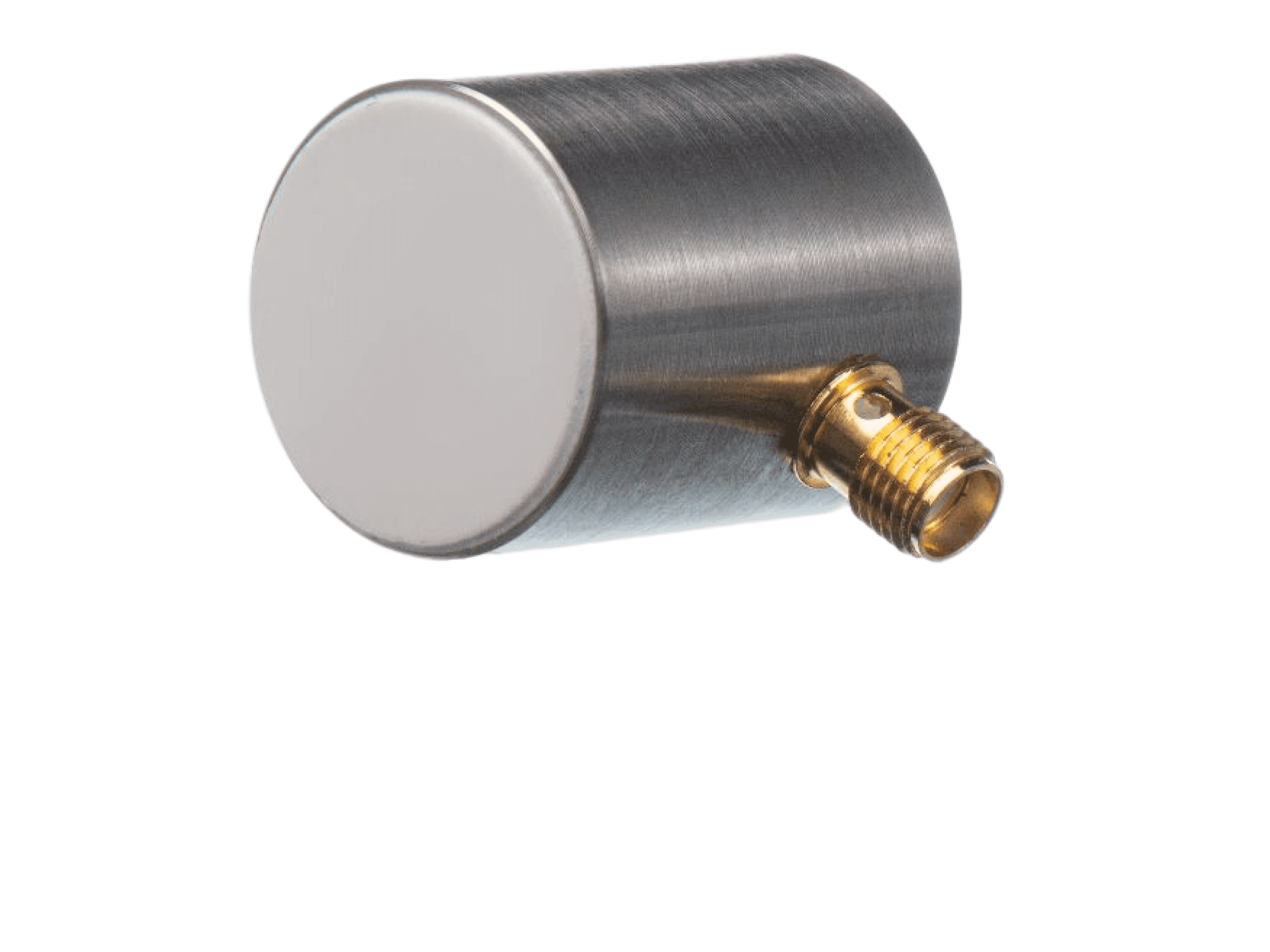

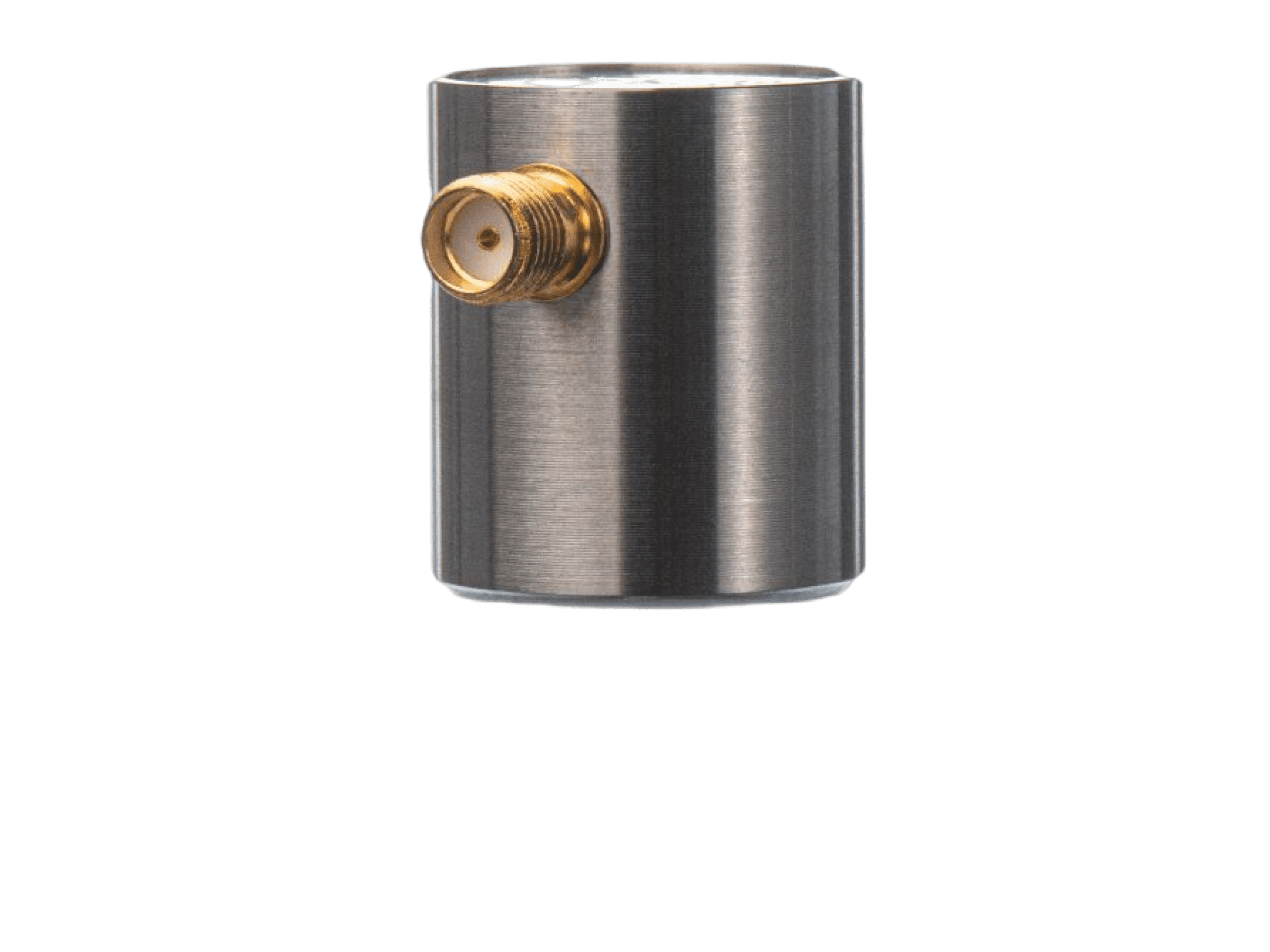

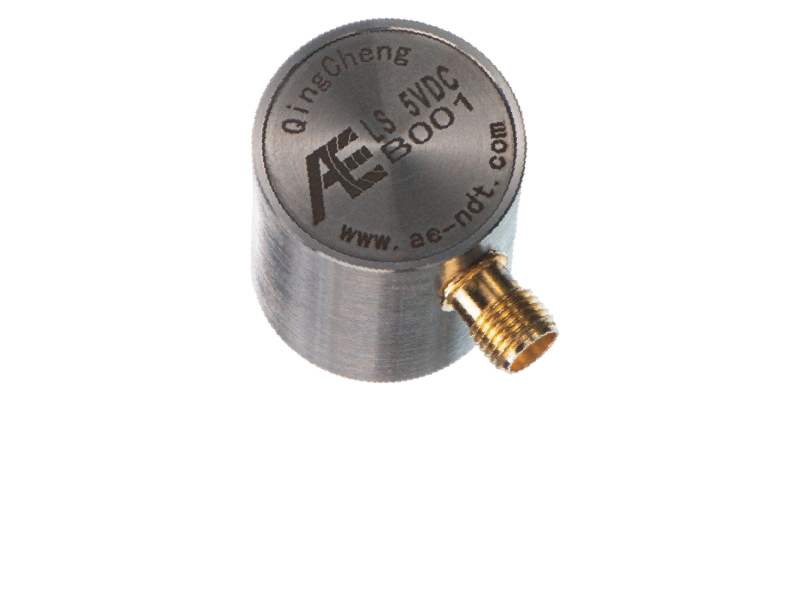

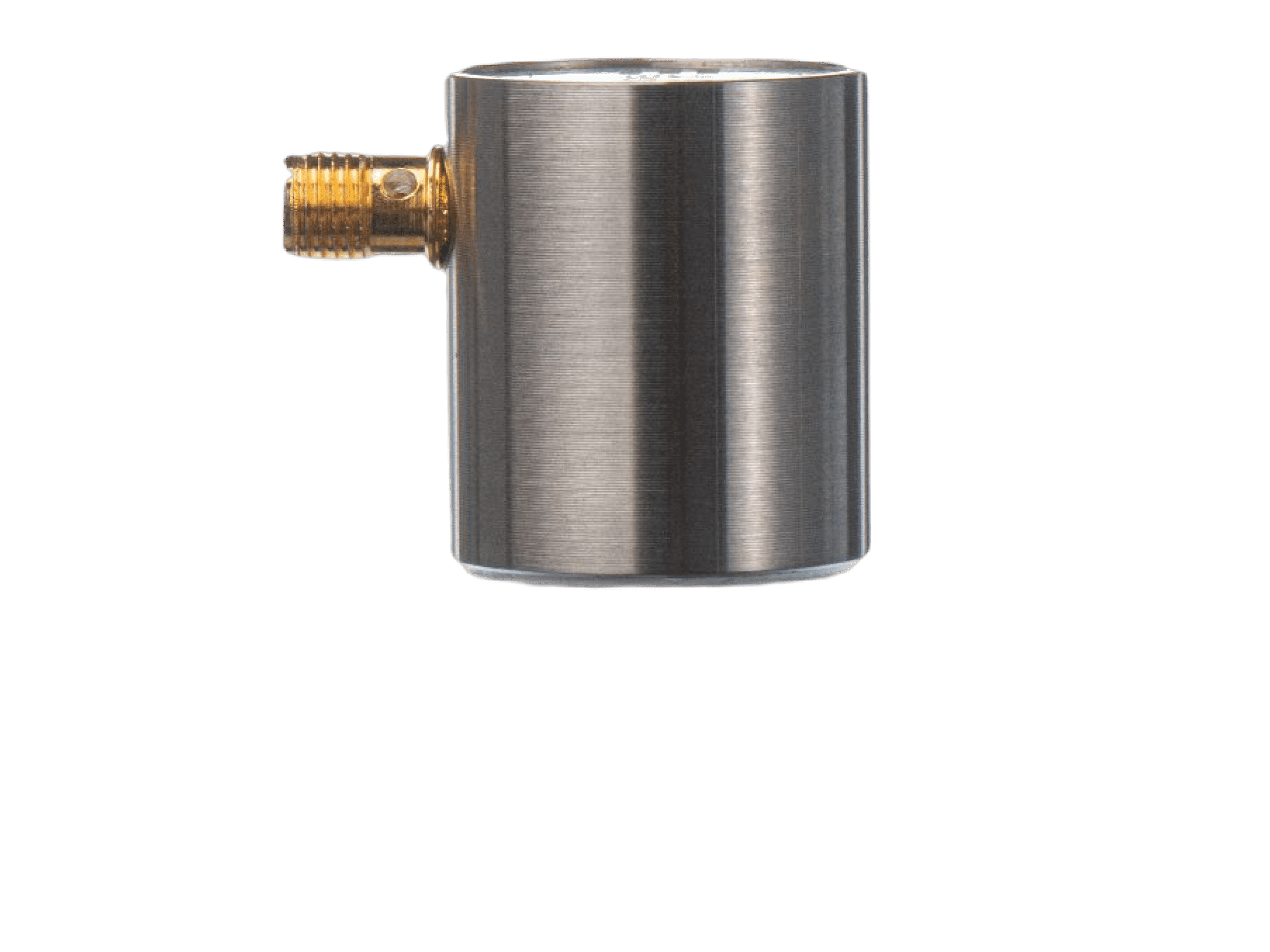

Intrinsically Safe AE Sensor LS 5VDC_60-400kHz

Model:

LS 5VDC(type B)

Description:

LS 5VDC is an intrinsically safe explosion-proof acoustic emission sensor with build-in 26dB5V preamplifier, whichis well suited for detecting leakege and corrosion in harsh environment.

Features:

Intrinsically safe,stainless steel case and ceramic interface, SMA connector.

ENQUIRY NOWCONTACT:+86-20-32290092

Applications

The LS 5VDC is well suited for detecting leakege and corrosion in harsh environment that requires intrinsic safety and for structures health monitoring such as pipelines, vessels, bridges etc.



Technical Specs

Resonant Freq.   Ref V/(m/s)

150kHz

Frequency Range

60kHz-400kHz

Sensitivity Peak   Ref V/(m/s)

>75dB

Integral preamplifier

26dB 5V

Preamp. Impedance

50Ω

Working Temp.

-20 to 50

SizeDxH

22×25.5mm

Weight

39 g

Case Material

SUS-304

Face Material

Ceramic

Protecting Grade

IP62

Connector

SMA

Connector Location

Side

Accessories

Signal cable model

RG178/RG316

Hold-down

Saddle type








Further Information


Intrinsically safe,stainless steel case and ceramic interface, SMA connector.
