GH150/1 High Temperature AE Sensor
Model：
GH150/1 sensor
Description：

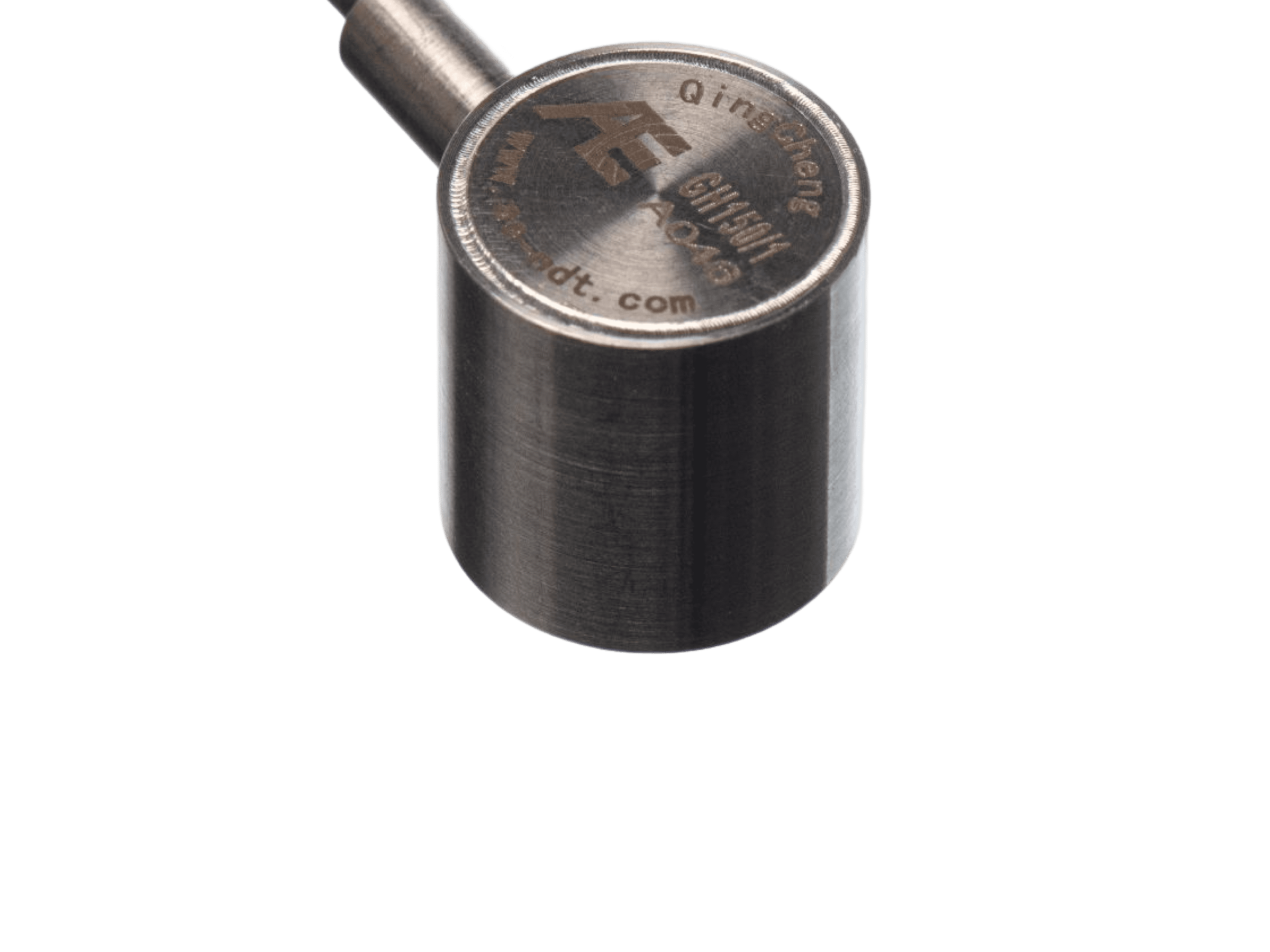

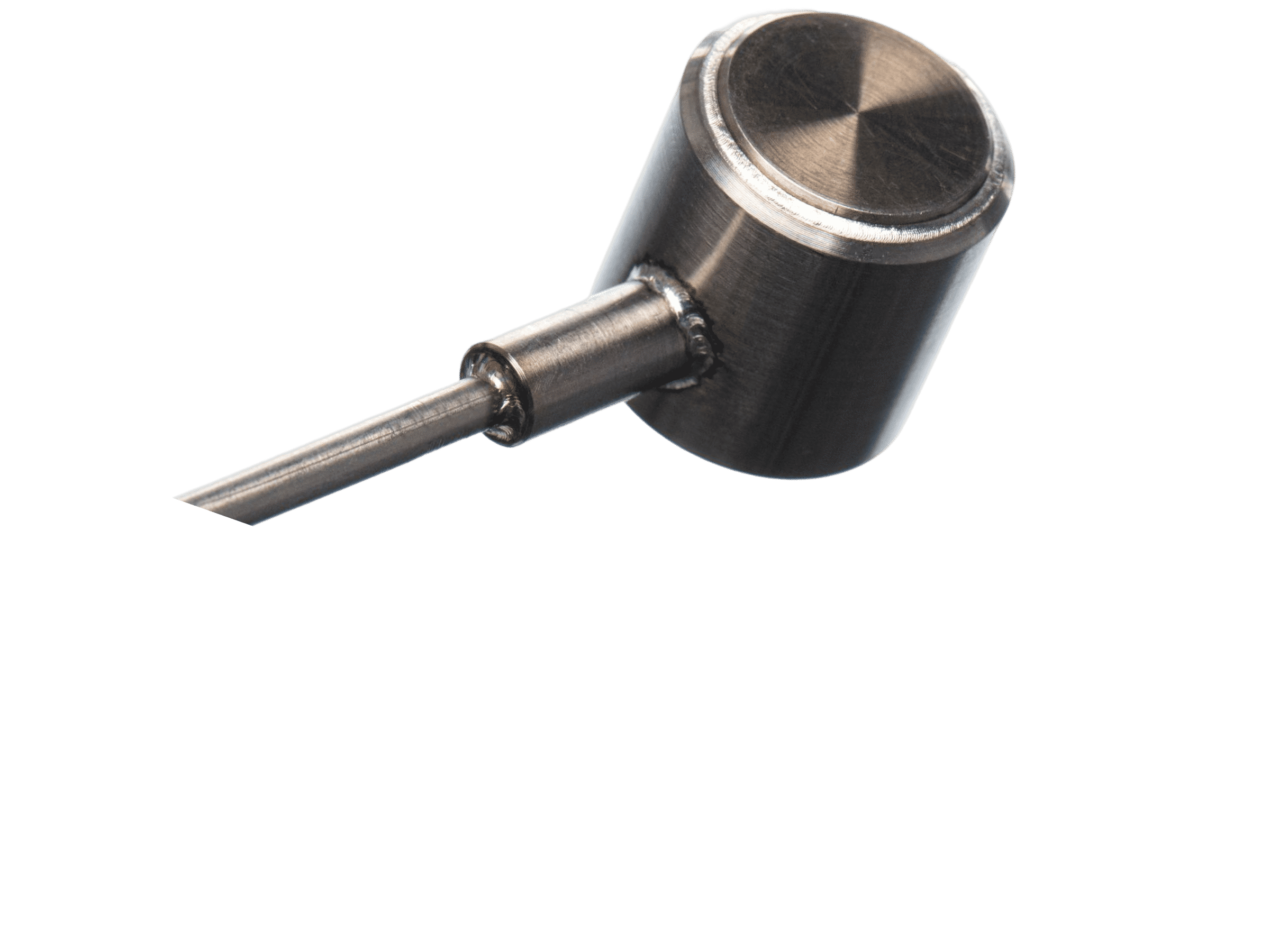

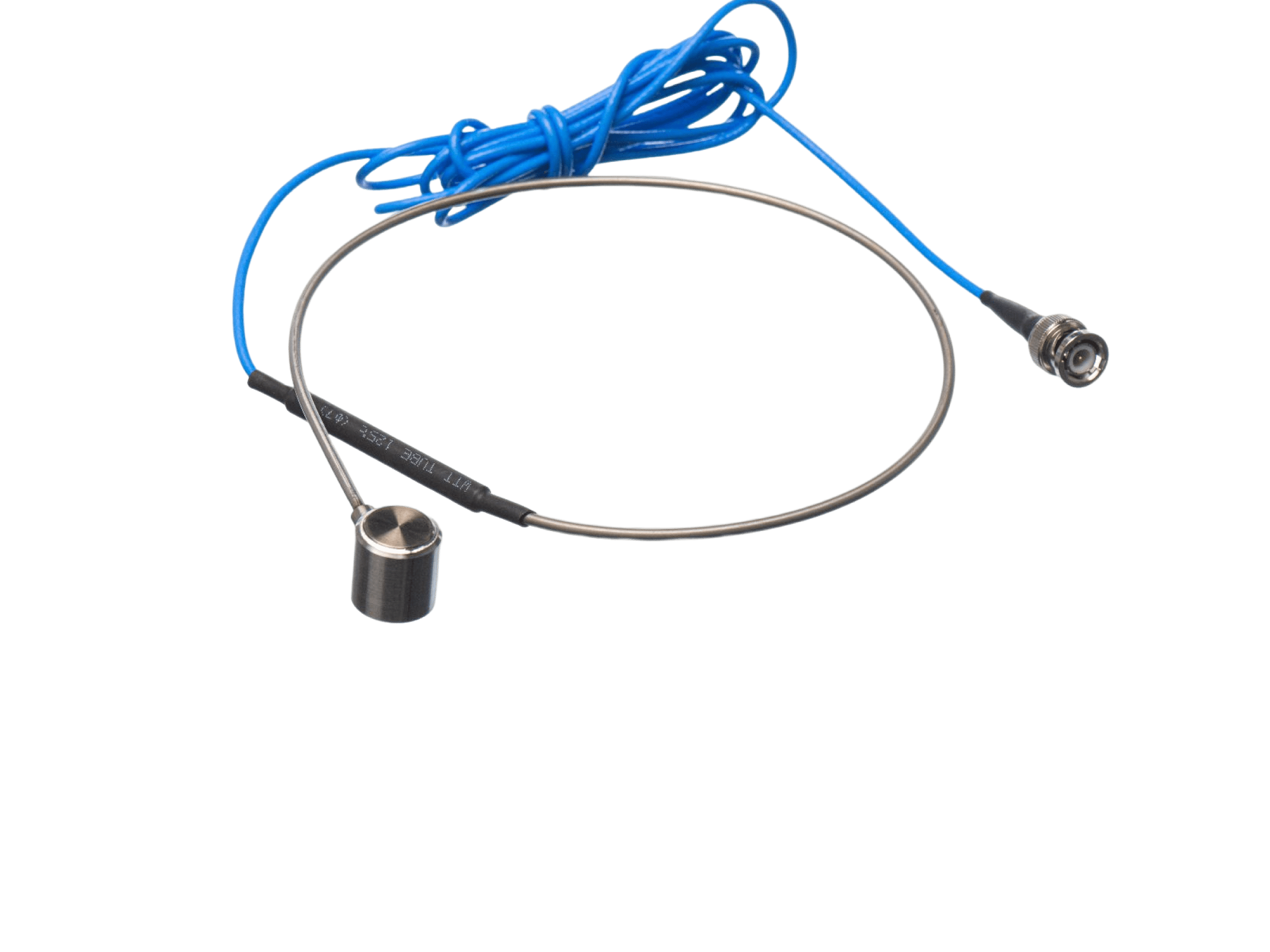

Ultra high temperature AE sensor with 0.5 meters high temperature resistant metallic tube and 2 meters cable, shell and contact surface are stainless invar steel, could be installed in ultra high temperature area.
Features：
Full stainless invar steel, could be installed in high temperature environment
ENQUIRY NOWCONTACT：+86-20-32290092
Applications
GH150/1 is suitable for using in harsh environment such as power plants, and for detecting of metallic pressure vessels, tanks, pipelines etc.
|
Technical Specs |
|
|
Resonant Freq. Ref V/(m/s) |
150kHz |
|
Frequency Range |
60kHz-400kHz |
|
Sensitivity Peak Ref V/(m/s) |
>73dB |
|
Working Temp. |
-20 to 350℃ |
|
Size（DxH） |
19×19.5mm |
|
Weight |
105g |
|
Case Material |
Stainless Invar Steel |
|
Face Material |
Stainless Invar Steel |
|
Protecting Grade |
IP68 |
|
Connector |

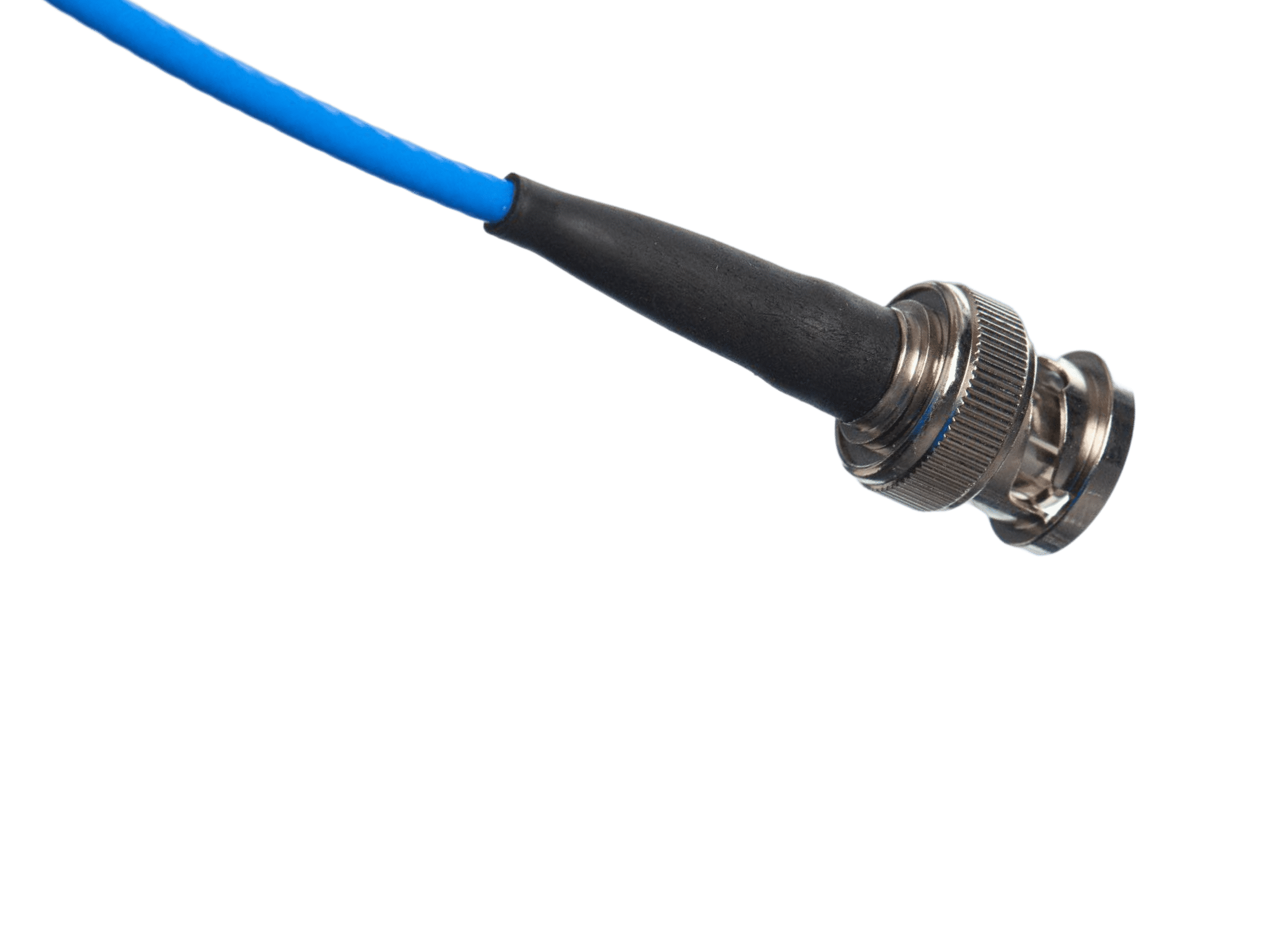

BNC on integral cable |
|
Connector Location |
Side |
|
Accessories |
|
|
Signal cable model |
SYV-50-3/STYV-50-2 |
|
Hold-down |
H20 |
|
Preamplifier |
PAS/PAV |
