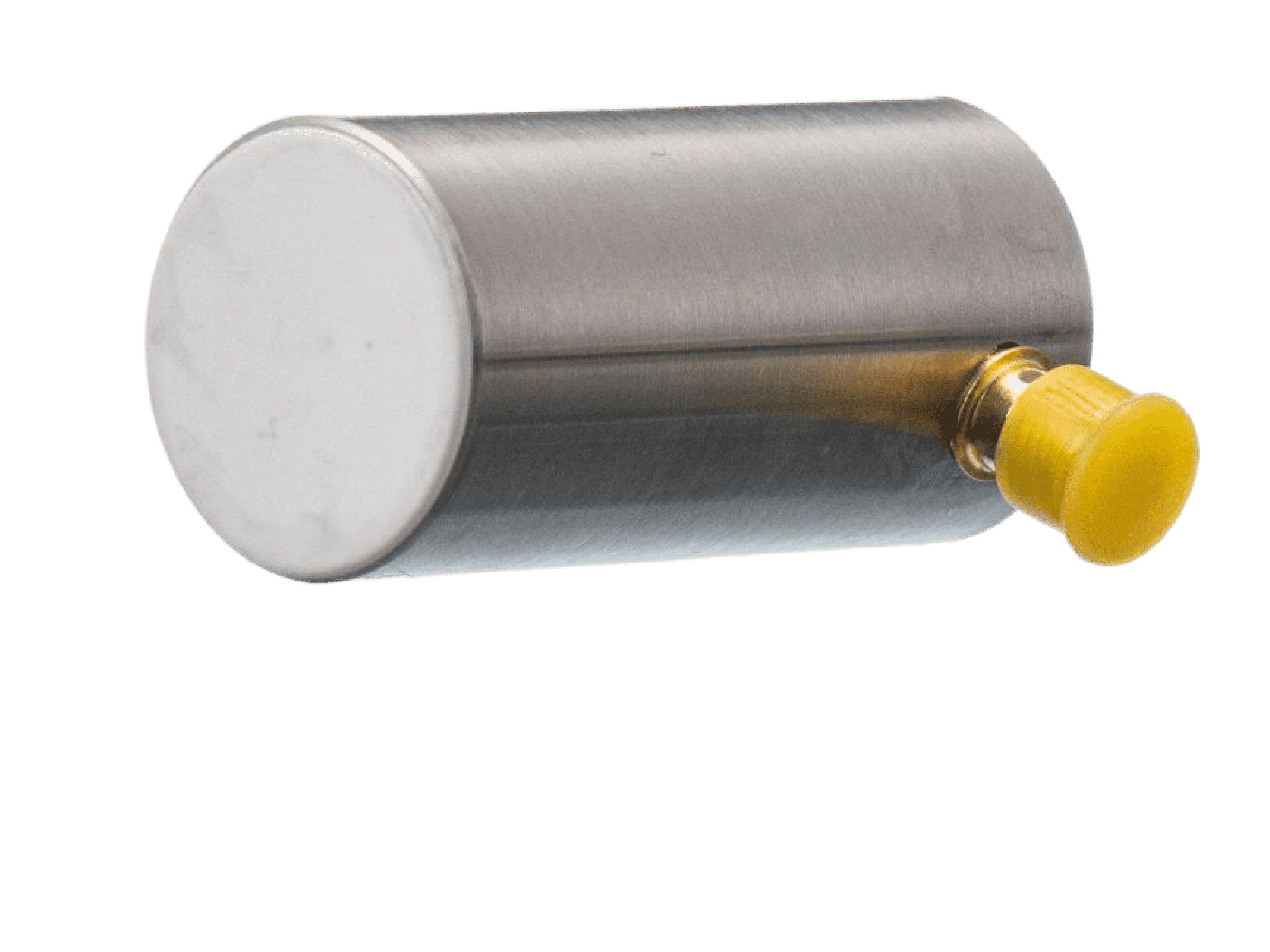

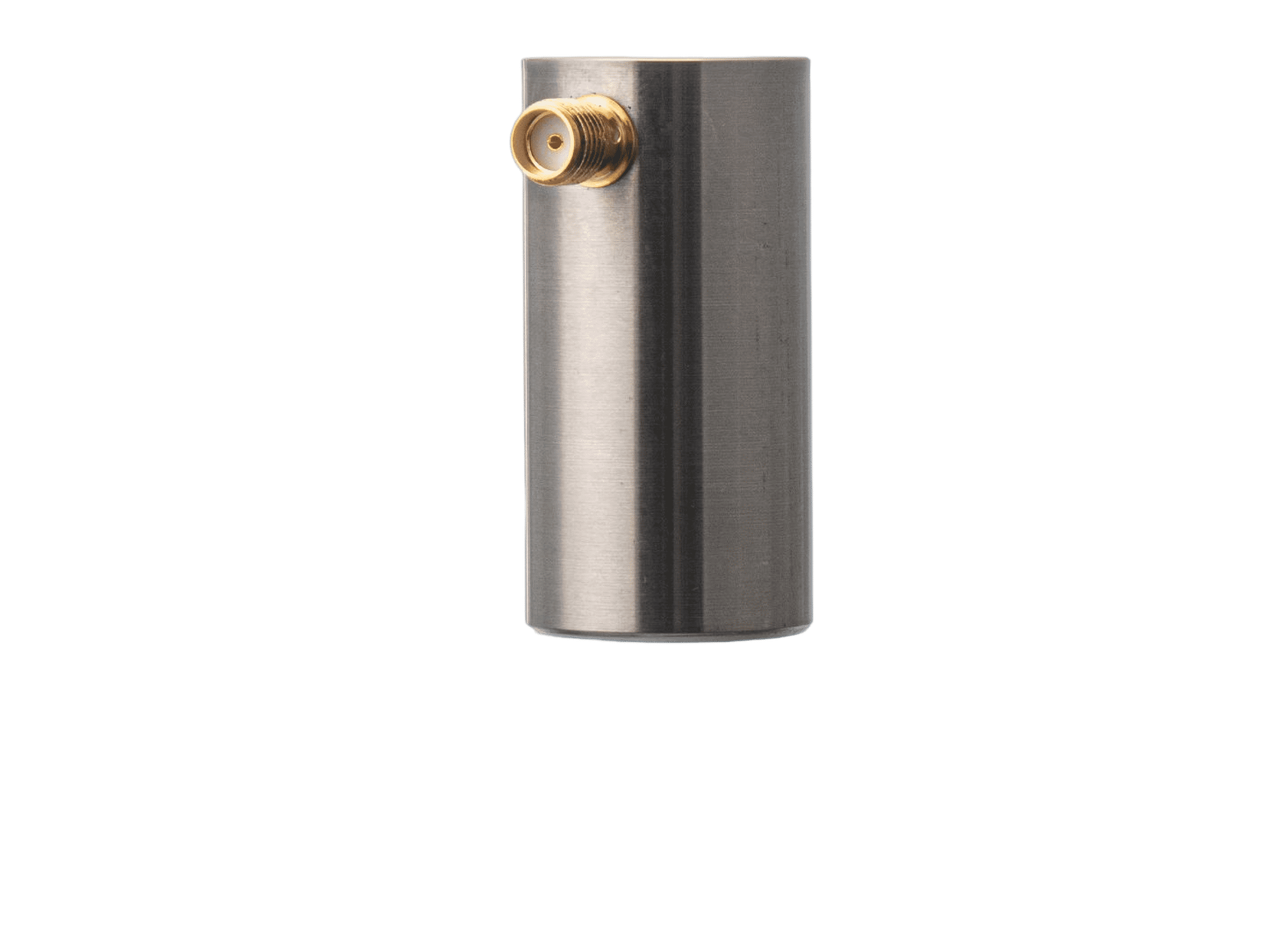

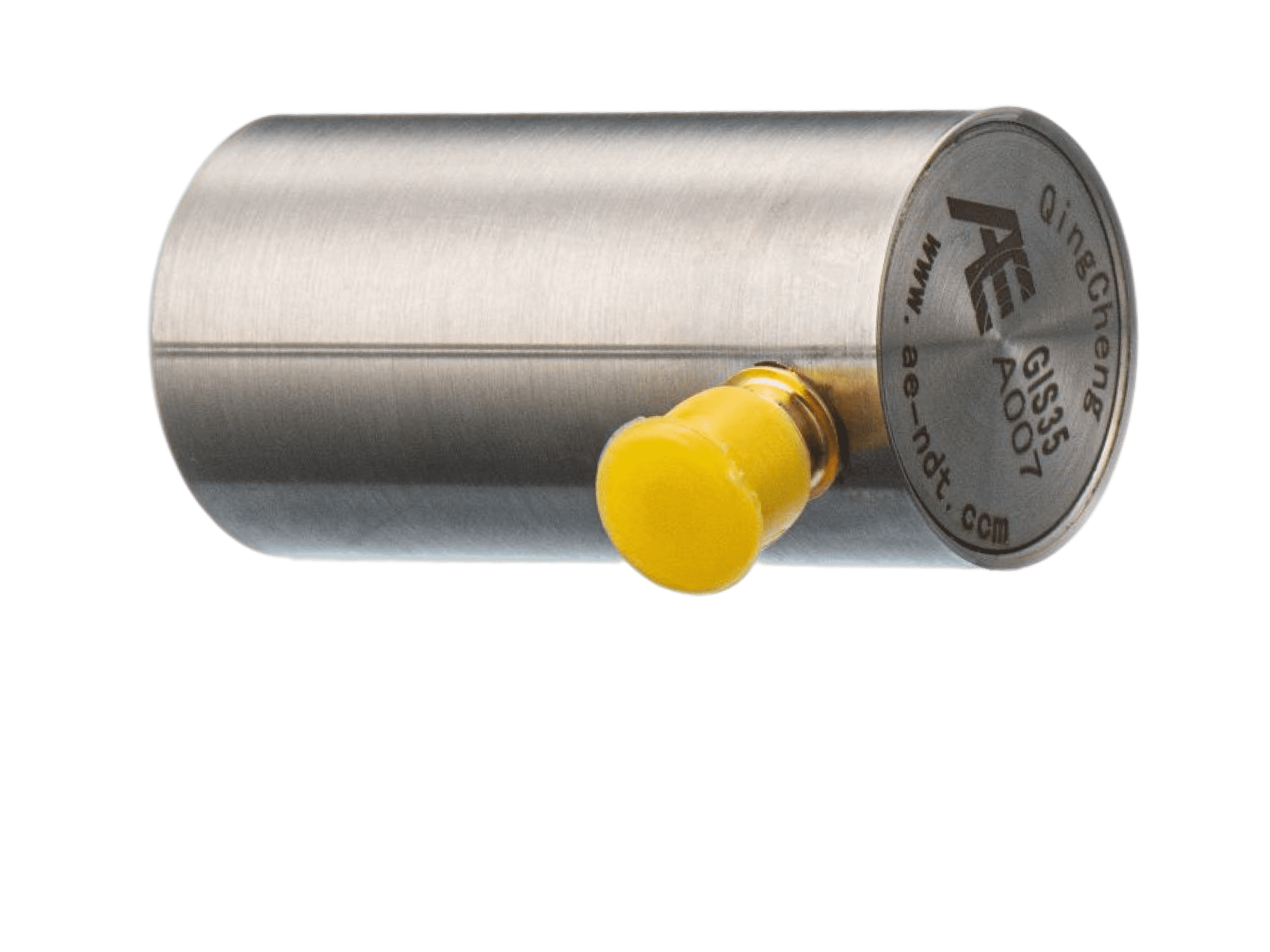

GIS35 Intrinsically Safe Acoustic Emission Sensor
Model：
GIS35 sensor
Description：
Intrinsically safe explosion-proof sensor. The GIS35 is well suited for detecting leakege and corrosion in harsh environment that requires intrinsic safety and for structures health monitoring such as pipelines, vessels, bridges etc.
Features：
Passive piezoelectric AE sensor andintrinsically safe explosion-proof sensor with build-in 26dB5V preamplifier.
ENQUIRY NOWCONTACT：+86-20-32290092
Applications
The GIS35 is well suited for detecting leakege and corrosion in harsh environment that requires intrinsic safety and for structures health monitoring such as pipelines, vessels, bridges etc.
|
Technical Specs |
|
|
Resonant Freq. Ref V/(m/s) |
40kHz |
|
Frequency Range |
15kHz-70kHz |
|
Sensitivity Peak Ref V/(m/s) |
>75dB |
|
Integral preamplifier |
26dB5V |
|
Preamp. Impedance |
50Ω |
|
Working Temp. |
-20 to 50℃ |
|
Size（DxH） |
22×42.6mm |
|
Weight |
76 g |
|
Case Material |
SUS-304 |
|
Face Material |
Ceramic |
|
Protecting Grade |
IP62 |
|
Connector |
SMA |
|
Connector Location |
Side |
|
Accessories |
|
|
Signal cable model |
RG178/RG316 |
|
Hold-down |
Saddle type |
