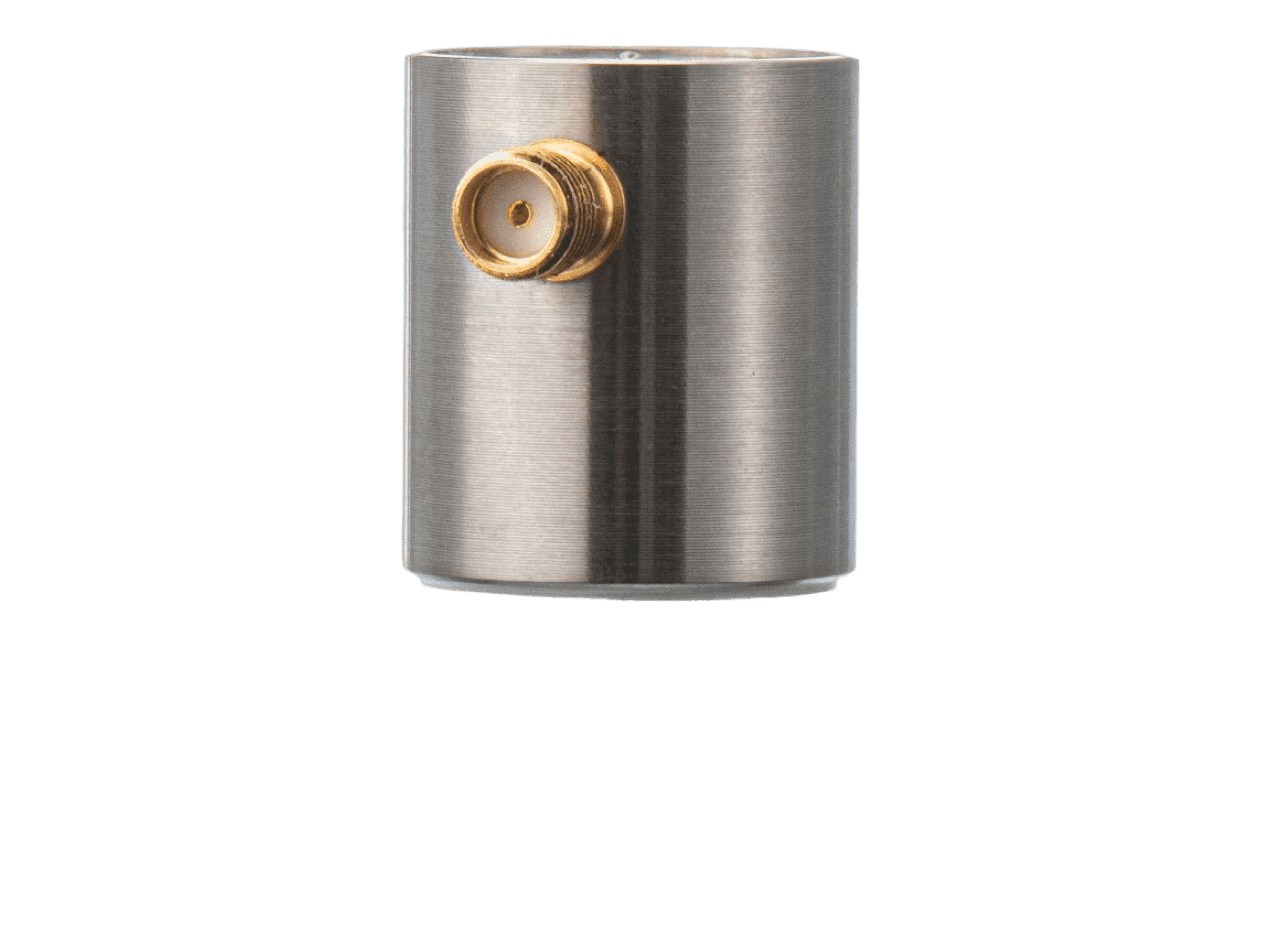

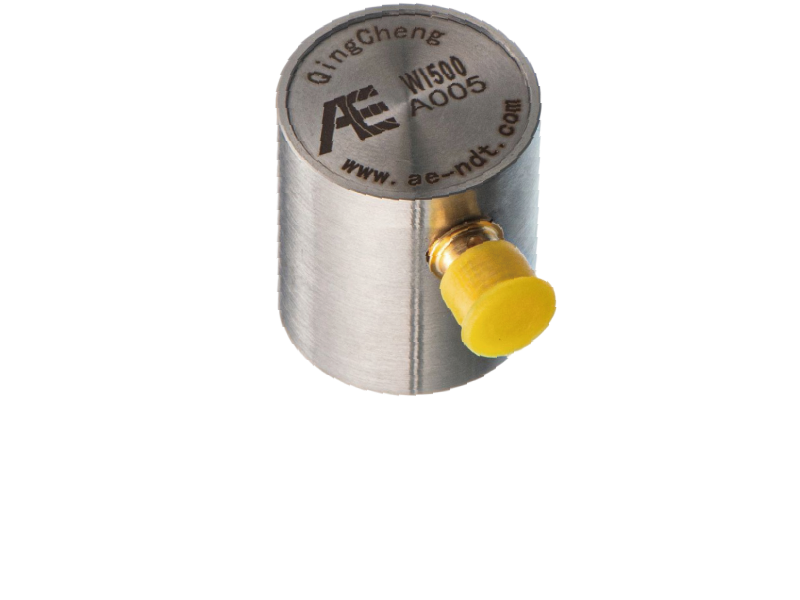

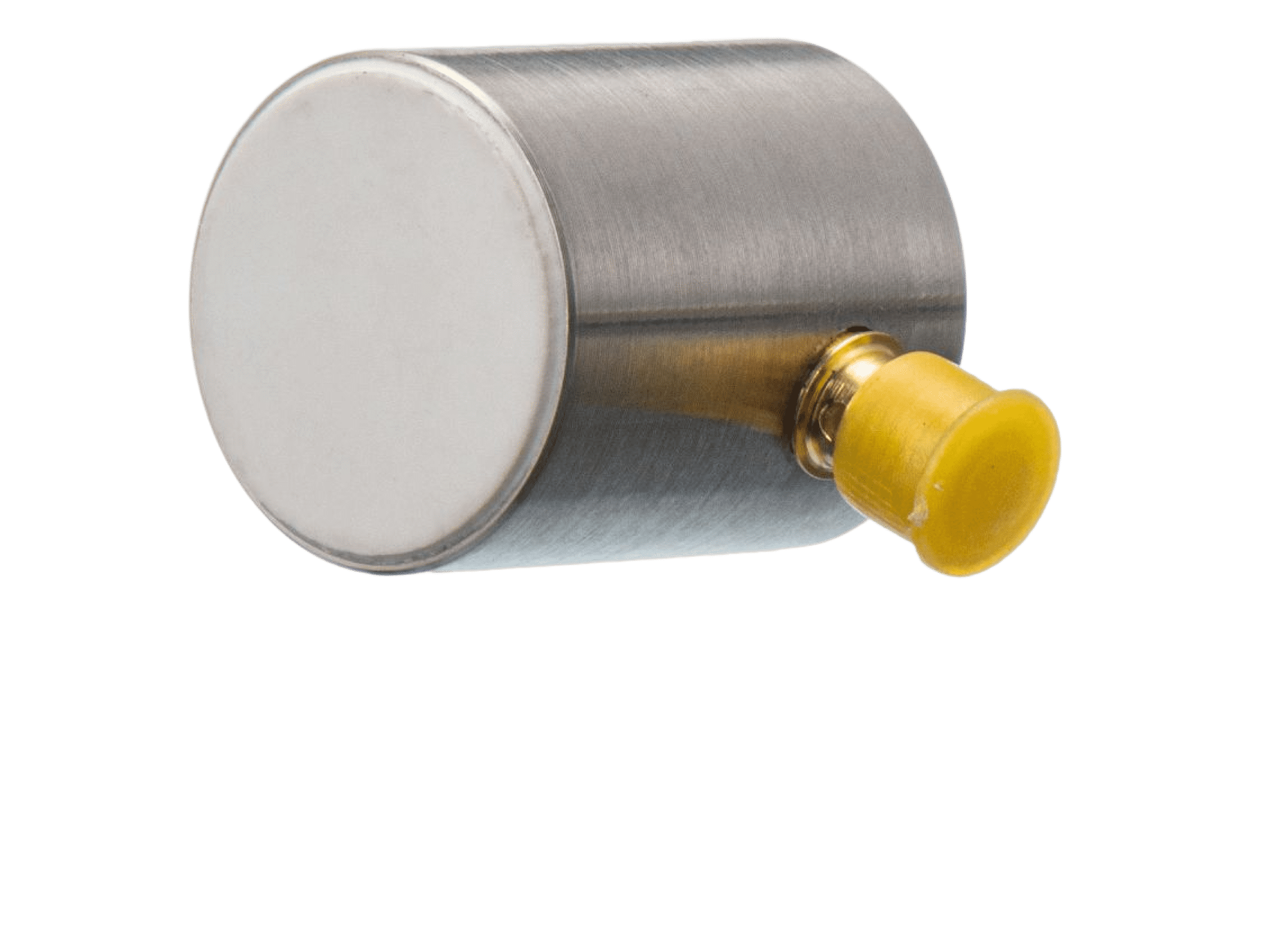

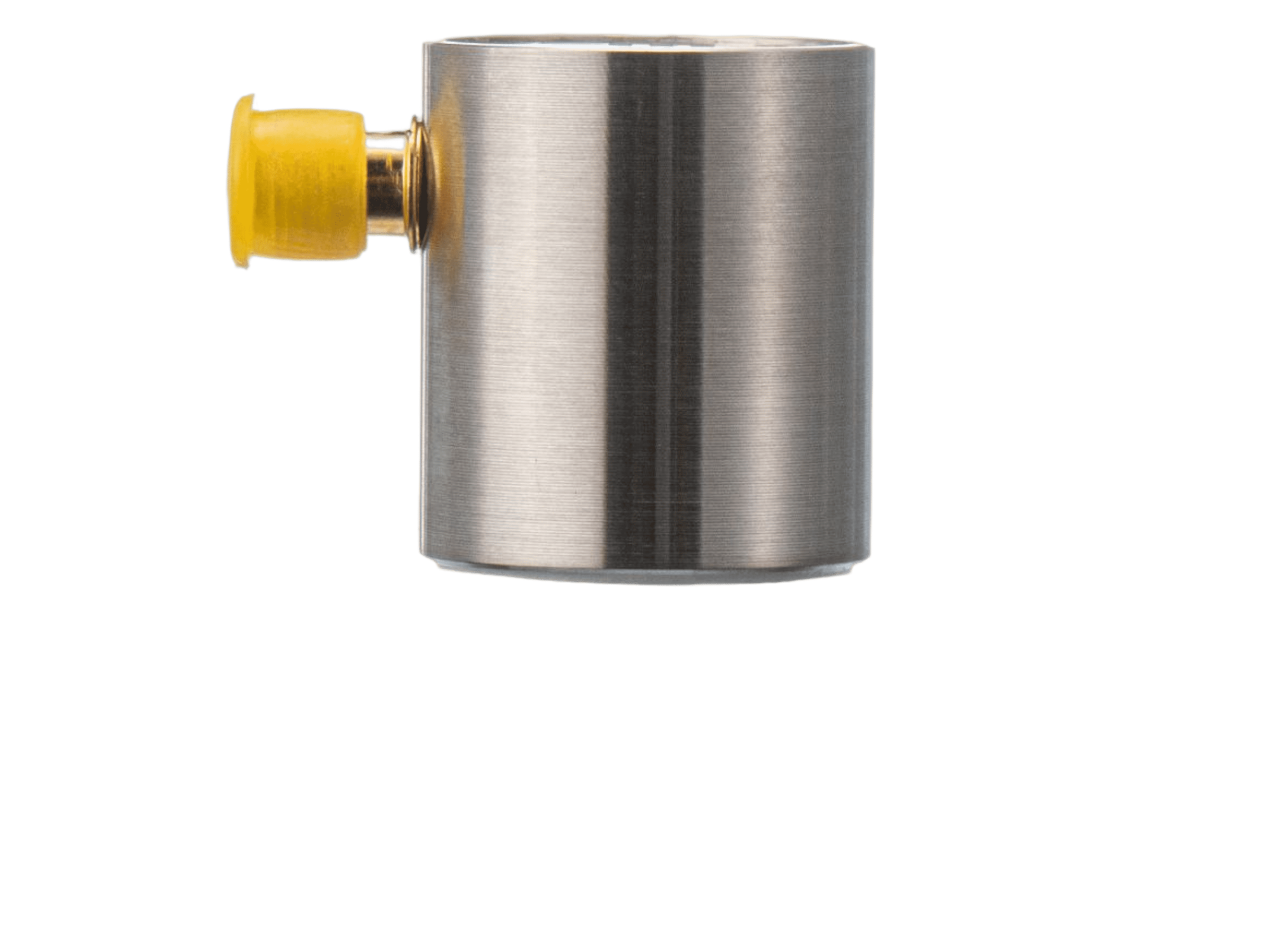

WI500 Wideband Integral Preamp AE Sensor

Model:

WI500 sensor

Description:

WI500 is a passive piezoelectric acoustic emission sensor with wideband and preamplifier built-in. It is specially designed to provide a flat frequency response to acoustic emission signals over its entire frequency bandwidth.

Features:

Passive piezoelectric sensor with preamplifier built-in, stainless steel case and ceramic interface.

ENQUIRY NOWCONTACT:+86-20-32290092

Applications

WI500 is a passive piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected to the additional preamplifier, thus simplifying the wiring work. It is well suited for laboratory studying of surface displacement of structures due to different AE modes.It also could be used in applications requiring frequency analysis and composites research.  It could be easily mounted with a magnetic hold-down.



Technical Specs

Resonant Freq.   Ref V/(m/s)

500kHz

Frequency Range

100kHz-1000kHz

Sensitivity Peak   Ref V/(m/s)

>65dB

Integral preamplifier

40dB 28V

Preamp. Impedance

50Ω

Working Temp.

-20 to 50

SizeDxH

22×25.5mm

Weight

33 g

Case Material

SUS-304

Face Material

Ceramic

Protecting Grade

IP62

Connector

SMA

Connector Location

Side

Accessories

Hold-down

Saddle type

Signal cable model

RG178/RG316




Further Information




Passive piezoelectric sensor with preamplifier built-in, stainless steel case and ceramic interface.
