GM150/1 Sensor

Model:

GM150/1

Description:

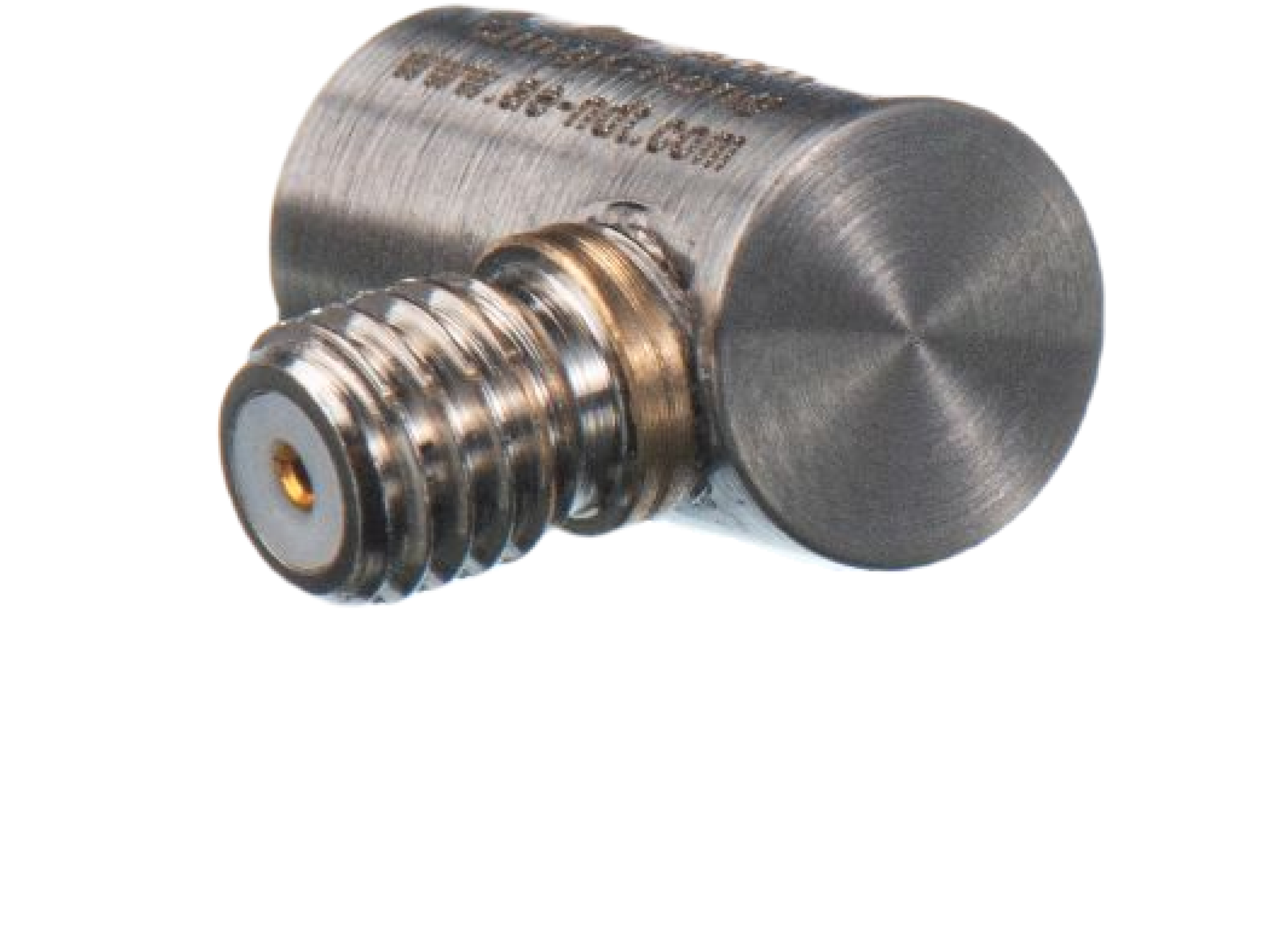

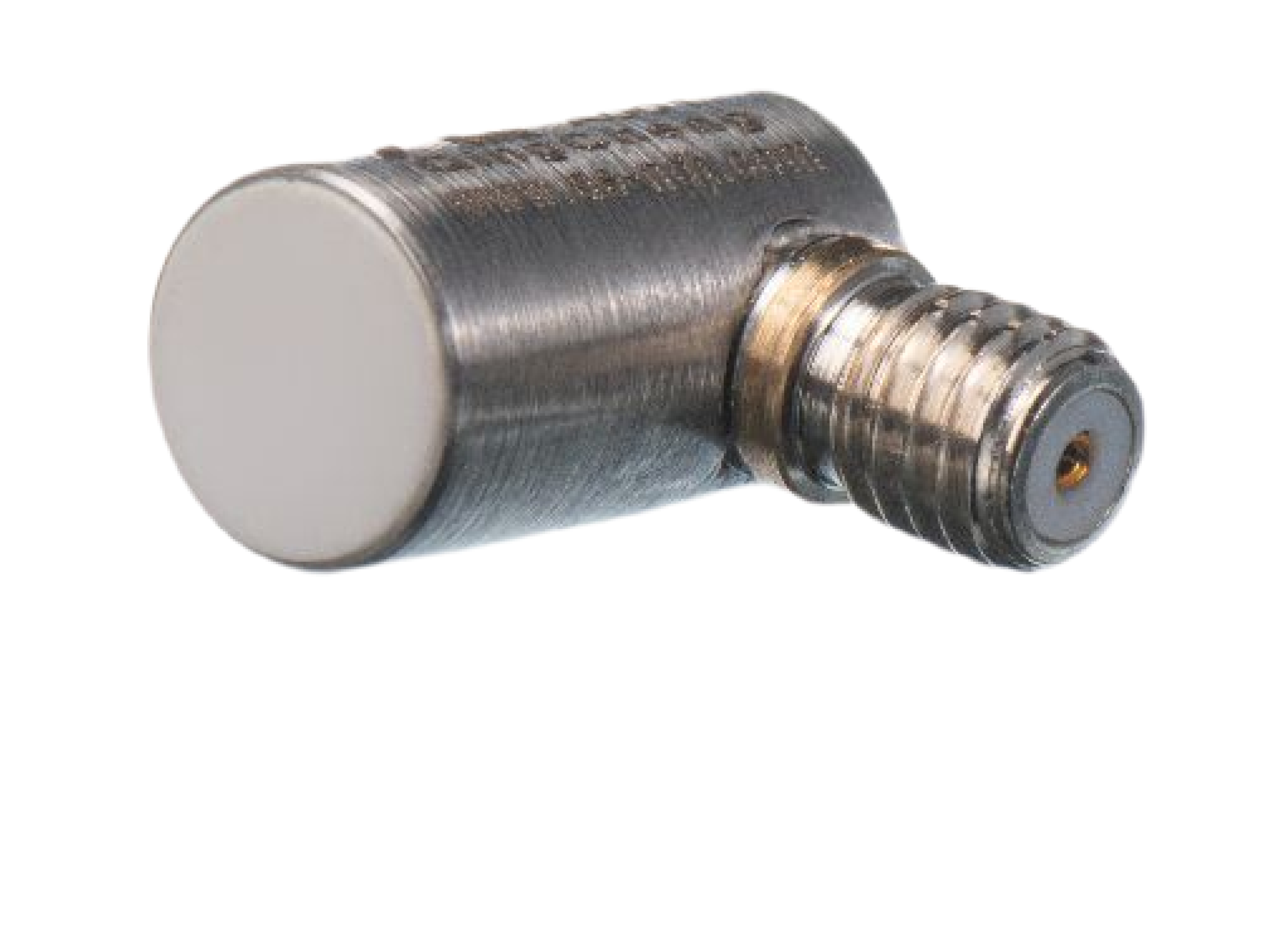

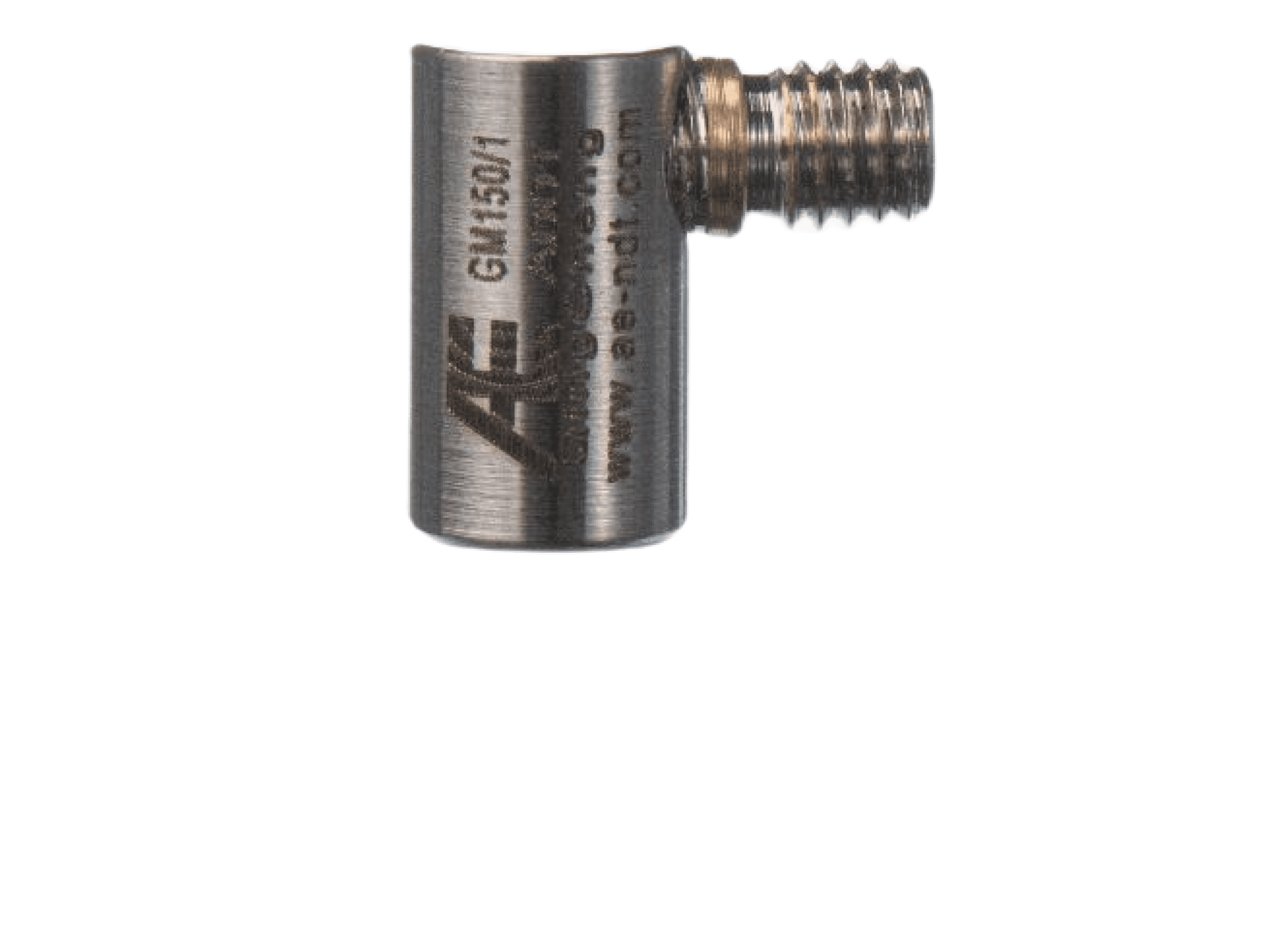

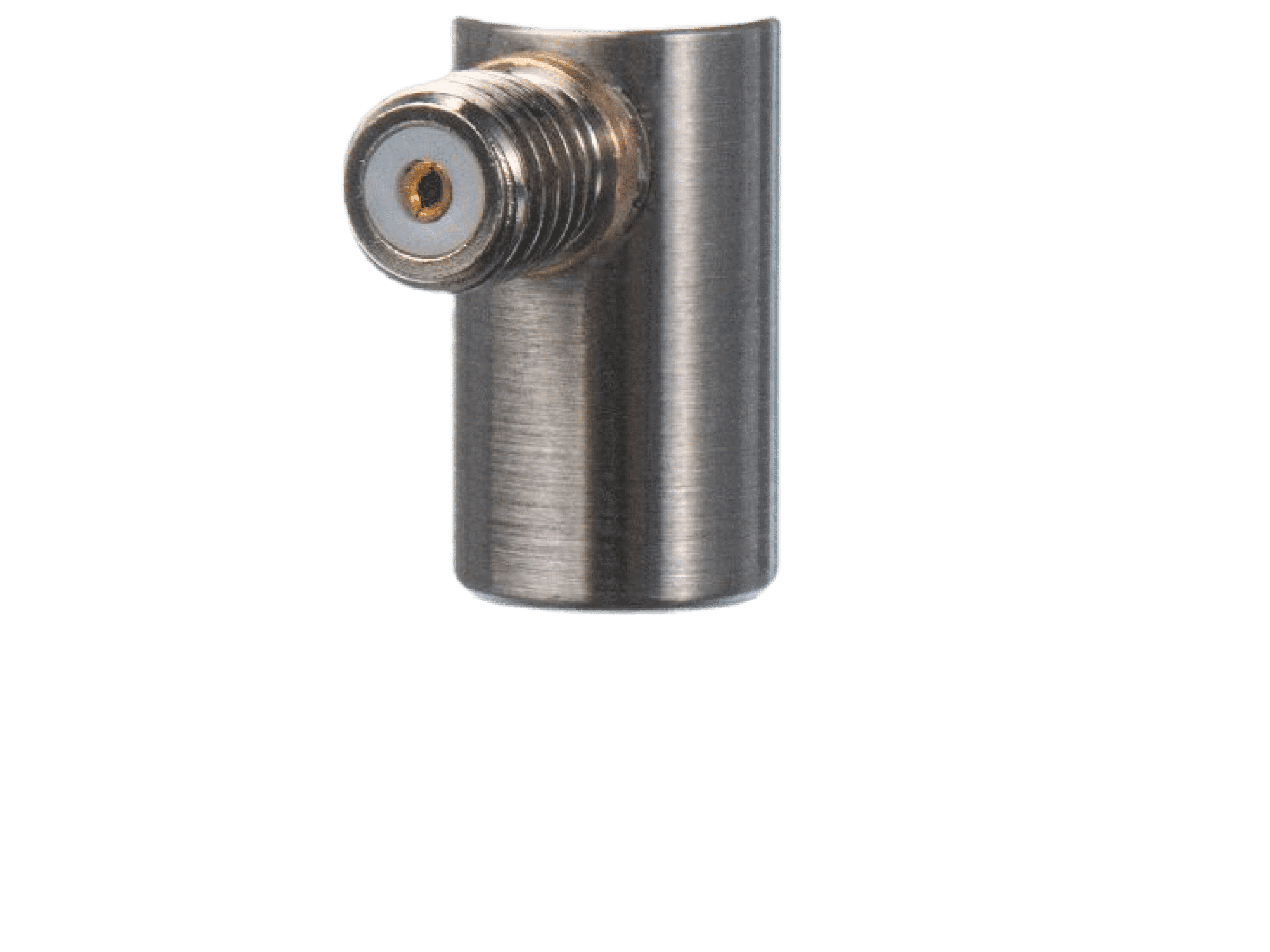

Passive piezoelectric miniature AE sensor. The connector was designed on the side of the sensor and the small size makes it possible to work in narrow space.

Features:

Stainless steel case and ceramic interface, M5 connector.

ENQUIRY NOWCONTACT:+86-20-32290092

GM150/1 Sensor

Applications

GM150/1 is a passive piezoelectric miniature AE sensor, it can be used for monitoring common structures such as pipelines, vessels, bridges, storage tanks etc. It can easily mounted in small and tight space.


Technical Specs
Resonant Freq.   Ref V/(m/s)150kHz
Frequency Range70kHz-280kHz
Sensitivity Peak  Ref V/(m/s)>68dB
Working Temp.-20 to 120℃
Size(DxH)7.8×14mm
Weight5g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP62
ConnectorM5
Connector LocationSide
Accessories
Signal cable modelRG178/RG316
Hold-downSaddle type
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Stainless steel case and ceramic interface, M5 connector.
