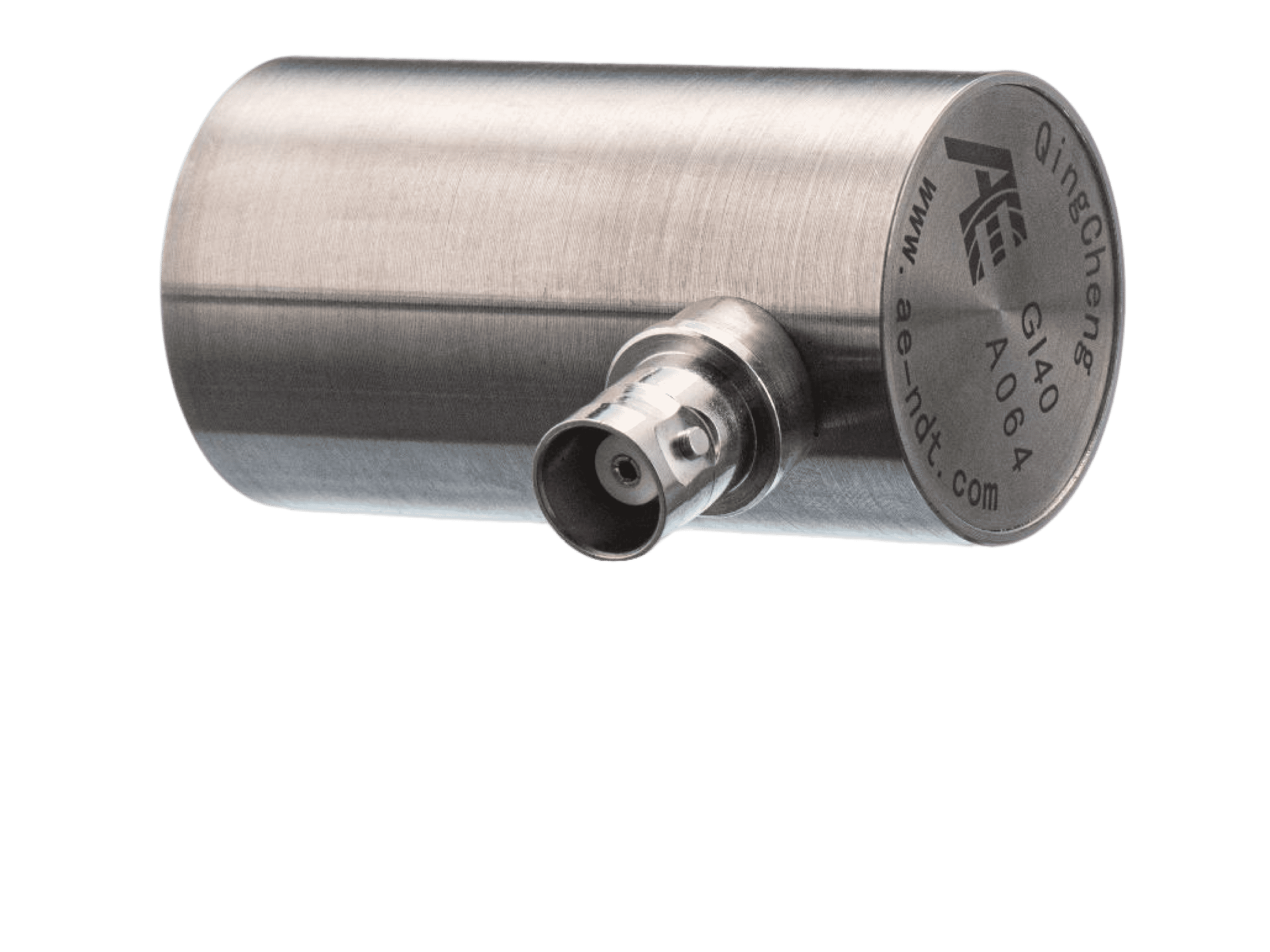

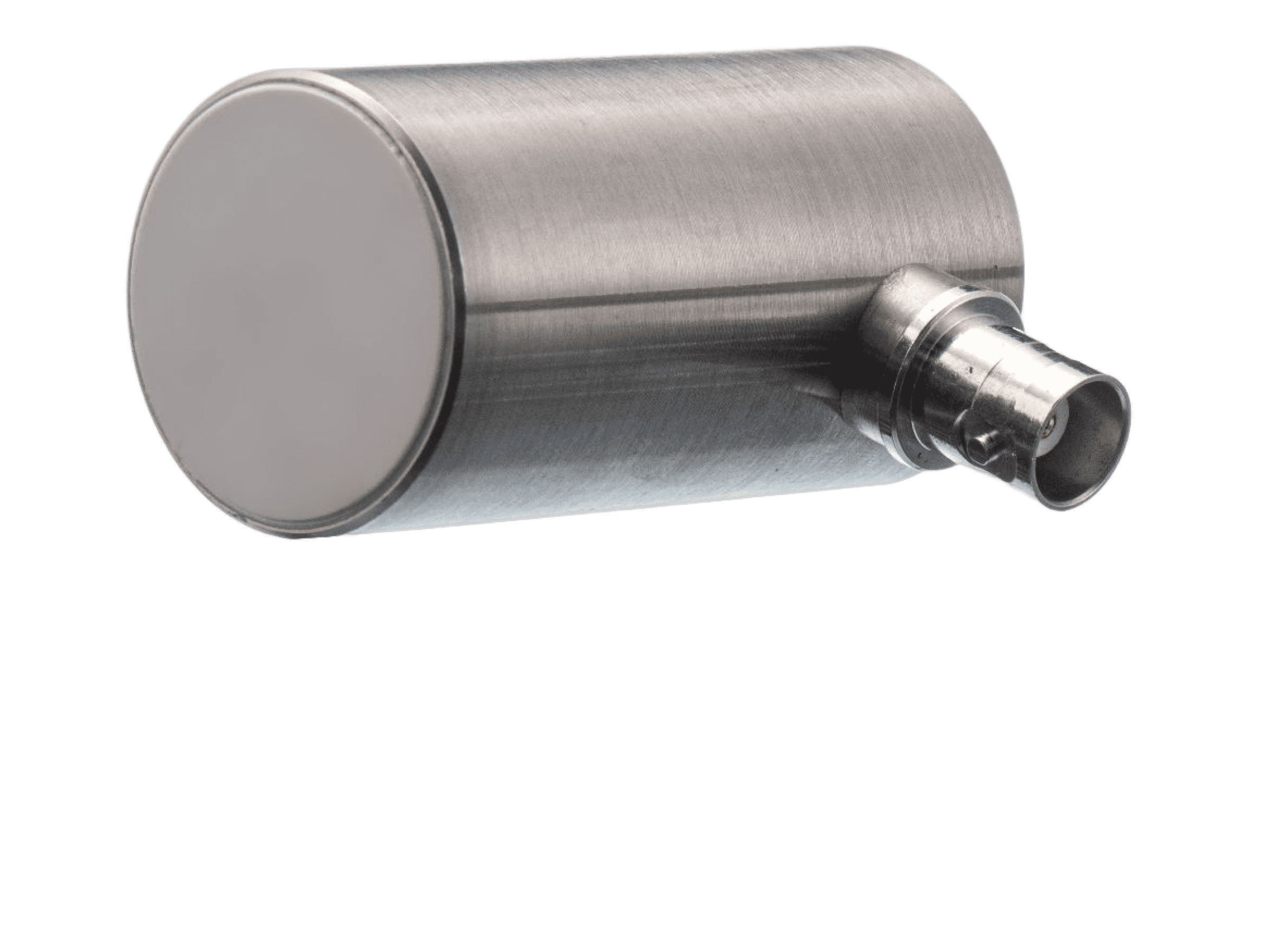

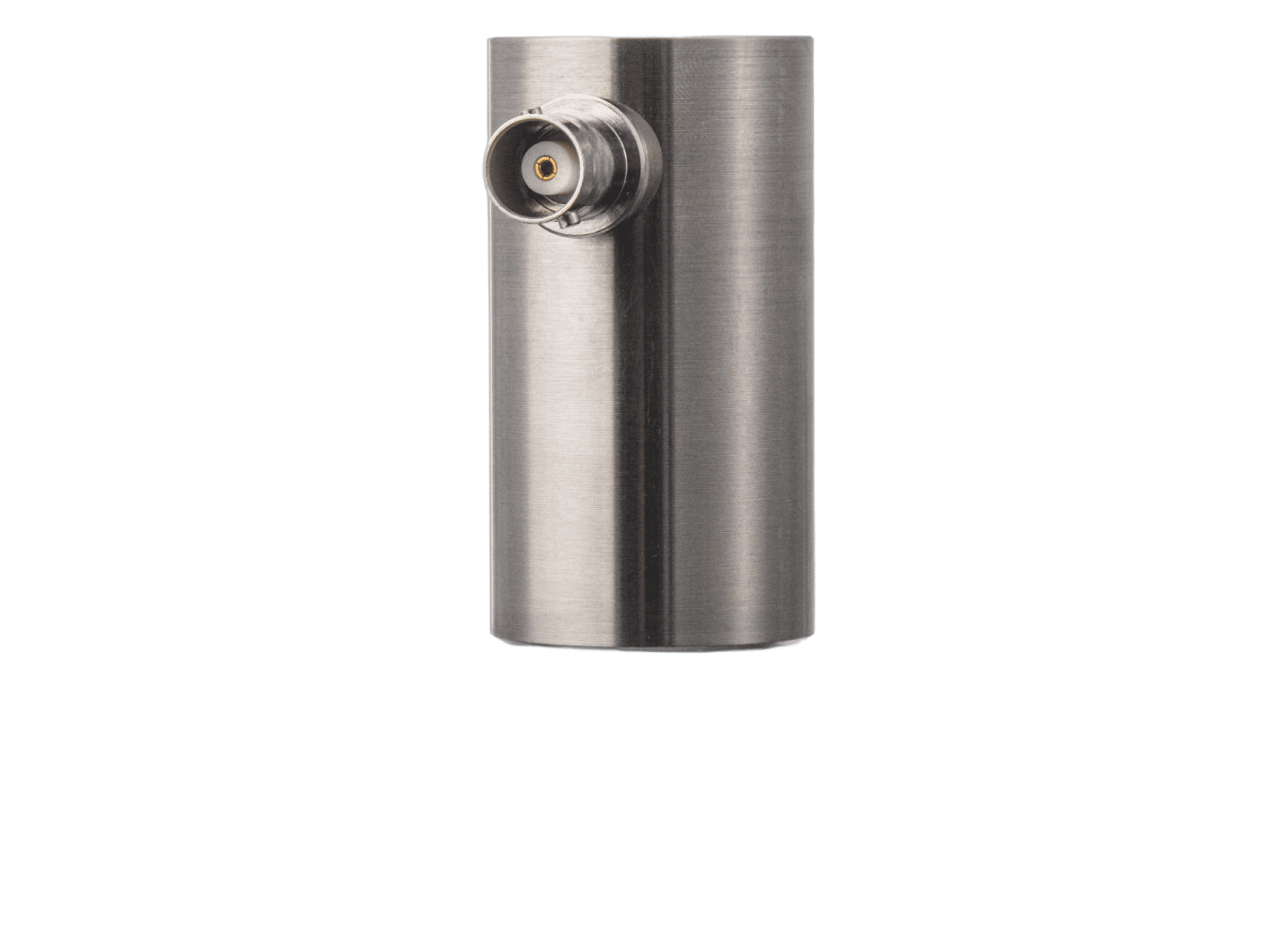

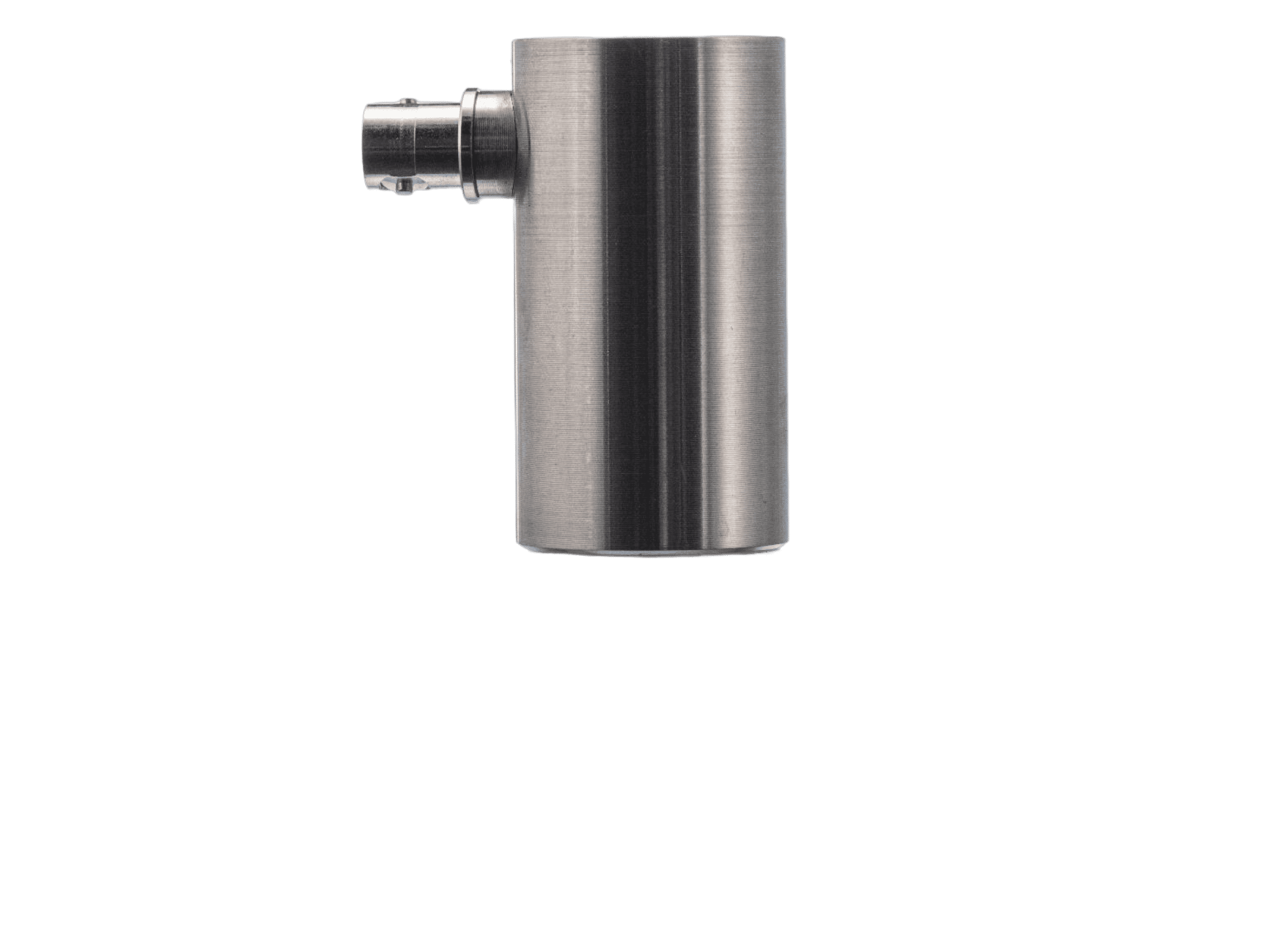

GI40 Integral Preamplifier Acoustic Emission Sensor
Model：
GI40 sensor
Description：
GI40 is a passive piezoelectric acoustic emission sensor with built-in 40dB28V preamplifier. And 15kHz-70kHz bandwidth makes it suitable for detecting low frequency acoustic emission signals.
Features：
Preamplifier built-in，stainless steel case and ceramic interface, BNC connector.
ENQUIRY NOWCONTACT：+86-20-32290092
Applications
GI40 is a passive piezoelectric acoustic emission sensor with integral preamplifier, it does not need to be connected to the additional preamplifier, thus simplifying the wiring work. The low frequency response makes it suited for monitoring large objects like concrete, steel structures and geologic structures. It also could be used for monitoring leakage and corrosion of storage tanks or valves and for detecting partial discharge.
|
Technical Specs |
|
|
Resonant Freq. Ref V/(m/s) |
40kHz |
|
Frequency Range |
15kHz-70kHz |
|
Sensitivity Peak Ref V/(m/s) |
>75dB |
|
Integral preamplifier |
40dB28V |
|
Preamp. Impedance |
50Ω |
|
Working Temp. |
-20 to 50℃ |
|
Size（DxH） |
30×57mm |
|
Weight |
193 g |
|
Case Material |
SUS-304 |
|
Face Material |
Ceramic |
|
Protecting Grade |
IP62 |
|
Connector |
BNC |
|
Connector Location |
Side |
|
Accessories |
|
|
Signal cable model |
RG178/RG316 |
|
Hold-down |
M36A |
