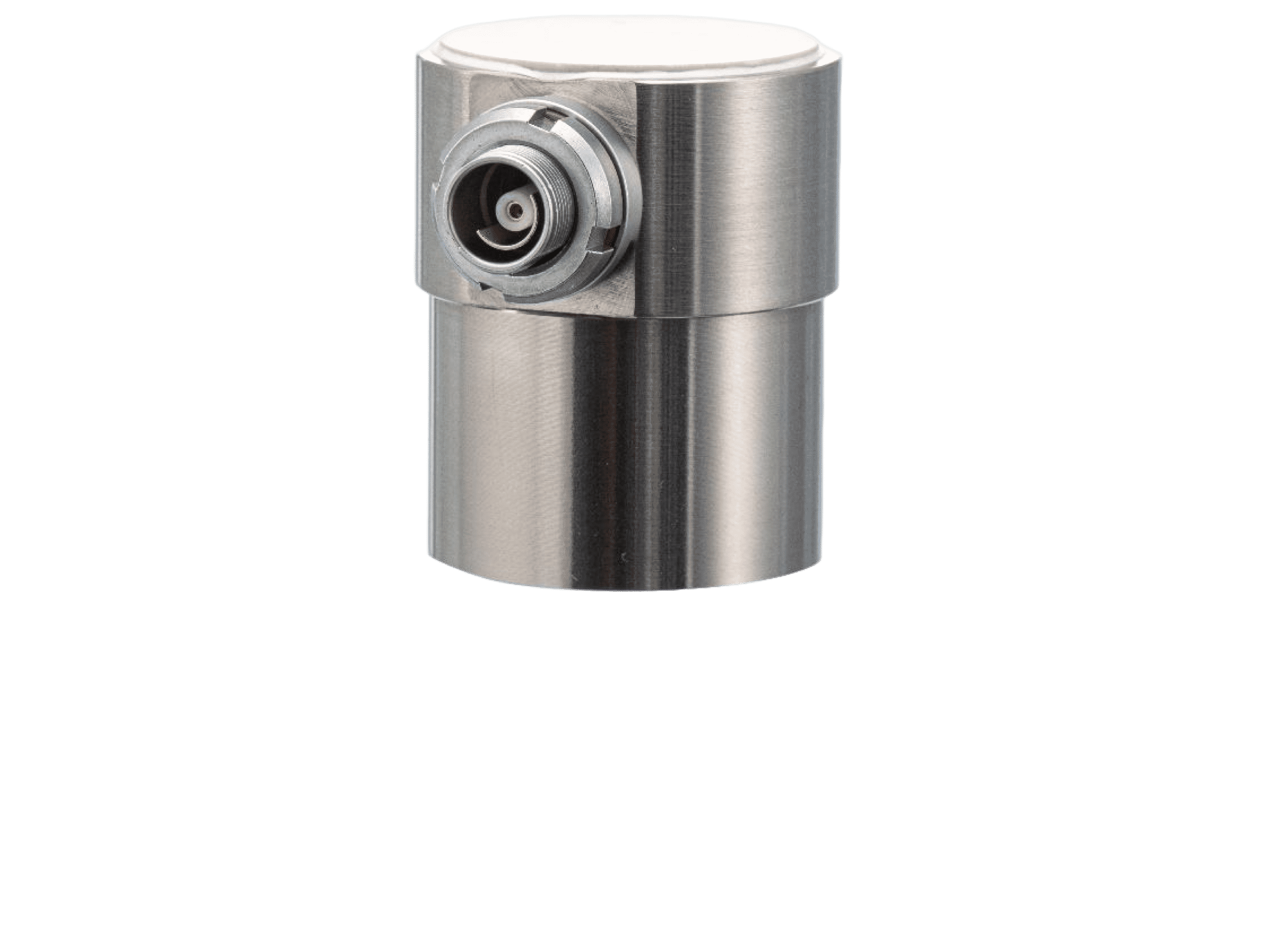

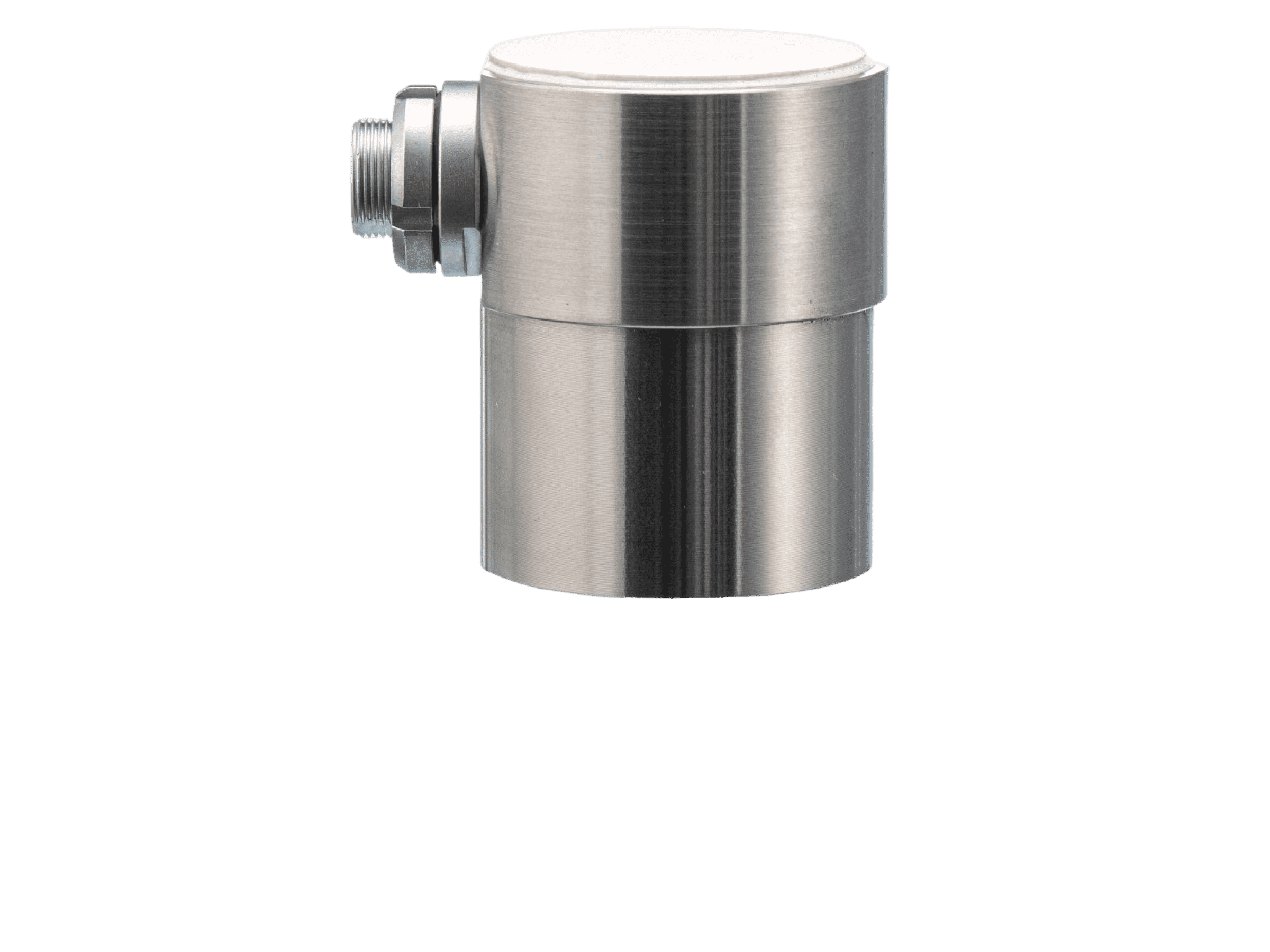

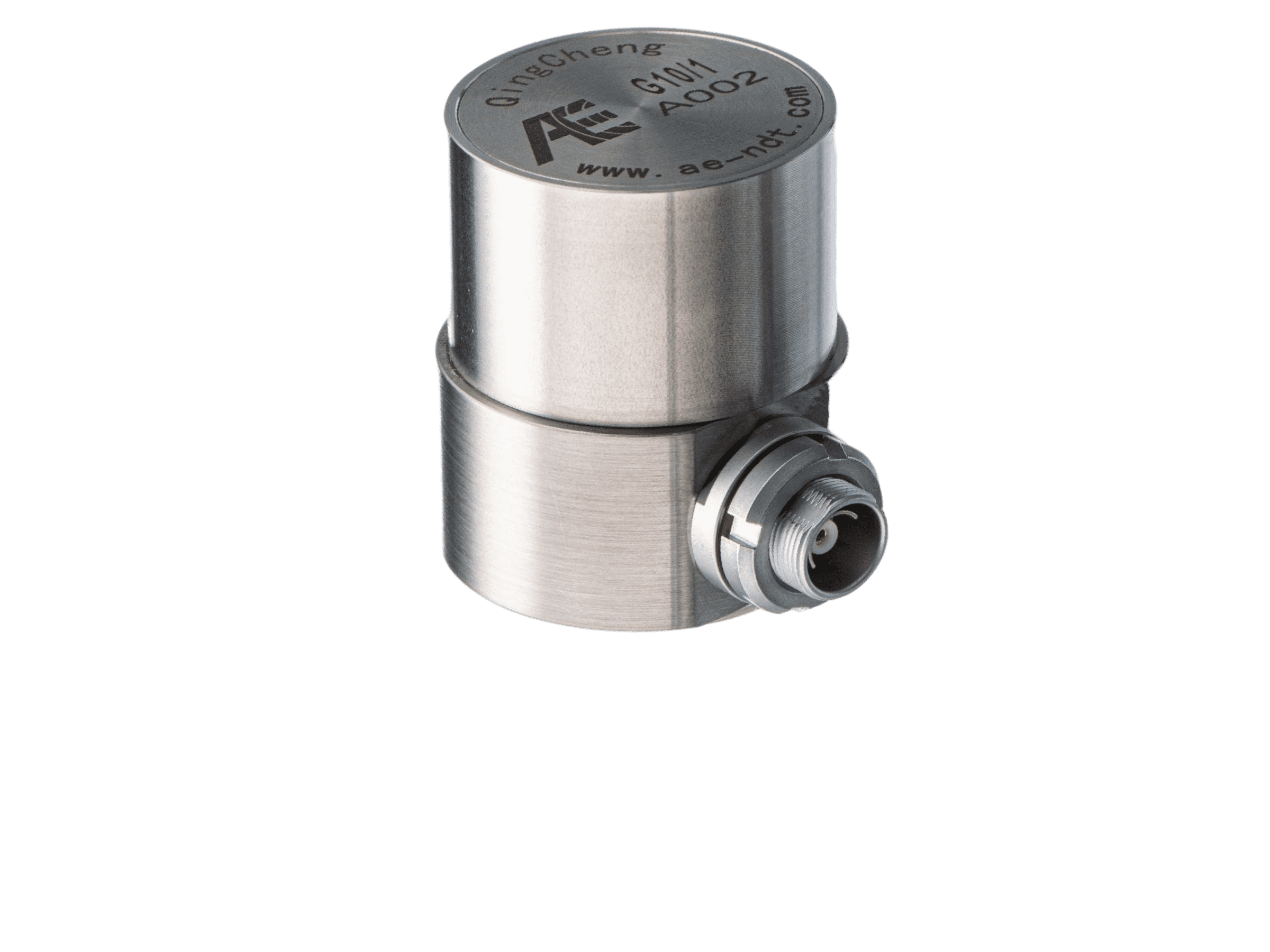

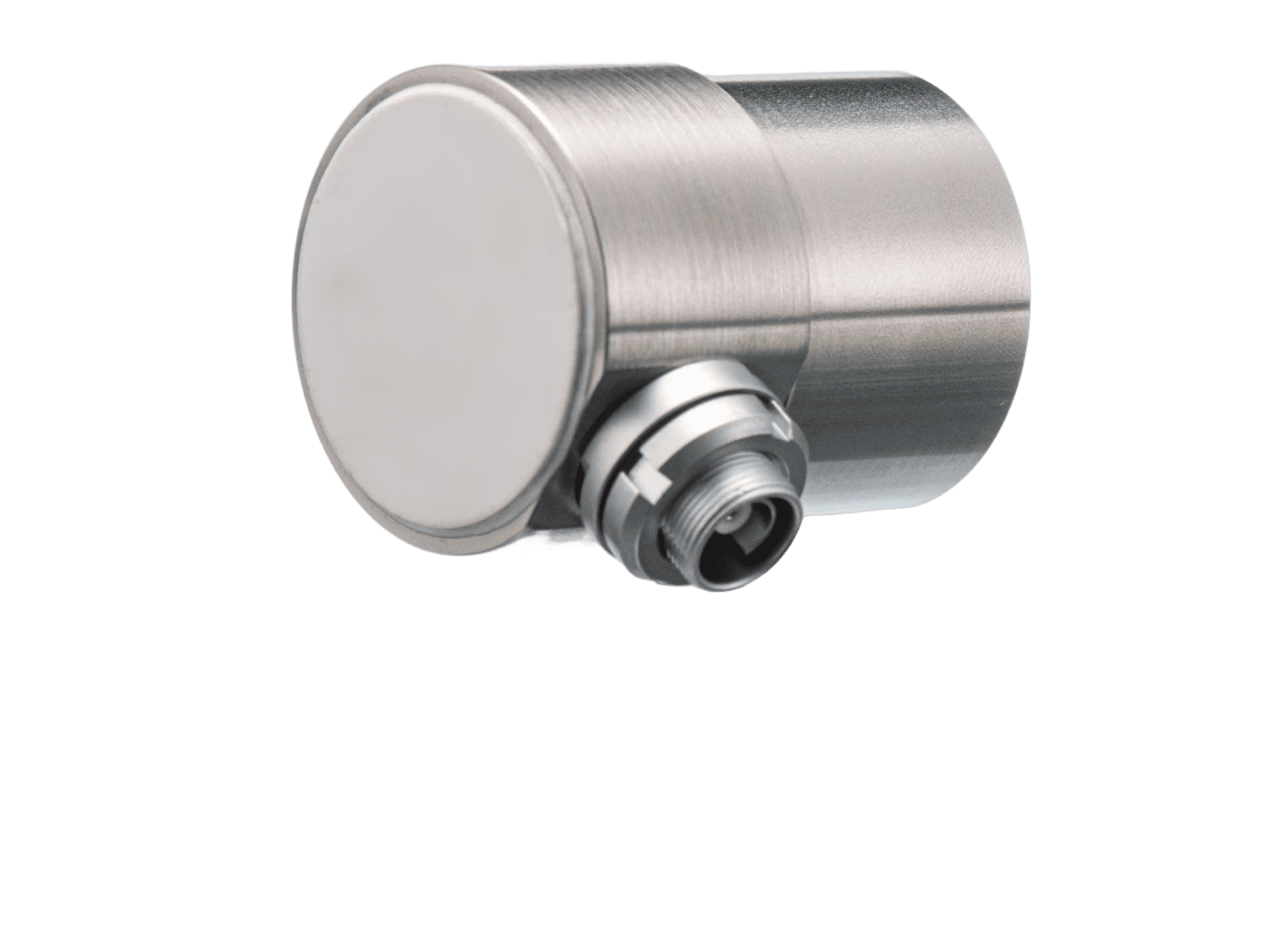

G10/1 Sensor

Model:

G10/1

Description:

G10/1 is an ultra low frequency AE sensor with narrowband. 1Hz -15kHz bandwidth makes it suitable for detectinglow frequency acoustic emission signals like geologic structure and leakage.

Features:

General purpose ultra low frequency sensor.

ENQUIRY NOWCONTACT:+86-20-32290092

G10/1 Sensor

Applications

G10/1 is a passive piezoelectric acoustic emission sensor. The ultra low frequency characteristic makes it suited for monitoring geologic structures like slope.It also could be used for monitoring leakage and corrosion of pressure vessels or valves.


Technical Specs
Frequency Range1Hz -15kHz
Sensitivity Peak   Ref V/(m/s)>80dB
Working Temp.-20 to 120℃
Size(DxH)31×38mm
Weight214 g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP62
ConnectorSingle-core lemo
Connector LocationSide
Accessories
Signal cable modelRG178
Hold-downM36
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf



General purpose ultra low frequency sensor.
