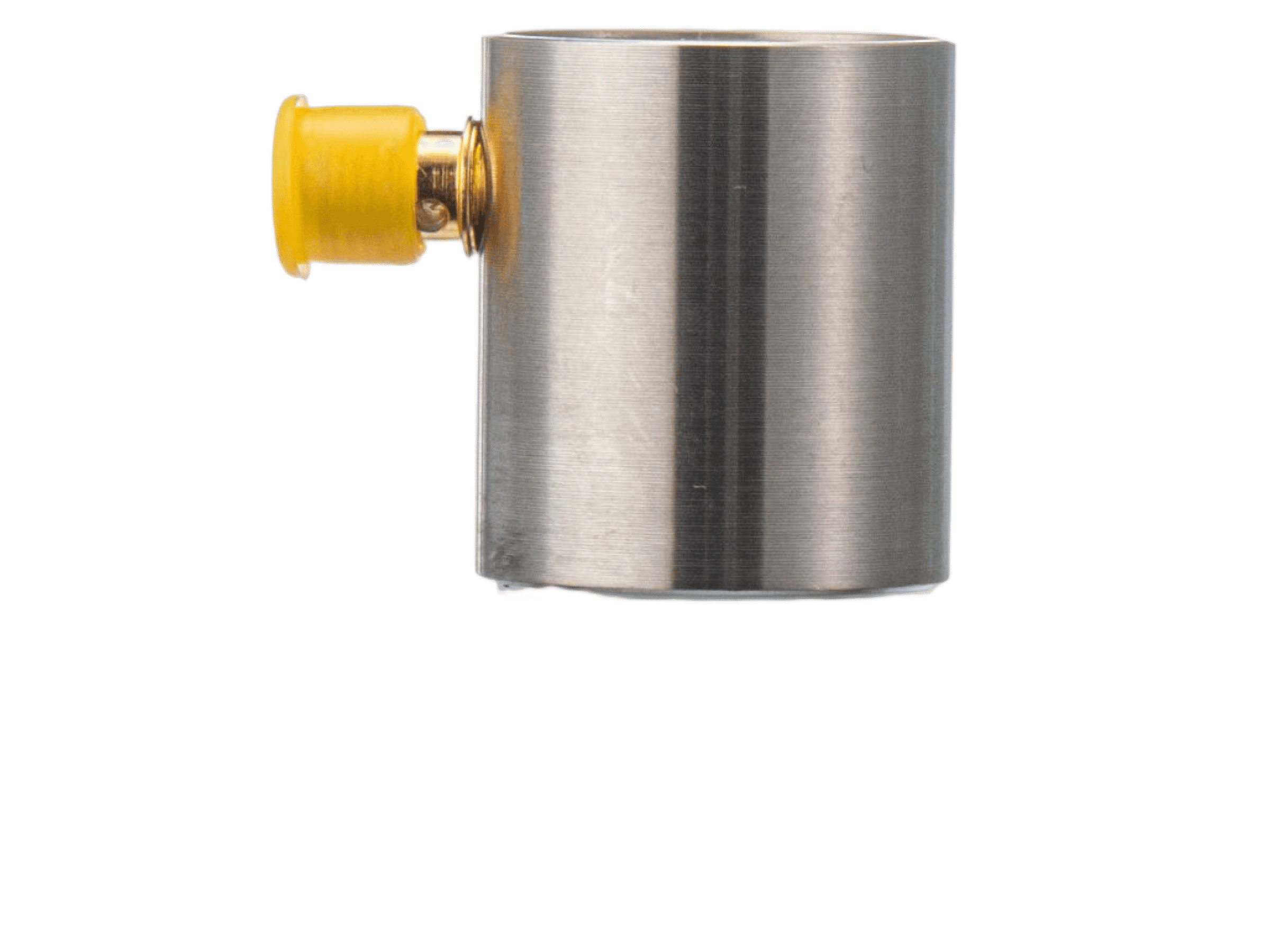

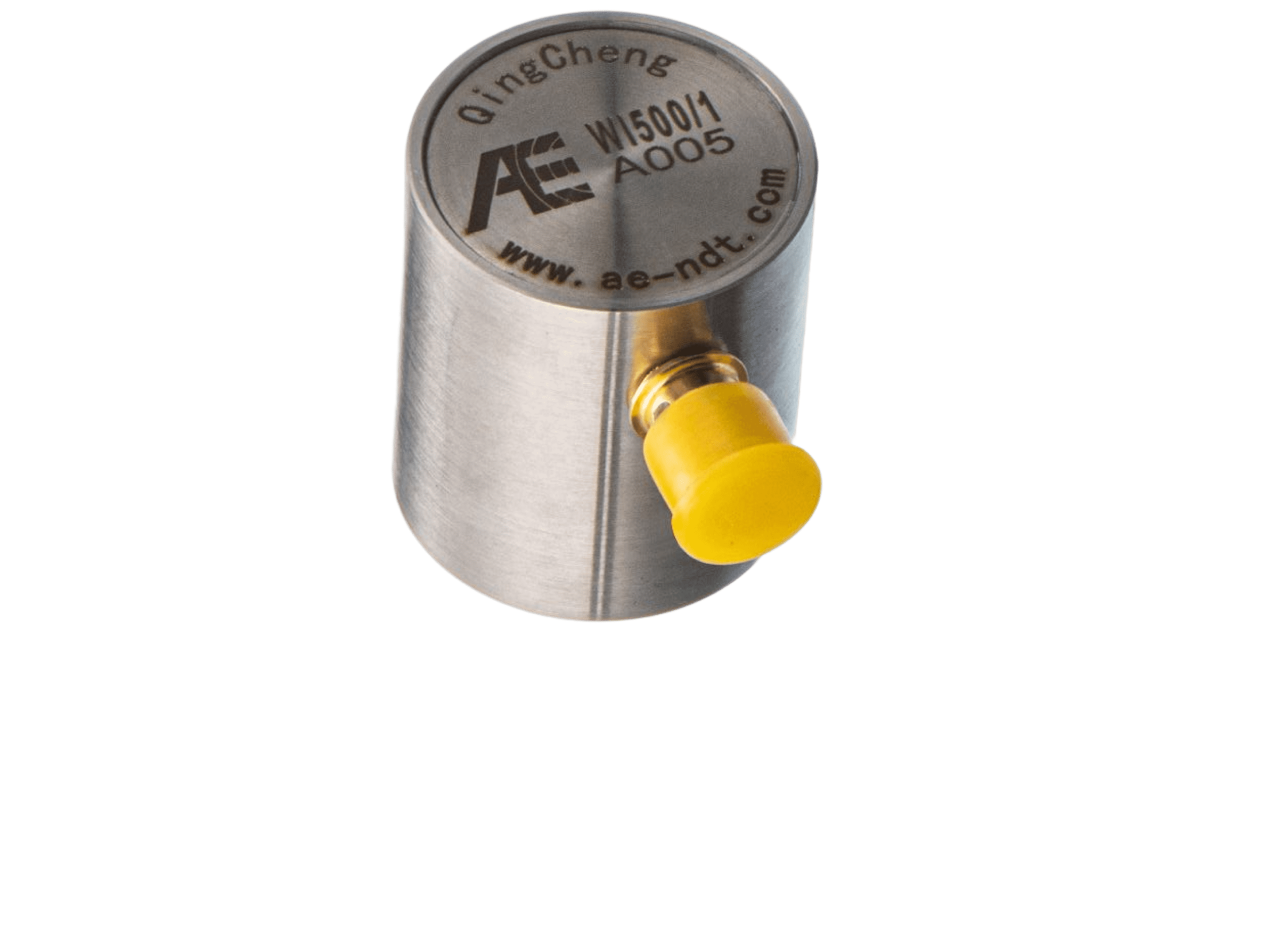

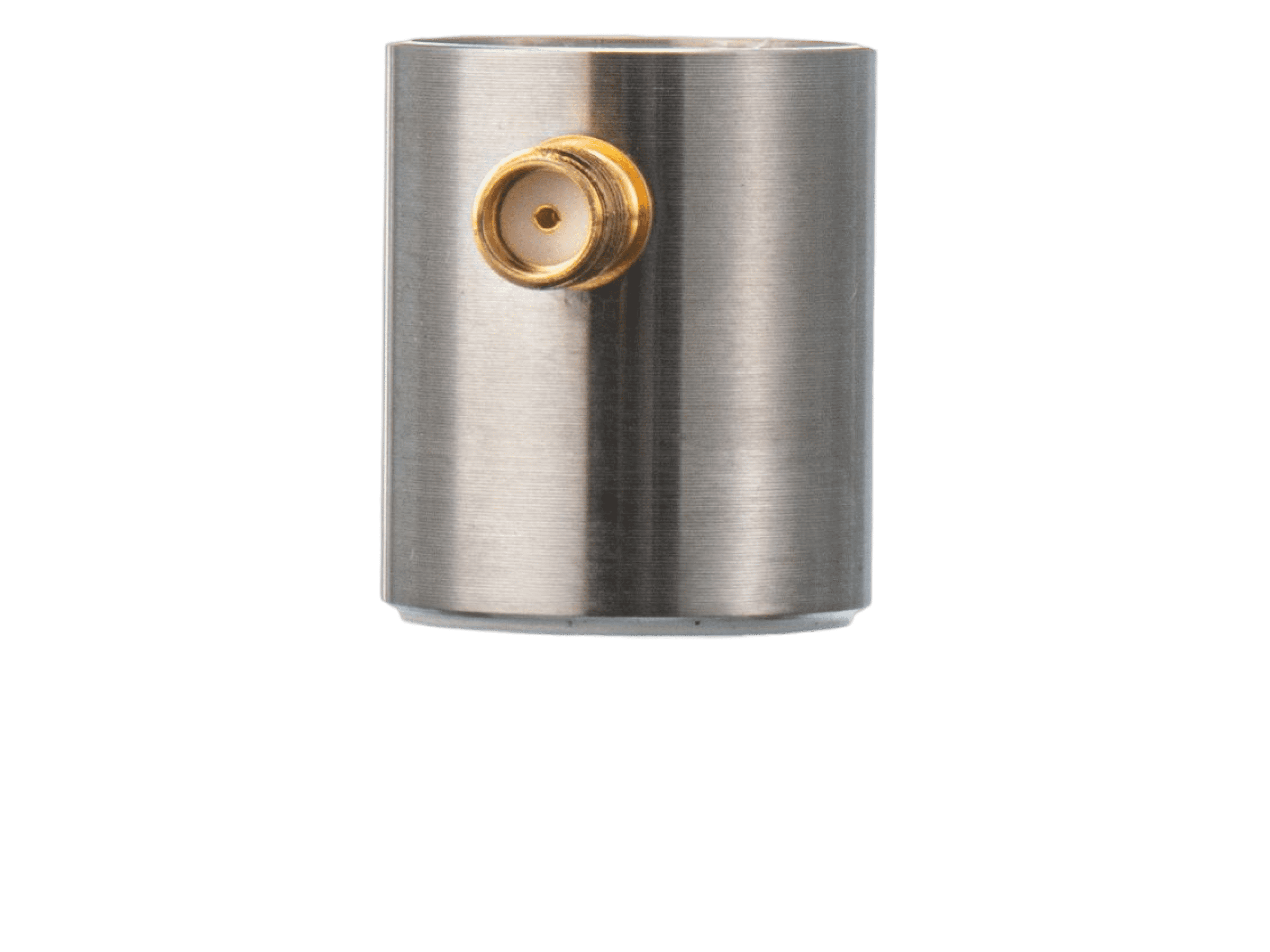

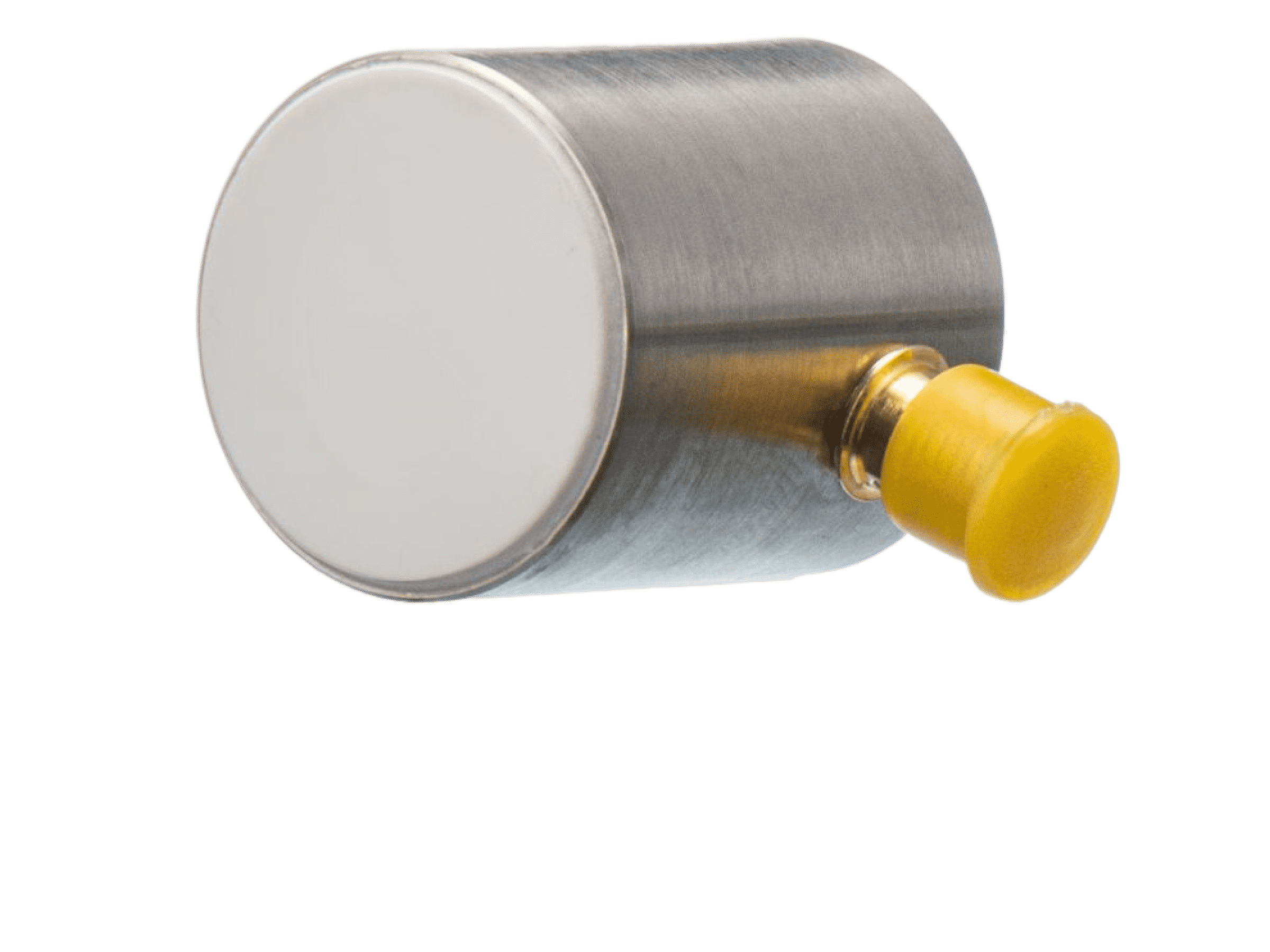

WI500/1 Sensor

Model:

WI500/1

Description:

Passive piezoelectric wideband AE sensor with build-in preamplifier 34dB12V. It is specially designed to provide a flat frequency response to acoustic emission signals over its entire frequency bandwidth.

Features:

Passive piezoelectric sensor with preamplifier built-in, stainless steel case and ceramic interface.

ENQUIRY NOWCONTACT:+86-20-32290092

WI500/1 Sensor

Applications

WI500/1 is a passive piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected to the additional preamplifier, thus simplifying the wiring work. It is well suited for laboratory studying of surface displacement of structures due to different AE modes.It also could be used in applications requiring frequency analysis and composites research. It could be easily mounted with a magnetic hold-down.


Technical Specs
Resonant Freq.  Ref V/(m/s)500kHz
Frequency Range100kHz-1000kHz
Sensitivity Peak   Ref V/(m/s)>65dB
Integral preamplifier34dB 12V
Preamp. Impedance50Ω
Working Temp.-20 to 50℃
Size(DxH)22×25.5mm
Weight34 g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP62
ConnectorSMA
Connector LocationSide
Accessories
Signal cable modelRG178/RG316
Hold-downSaddle type

Further Information

Sensor Data Sheet.pdf


Passive piezoelectric sensor with preamplifier built-in, stainless steel case and ceramic interface.
