GM150 Sensor

Model:

GM150

Description:

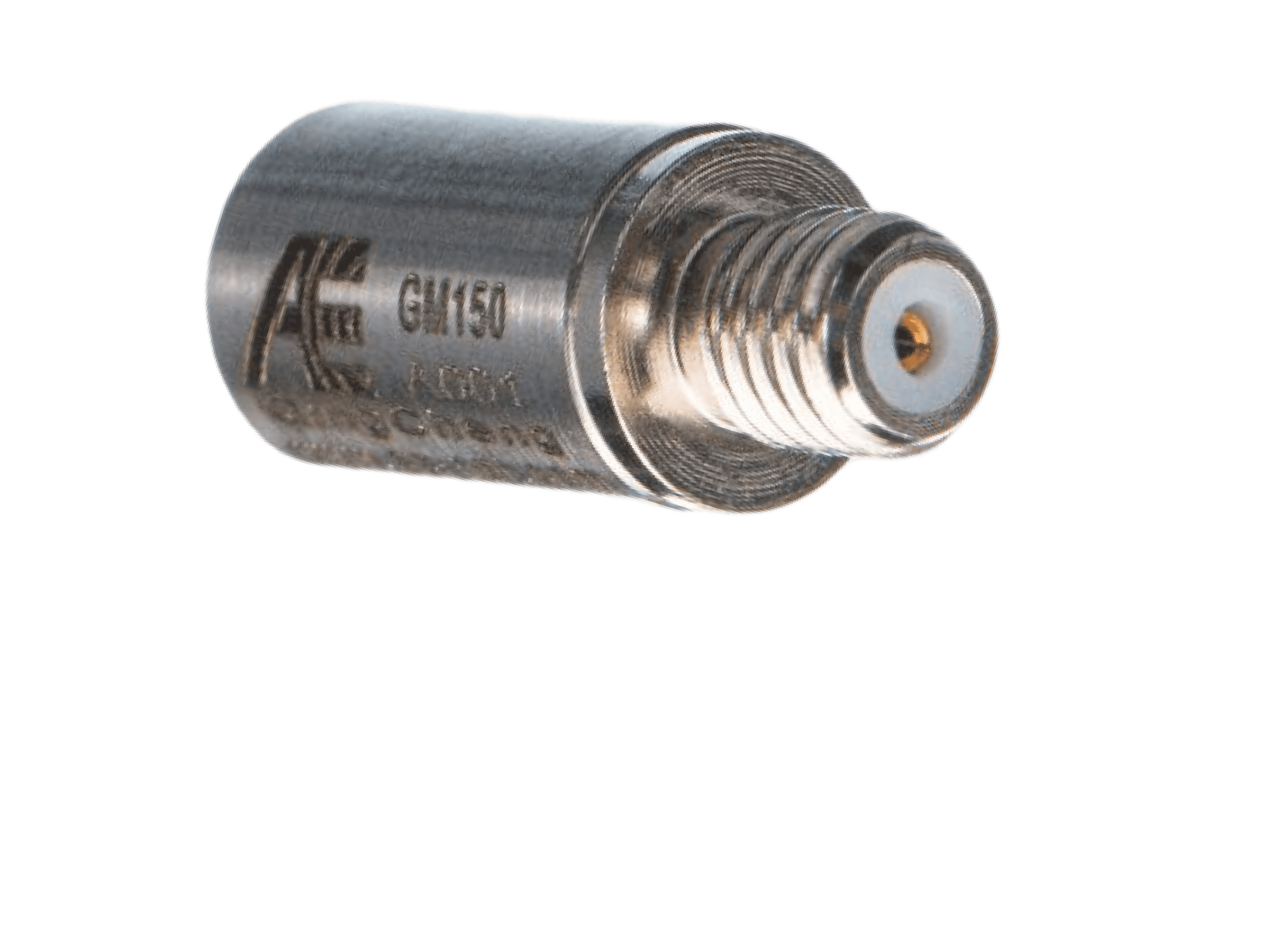

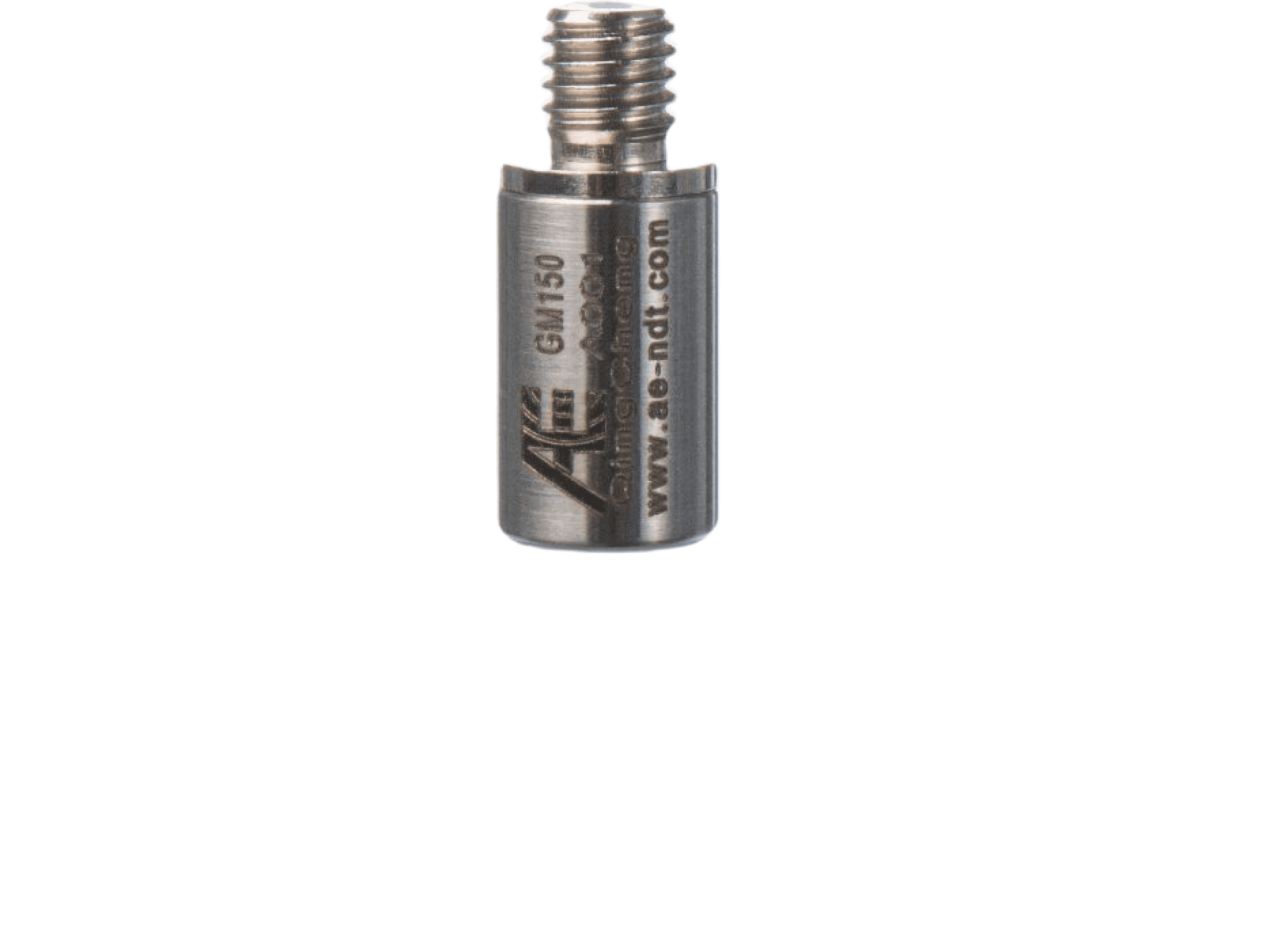

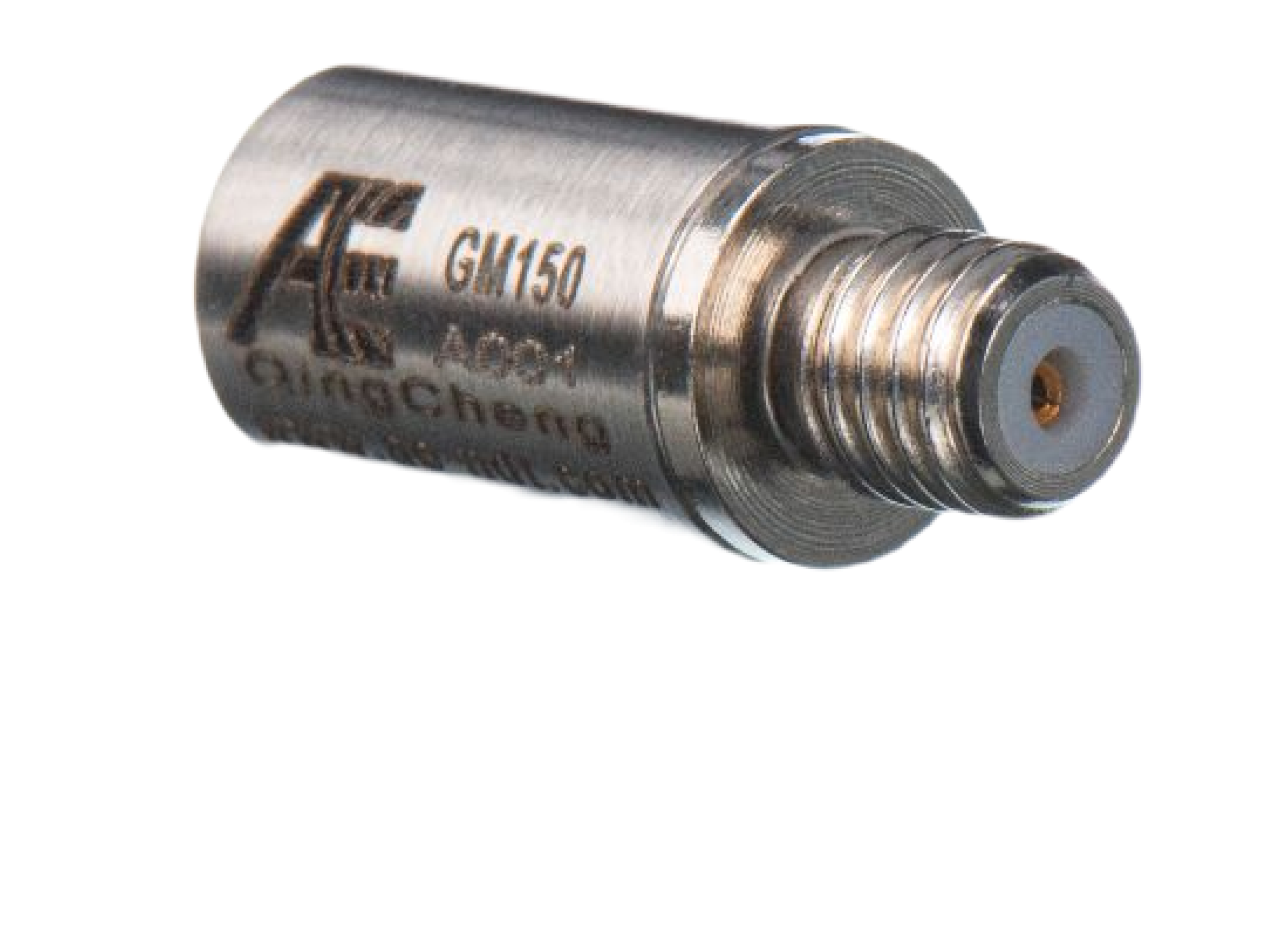

Passive piezoelectric miniature AE sensor. The connector was designed on the top of the sensor and the small size makes it possible to work in narrow space.

Features:

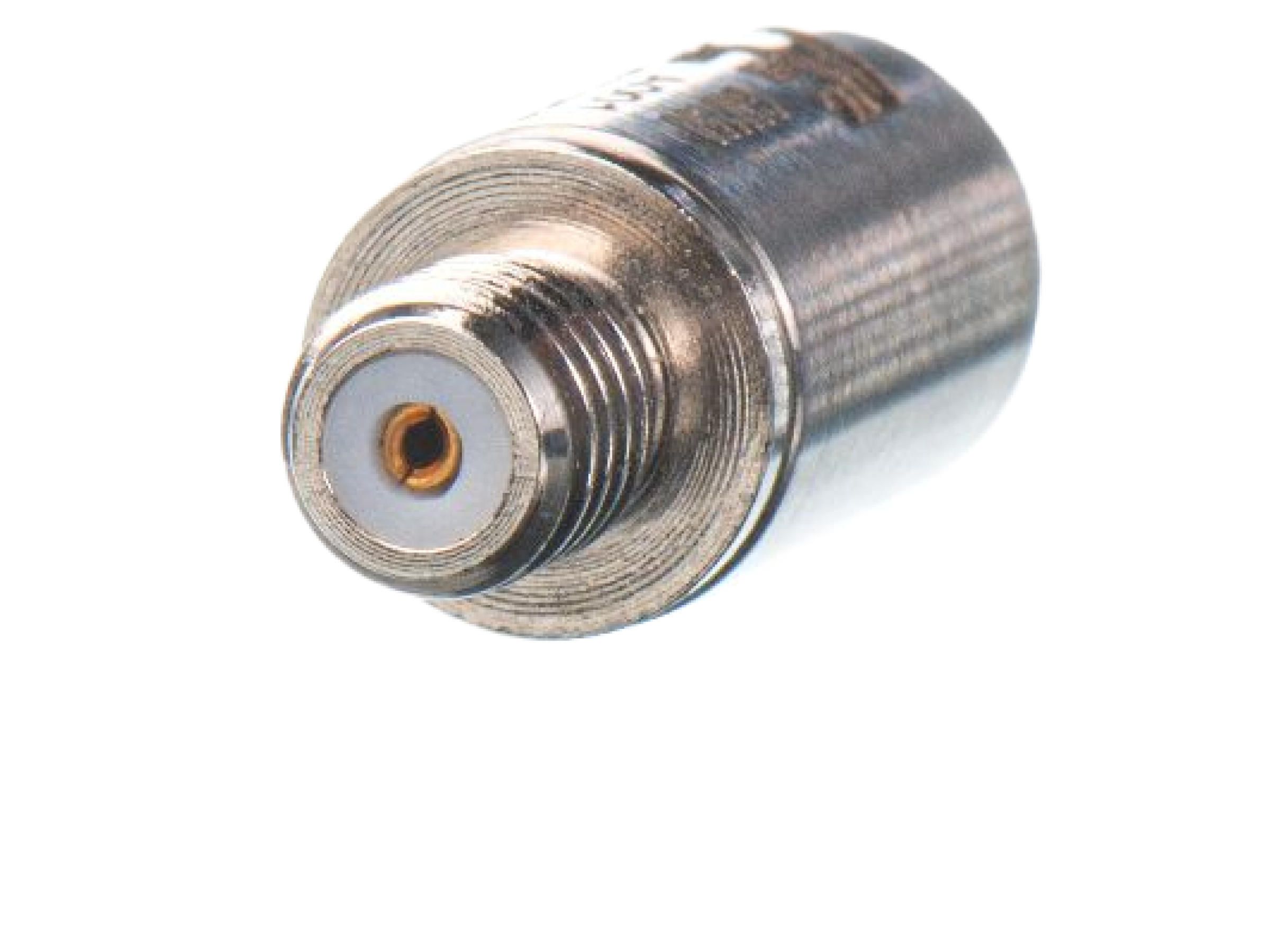

Stainless steel case and ceramic interface, M5 connector on the top..

ENQUIRY NOWCONTACT:+86-20-32290092

GM150 Sensor

Applications

GM150 is a passive piezoelectric miniature AE sensor, it can be used for monitoring common structures such as pipelines, vessels, bridges, storage tanks etc. It can easily mounted in small and tight space.


Technical Specs
Resonant Freq.   Ref V/(m/s)150kHz
Frequency Range70kHz-280kHz
Sensitivity Peak   Ref V/(m/s)>68dB
Working Temp.-20 to 120℃
Size(DxH)7.9×19mm
Weight5g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP62
ConnectorM5
Connector LocationTop
Accessories
Signal cable modelRG178/RG316
Hold-downSaddle type
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Stainless steel case and ceramic interface, M5 connector on the top..
