GI40/2 Sensor

Model:

GI40/2

Description:

GI40/2 is a passive piezoelectric AE sensor, waterproof and all-metal shell features make it possible to be buried in the ground or work in the liquid for long-term monitoring.

Features:

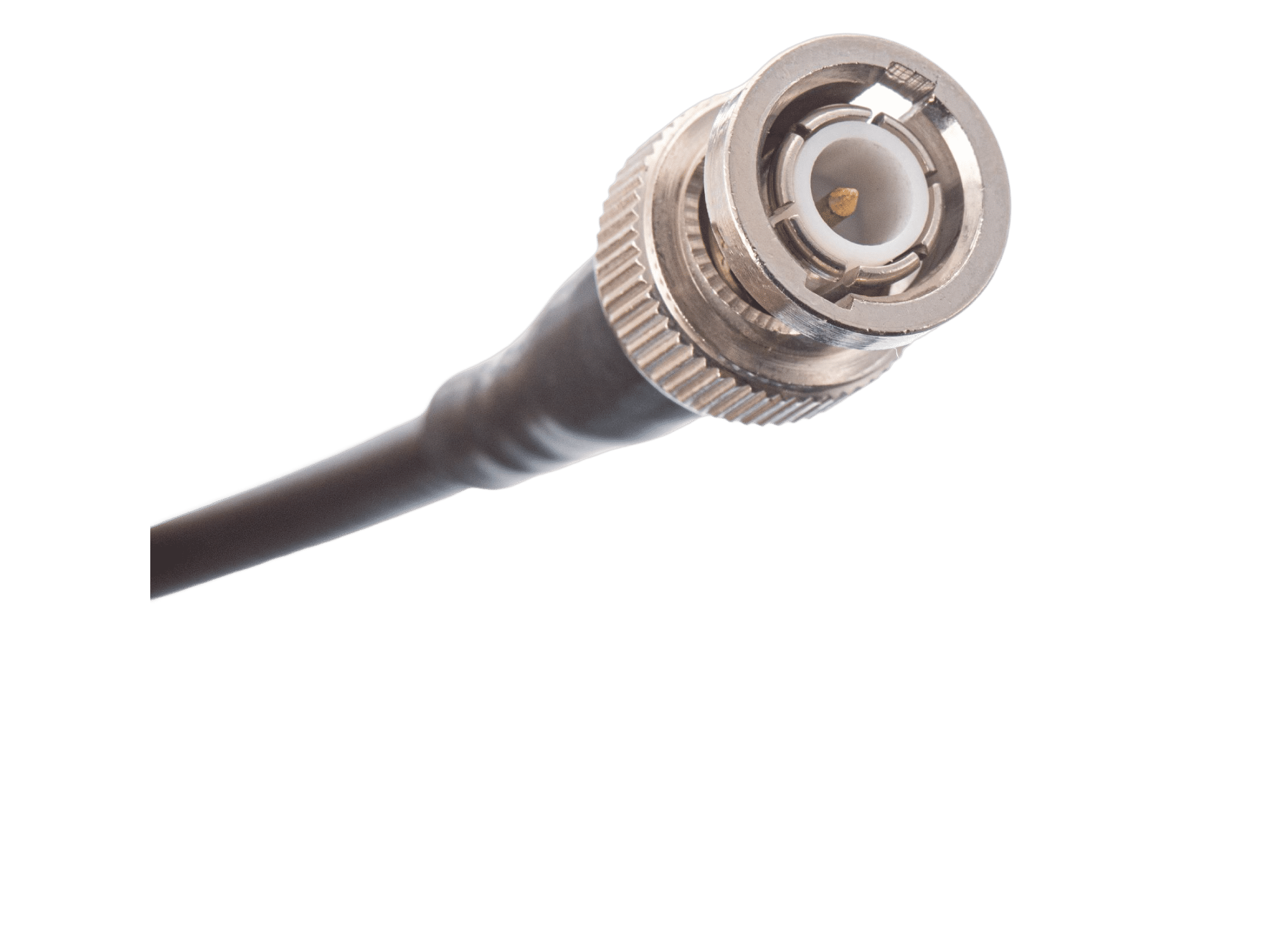

Water-proof, preamplifier built-in,all stainless steel case, BNC connector.

ENQUIRY NOWCONTACT:+86-20-32290092

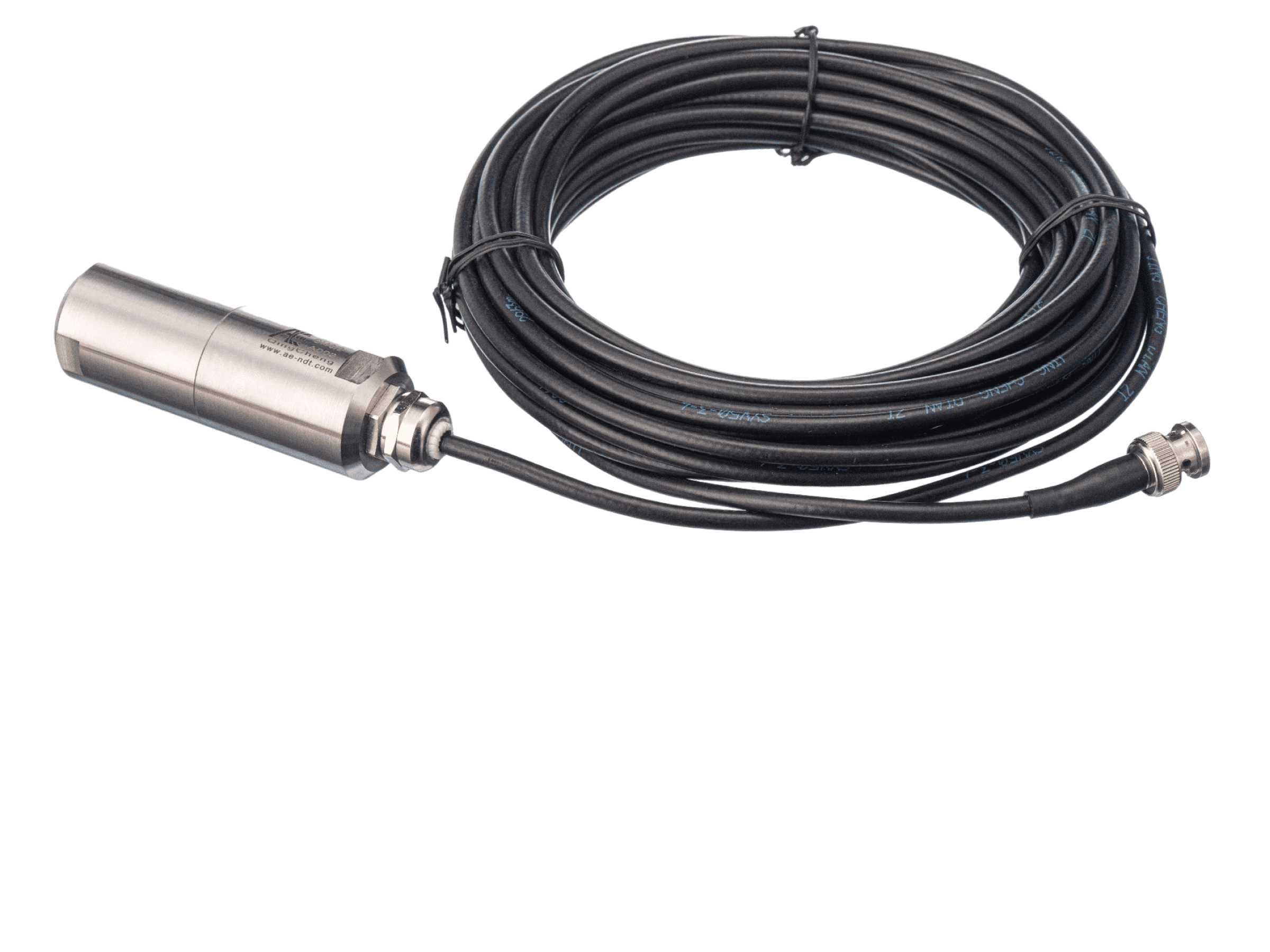

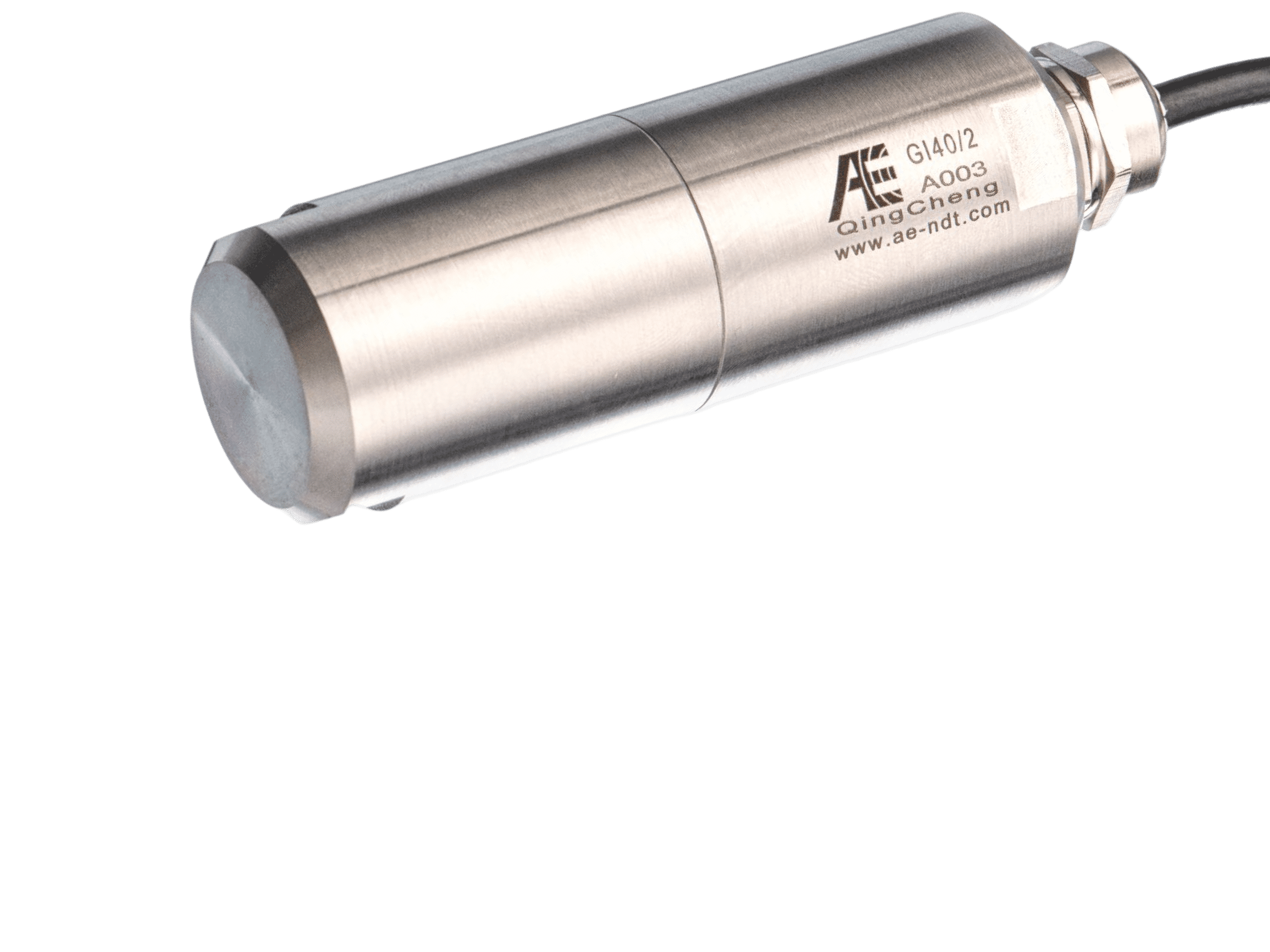

GI40/2 Sensor

Applications

GI40/2 is a passive piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected to the additional preamplifier, so simplifying the wiring work. GI40/2 was designed for working underground or underwater, it could be used underground for monitoring geologic structures like slope. and could be used for monitoring leakage and corrosion of storage tanks or valves and for also detecting partial discharge.


Technical Specs
Resonant Freq.  Ref V/(m/s)40kHz
Frequency Range15kHz-70kHz
Sensitivity Peak   Ref V/(m/s)>75dB
Integral preamplifier40dB28V
Preamp. Impedance50Ω
Working Temp.-20 to 50℃
Size(DxH)41×92mm
Weight1280 g
Case MaterialSUS-304
Face MaterialSUS-304
Protecting GradeIP68
ConnectorBNC on integral cable
Connector LocationTop
Accessories
Signal cable modelRG178/RG316

Further Information

Sensor Data Sheet.pdf


Water-proof, preamplifier built-in,all stainless steel case, BNC connector.
