AE Valve Leakage Detector

Model:

SVLD1

Description:

Through acquisition, processing, and calculation of acoustic emission signal of the valves, SVLD1 could generated root-mean-square voltage (RMS), average signal level (ASL)and power (P) parameters as which could judge the leakage.

Features:

Using acoustic emission technology, high detection accuracy, simple operation, small size, long endurance.

ENQUIRY NOWCONTACT:+86-20-32290092

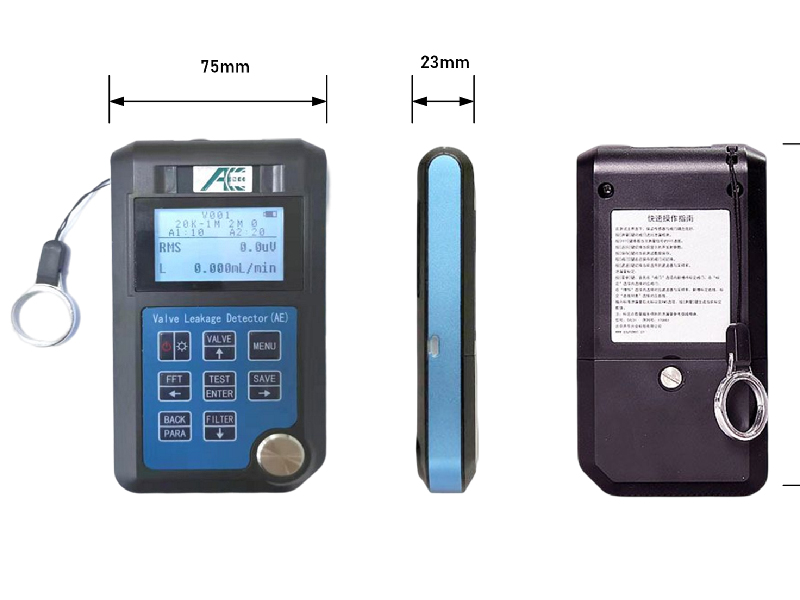

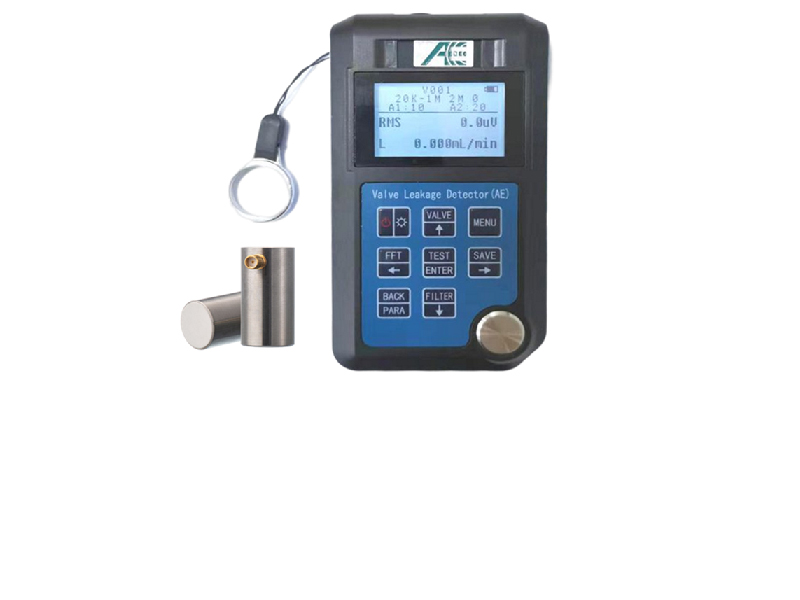

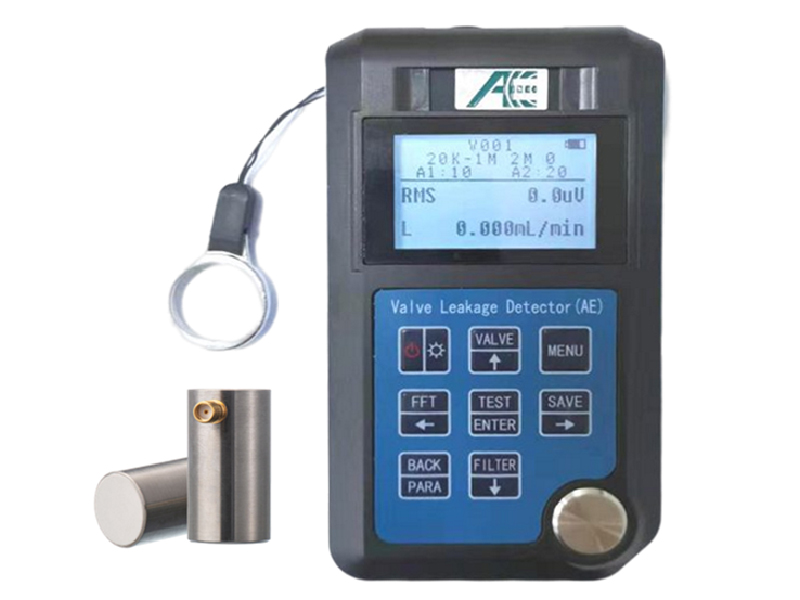

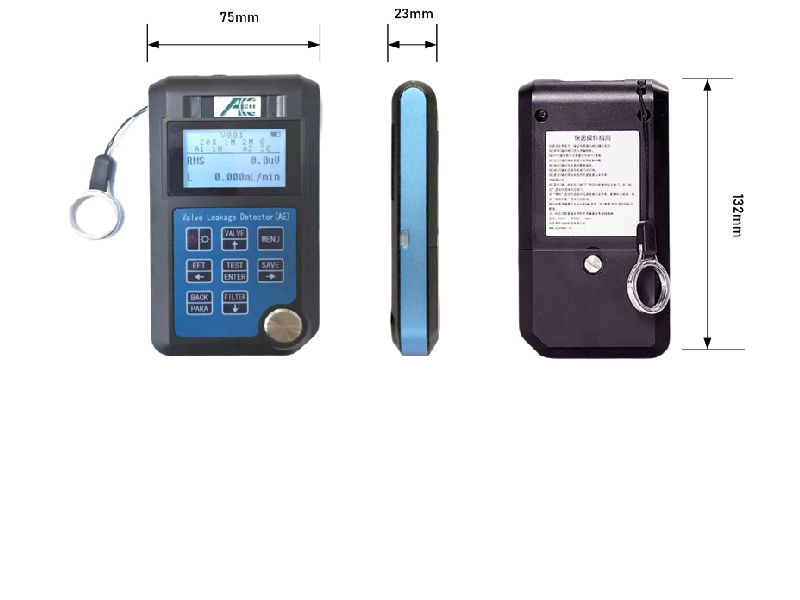

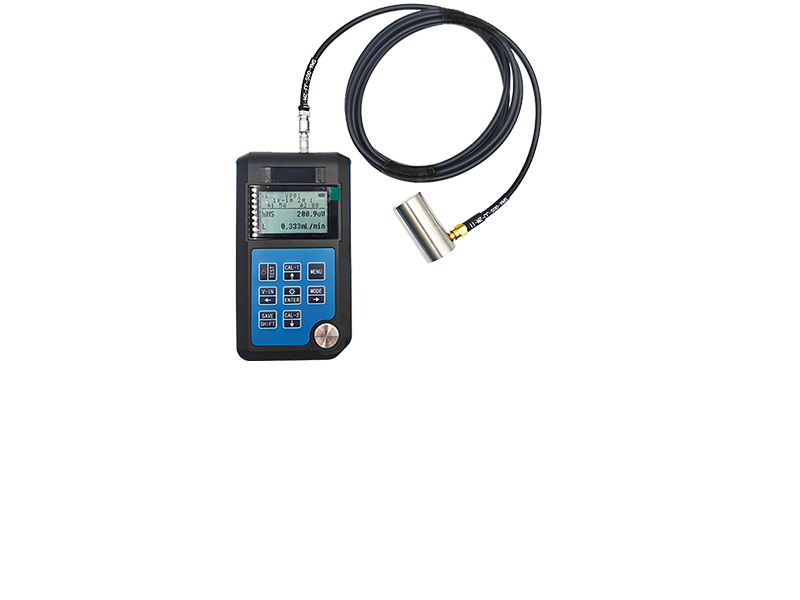

SVLD1 AE Valve Leakage Detector


Through acquisition, processing, and calculation of acoustic emission signal of the valves, SVLD1 could generated root-mean-square voltage (RMS), average signal level (ASL) and power (P) parameters as which could judge the leakage. Meantime, you can pre-calibrate the leakage quantity for the specified valve, and calibration curve of parameters and leakage could be calculated by SVLD1, so as to give the valve leakage reference value during the test.


  • Apply acoustic emission technology, easy to operate, keyboard shortcuts setting, complete leakage detection with only one button

  • RMS, ASL, Power parameters of leakage are applied. The known valve leakage can be calibrated, after calibration, the leakage reference value is displayed during measurement

  • FFT frequency spectrum analysis

  • Up to 200 kinds of different valves are available, each kind of valve can store up to 8 calibration curves

  • 16 bits sampling precision, sampling frequency can be adjusted freely

  • 6 kinds of analog filters

  • 100 hours working time, replaceable battery

  • Compact design, easy to carry

  • Beeping and flashing alarm, 2 grades alarm function, alarming data can be saved automatically

  • Data storage by one button with time simultaneously, data storage volume can achieve 50,000 groups

  • High speed data communication by USB interface

  • AE parameters or valve leakage rate detection

SVLD1 AE valve Leakage Detector Packing List

Model name

Specification

Quantity

SVLD1

/

1

Plastic box

 /

1

AE Sensor, with coaxial cable

GI35/126dB5V

1

Mini-USB cable

1

Light Disk

PC software

1

User Manual

1

Warranty Card

 /

1

Product Certificate

1

AE Sensor Calibration Certificate

1

Further Information

User's Manual of SVLD1.pdf
SVLD1 Valve Leakage Detector Operation Video





Using acoustic emission technology, high detection accuracy, simple operation, small size, long endurance.
