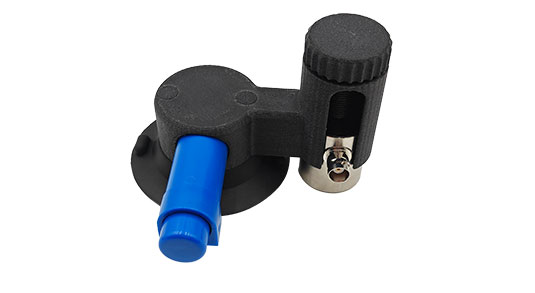

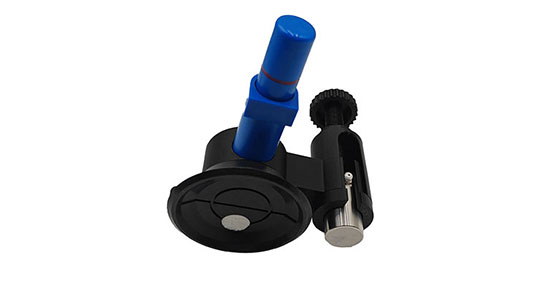

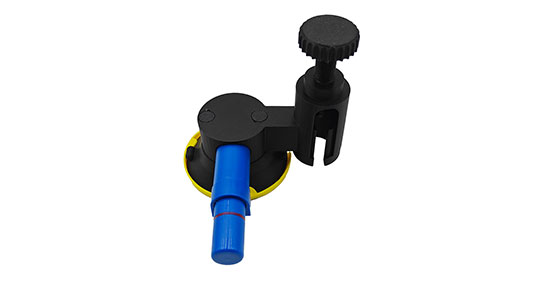

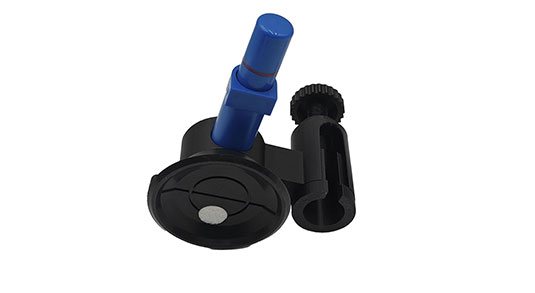

Vacuum Holder
Model：
Description：

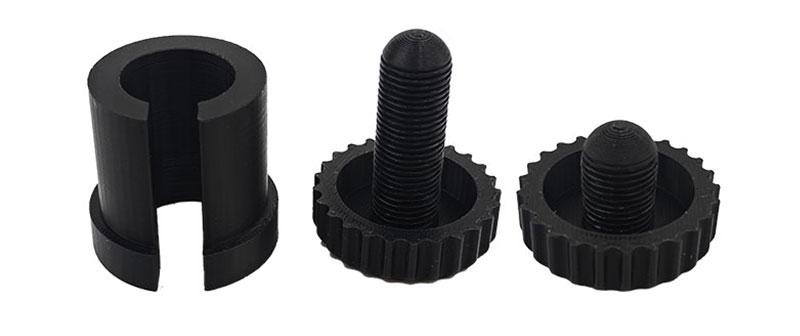

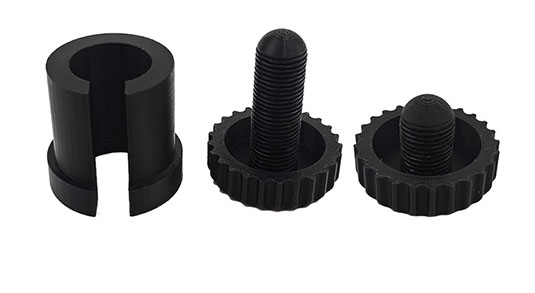

The vacuum holder is suitable for adsorption on non-metallic, non-magnetic planes or workpiece surfaces with a certain curvature. There are multiple specifications of suction cup combinations (adjustable clamping rings and clamping screws).
Features：
ENQUIRY NOWCONTACT：+86-20-32290092
Vacuum Holder

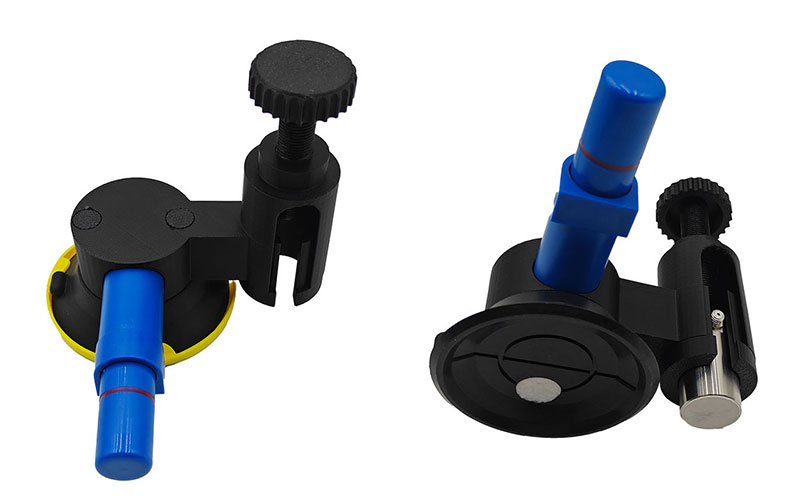

1 Overview
The vacuum holder is suitable for adsorption on non-metallic, non-magnetic planes or workpiece surfaces with a certain curvature. There are multiple specifications of suction cup combinations (adjustable clamping rings and clamping screws). It can be adsorbed on various workpiece surfaces by extracting air with a hand pump to achieve a vacuum tight fit. The vacuum holder is made of oil-resistant, corrosion-resistant and wear-resistant materials, with an operating environment temperature of -20~80℃, and is suitable for a variety of conventional sensors.

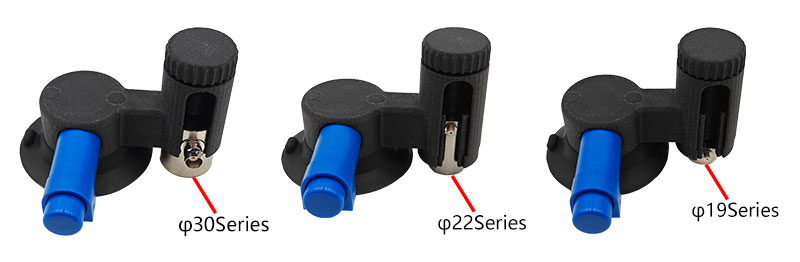

2 Suction Cup Combinations
3 Specification
| Main Material | Axial Strength | Shear Strength |
|---|---|---|
| ABS/ASA | ≥5N | ≥5N |
| Working Temperature | Weight | / |
| -20℃~80℃ | 150g | / |
Further Information
Vacuum Holder.pdf
