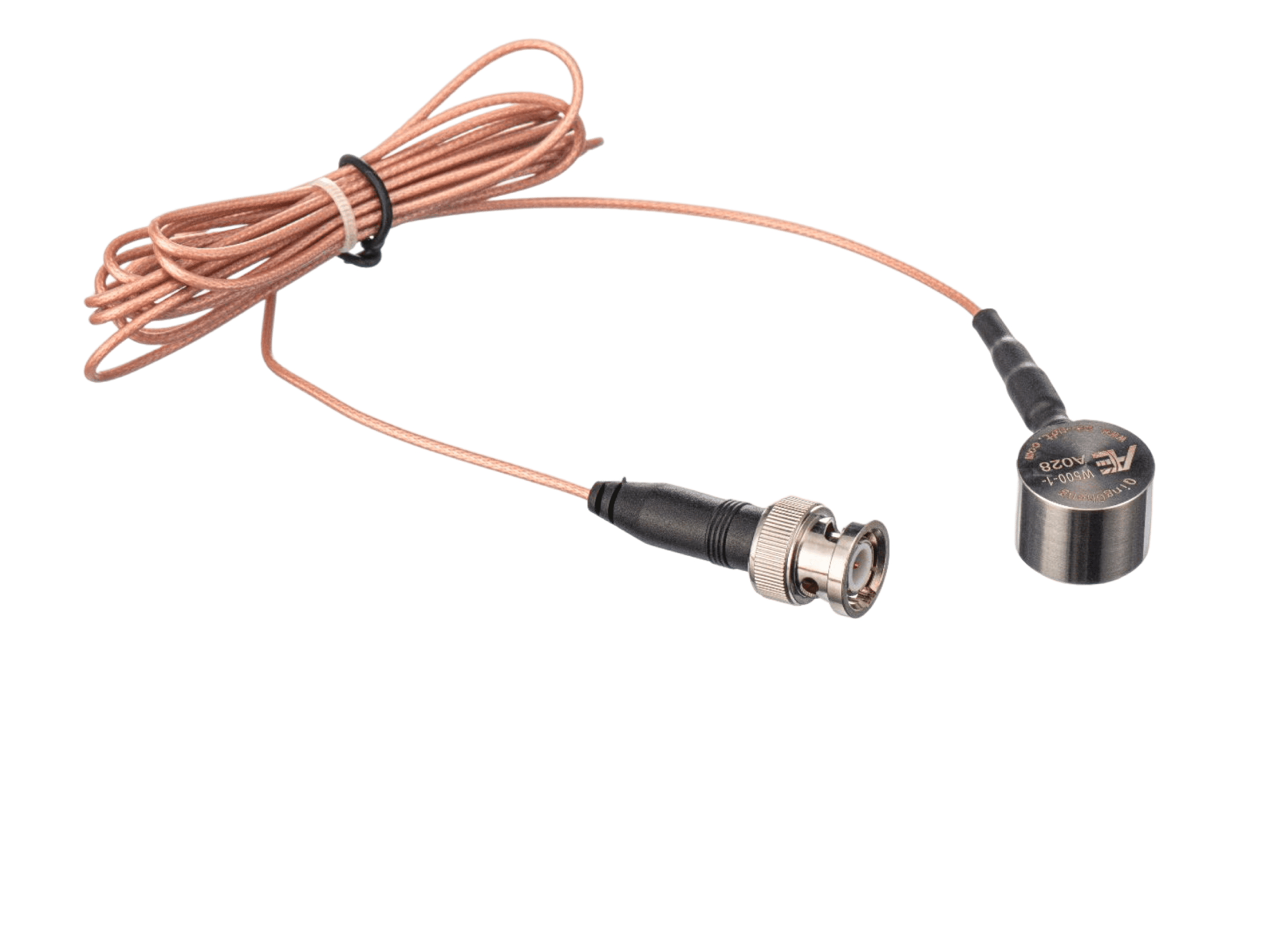

W500/1 Sensor

Model:

W500/1

Description:

W500/1 is a passive piezoelectric AE sensor with wideband and waterproof characteristic. It is specially designed to provide a flat frequency response to acoustic emission signals.

Features:

Passive piezoelectric sensor with wideband,waterproof, stainless steel case and ceramic interface.

ENQUIRY NOWCONTACT:+86-20-32290092

W500/1 Sensor

Applications

W500/1 is a passive piezoelectric acoustic emission sensor. It is well suited for laboratory studying of surface displacement of structures due to different AE modes.It also could be used in applications requiring frequency analysis and composites research. It could be easily mounted with a magnetic hold-down.


Technical Specs
Resonant Freq.   Ref V/(m/s)500kHz
Frequency Range100kHz-1000kHz
Sensitivity Peak   Ref V/(m/s)>65dB
Working Temp.-20 to 120℃
Size(DxH)19×15mm
Weight45 g

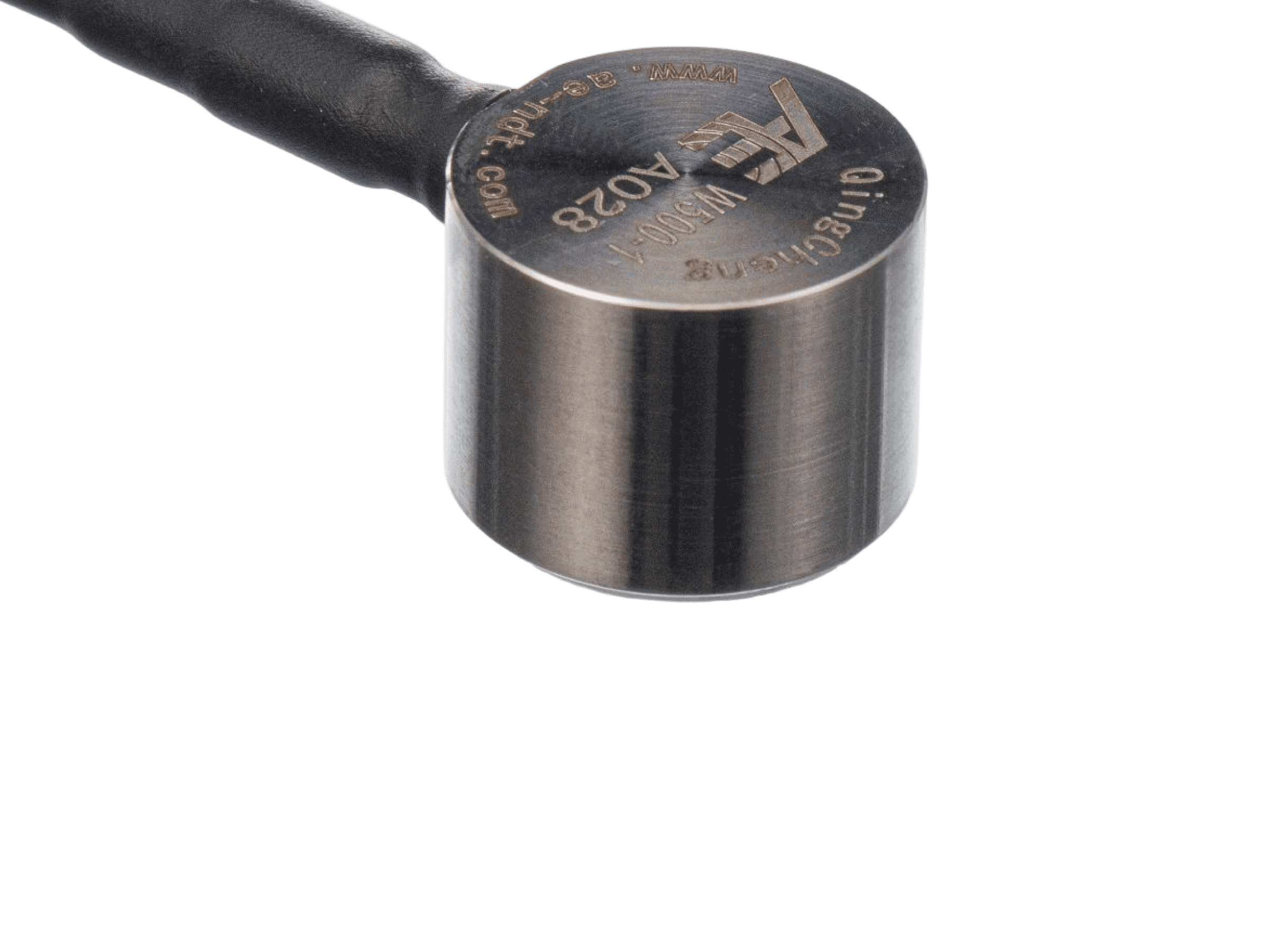

Case MaterialSUS-304

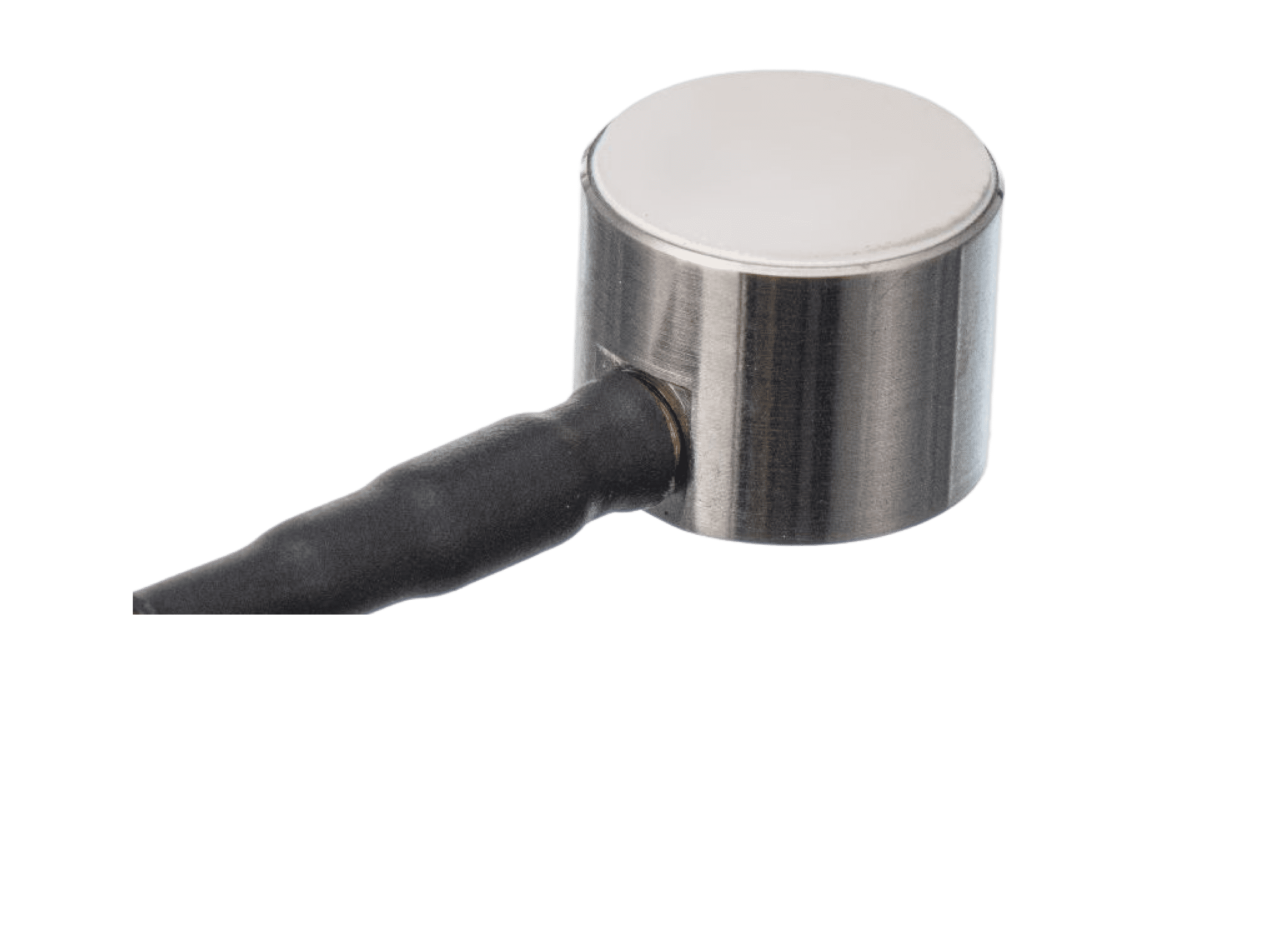

Face MaterialCeramic
Protecting GradeIP68

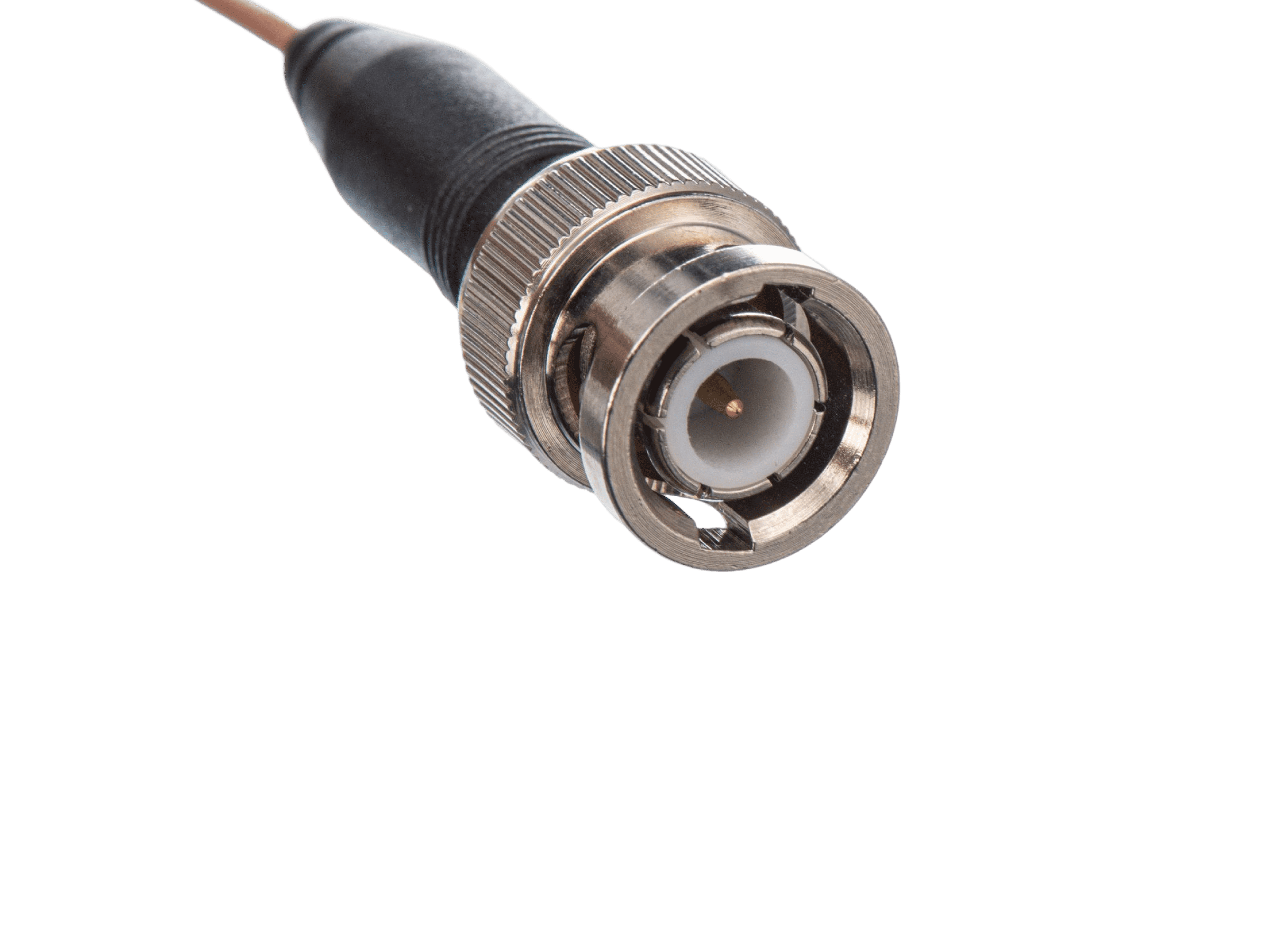

ConnectorBNC on integral cable
Connector LocationSide
Accessories
Signal cable modelSYV-50-3/STYV-50-2
Hold-downM20
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Passive piezoelectric sensor with wideband,waterproof, stainless steel case and ceramic interface.
