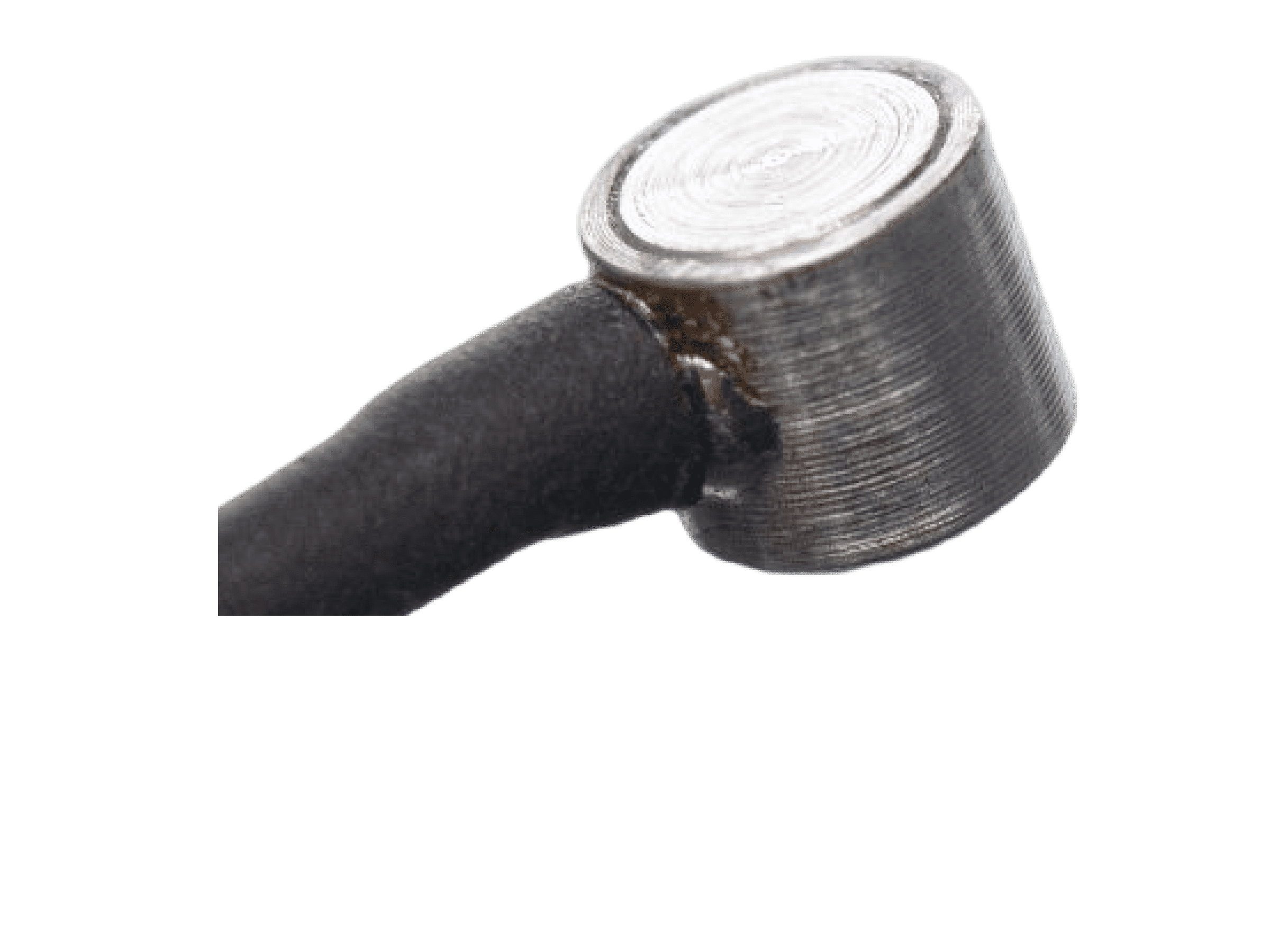

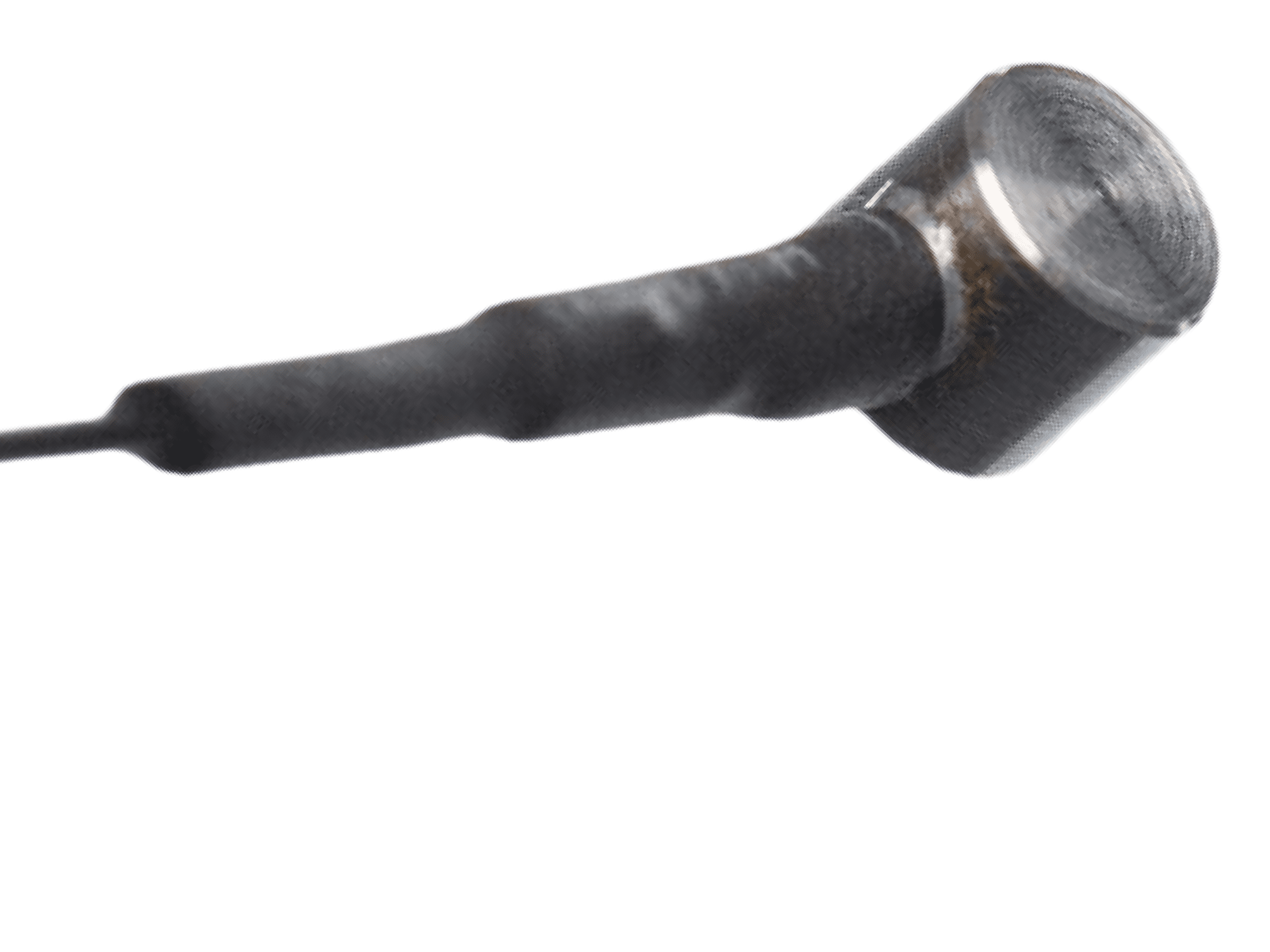

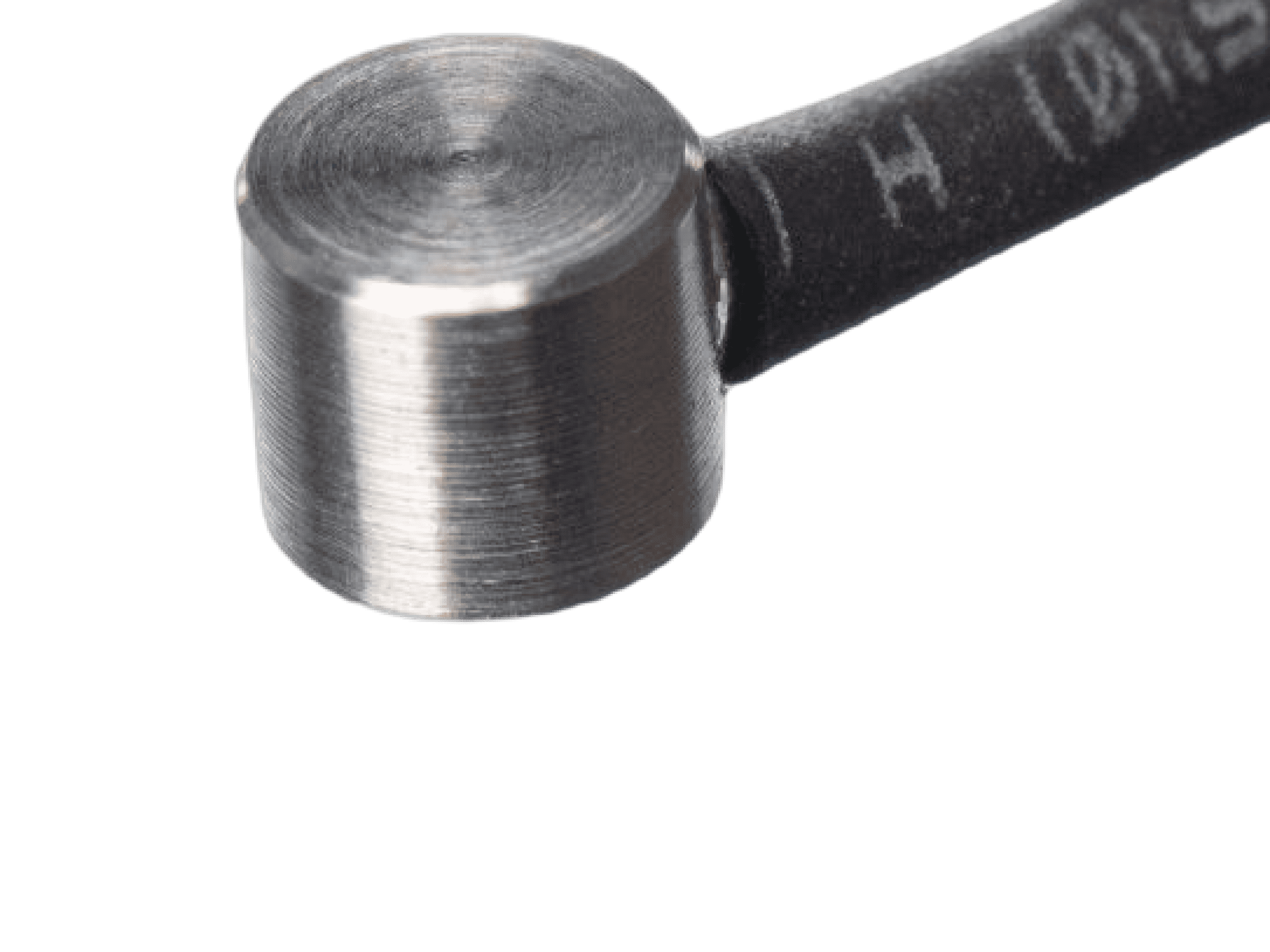

WM500/1 Sensor

Model:

WM500/1

Description:

WM500/1 is a passive piezoelectric wideband miniature AE sensor. It is specially designed to provide a flat frequency response to acoustic emission signals over its entire frequency bandwidth.

Features:

Passive piezoelectric sensor with mini size,full stainless steel case.

ENQUIRY NOWCONTACT:+86-20-32290092

WM500/1 Sensor

Applications

WM500/1 is a passive piezoelectric wideband miniature AE sensor, it could be mounted in the small and tight spaces, and it is well suited for laboratory studying of surface displacement of structures due to different AE modes. It also could be used in applications requiring frequency analysis and composites research.


Technical Specs
Resonant Freq.   Ref V/(m/s) 500kHz
Frequency Range 100kHz-1000kHz
Sensitivity Peak   Ref V/(m/s) >65dB
Working Temp. -20 to 50℃
Size(DxH) 4.7×4mm
Weight 13 g
Case Material SUS-304
Face Material SUS-304
Protecting Grade IP68

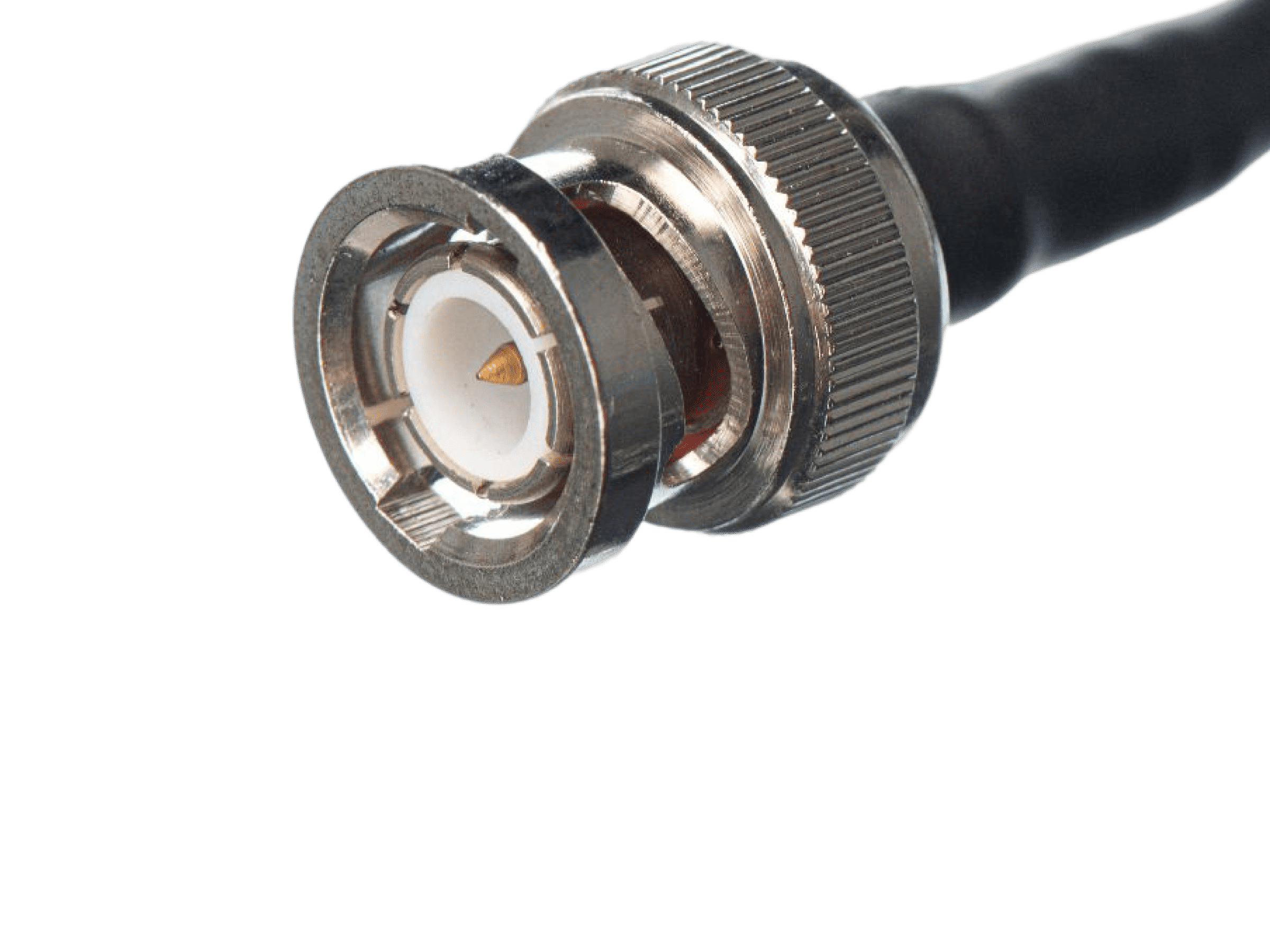

Connector BNC on integral cable
Connector Location Side
Accessories
Signal cable model SYV-50-3/STYV-50-2
Hold-down Saddle type
Preamplifier PAS/PAV

Further Information

Sensor Data Sheet.pdf


Passive piezoelectric sensor with mini size,full stainless steel case.
