High-Pressure Reactor Tower AE Monitoring at Puguang Gas Field (ISAE)

2026-09-16 14:15

At the Puguang Gas Field in Dazhou, intrinsically safe, explosion-proof IoT acoustic emission (ISAE) units were installed on the outer wall of a high-pressure reactor tower — exactly at the locations where crack monitoring and alarms are required (along the longitudinal welds).

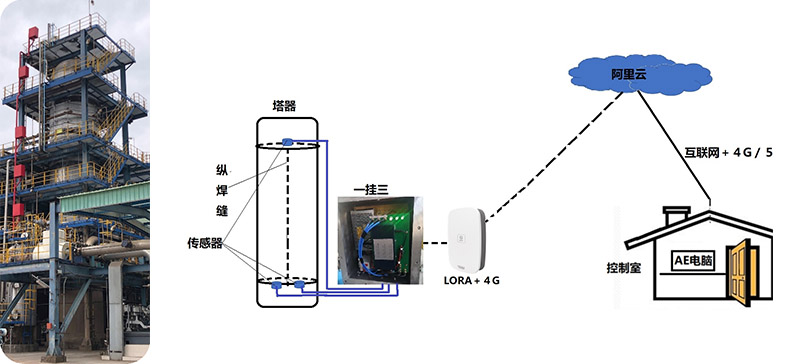

Fig. 1 System architecture: sensors on the tower welds → ISAE module → LoRa gateway → cloud platform and control room

Monitoring data is transmitted over LoRa wireless to a gateway installed in a safe zone several kilometers away, and from there to any network-reachable location — including the cloud IoT platform — where alarms are raised and can be pushed to engineers' mobile phones.

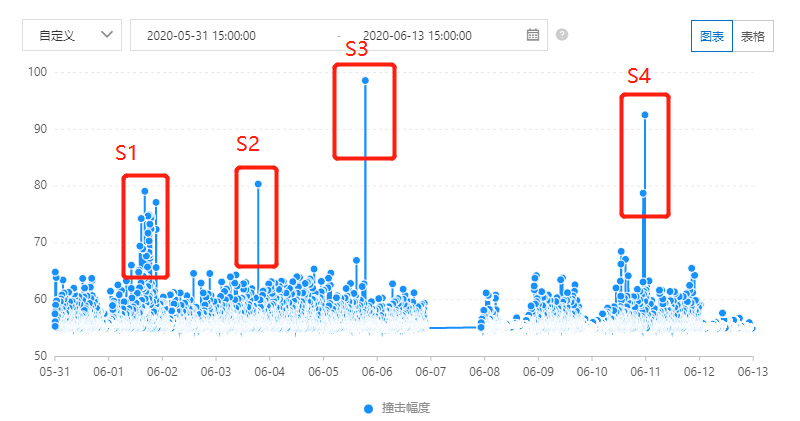

Fig. 2 Cloud platform data: hit amplitude timeline with alarm events (S1–S4)

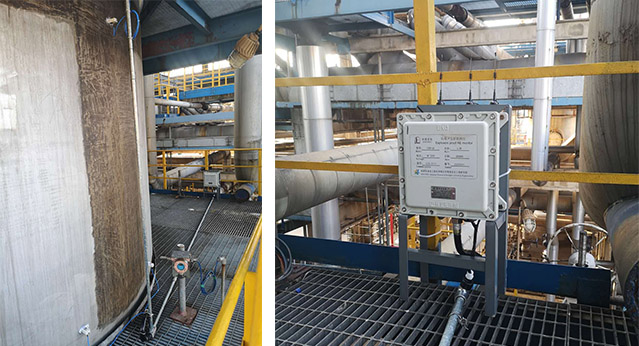

Fig. 3 Field installation: sensor on the tower wall and the explosion-proof ISAE unit
