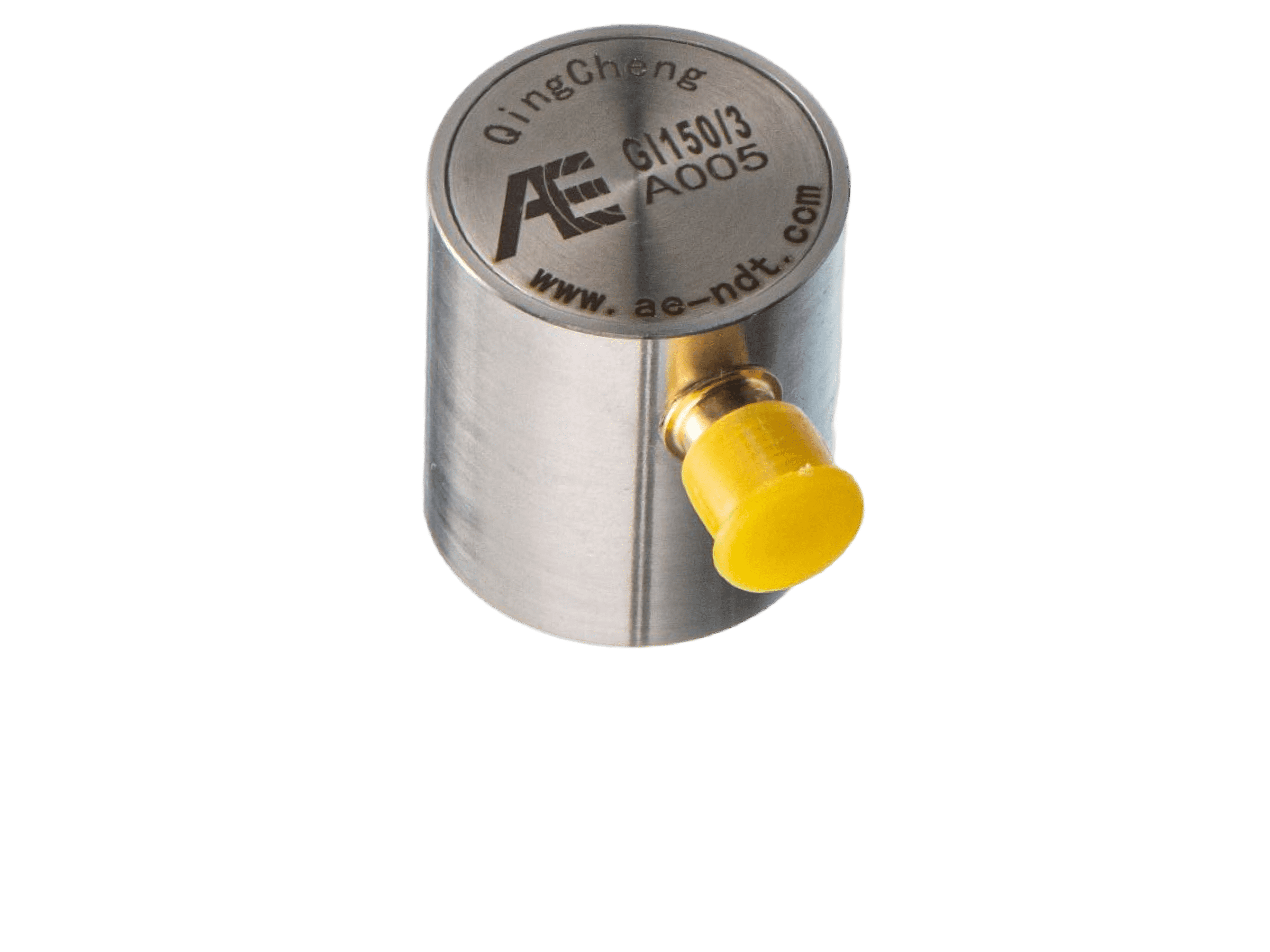

GI150/3 Sensor

Model:

GI150/3

Description:

Narrowband integrated sensor with built-in 34dB 12V preamplifier. Stainless steel material makes it reliable and endurable and its 60 kHz-400 kHz bandwidth covering the frequency range of most AE applications.

Features:

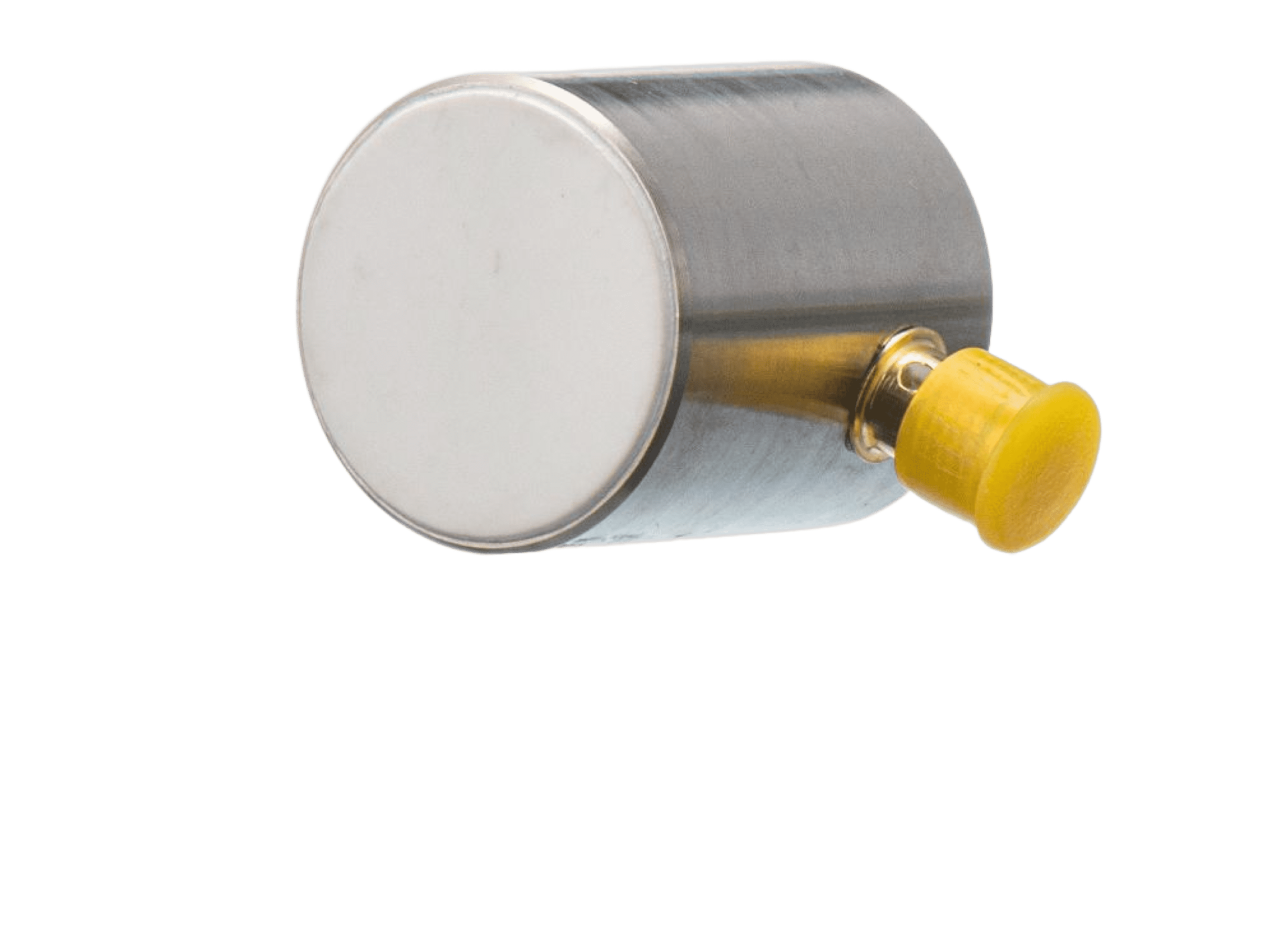

Preamplifier built-in,stainless steel case and ceramic interface, SMA connector.

ENQUIRY NOWCONTACT:+86-20-32290092

GI150/3 Sensor

Applications

As a piezoelectric acoustic emission sensor with integrated preamplifier, the GI150/3 does not need to be connected to the additional preamplifier, thus simplifying the wiring work. And this sensor is well suited for crack and fault diagnosis of metallic equipment, and for structures health monitoring such as pipelines, pressure vessels, bridges etc.


Technical Specs
Resonant Freq.  Ref V/(m/s)150kHz
Frequency Range60kHz-400kHz
Sensitivity Peak  Ref V/(m/s)>75dB
Integral preamplifier34dB 12V
Preamp. Impedance50Ω
Working Temp.-20 to 50℃
Size(DxH)22×25.5mm
Weight38 g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP62

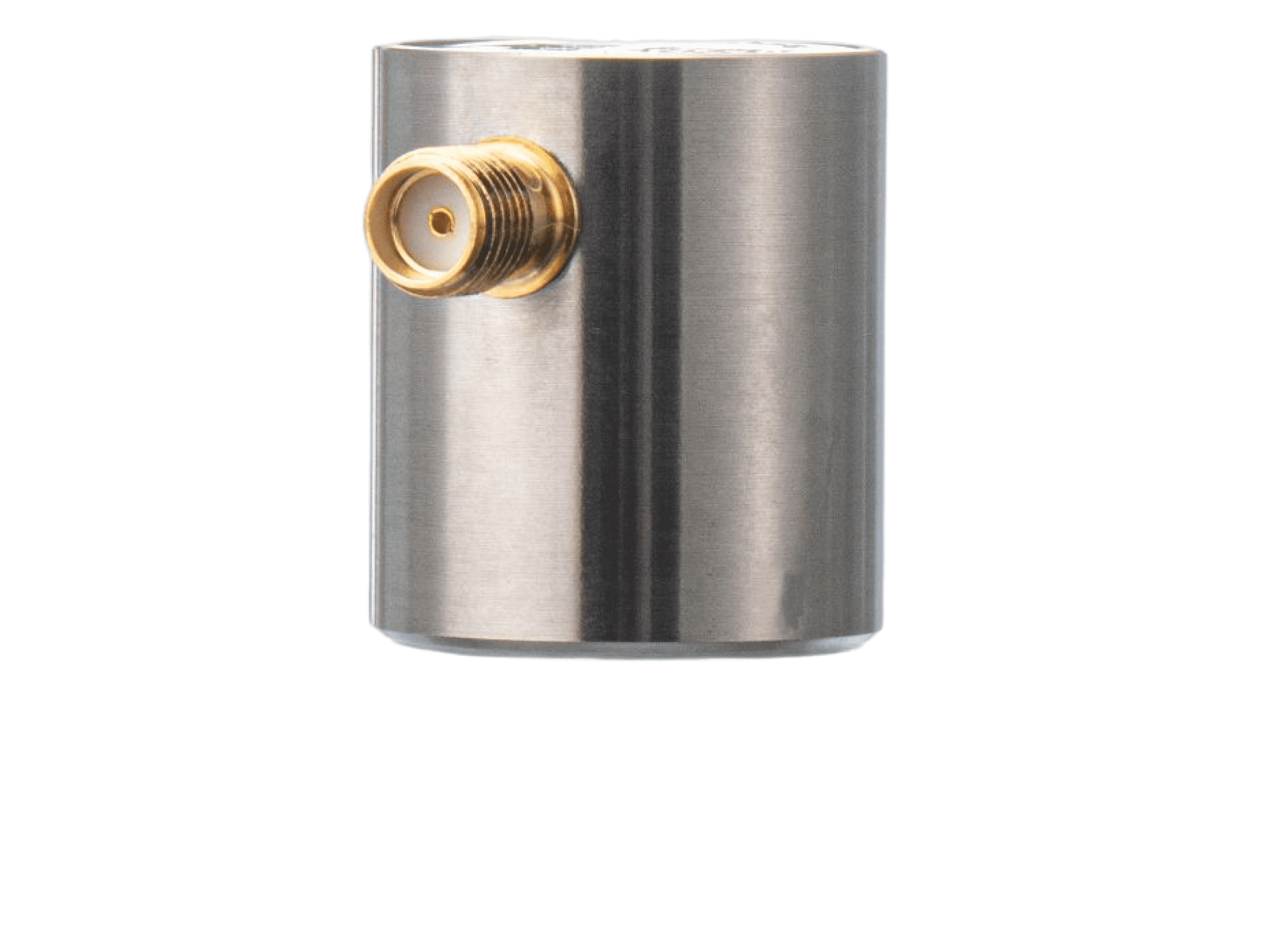

ConnectorSMA
Connector LocationSide
Accessories
Signal cable modelRG178/RG316
Hold-downSaddle type

Further Information

Sensor Data Sheet.pdf


Preamplifier built-in,stainless steel case and ceramic interface, SMA connector.
