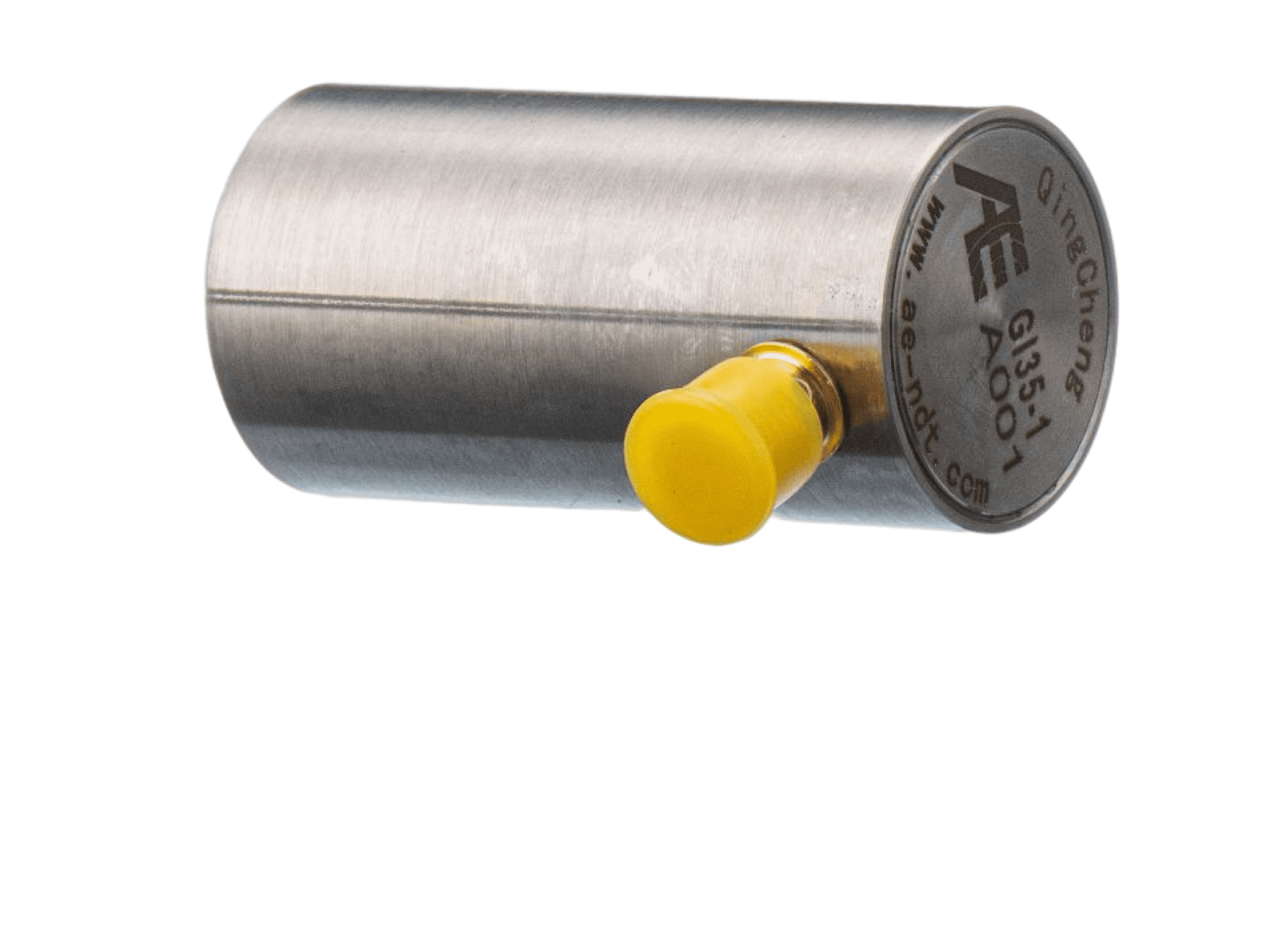

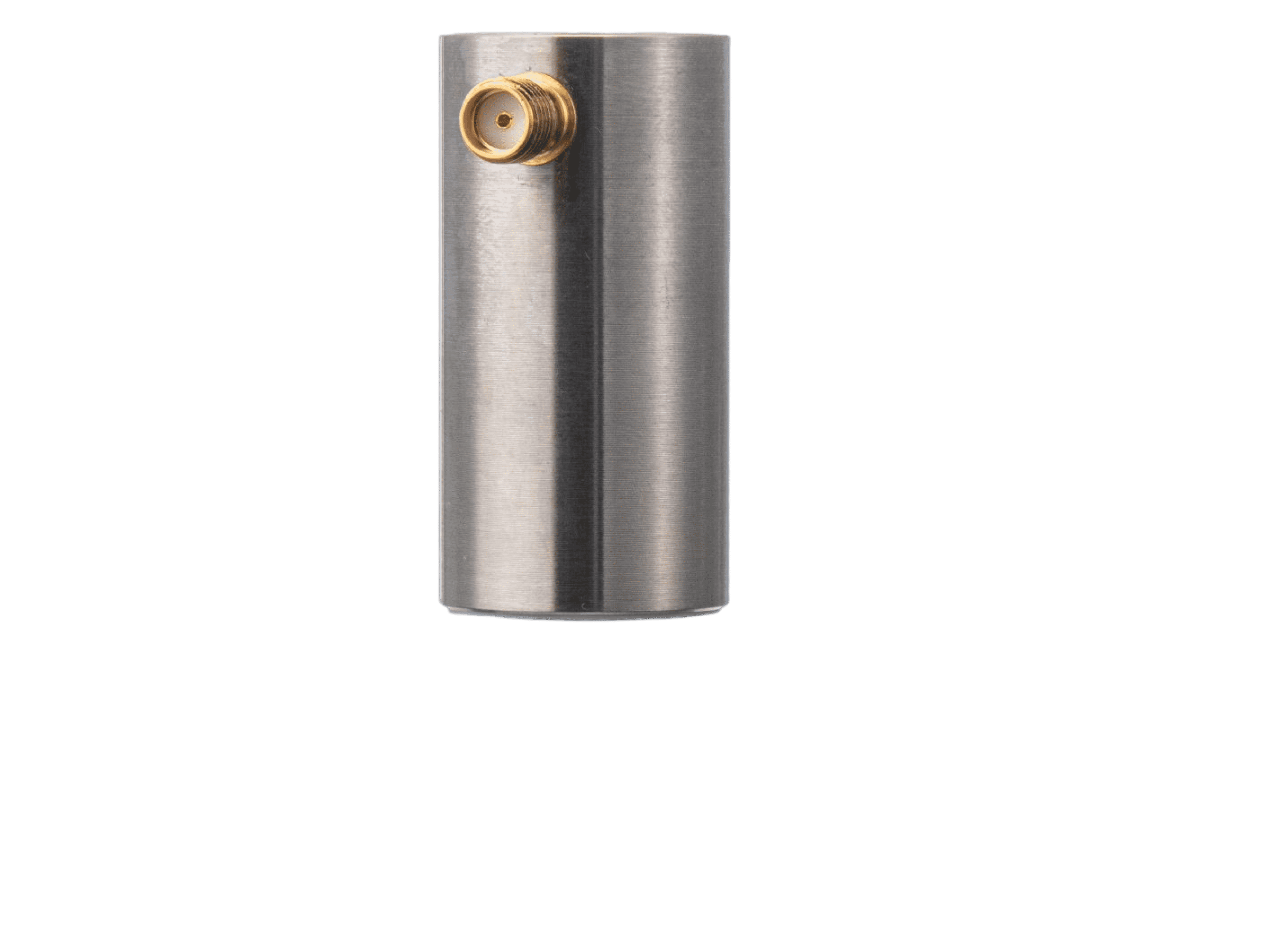

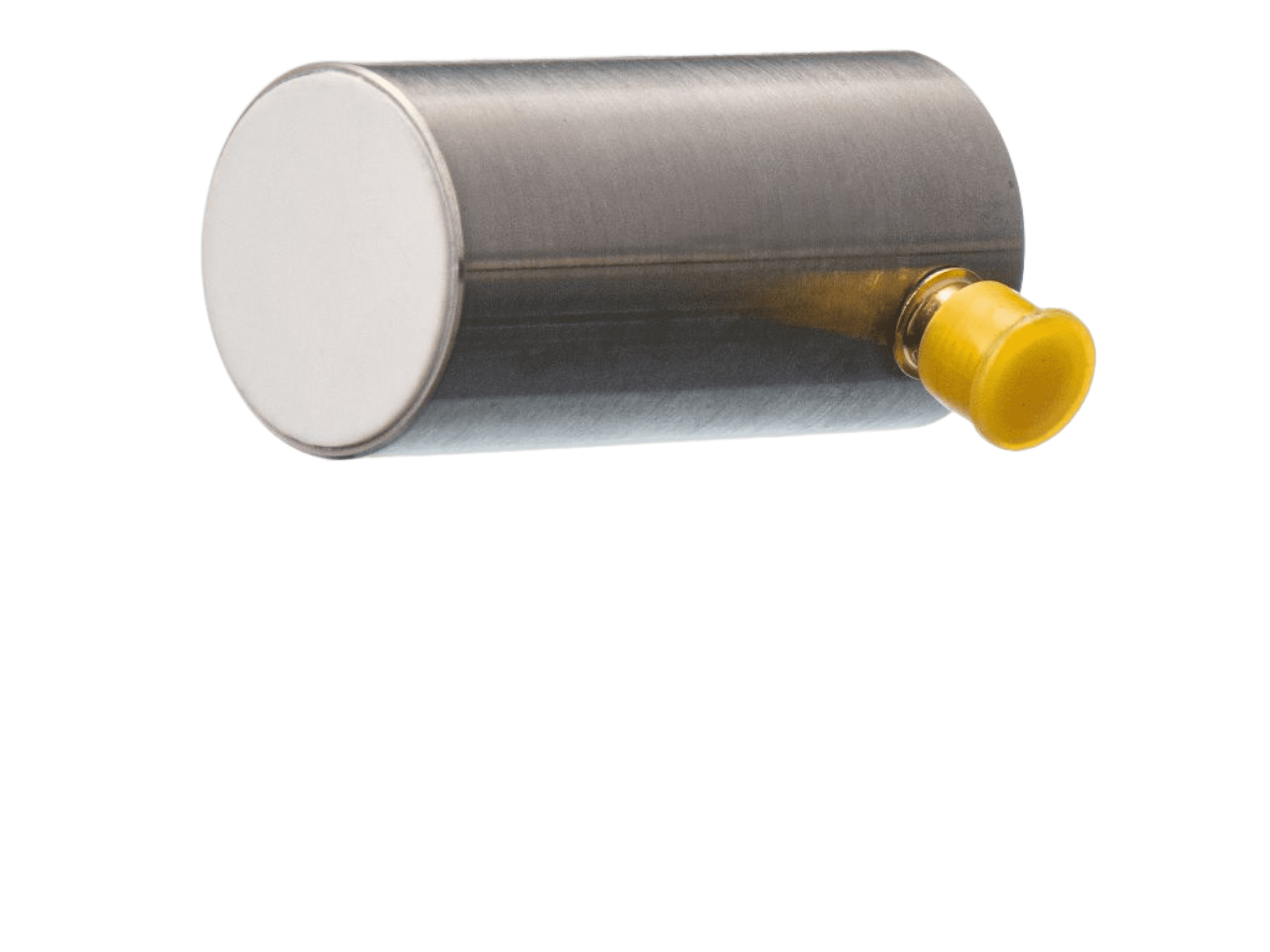

GI35/1 Sensor

Model:

GI35/1

Description:

Passive piezoelectric AE sensor with built-in 26dB 5V preamplifier. And 15kHz-70kHz bandwidth makes it suitable for detecting low frequency acoustic emission signals.

Features:

Preamplifier built-in,stainless steel case and ceramic interface, SMA connector.

ENQUIRY NOWCONTACT:+86-20-32290092

GI35/1 Sensor

Applications

GI35/1 is a passive piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected to the additional preamplifier, thus simplifying the wiring work. The low frequency response makes it suited for monitoring large objects like concrete, steel structures and geologic structures. It also could be used for monitoring leakage and corrosion of storage tanks or valves and for detecting partial discharge.


Technical Specs
Resonant Freq.   Ref V/(m/s)40kHz
Frequency Range15kHz-70kHz
Sensitivity Peak  Ref V/(m/s)>75dB
Integral preamplifier26dB 5V
Preamp. Impedance50Ω
Working Temp.-20 to 50℃
Size(DxH)22×42.6mm
Weight79 g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP62
ConnectorSMA
Connector LocationSide
Accessories
Signal cable modelRG178/RG316
Hold-downSaddle type

Further Information

Sensor Data Sheet.pdf


Preamplifier built-in,stainless steel case and ceramic interface, SMA connector.
