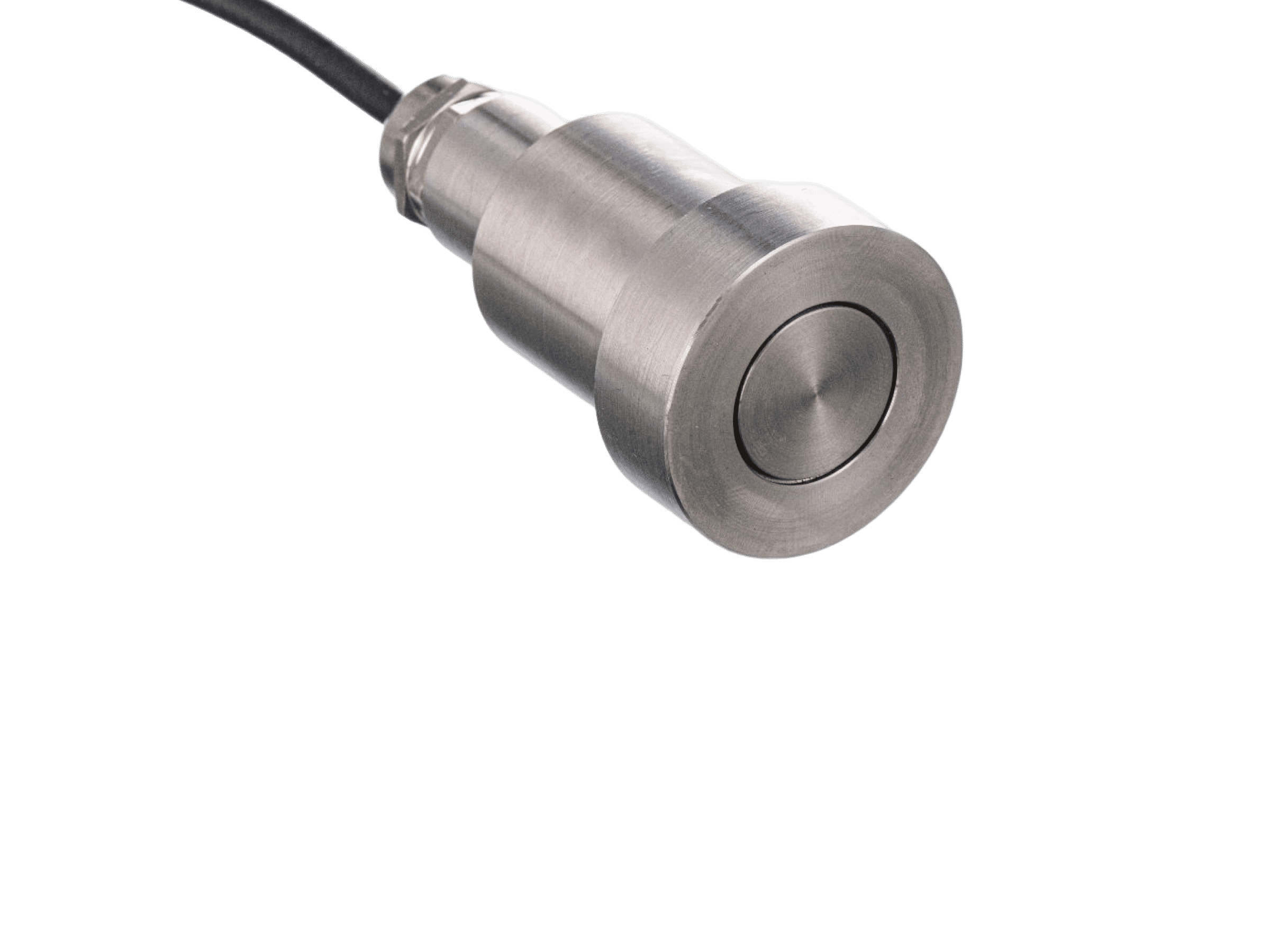

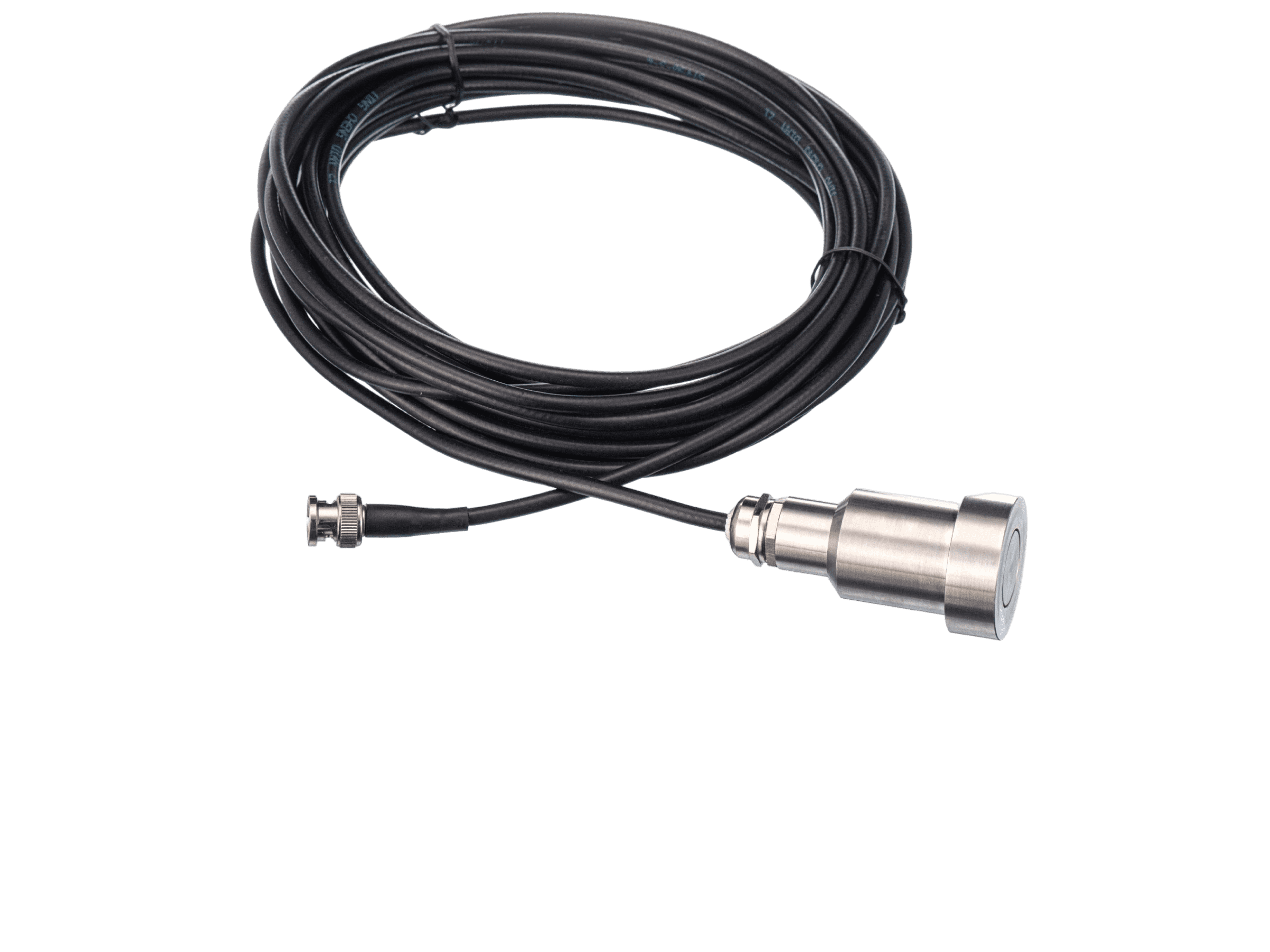

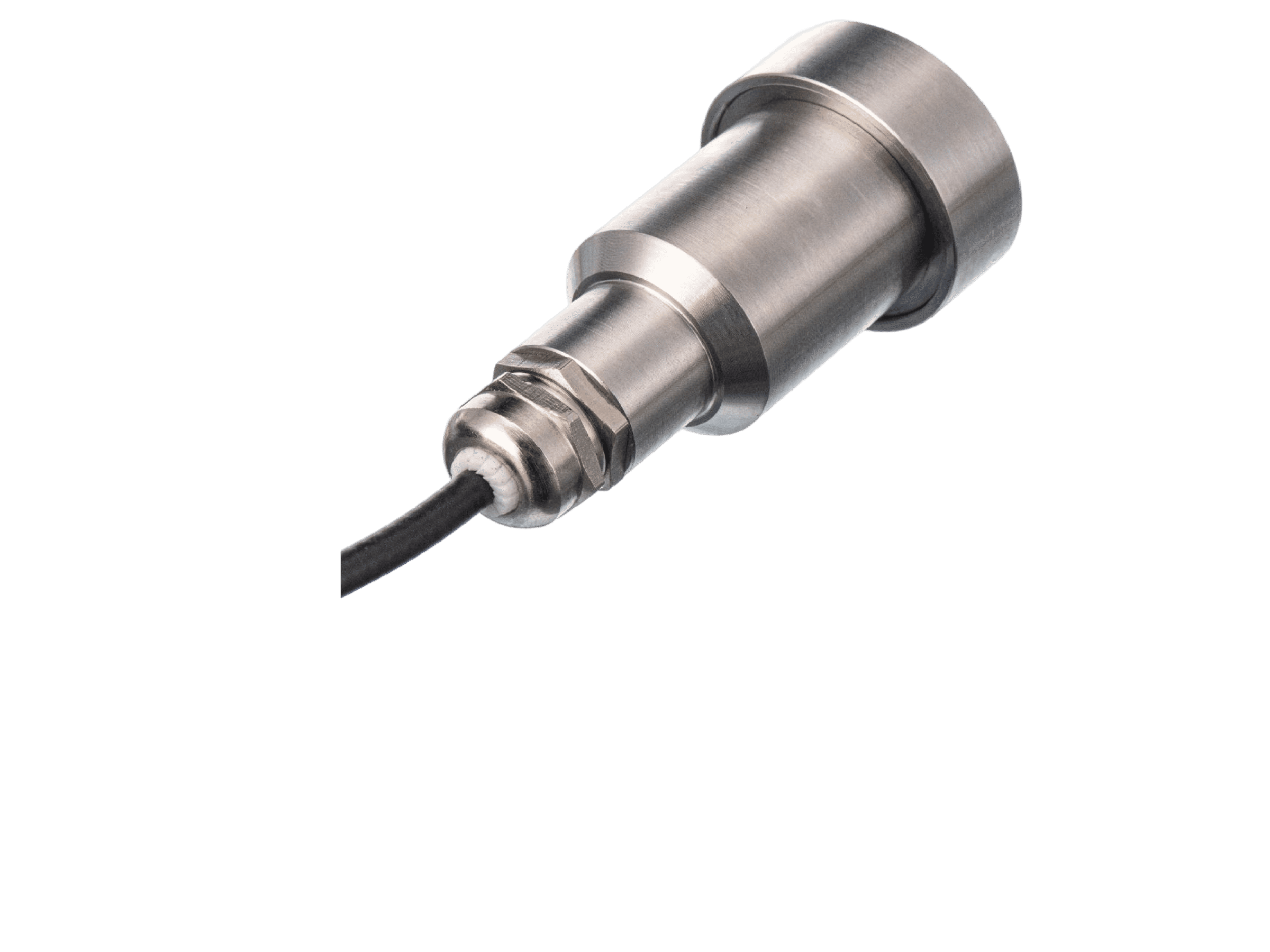

GI10/1 Sensor

Model:

GI10/1

Description:

GI10/1 is a passive piezoelectric AE sensor with preamplifier built-in and very low frequency response,all-metal shell features makes it reliable and could be buried in the ground for long-term monitoring.

Features:

Ultra low frequency response and all metal case.

ENQUIRY NOWCONTACT:+86-20-32290092

GI10/1 Sensor

Applications

GI10/1 is a passive piezoelectric acoustic emission sensor with integrated preamplifier, it does not need to be connected to the additional preamplifier, thus simplifying the wiring work. This sensor could be used underground for monitoring geologic structures like slope and for detecting buried pipelines. It also could be used for monitoring leakage and corrosion of the bottom of storage tanks or valves.


Technical Specs
Frequency Range1Hz-15kHz
Sensitivity Peak   Ref V/(m/s)>80dB
Integral preamplifier34dB 12V
Preamp. Impedance50Ω
Working Temp.-20 to 50℃
Size(DxH)38.5×85mm
Weight720 g
Case MaterialSUS-304
Face MaterialSUS-304
Protecting GradeIP68

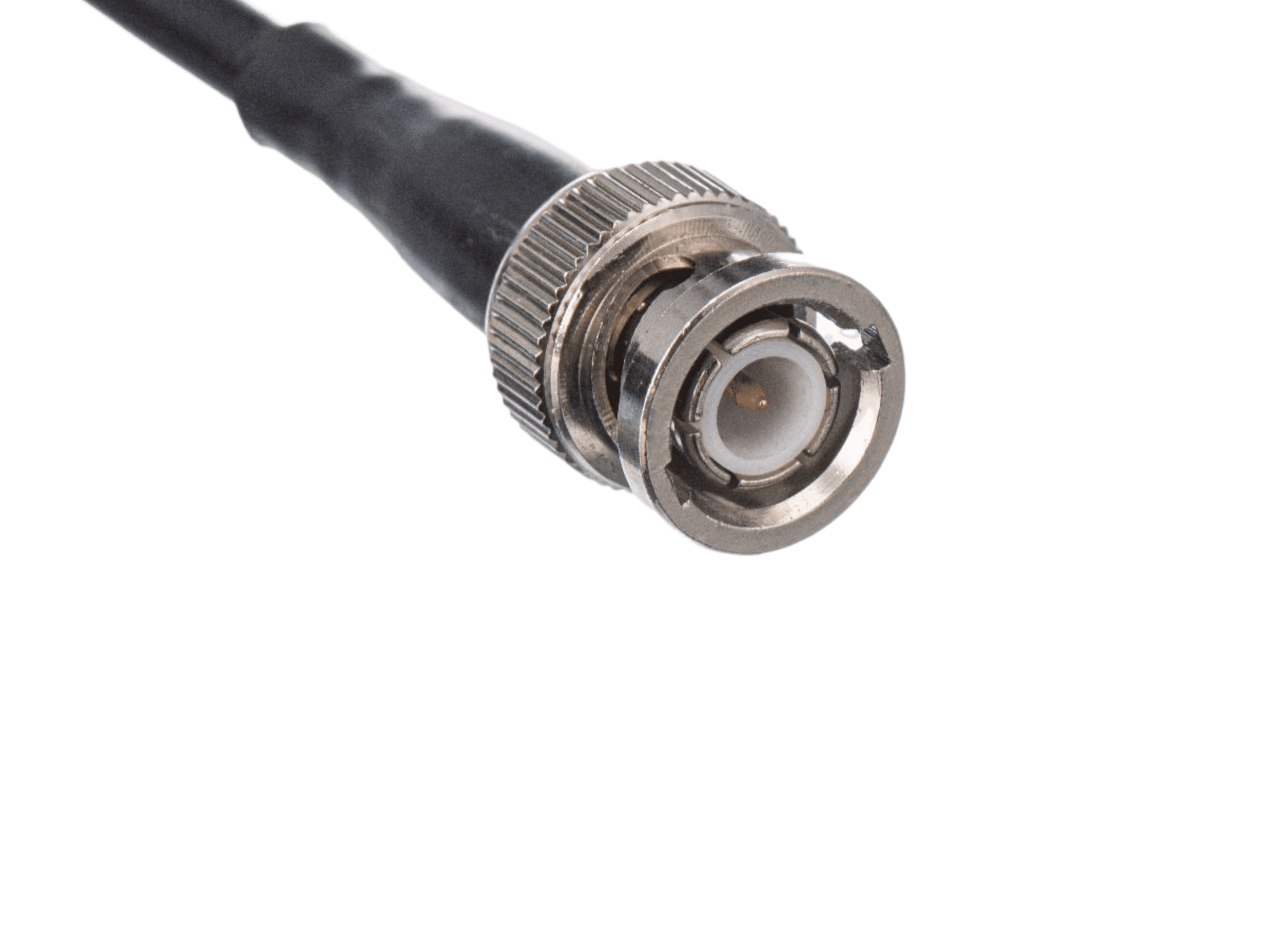

ConnectorBNC on integral cable
Connector LocationTop
Accessories
Signal cable modelSYV-50-3/STYV-50-2
Hold-downSelf-magnetic

Further Information

Sensor Data Sheet.pdf


Ultra low frequency response and all metal case.
