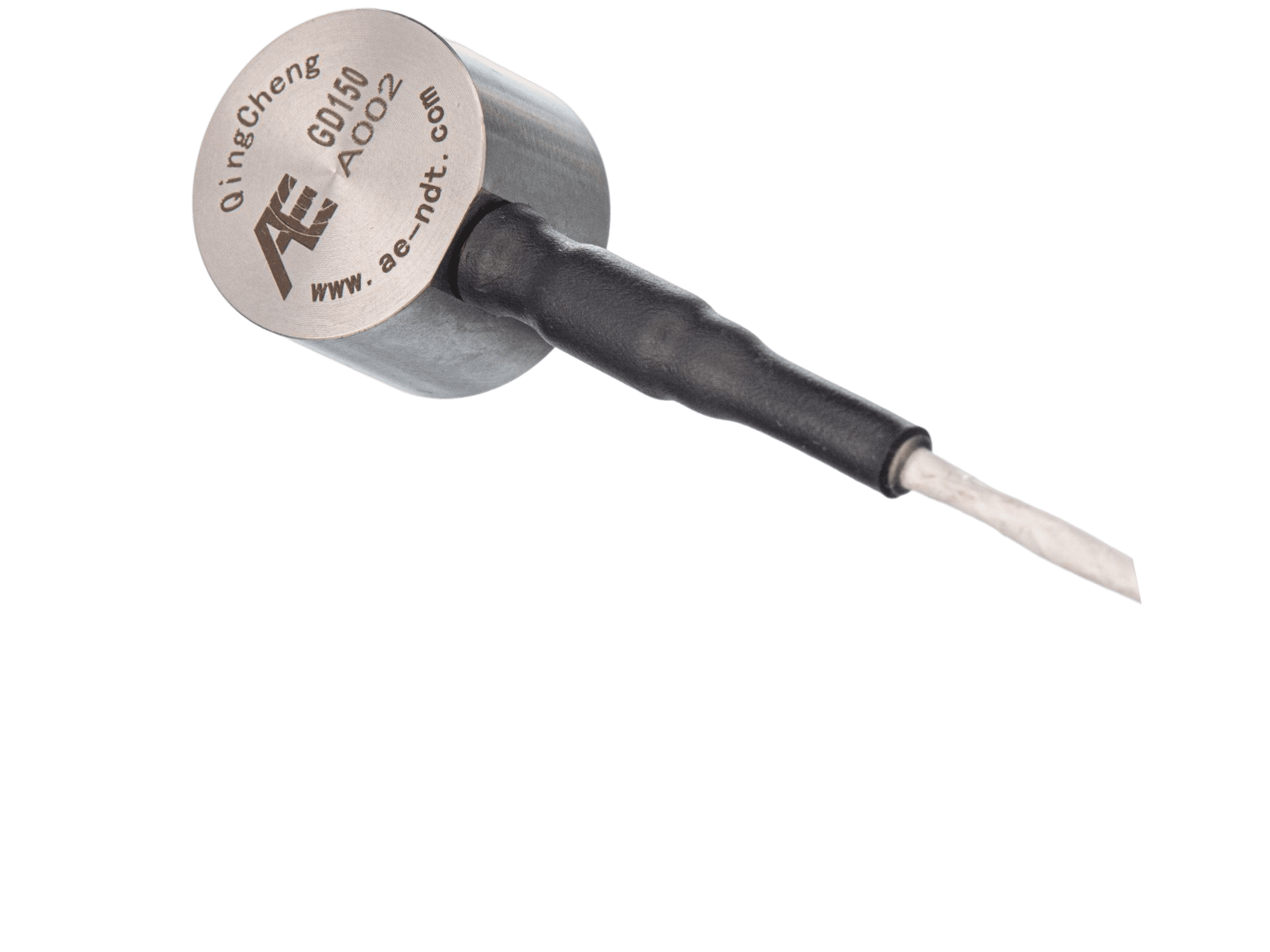

GD150 Sensor

Model:

GD150

Description:

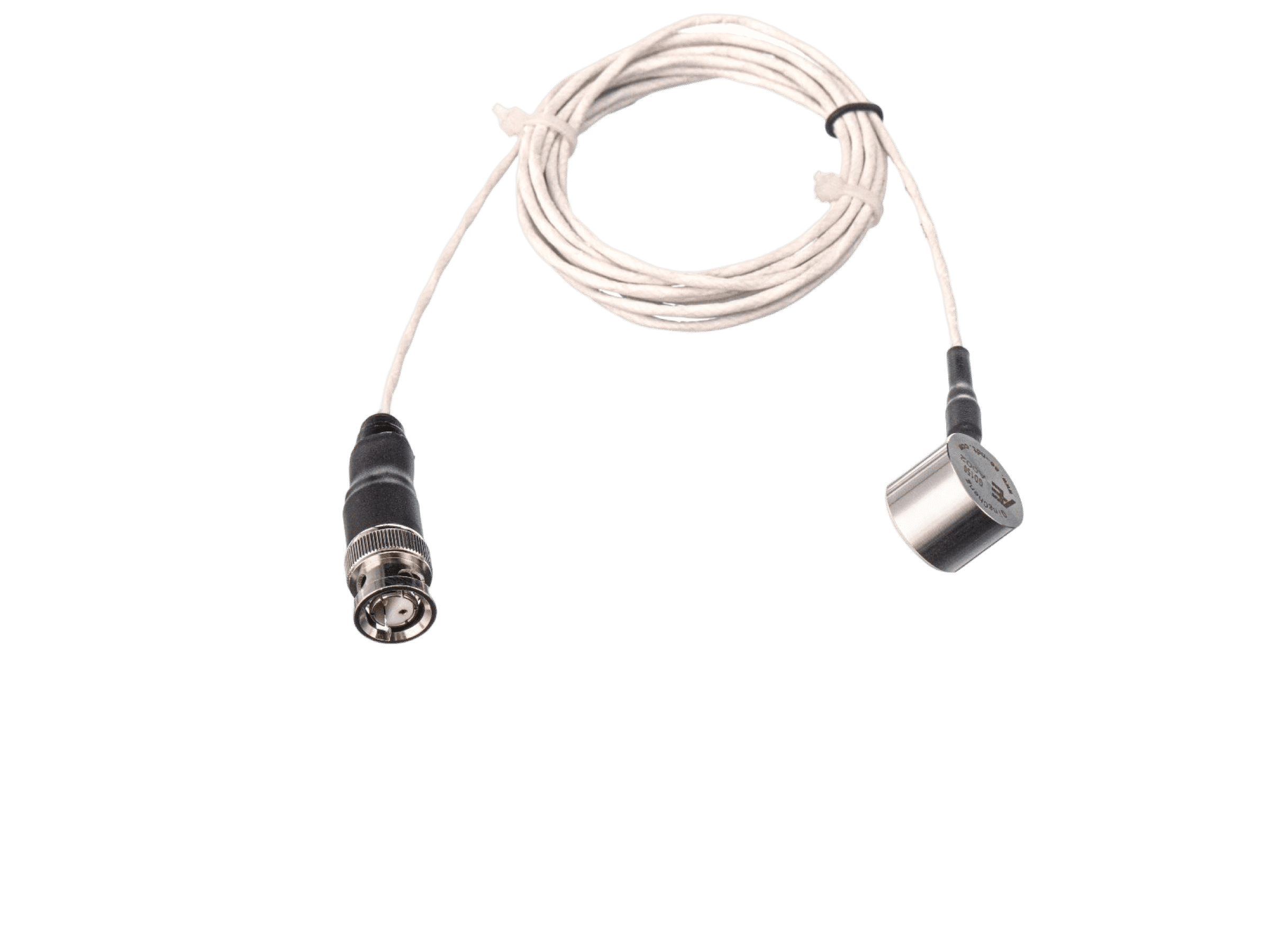

The GD150 is a differential waterproof narrow band sensor with 2.2 meters cable, it is suitable for working in noisy environment, could effectively suppress the common-mode noise.

Features:

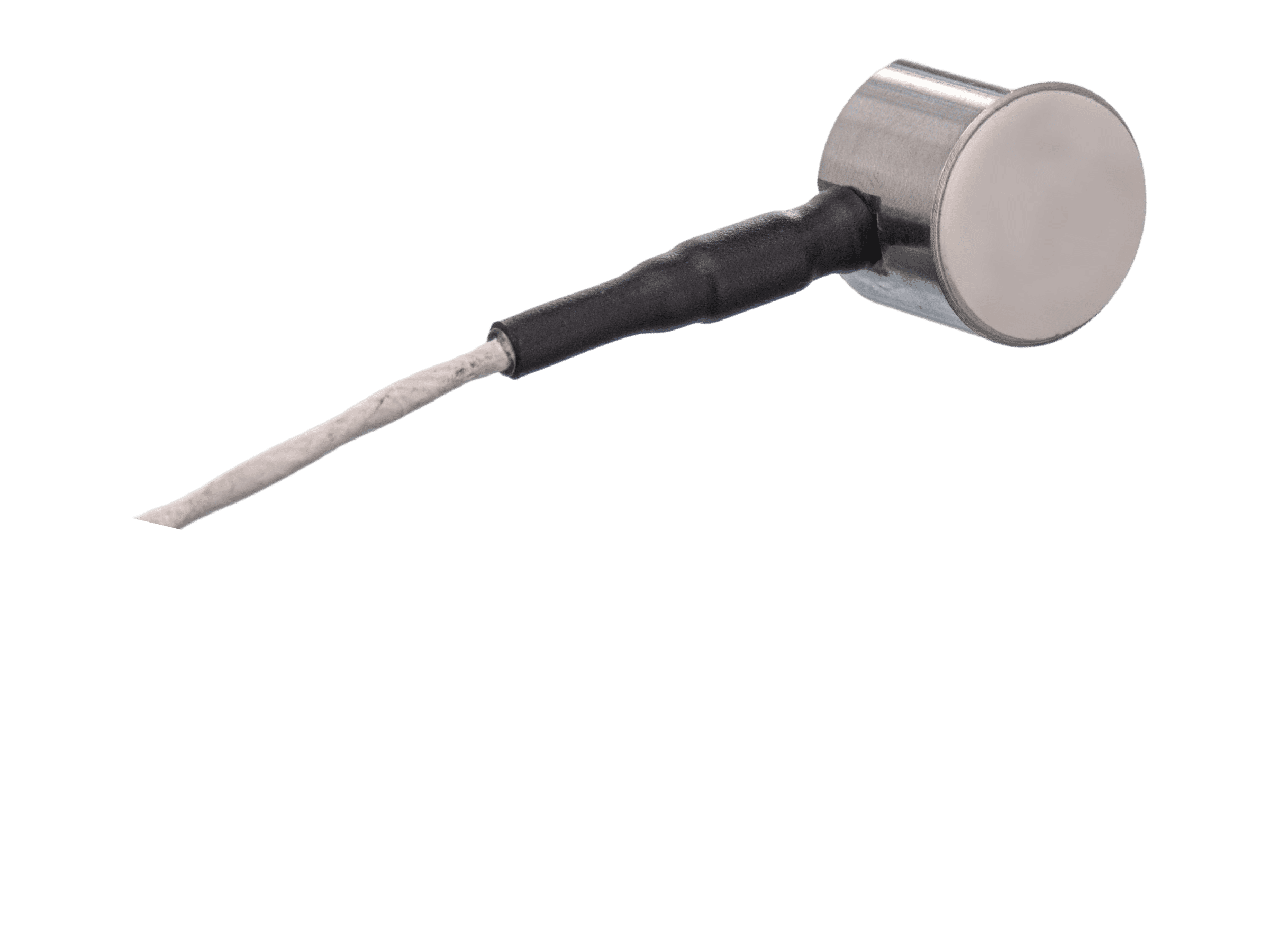

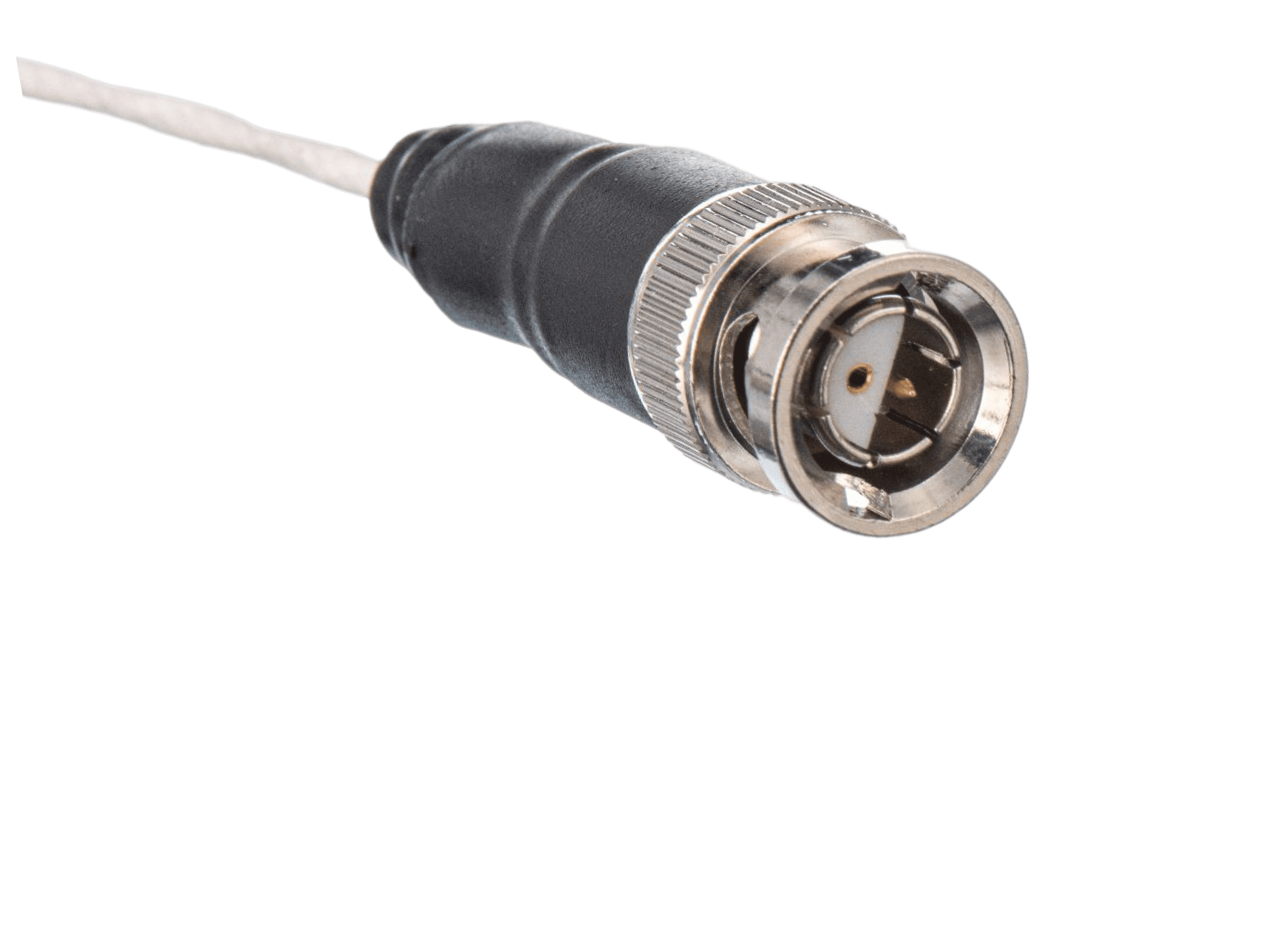

Stainless steel case and ceramic interface, double-core BNC connector on a 2.2m cable.

ENQUIRY NOWCONTACT:+86-20-32290092

GD150 Sensor

Applications

GD150 is a passive piezoelectric acoustic emission sensor, it is well suited for detecting high voltage partial discharge and other fields, especially for detecting metal crack under high noise. It could be easily mounted by a magnetic hold-down.


Technical Specs
Resonant Freq.   Ref V/(m/s)150kHz
Frequency Range60kHz-400kHz
Sensitivity Peak   Ref V/(m/s)>65dB
Working Temp.-20 to 120℃
Size(DxH)19×19.5mm
Weight67 g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP68
ConnectorDouble-core BNC on integral cable
Connector LocationSide
Accessories
Hold-downM20
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Stainless steel case and ceramic interface, double-core BNC connector on a 2.2m cable.
