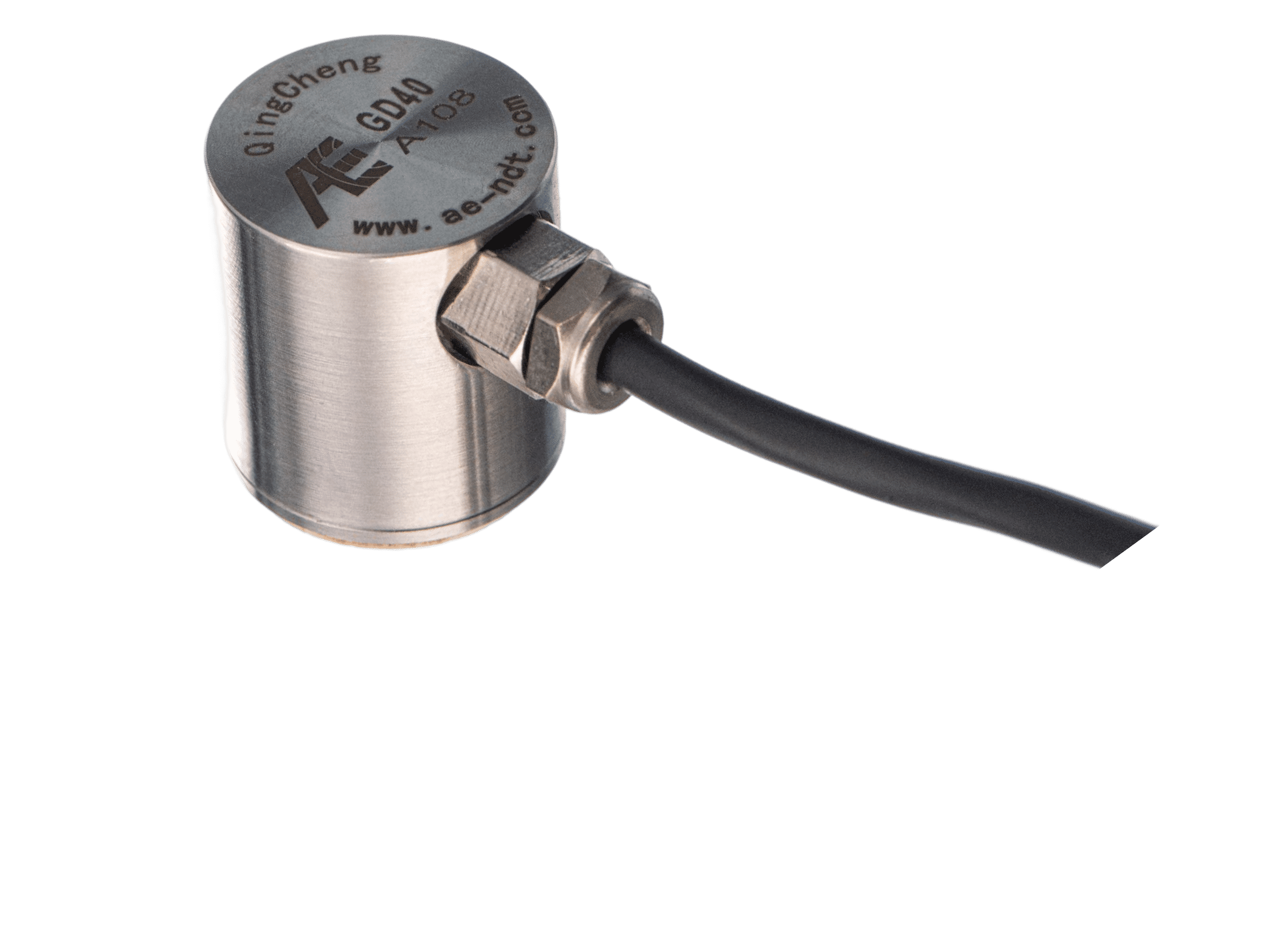

GD40 Sensor

Model:

GD40

Description:

GD40 is a differential waterproof narrow band sensor with 1.7 meters cable, it is suitable for working in noisy environment, could effectively suppress the common-mode noise.

Features:

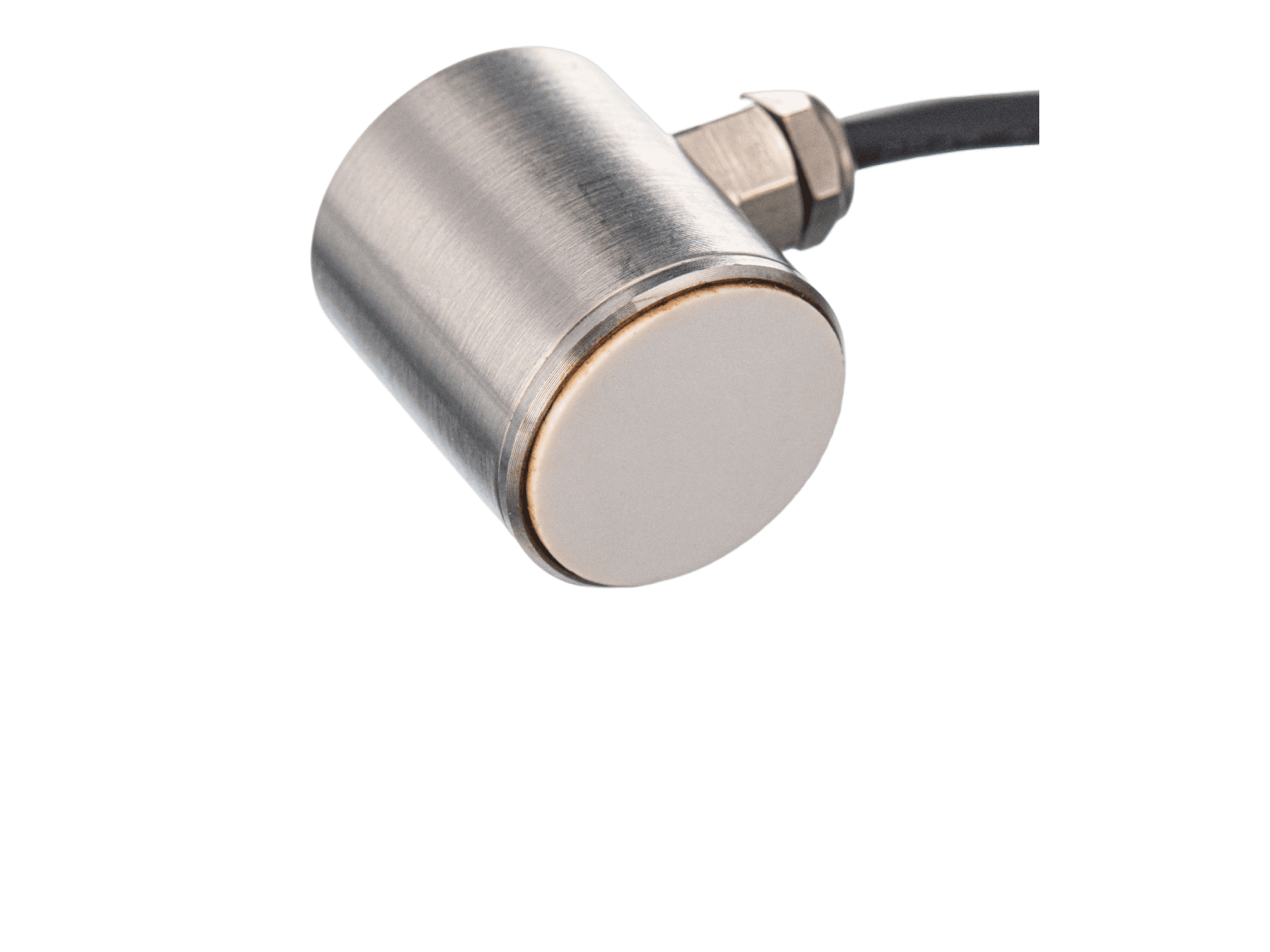

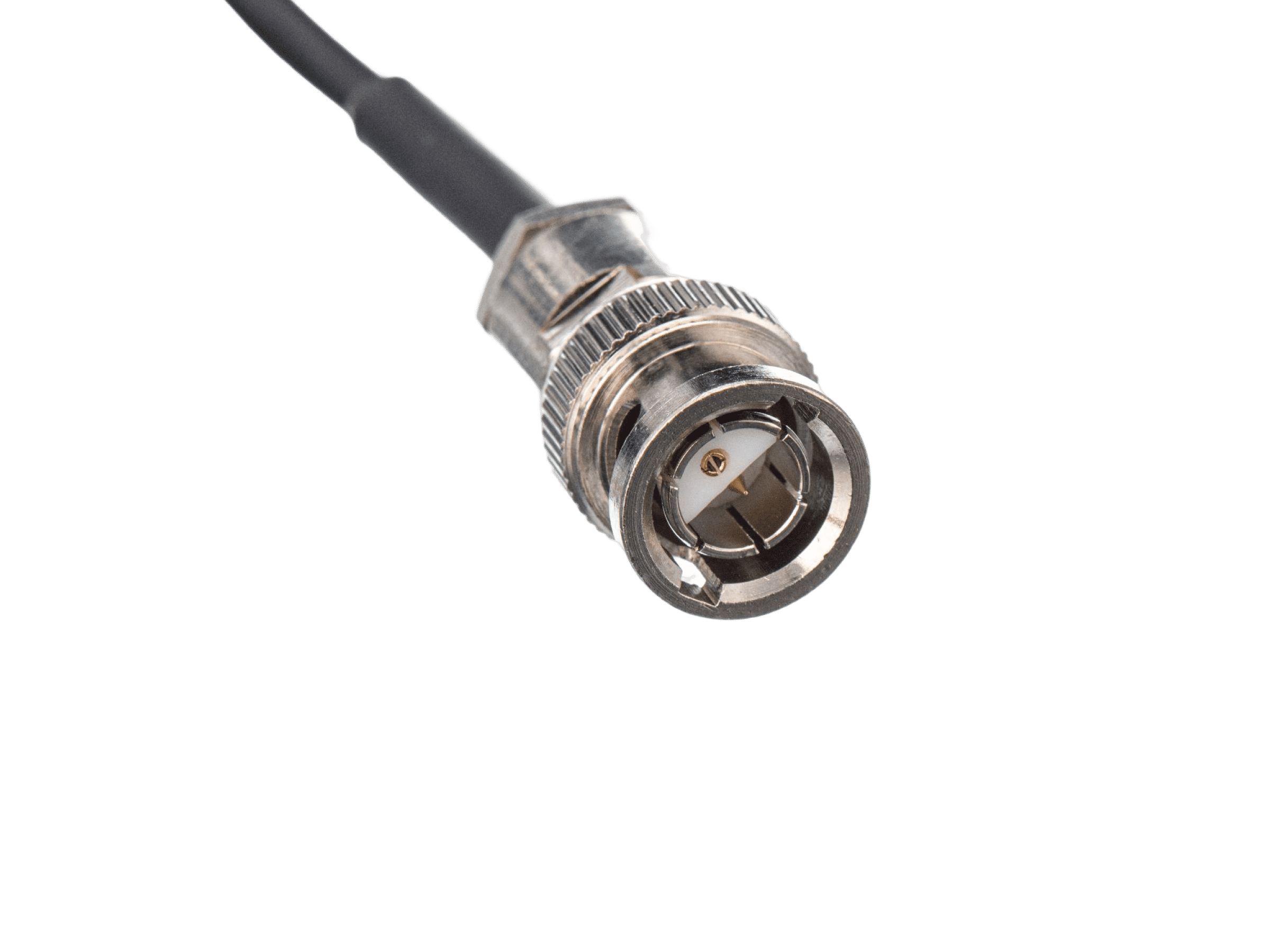

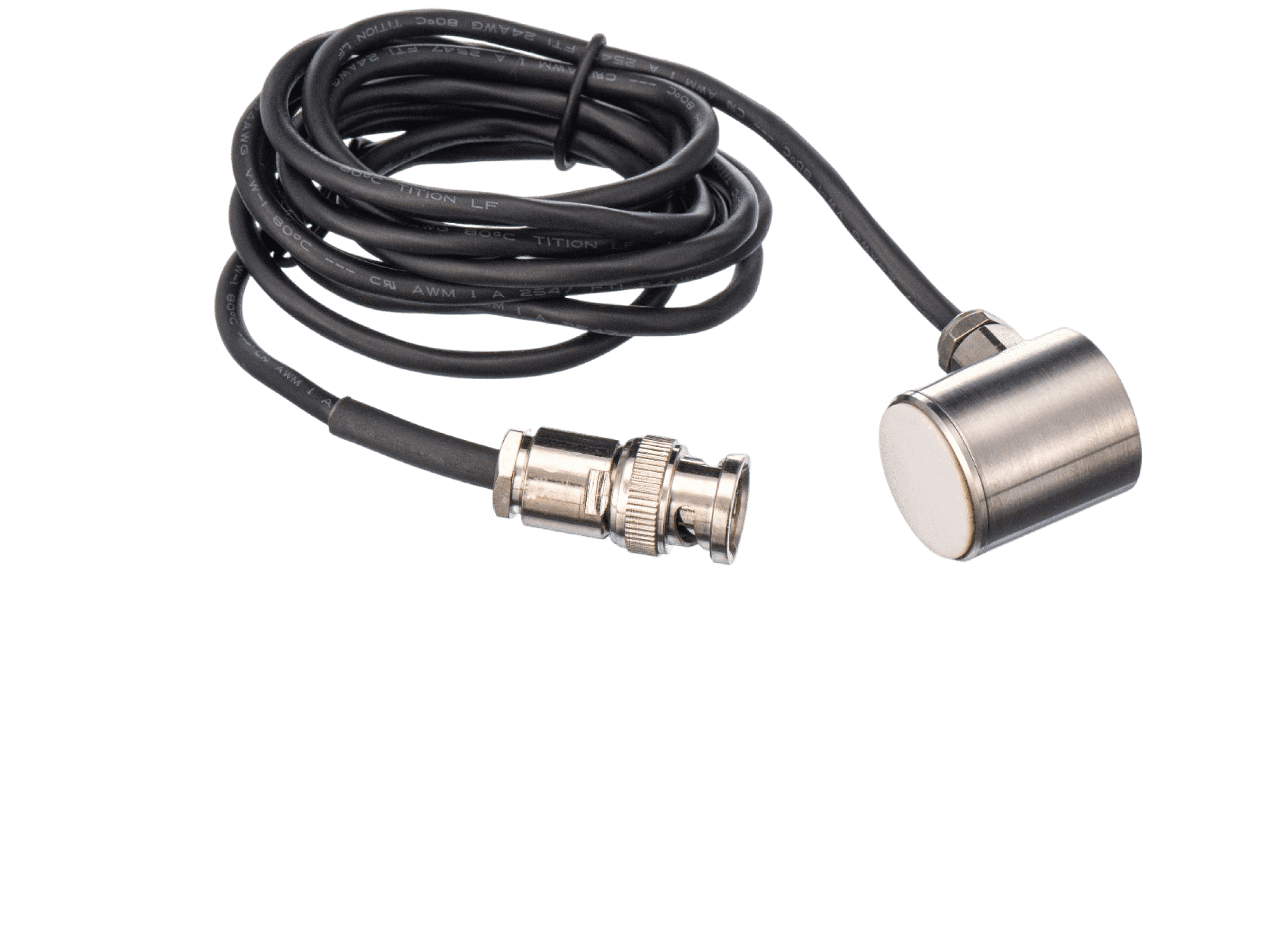

Stainless steel case and ceramic interface, double-core BNC connector on a 1.7m cable.

ENQUIRY NOWCONTACT:+86-20-32290092

GD40 Sensor

Applications

GD40 is a passive piezoelectric acoustic emission sensor, it is well suited for detecting high voltage partial discharge and other fields, especially for detecting metal crack under high noise. It could be easily mounted by a magnetic hold-down.


Technical Specs
Resonant Freq.   Ref V/(m/s)35kHz
Frequency Range15kHz-70kHz
Sensitivity Peak   Ref V/(m/s)>65dB
Working Temp.-20 to 120℃
Size(DxH)22×25mm
Weight106 g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP68
ConnectorDouble-core BNC on integral cable
Connector LocationSide
Accessories
Hold-downSaddle type
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Stainless steel case and ceramic interface, double-core BNC connector on a 1.7m cable.
