Sensor Hold-downs

Model:

All models

Description:

Sensor hold-downs is mainly for holding the sensor on ferromagnetic materials, basically composed of permanent magnet and shell.

Features:

Simple structure, comprehensive model, to meet a variety of requirements.

ENQUIRY NOWCONTACT:+86-20-32290092

Sensor Hold-downs

Sensor hold-downs is mainly for holding the sensor on ferromagnetic materials, basically composed of permanent magnet and shell. M series hold-downs are normal type, the working temperature is -20℃~80℃, H series hold-downs are high temperature type, the working temperature is -20℃~550℃.

Model Internal size (D x H) Working temperature
M20 20mm x 13mm -20℃~80℃
M20A 20mm x 17mm -20℃~80℃
M36 32mm x 35mm -20℃~80℃
M36A 32mm x 55mm -20℃~80℃
M36B 32mm x 35mm -20℃~80℃
M36C 32mm x 35mm -20℃~80℃
H20 20mm x 17mm -196℃~550℃
H20A 22mm x 17mm -196℃~350℃

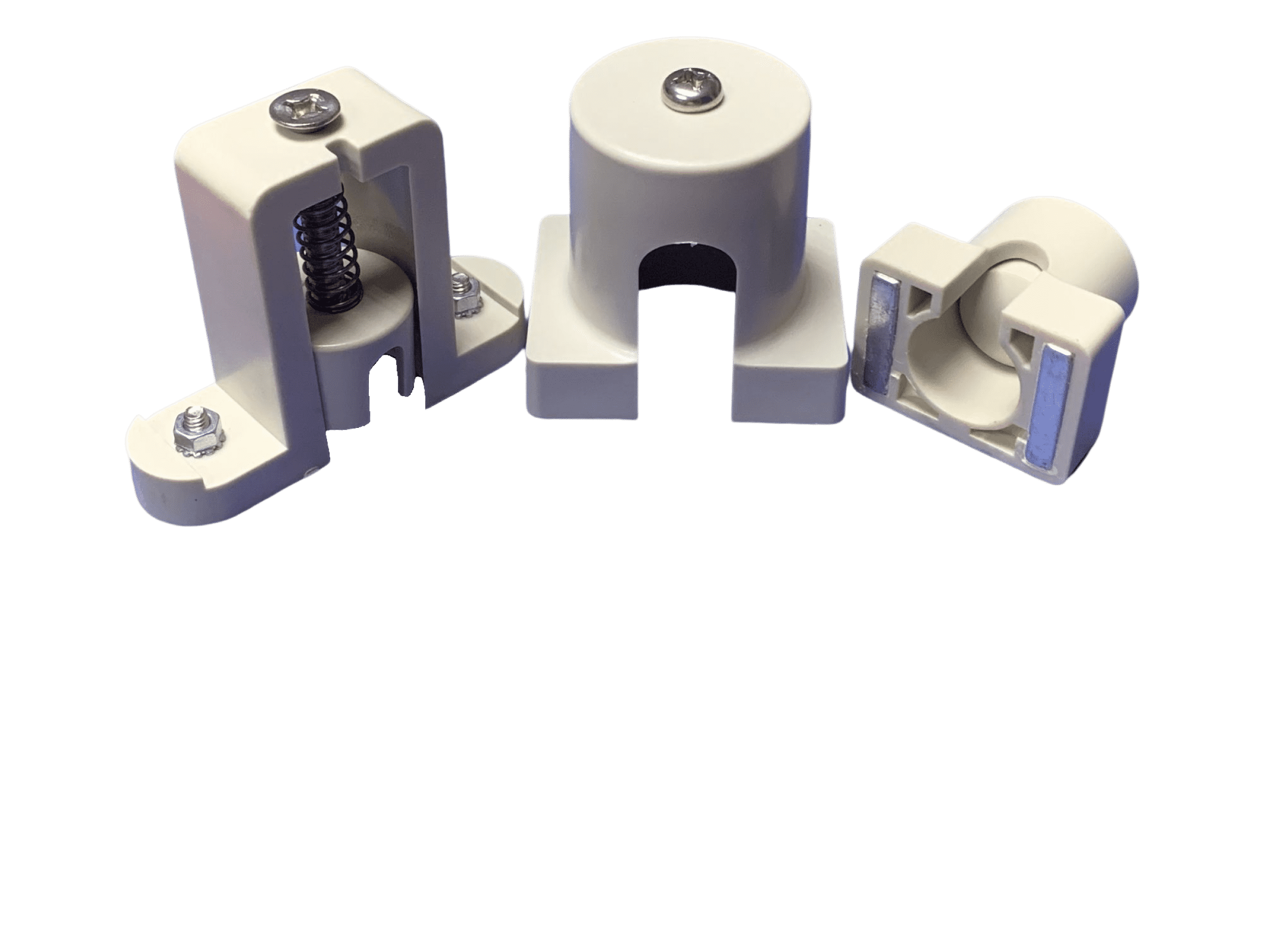

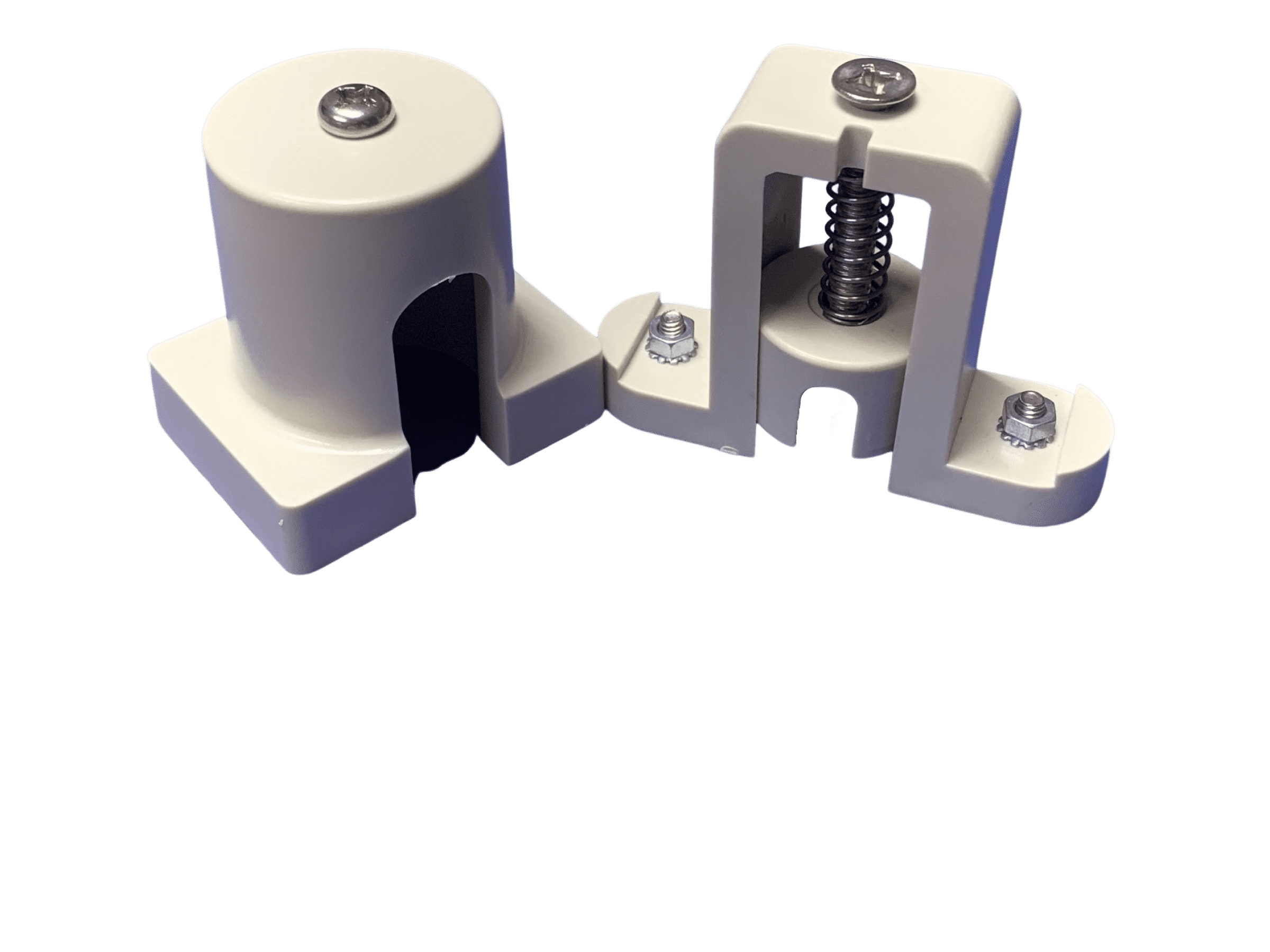

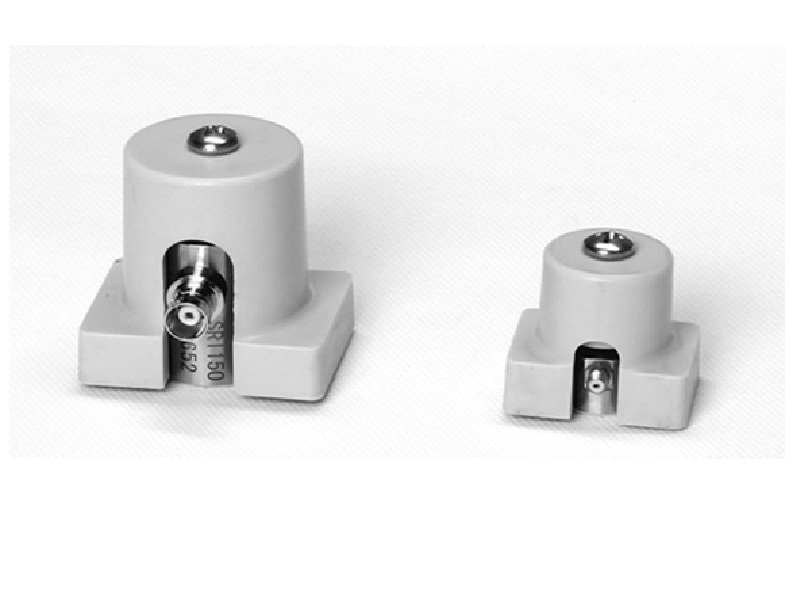

M series magnetic hold-downs

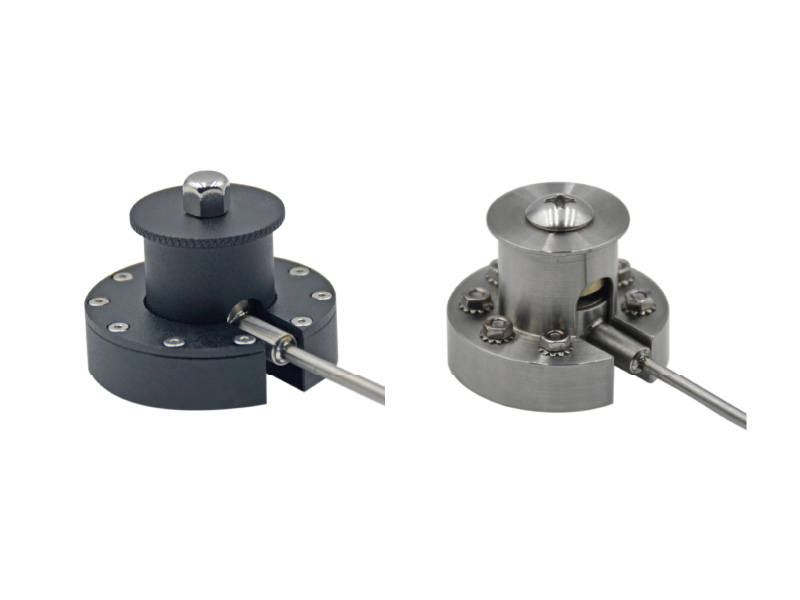

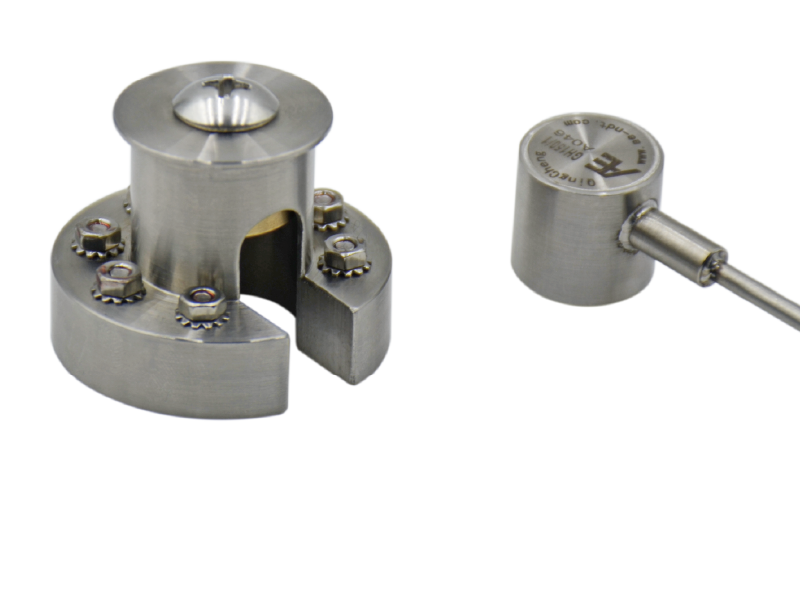

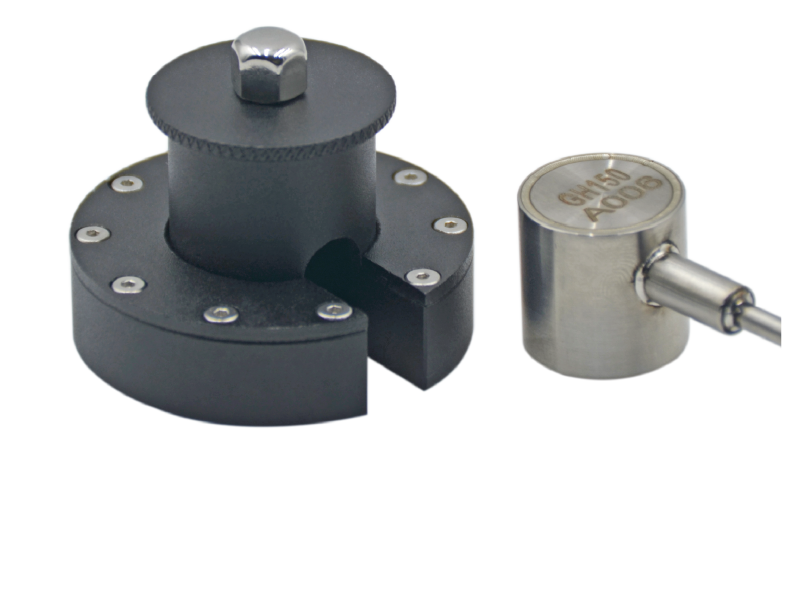

H series magnetic hold-downs

Simple structure, comprehensive model, to meet a variety of requirements.
