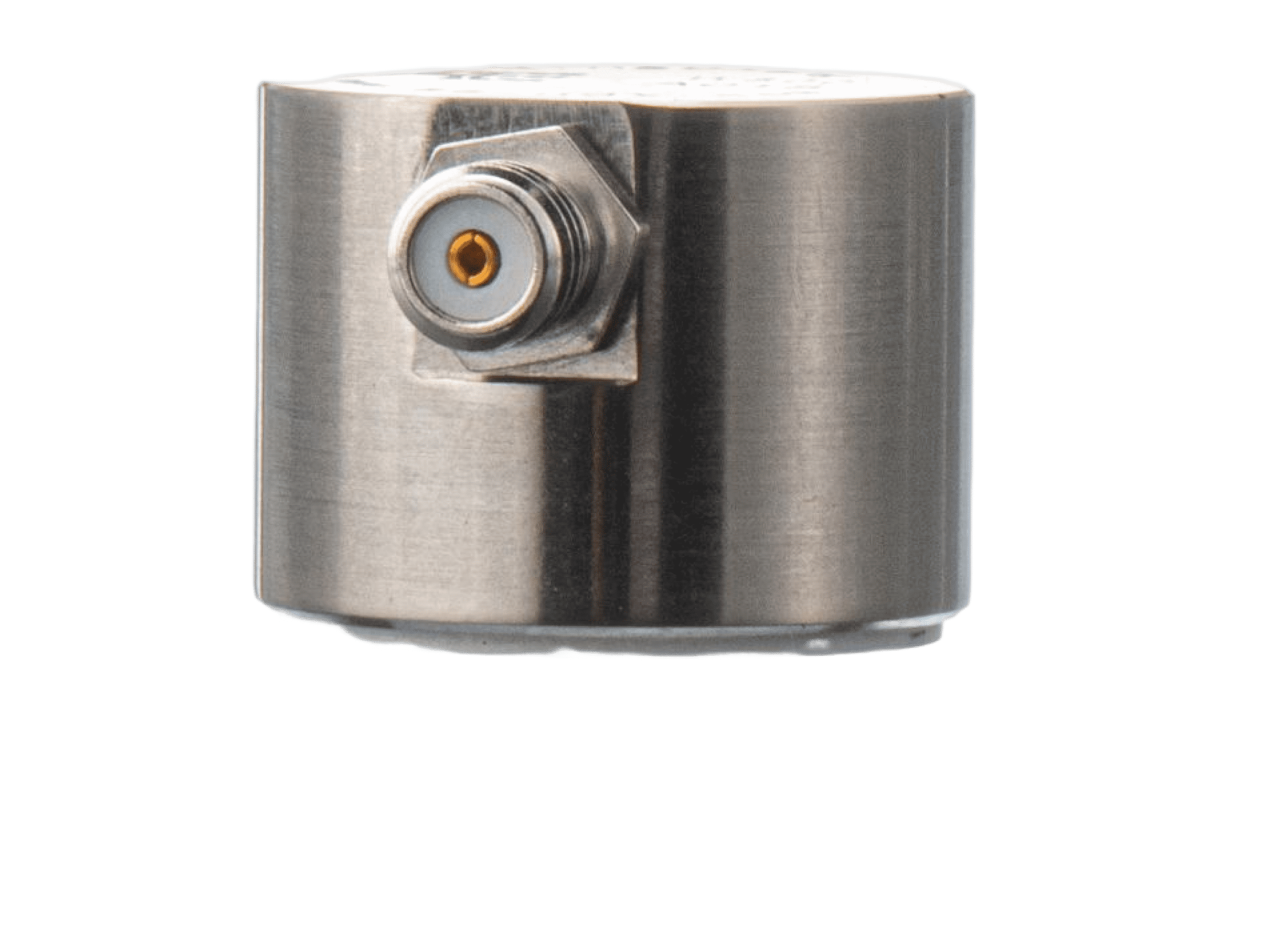

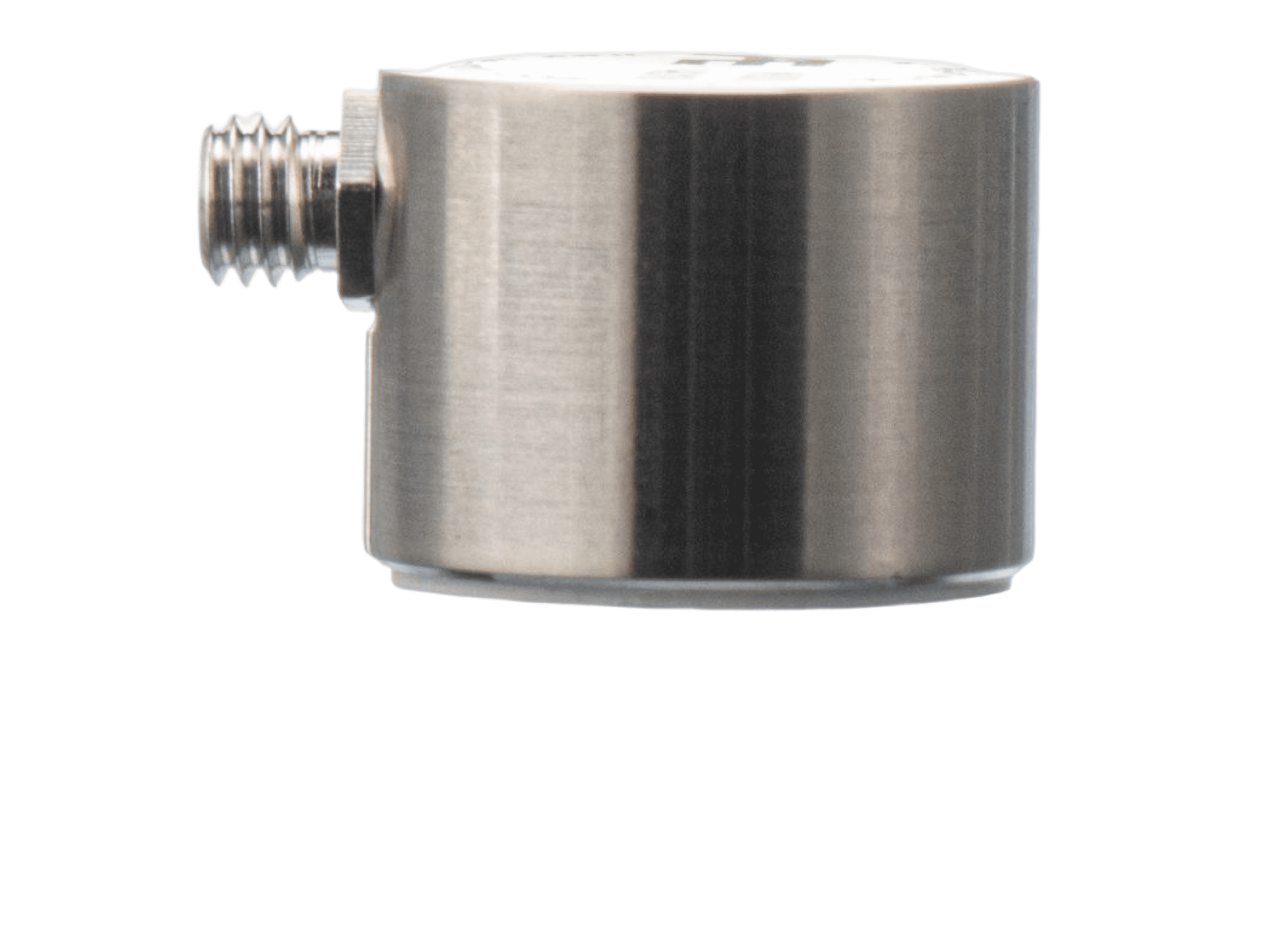

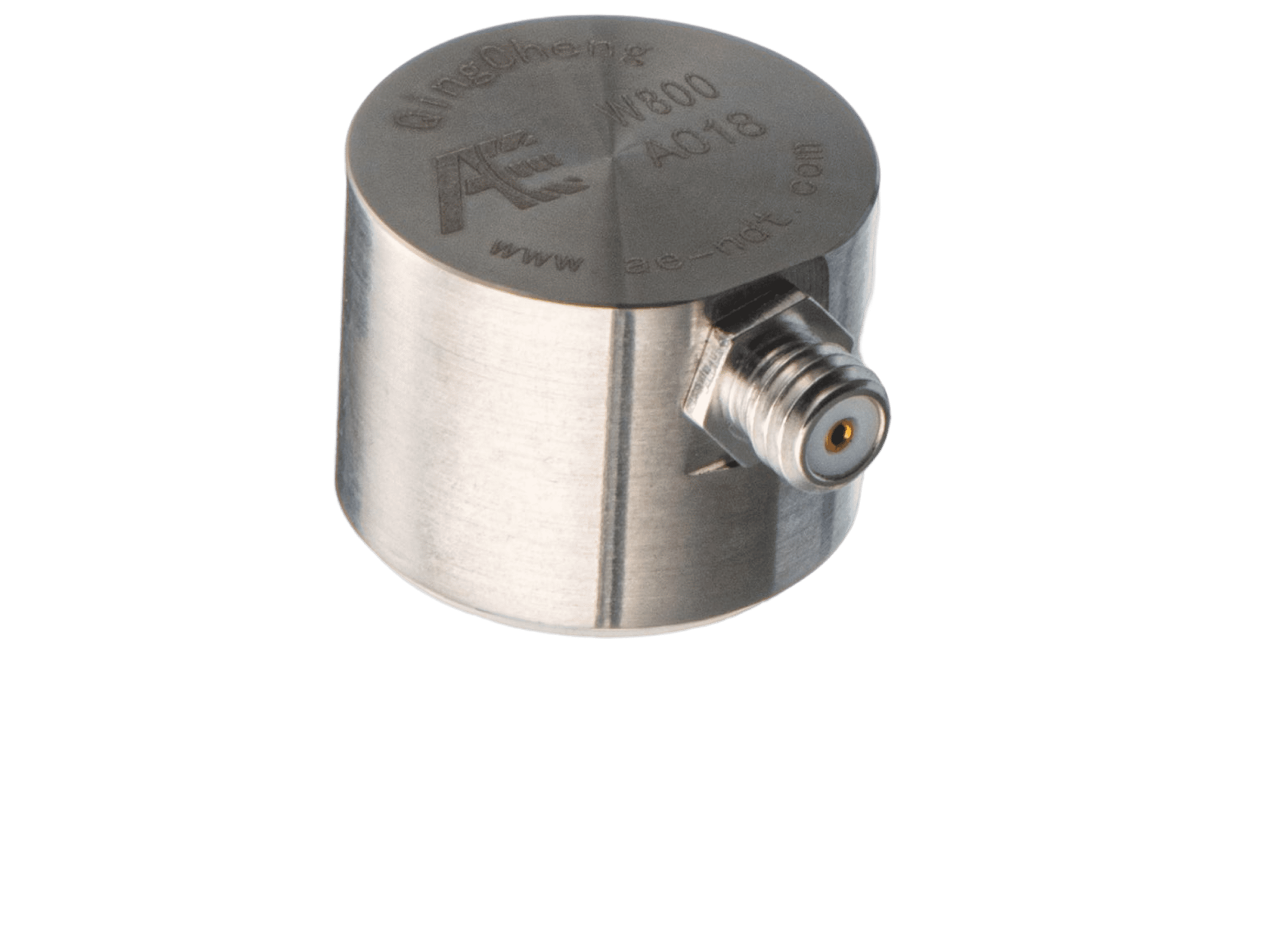

W800 Sensor

Model:

W800

Description:

W800 is a passive piezoelectric AE sensor with wideband. It is specially designed to provide a flat frequency response to acoustic emission signals over its entire frequency bandwidth.

Features:

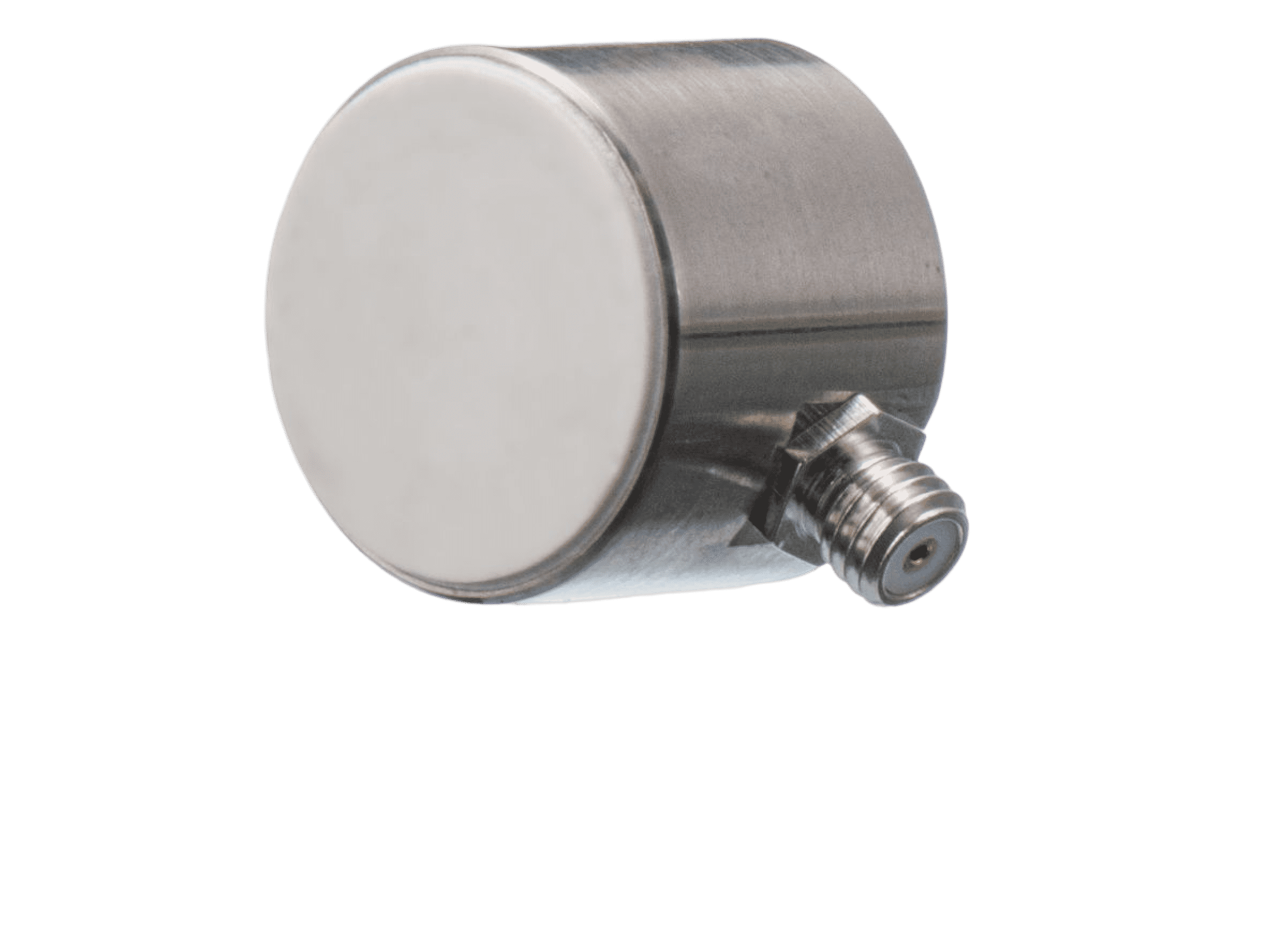

Passive piezoelectric sensor with wideband,stainless steel case and ceramic interface.

ENQUIRY NOWCONTACT:+86-20-32290092

W800 Sensor

Applications

W800 is a passive piezoelectric acoustic emission sensor. It is well suited for laboratory studying of surface displacement of structures due to different AE modes.It also could be used in applications requiring frequency analysis and composites research. It could be easily mounted with a magnetic hold-down.


Technical Specs
Resonant Freq.   Ref V/(m/s)600kHz
Frequency Range50kHz-800kHz
Sensitivity Peak   Ref V/(m/s)>65dB
Working Temp.-20 to 80℃
Size(DxH)19×15mm
Weight18 g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP62
ConnectorM5
Connector LocationSide
Accessories
Signal cable modelRG178/RG316
Hold-downM20
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Passive piezoelectric sensor with wideband,stainless steel case and ceramic interface.
