Ultrasonic Flaw Detector
Model：
SUB180
Description：
SUB180 is a portable industrial non-destructive ultrasonic testing instrument used to detect, locate, evaluate and diagnose various damages.
Features：
High sensitivity, strong penetration, light equipment, fast detection speed, low cost.
ENQUIRY NOWORDER NOWCONTACT：+86-20-32290092

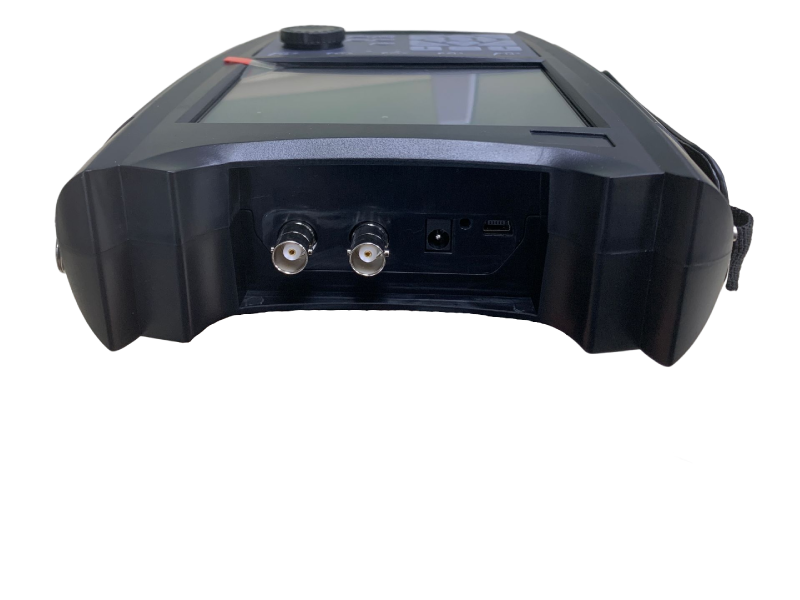

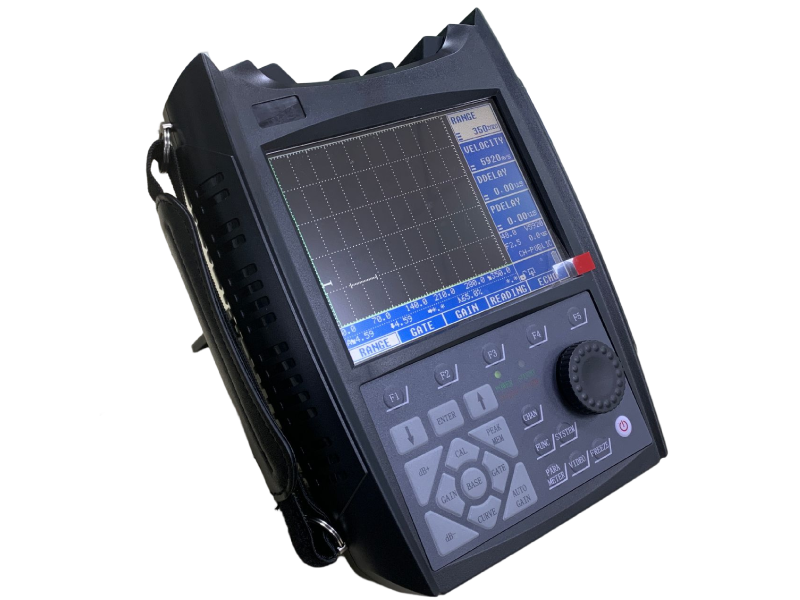

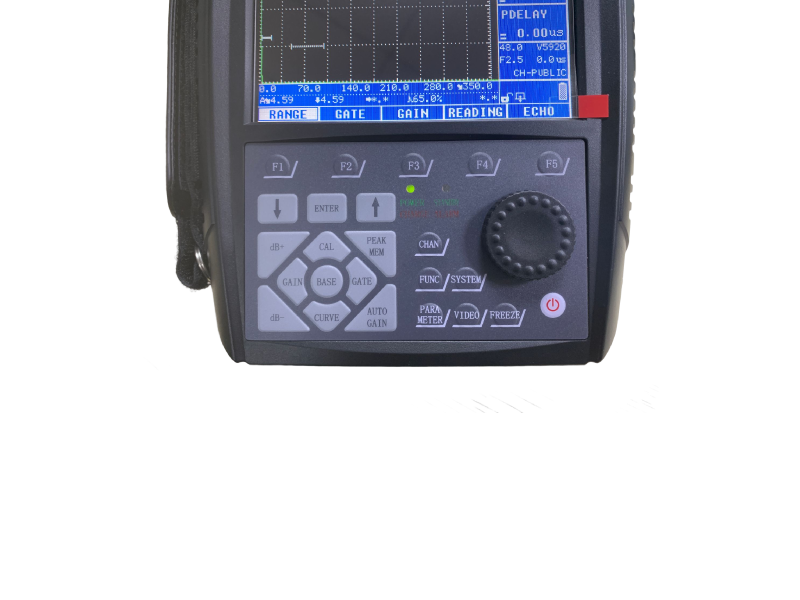

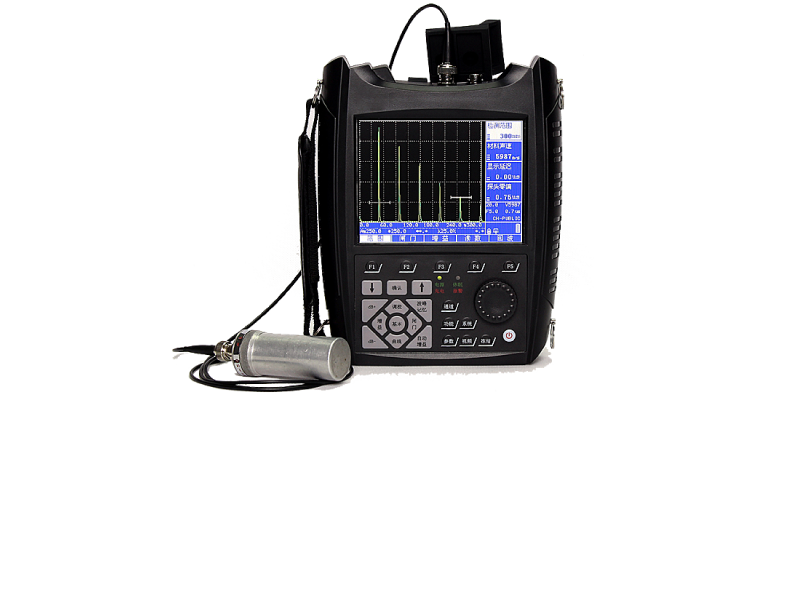

SUB180 Ultrasonic Flaw Detector
The portable ultrasonic flaw detector is specially designed to meet the needs of non-destructive testing engineers. It is a portable industrial non-destructive testing instrument used to detect, locate, evaluate and diagnose various damages. It can freely and accurately detect welding defects, cracks, and pores inside the workpiece. It is widely used in power engineering, boiler pressure vessels, steel structures, military industry, aviation, railway transportation, automatic machinery and equipment and other industries. It is an indispensable testing tool in the field of non-destructive testing.
- Real-time dynamic color video
- A variety of industry reports are available
- Sound and light alarm for various conditions, low battery alarm
- Single crystal, double crystal, and transmission probes are available
- 5.7-inch TFT color screen, brightness and color can be set freely
- Data can be imported into the computer through the USB2.0 interface
- Automatic calibration function of the probe is simple and convenient to use
- positive half wave, negative half wave, full wave, 3 detection methods
- Large-capacity lithium battery, and can be tested while charging
- One hand operation with a wrist strap or hung on the chest by a strap
| Functions | SUB180 |
|---|---|
| DAC | √ |
| AVG | √ |
| Built-in Standards | √ |
| Gate Alarm | √ |
| Curve Alarm | √ |
| Wave Freeze | √ |
| Channels | 100 |
| Waveforms | 1000 |
| Recording duration | 60min+20*5min |
| Auto Calibration | √ |
| Noise Suppression | √ |
| Peak Memory | √ |
| Echo Envelope | √ |
| Thickness B-scan | √ |
| Color B-scan | √ |
| Grayscale B-scan | √ |
| Auto Gain | √ |
| Echo Coding | Background |
| Aperture φ Value Calculation | √ |
| Weld Figure | √ |
| Crack Depth | √ |
| Curved Surface Correction | √ |
| TCG | ✕ |
| AWS | √ |
| Internal Memory | 1GB |
| Software | √ |

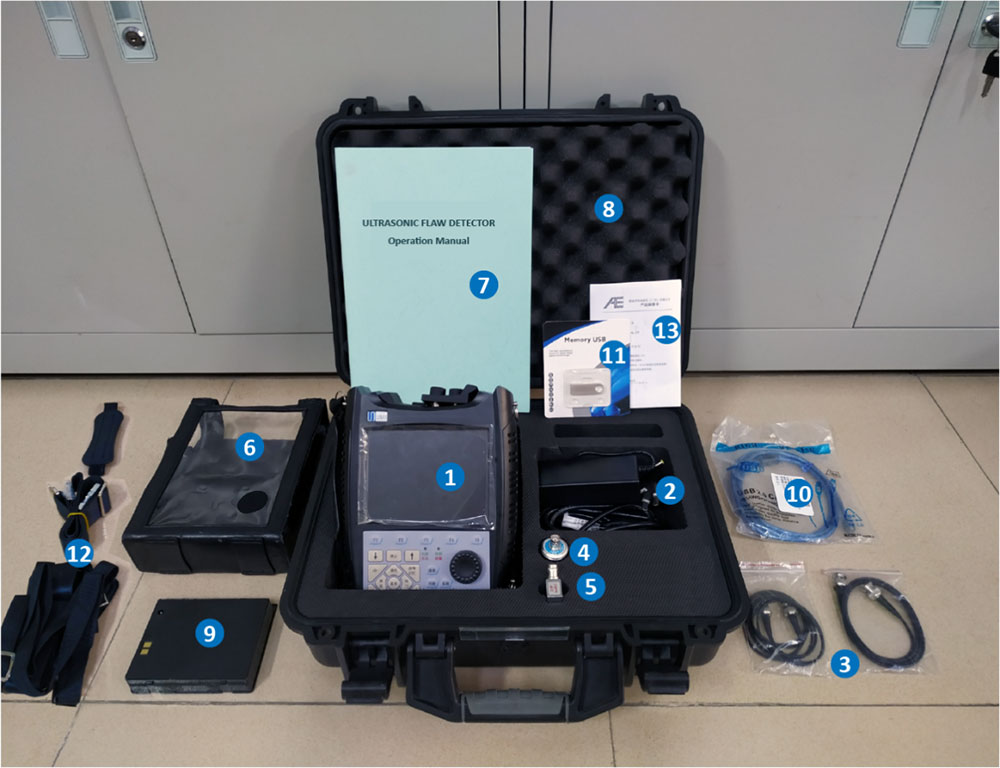

| Package List | |||
| No. | Type | Qty. | Remarks |
|---|---|---|---|
| 1 | Ultrasonic detector main unit | 1 | |
| 2 | Power adaptor (& power cable) | 1 |
Input: 100-240VAC, 50Hz/60Hz; Output: 8.4VDC/3.0A |
| 3 | Probe cable | 2 | 1.5 meter, BNC-BNC |

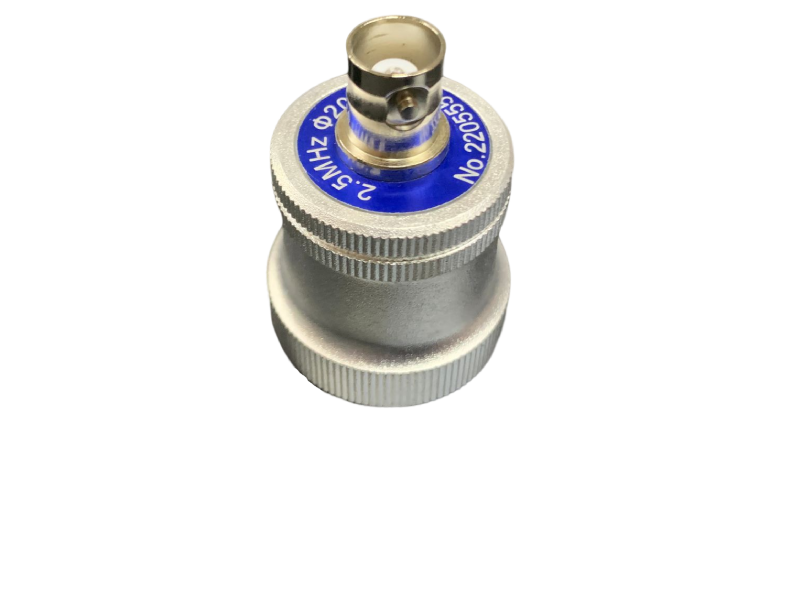

| 4 | Straight beam probe | 1 | 2.5MHz, Φ20 |

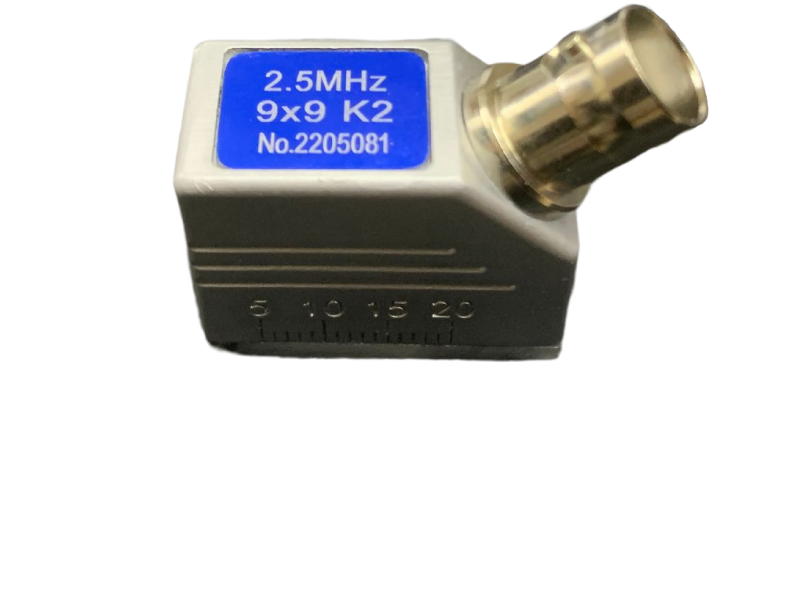

| 5 | Angle beam probe | 1 | 2.5MHz, 9x9mm, K2=63.4° |
| 6 | Protective cover for main unit | 1 | |
| 7 | Operation Manual | 1 | |
| 8 | Instrument case | 1 | |
| 9 | Battery | 1 | Lithium battery 7.4V 7800mAh |
| 10 | USB Communication cable | 1 | USB Mini |
| 11 | PC Software | 1 | In the USB Flash disk |
| 12 | Strap set | 1 | With a wrist strap, shoulder strap, back strap |
| 13 | Warranty card | 1 | |
| Test range | 8.0～25000 mm |
| Sound velocity in material | 200～20000 m/s |
| Gain | 0 dB～110 dB |
| Display delay (D-Delay) | -15 µs～+3400 µs |
| Probe delay (P-delay) | 0 µs～1000 µs |
| Operating Frequency | 0.2～20MHz |
| Electric Noise Level | ≤12％ |
| Sensitivity margin | ＞62 dB (depth: 200 mm, flat-bottom hole Ф2) |
| Resolution | ＞40 dB |
| Noise suppression | 0～50%（digital reject） |
| Vertical linearity error | ≤3% |
| Horizontal linearity error | ≤0.1% |
| Dynamic Range | ≥32 dB |
| Unit | mm/inch |
| Probe Types | Single Straight, Single Angle, Dual Straight, Dual Angle, Transmission, Surface |
| Gate monitors | Two independent gates, gate A and B |
| Rectification | Full wave, RF, positive half-wave, negative half-wave |
| Sampling rate | 100MHz |
| Transmitter Pulse | Square wave and spike pulses |
| Transmitter Pulse Amplitude | Multi-grades adjustable (100V, 250V, 400V, 500V) |
| Pulse Width | Auto or 50～1000 ns or spike pulse |
| Probe Damping | 50 Ω, 75 Ω, 150 Ω, 500 Ω |
| Pulse Repetition Frequency (PRF) | 5～1000Hz or auto-high/middle/low |
| Ambient Temperature | -20℃～50℃ |
| Ambient Humidity | 20%～95％ RH |
| Power adaptor | DC: 8.4V |
| Battery | Li battery 7.4V 7800mAh |
| Working Hours | ≥ 20 hours |
| Screen | 320×240, 5.7-inch LCD with 16-theme colors |
| Size | 220×175×59（mm） |
| Weight | 1.3 kg including battery |
