SWAE Software
Model：
SWAE Software
Description：
SWAE acoustic emission system software is a collection of real-time acquisition / analysis software and post analysis software. It is designed based on Windows operating system and can run normally in 64-bit Windows 7/8/10/11. The operating system is suitable for the acoustic emission detector of SAEU3H detector and RAEM1 seriesIt can sample and play back the data of the equipment.
Features：
Friendly interface, simple operation. Easy to customize, user can choose different way of demonstration according to different requirements.
ENQUIRY NOWCONTACT：+86-20-32290092
SWAE Software
SWAE acoustic emission system software is a collection of real-time acquisition / analysis software and post analysis software. It is designed based on Windows operating system and can run normally in 64-bit Windows 7/8/10/11. The operating system is suitable for the acoustic emission detector of SAEU3H detector and RAEM1 seriesIt can sample and play back the data of the equipment. At the same time, it supports the installation and use of multiple computers. The number of users is unlimited, which is convenient for joint analysis and research after the event.
The main features of the software are as follows:
- 1) It is suitable for windows 64-bit operating system.
- 2) Multiple client end installation without encryption is convenient for multiple computers to use at the same time.
- 3) Similar to Windows Office operation style, easy to use.
- 4) The shortcut tool menu can be customized manually to operate the software conveniently and quickly.
- 5) Various 2D and 3D graphics display.
- 6) A software built-in all location modules.
- 7) Software is free to use with the purchase of the hardware and is free to upgrade for life.

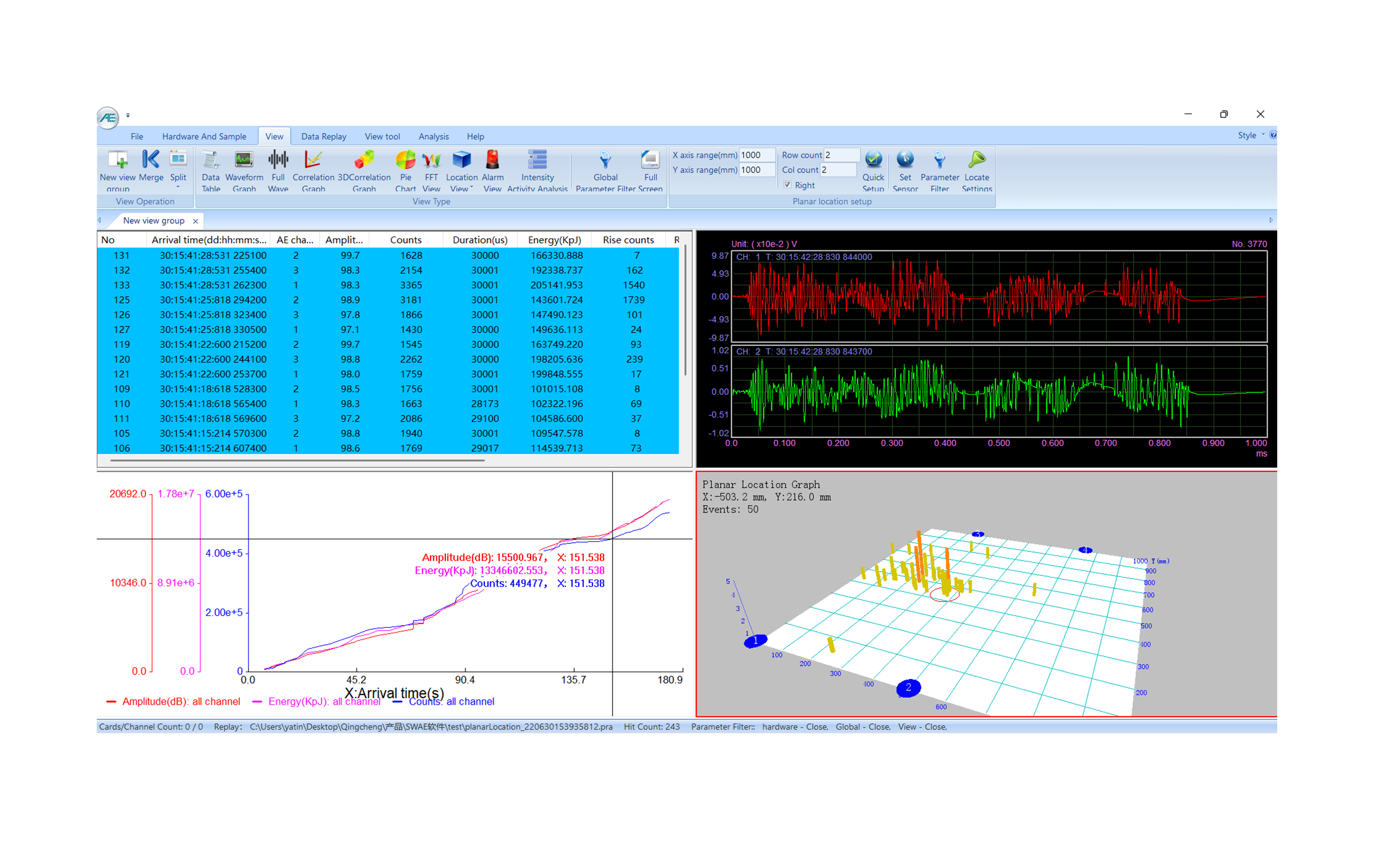

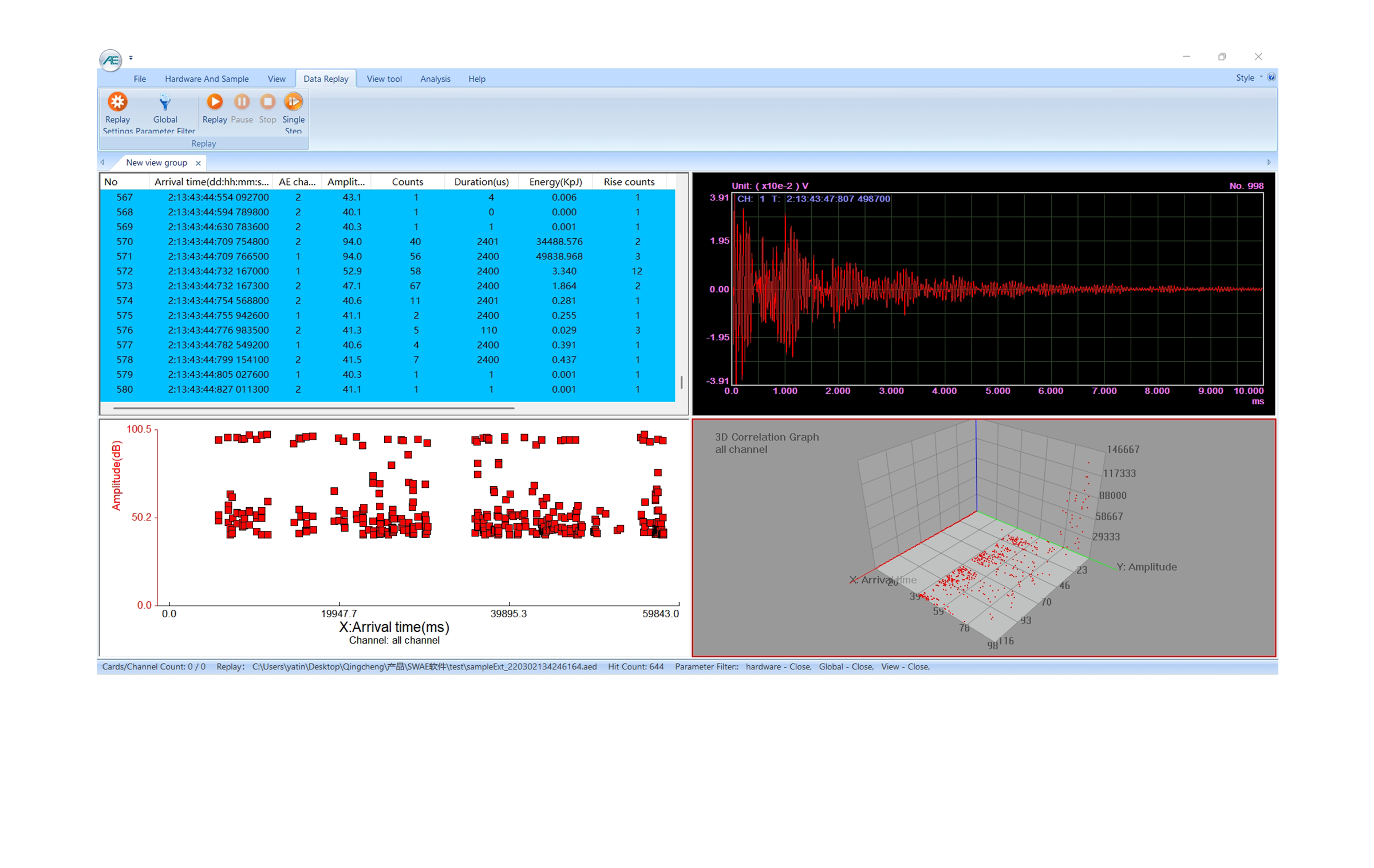

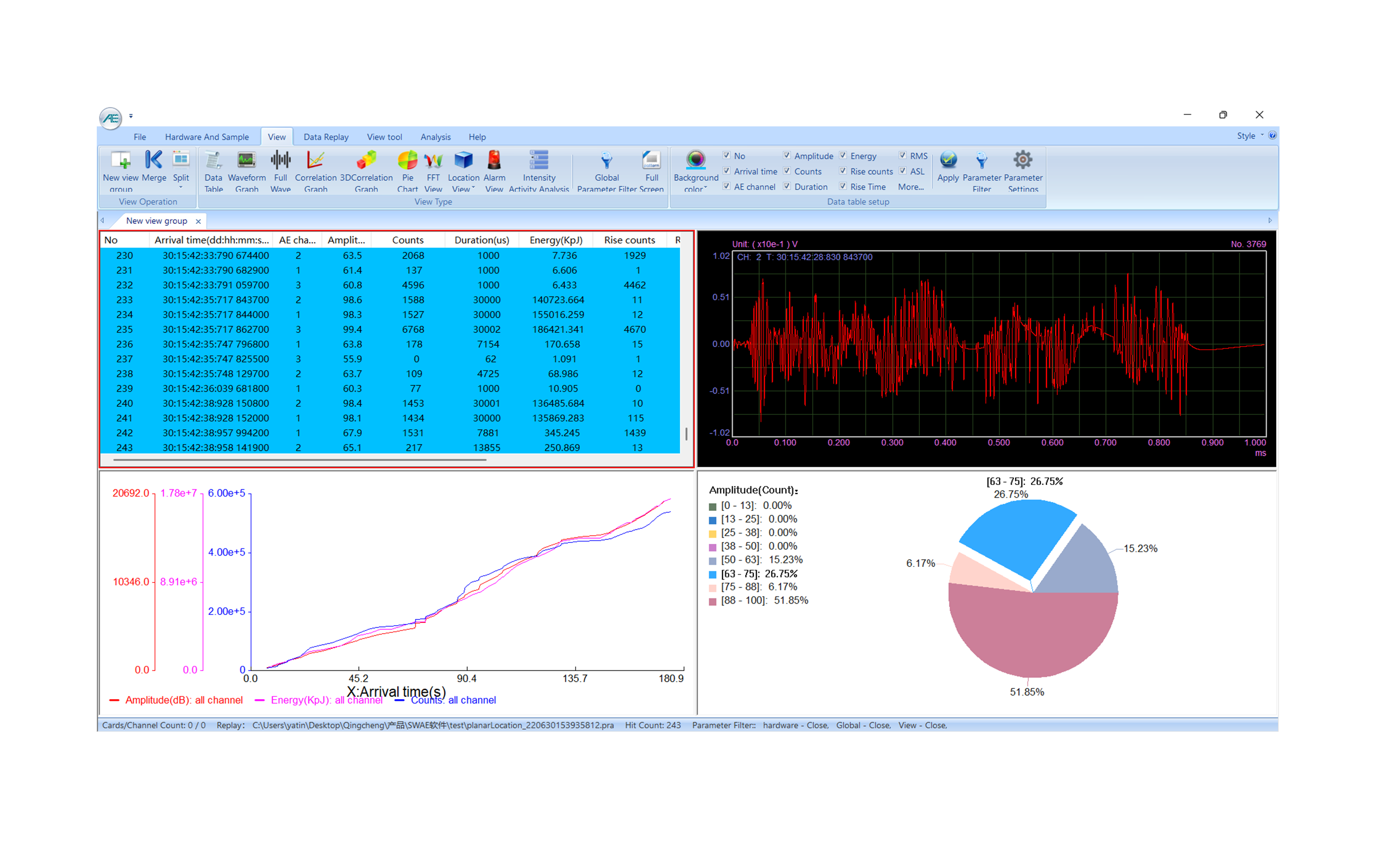

- Various view displays, including Data Table, waveform, FFT view, correlation graphs, location views.
- The interface can be divided and reformulated according to requirements, and the background color can be customized.
- Customize parameters acquisition: AMP, ASL, Energy, Duration, Counts, Rise time, RMS, Rise counts etc.

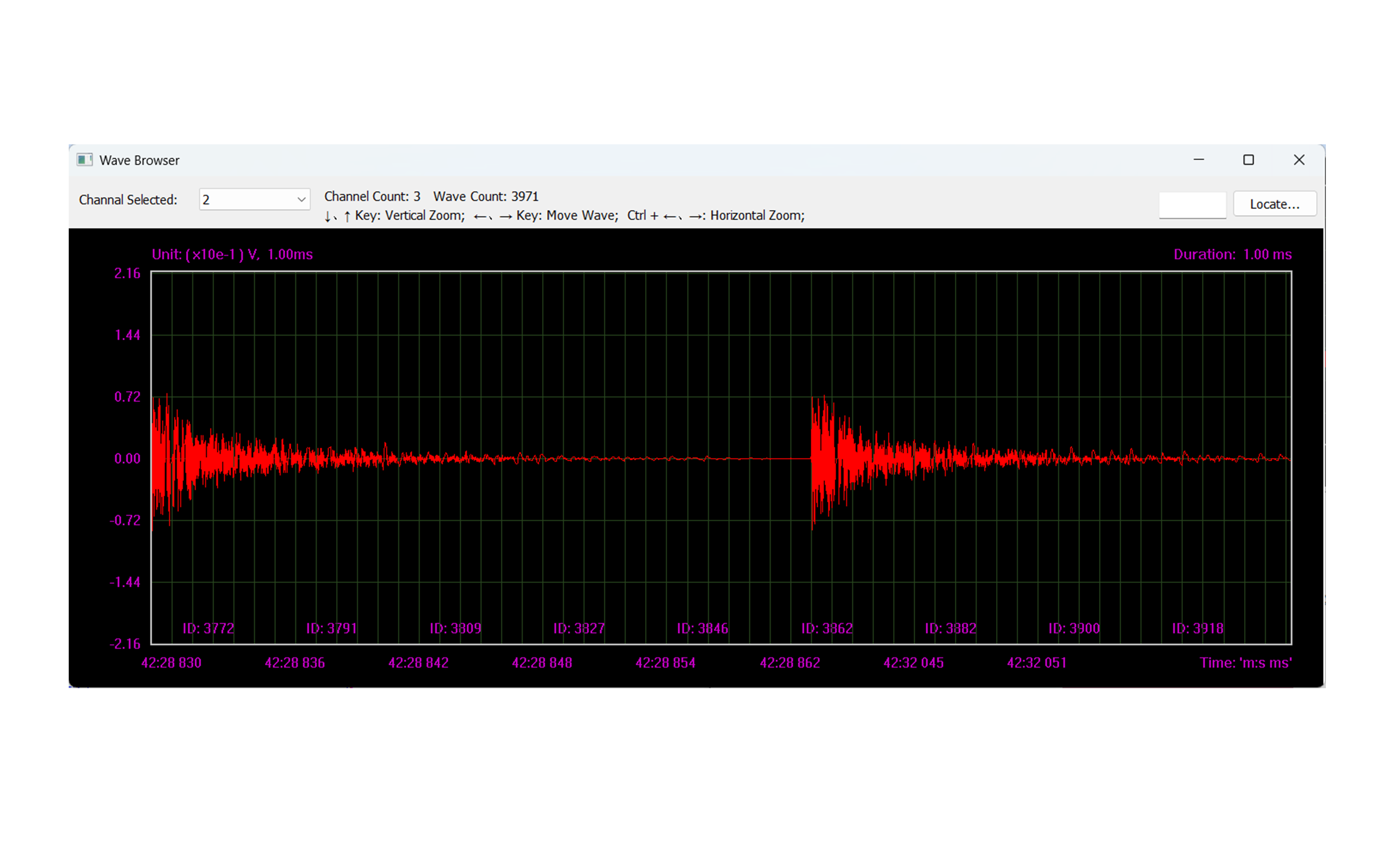

- Multi-channel waveforms are displayed simultaneously.

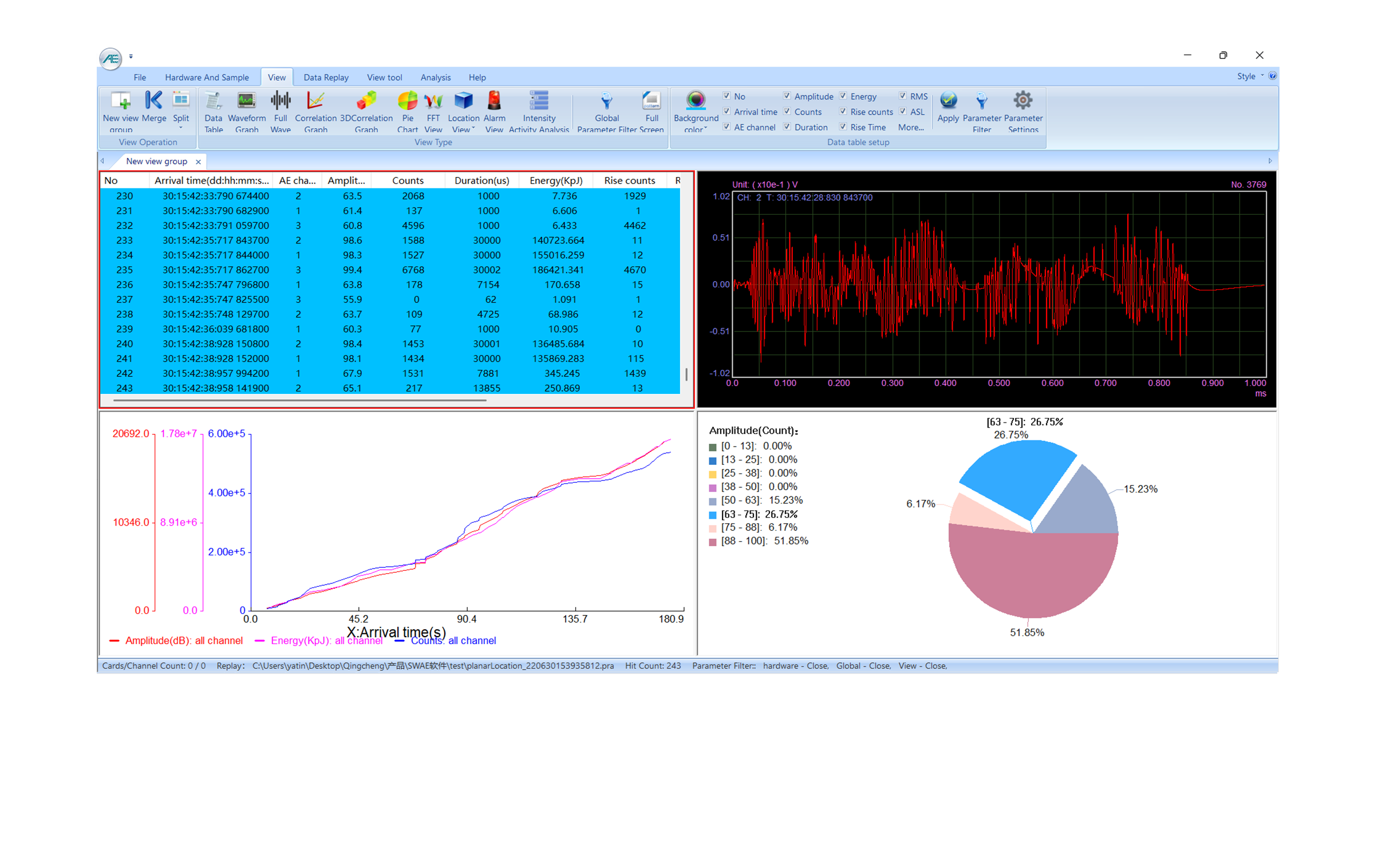

- Customized parameter correlation graph, histogram, scatter diagram, linear graph and color are selectable.

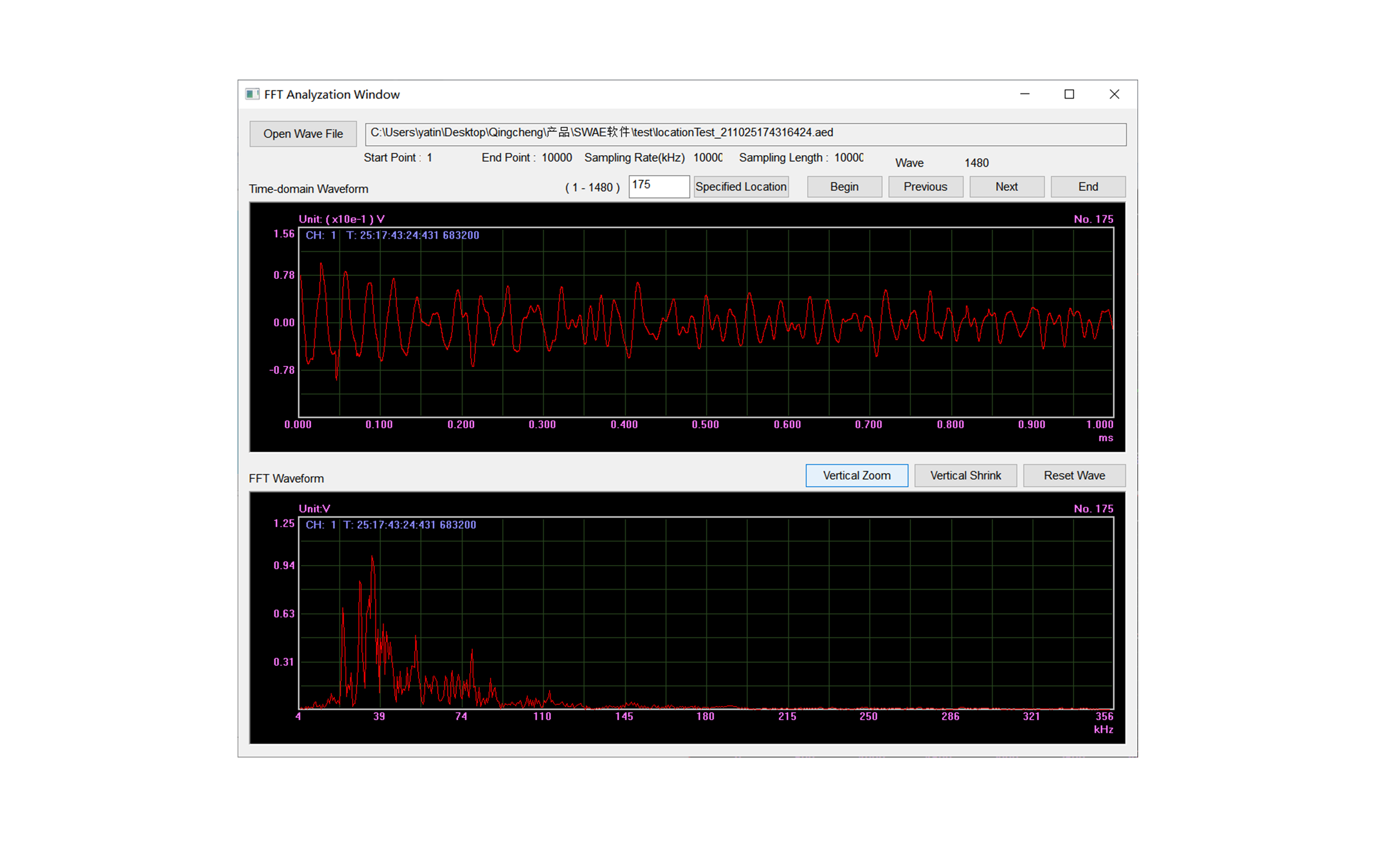

- FFT and full waveform real-time display.

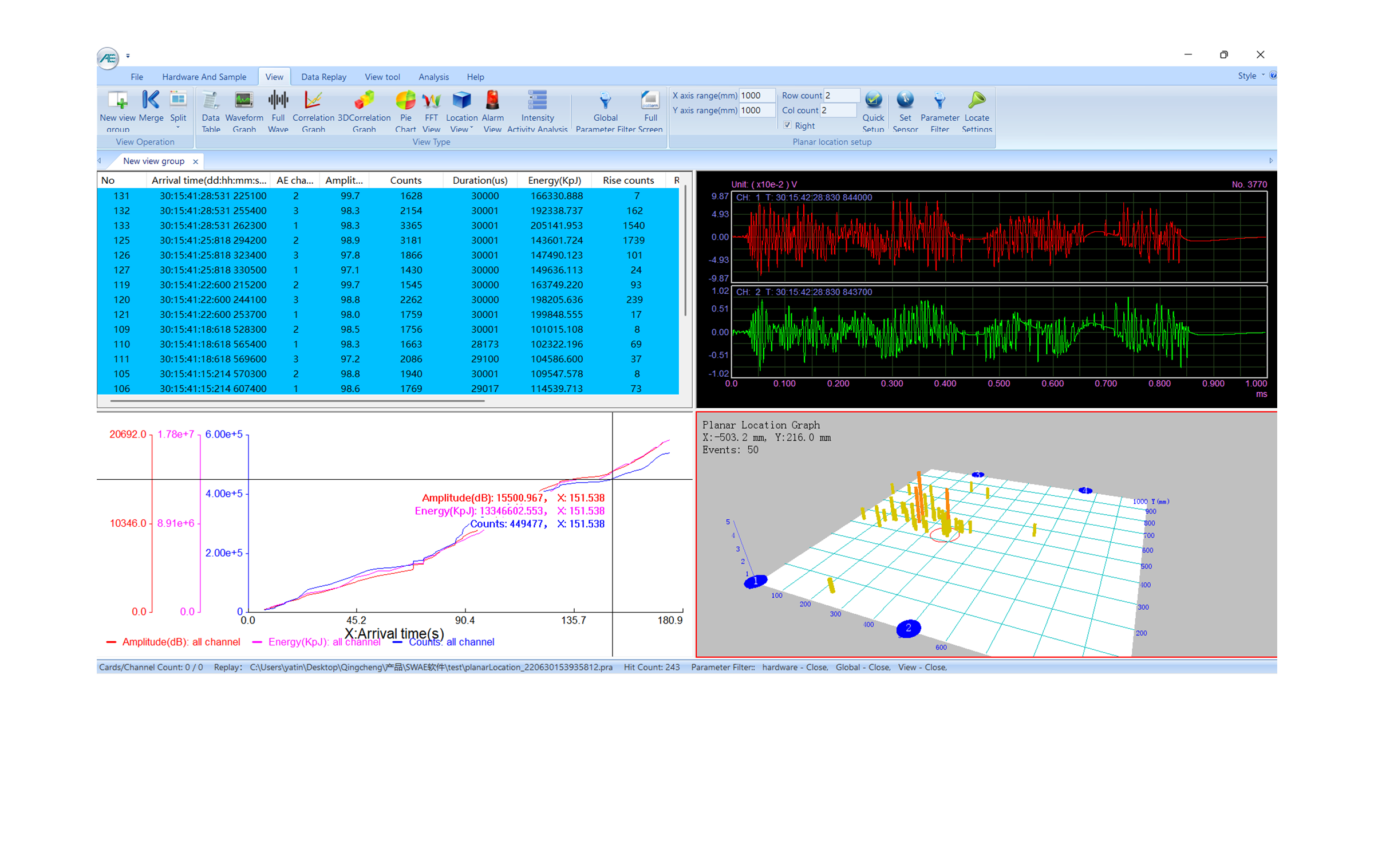

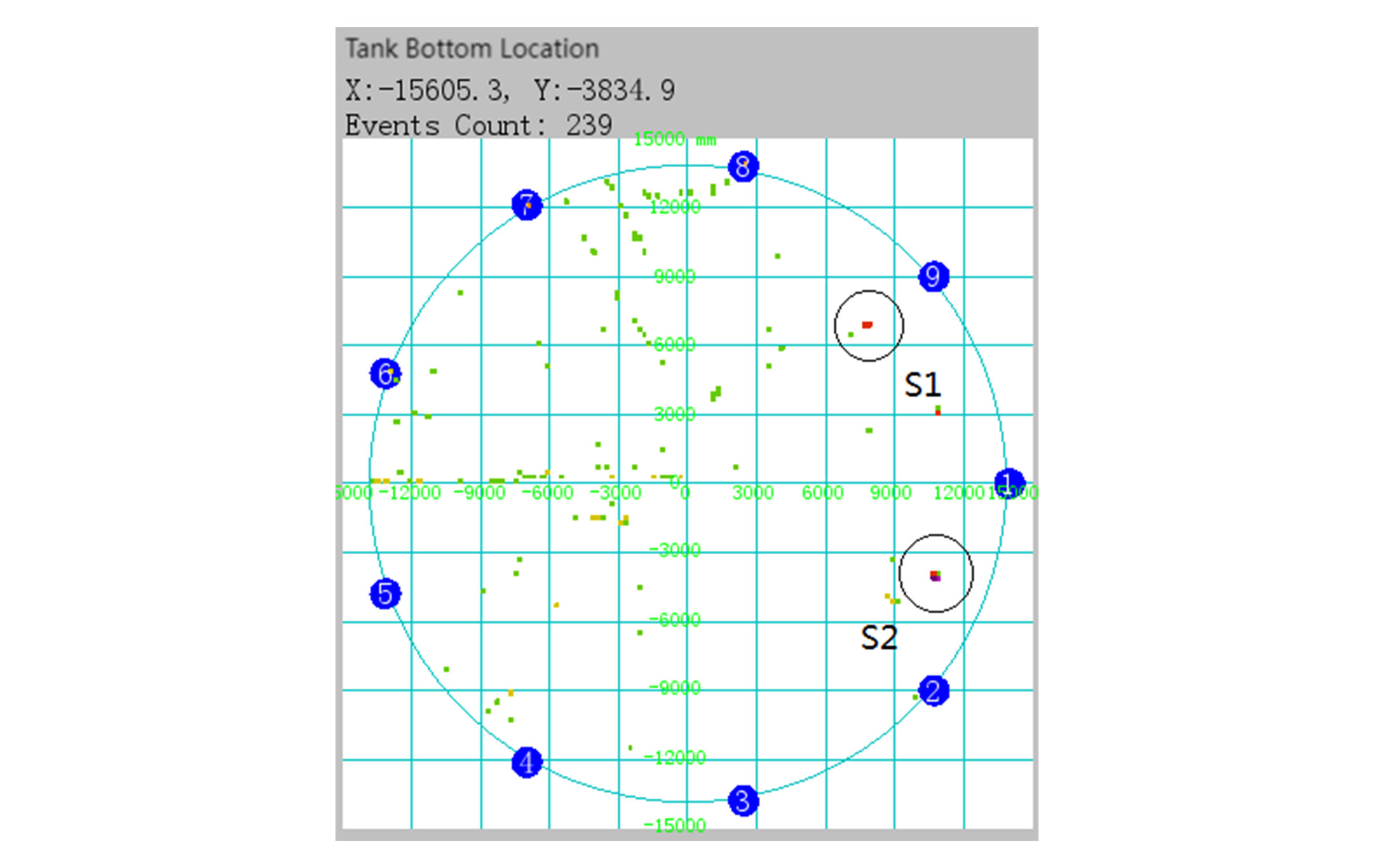

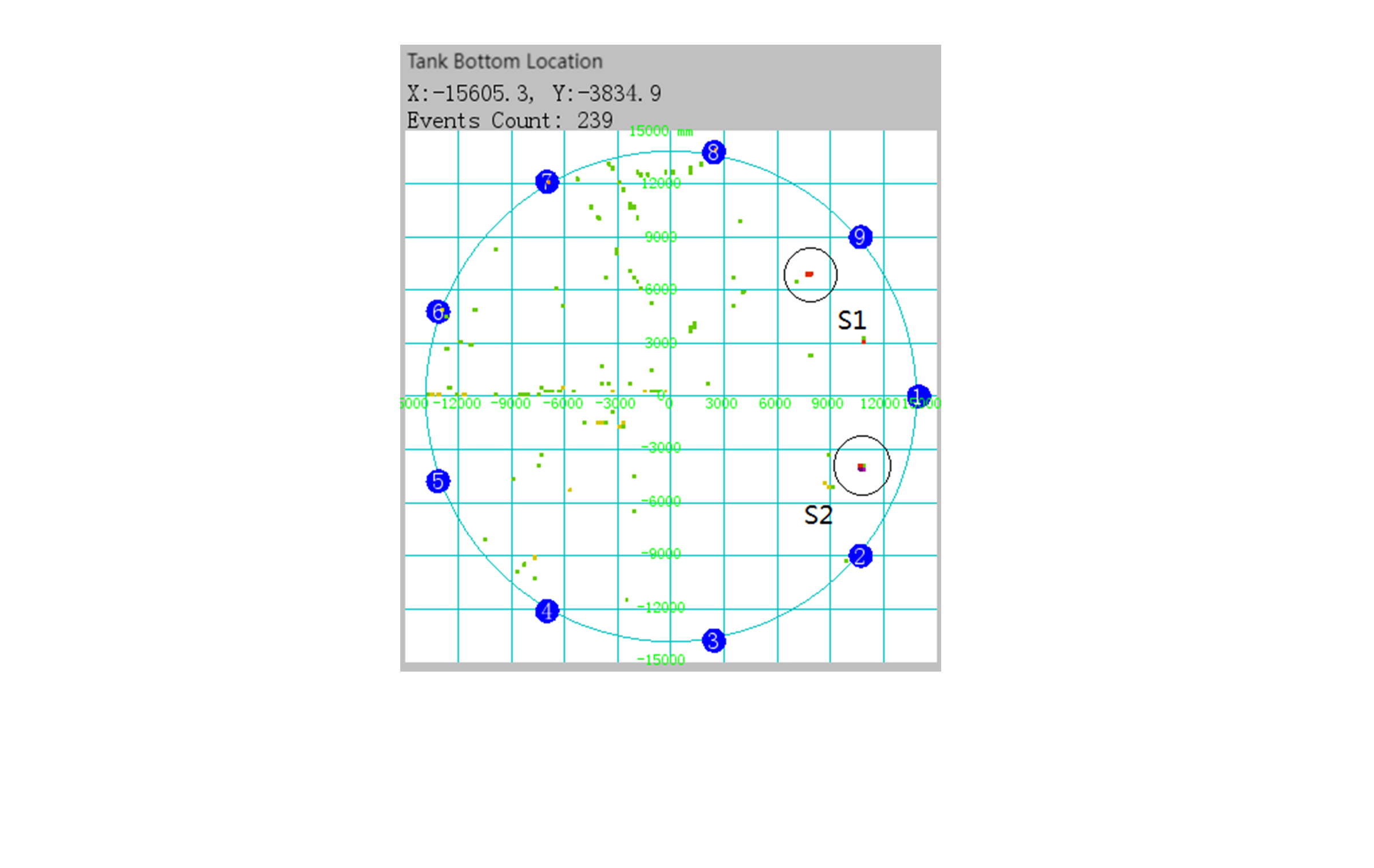

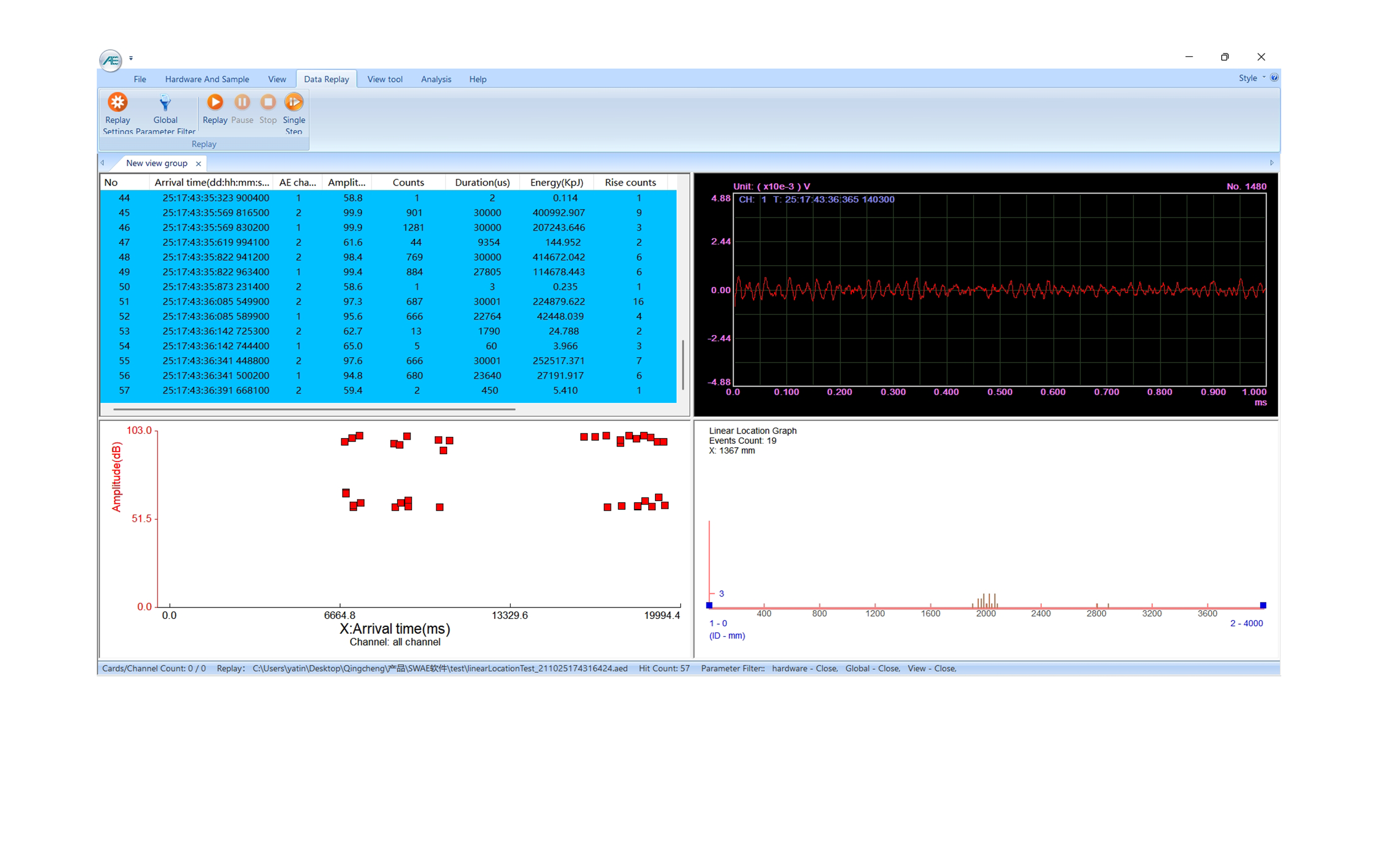

- 3D positioning diagram display and expand to full screen with zooming, linear, planar, cube, cylinder, tank bottom, sphere location.
- Alarm display according to various parameters set.
- AST (auto sensor testing) function

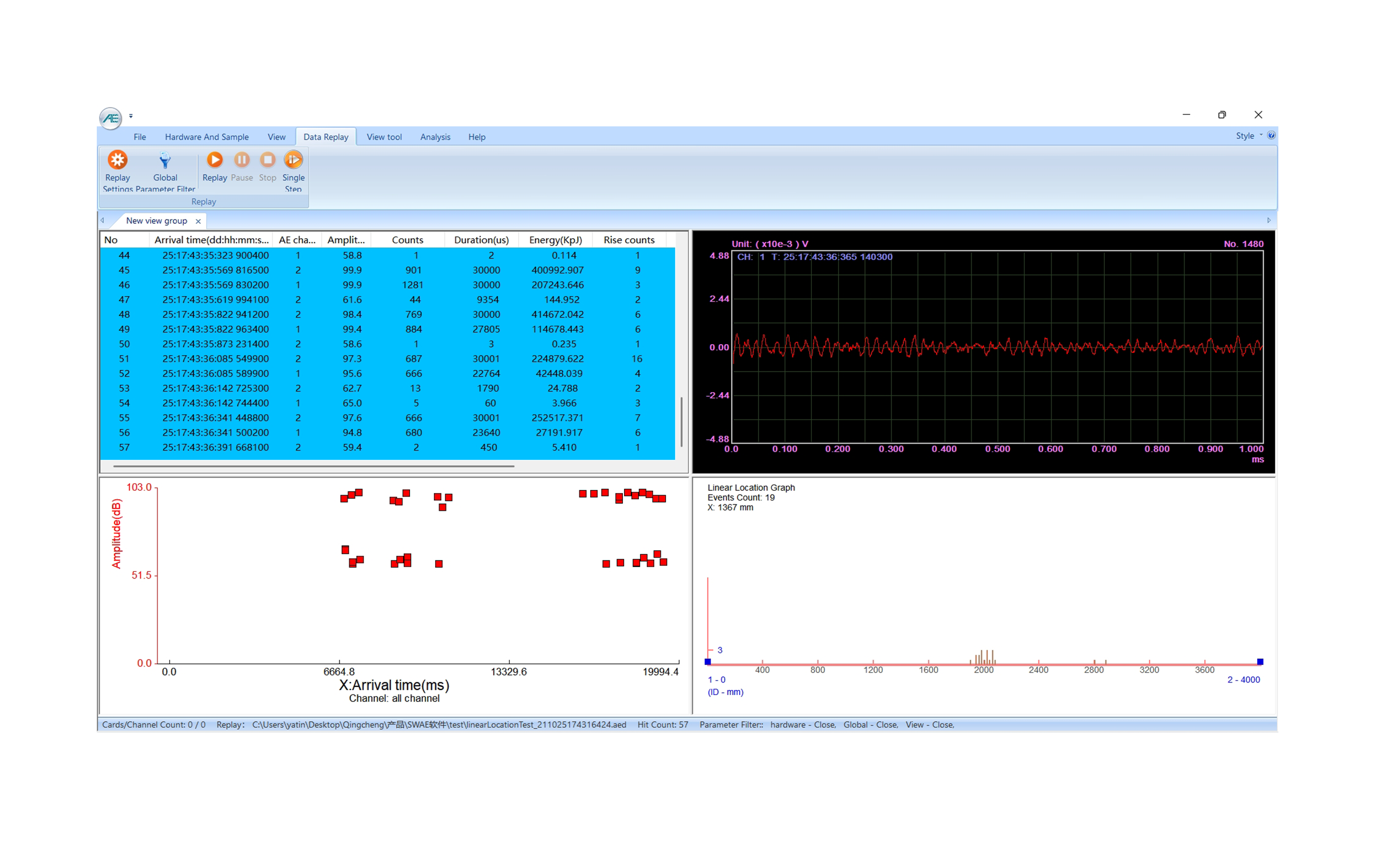

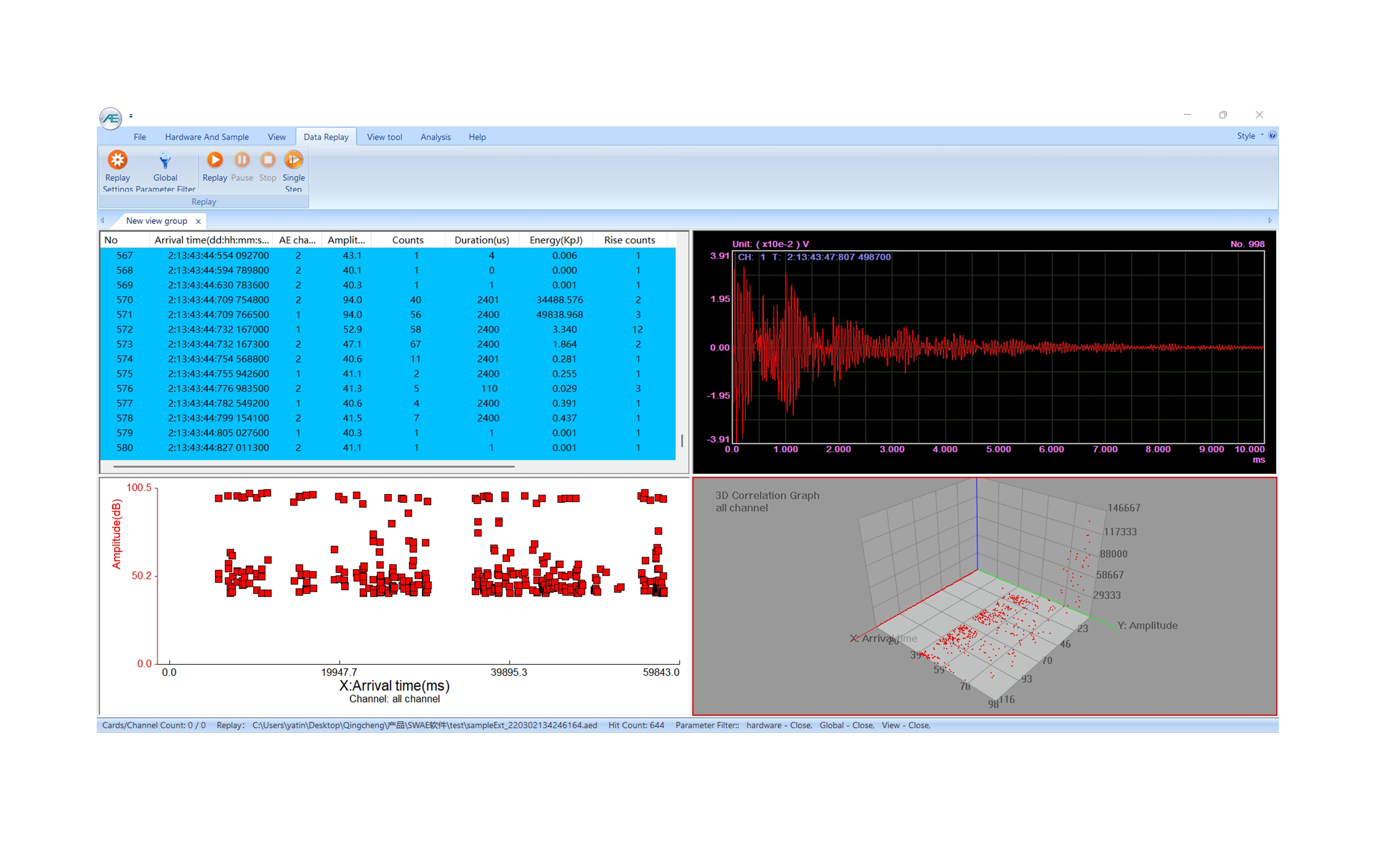

- Simultaneous replay or separate replay of parameters and waveforms
- Waveform generate parameters
- Wavelet function analysis
- Intensity activity analysis
- Cluster analysis
- Attenuation Curve
- Velocity calculation
SWAE Users Manual_v68.pdf
Operation guide of SWAE software
