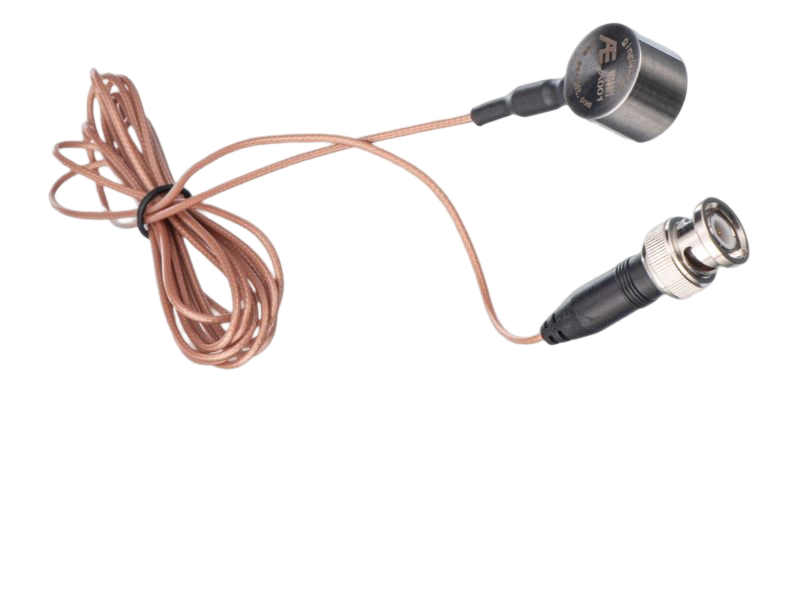

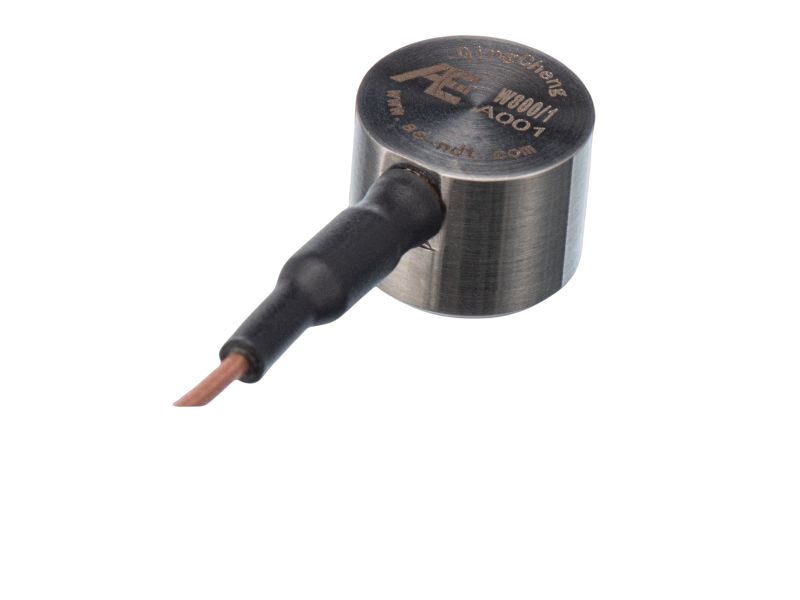

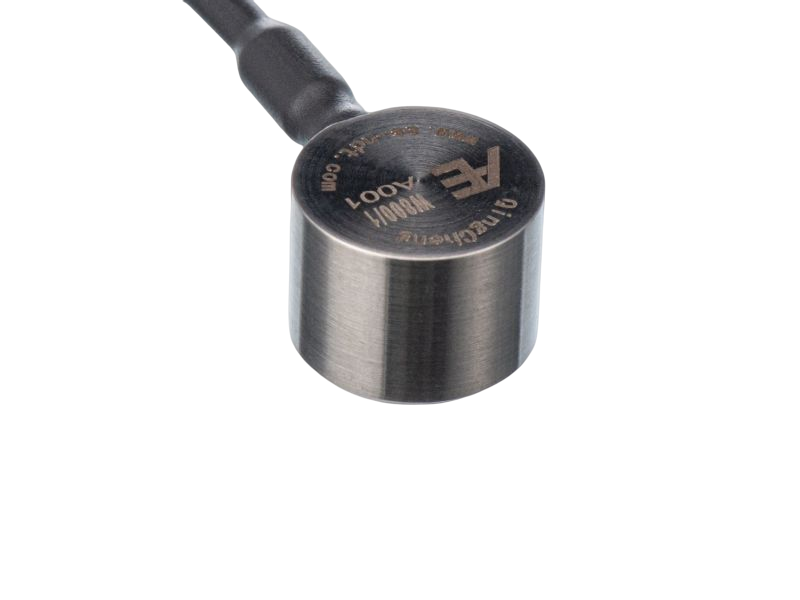

W800/1 Sensor
Model：
W800/1
Description：
W800/1 is a passive piezoelectric AE sensor with wideband and waterproof characteristic. It is specially designed to provide a flat frequency response to acoustic emission signals.
Features：
Passive piezoelectric sensor with wideband，waterproof, stainless steel case and ceramic interface.
ENQUIRY NOWCONTACT：+86-20-32290092
W800/1 Sensor
Applications
W800/1 is a passive piezoelectric acoustic emission sensor. It is well suited for laboratory studying of surface displacement of structures due to different AE modes.It also could be used in applications requiring frequency analysis and composites research. It could be easily mounted with a magnetic hold-down.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 600kHz |
| Frequency Range | 50kHz-800kHz |
| Sensitivity Peak Ref V/(m/s) | >65dB |
| Working Temp. | -20 to 120℃ |
| Size（DxH） | 19×15mm |
| Weight | 45 g |
| Case Material | SUS-304 |
| Face Material | Ceramic |
| Protecting Grade | IP68 |
| Connector | BNC on integral cable |
| Connector Location | Side |
| Accessories | |
| Signal cable model | SYV-50-3/STYV-50-2 |
| Hold-down | M20 |
| Preamplifier | PAS/PAV |
Further Information
Sensor Data Sheet.pdf
