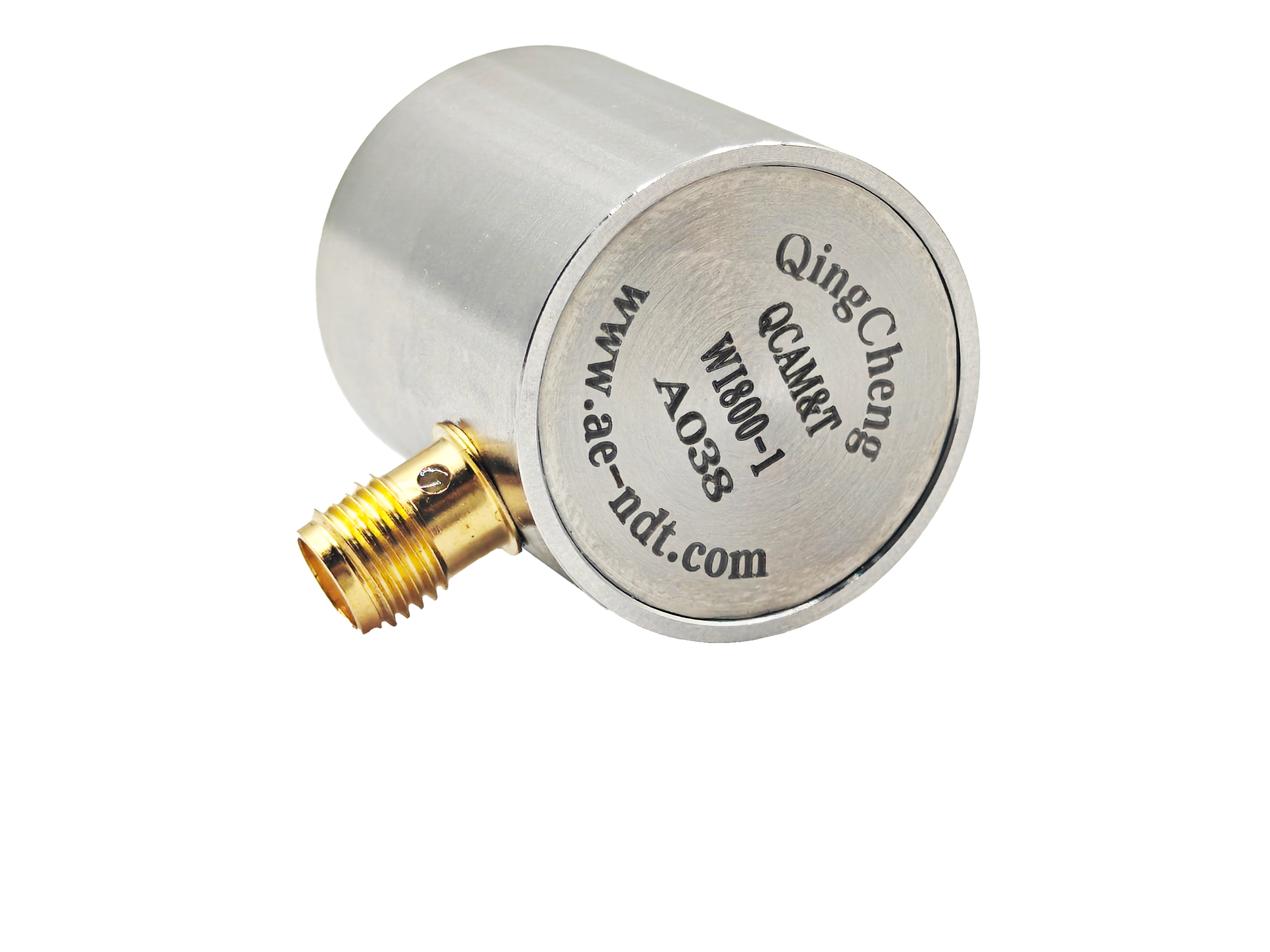

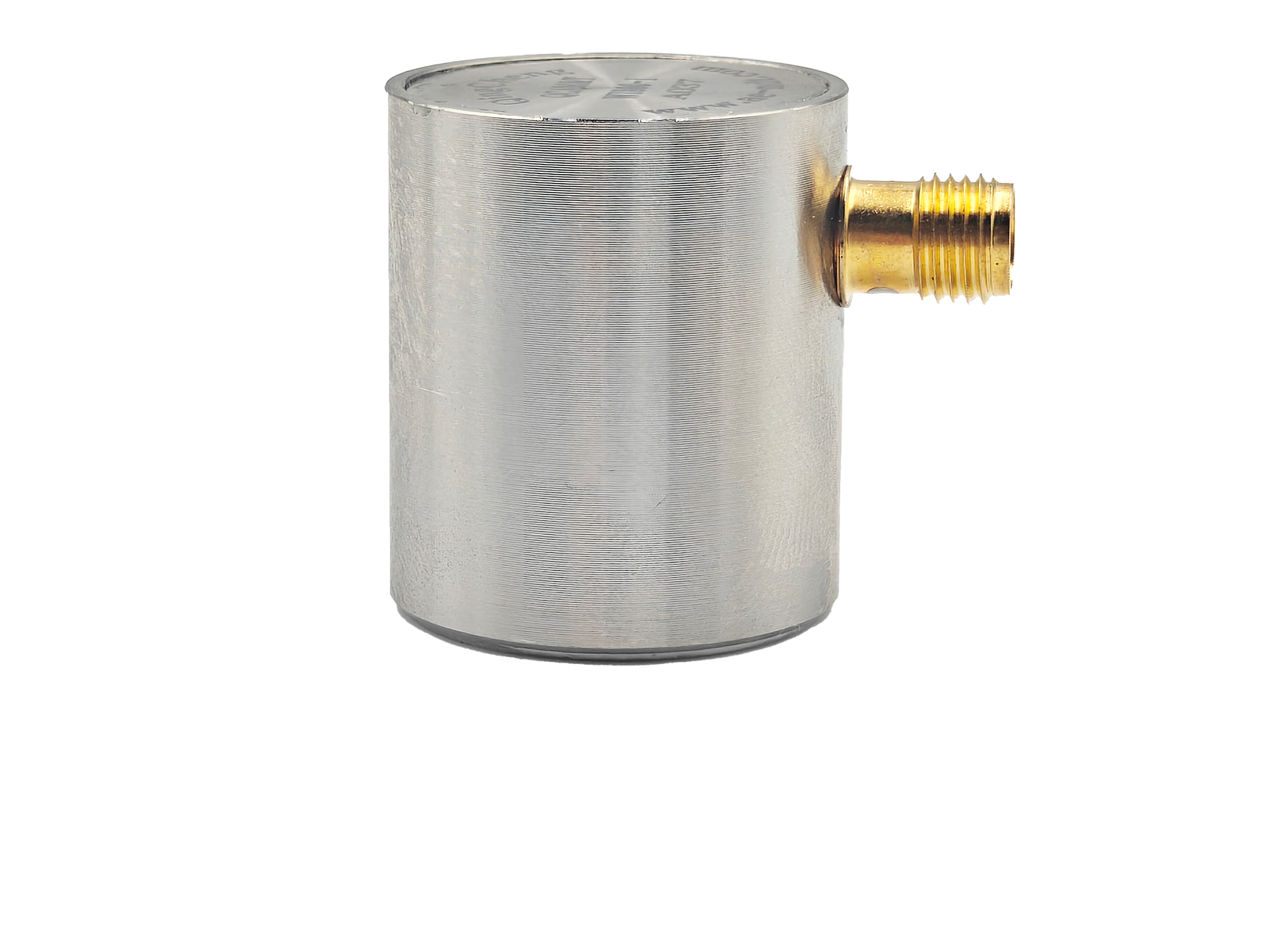

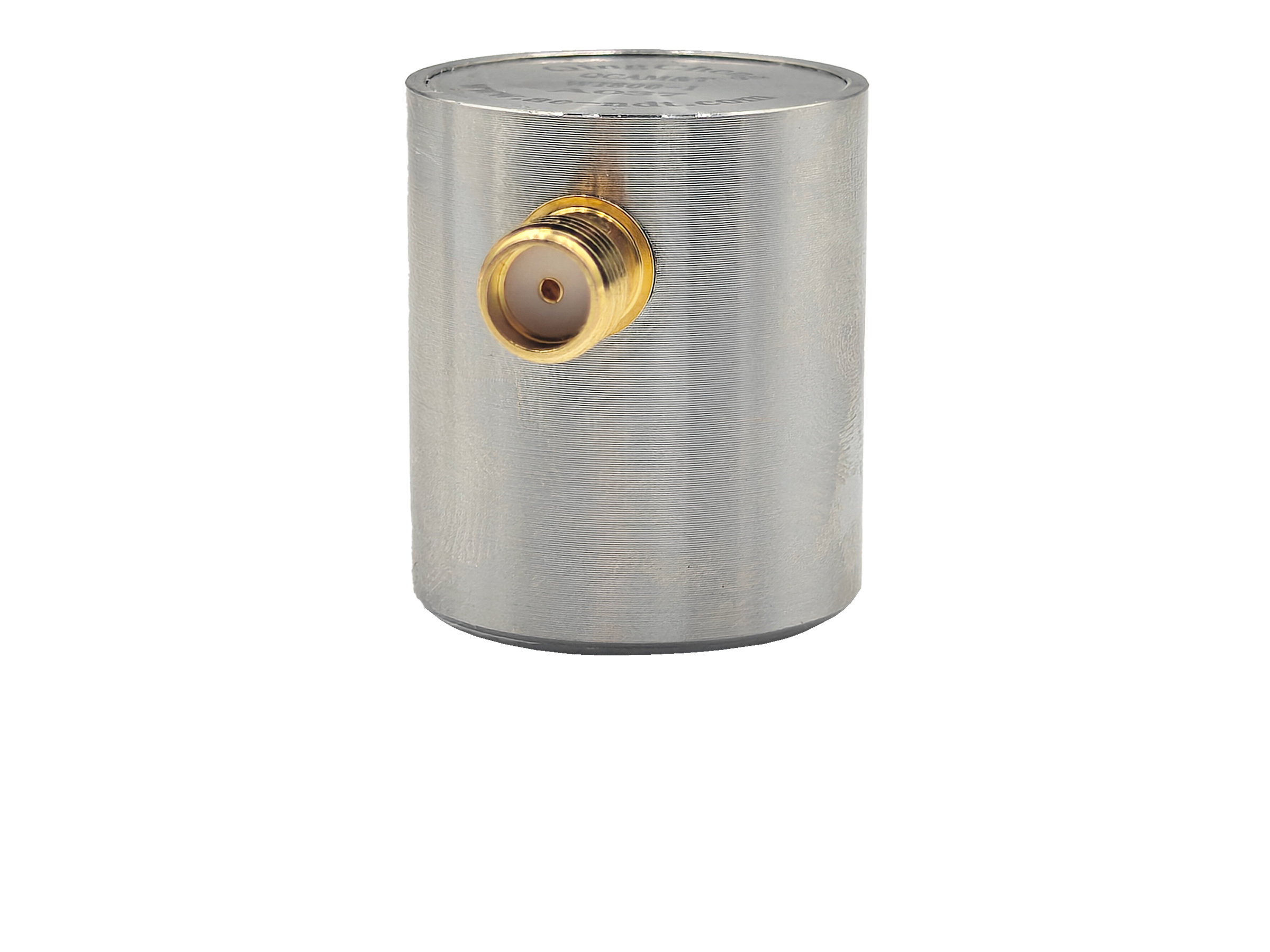

WI800/1 Broadband built-in preamplifier integrated sensor
Model：
WI800/1
Description：
The WI800/1 broadband built-in preamplifier integrated acoustic emission sensor has a frequency range of 50KHz-800KHz and a resonant frequency of 600KHz.
Features：
Preamplifier built-in,SMA connector.
ENQUIRY NOWCONTACT：+86-20-32290092
WI800/1 Broadband Built in preamplifier integrated sensor
Product description
The WI800/1 broadband built-in preamplifier integrated acoustic emission sensor has a frequency range of 50KHz-800KHz and a resonant frequency of 600KHz. Its broadband characteristics cover the frequency range of most acoustic emission applications. The collected signals are rich and comprehensive, suitable for spectrum research, etc.
- SMA interface.
- The contact surface is made of ceramic material to isolate the outer shell from the measured object electromagnetically.
- The shell adopts SUS-304 and has an overall shielding design, effectively reducing interference.
- Each product has a unique serial number that can track the production testing process.
- Before leaving the factory, each sensor undergoes sensitivity testing in accordance with GBT 19801-2005, and the response curves of the delivered products are measured.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 600kHz |
| Frequency Range | 50kHz-800kHz |
| Sensitivity Peak Ref V/(m/s) | >65dB |
| Integral preamplifier | 26dB5V |
| Working Temp. | -20 to 50℃ |
| Size（DxH） | 22×25.5mm |
| Weight | 33.63 g |
| Case Material | SUS-304 |
| Face Material | Ceramic |
| Protecting Grade | IP62 |
| Connector | SMA |
| Connector Location | Side |
| Accessories | |
| Signal cable model |
RG178 RG316 |
| Hold-down | Saddle type |
