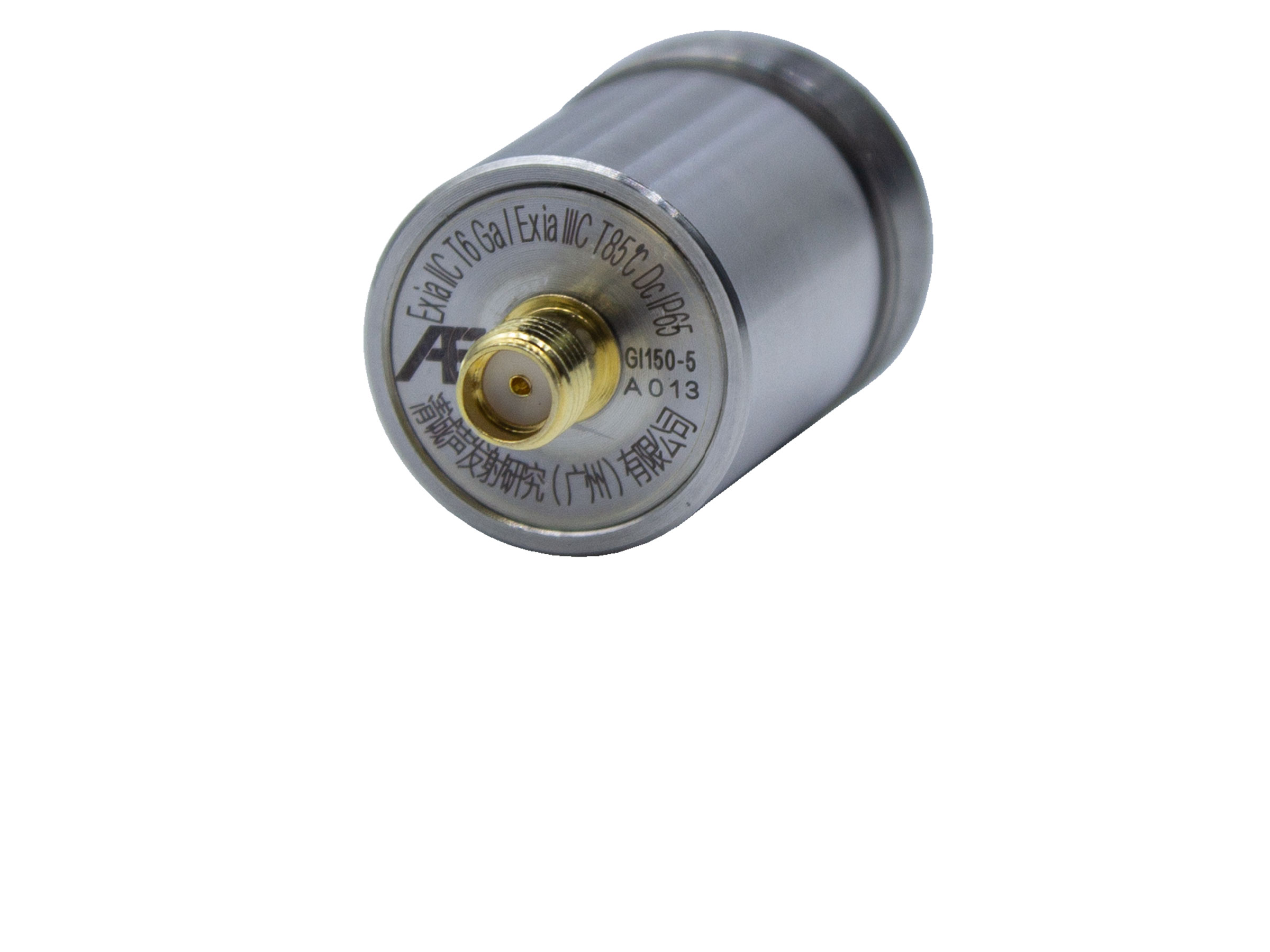

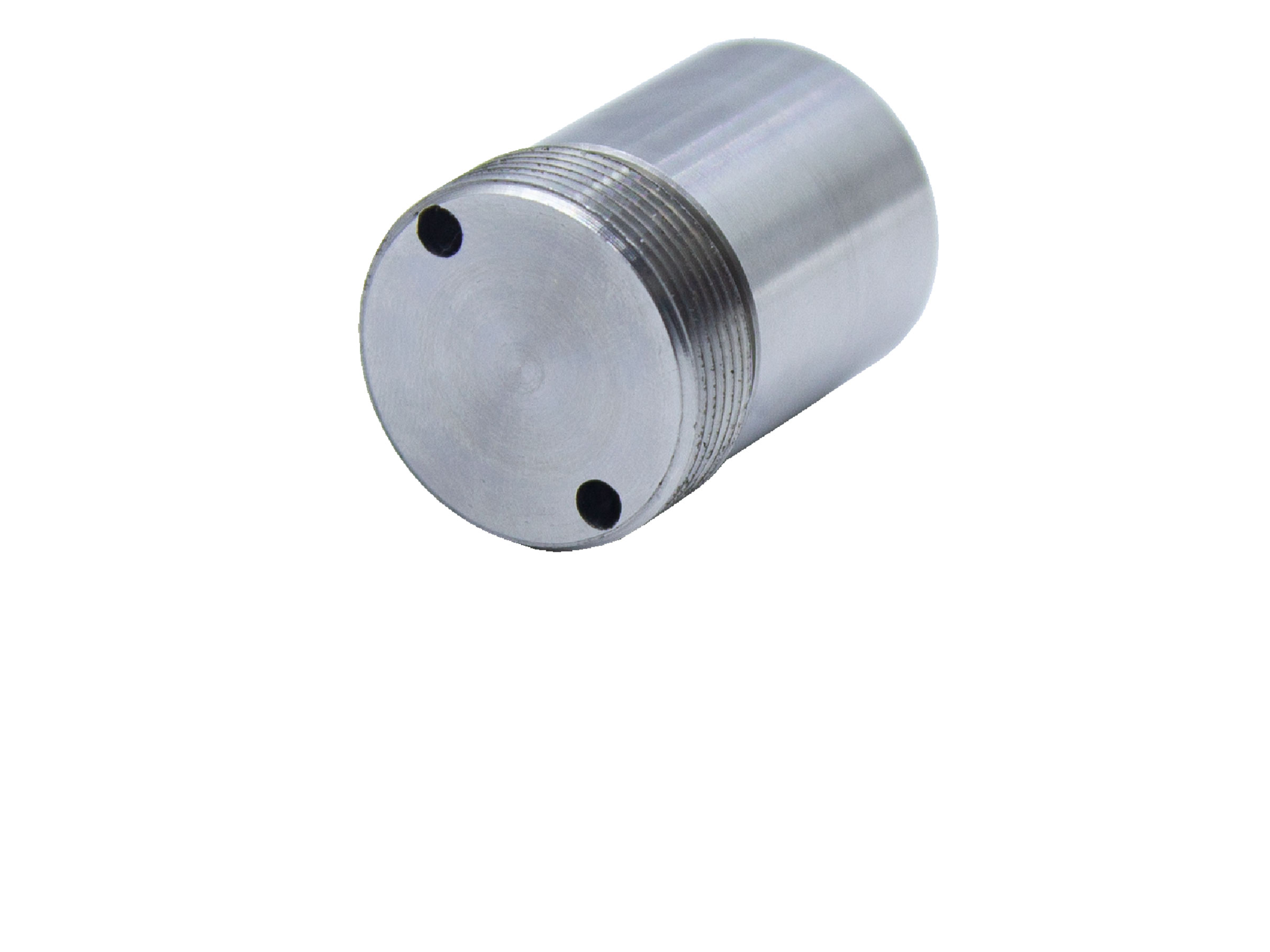

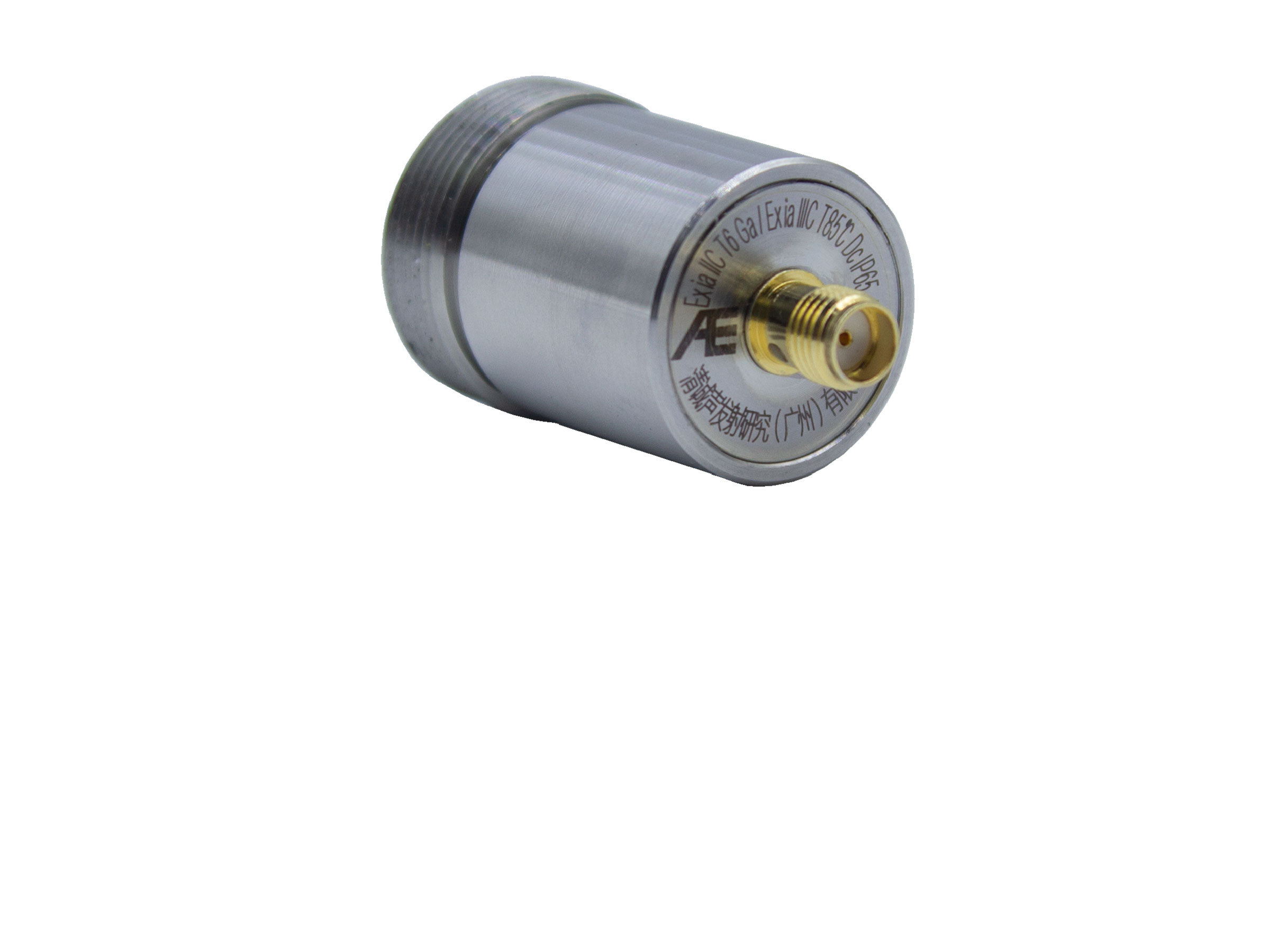

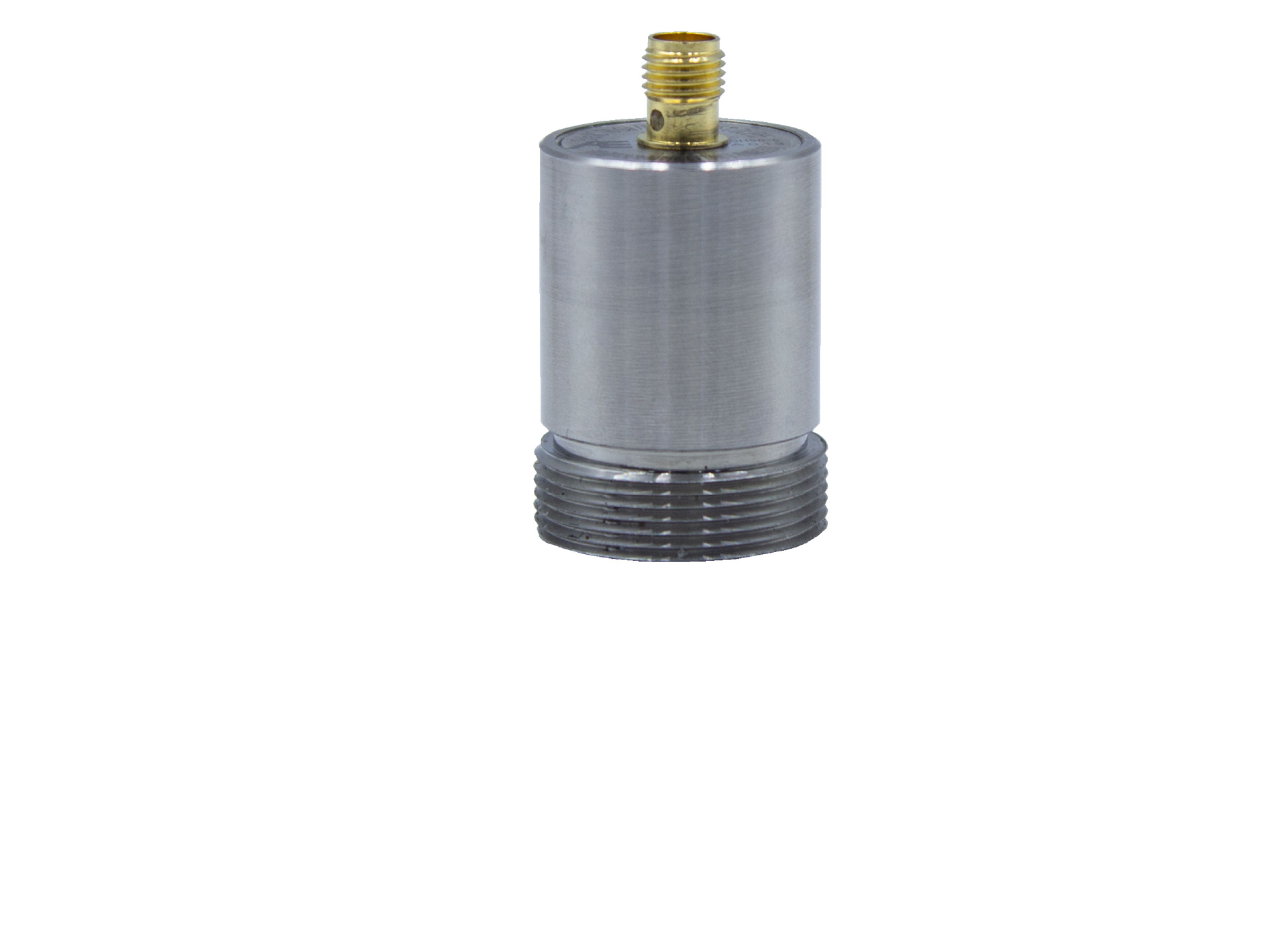

GI150/5 Intrinsically safe sensor
Model：
GI150/5
Description：
The GI150/5 is an intrinsically safe explosion-proof sensor, it is integrated with a 26dB5V preamplifier inside.
Features：
All stainless steel shell makes it durable and effectively reduce external interference.
ENQUIRY NOWCONTACT：+86-20-32290092
GI150/5 Intrinsically safe sensor
Applications
The GI150/5 is well suited for detecting equipment in harsh environment that requires intrinsic safety. It is useful for detecting the crack and fault of metallic equipment and monitoring structures such as pipelines, vessels, bridges etc.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 150kHz |
| Frequency Range | 60kHz-400kHz |
| Sensitivity Peak Ref V/(m/s) | >75dB |
| Integral preamplifier | 26dB5V |
| Preamp. Impedance | 50Ω |
| Working Temp. | -20 to 50℃ |
| Size（DxH） | 22×30mm |
| Weight | 48g |
| Case Material | SUS-304 |
| Face Material | SUS-304 |
| Protecting Grade | IP62 |
| Connector | SMA |
| Connector Location | Top |
| Accessories | |
| Signal cable model | RG178/RG316 |
| Hold-down | Saddle type |
| Standards | |

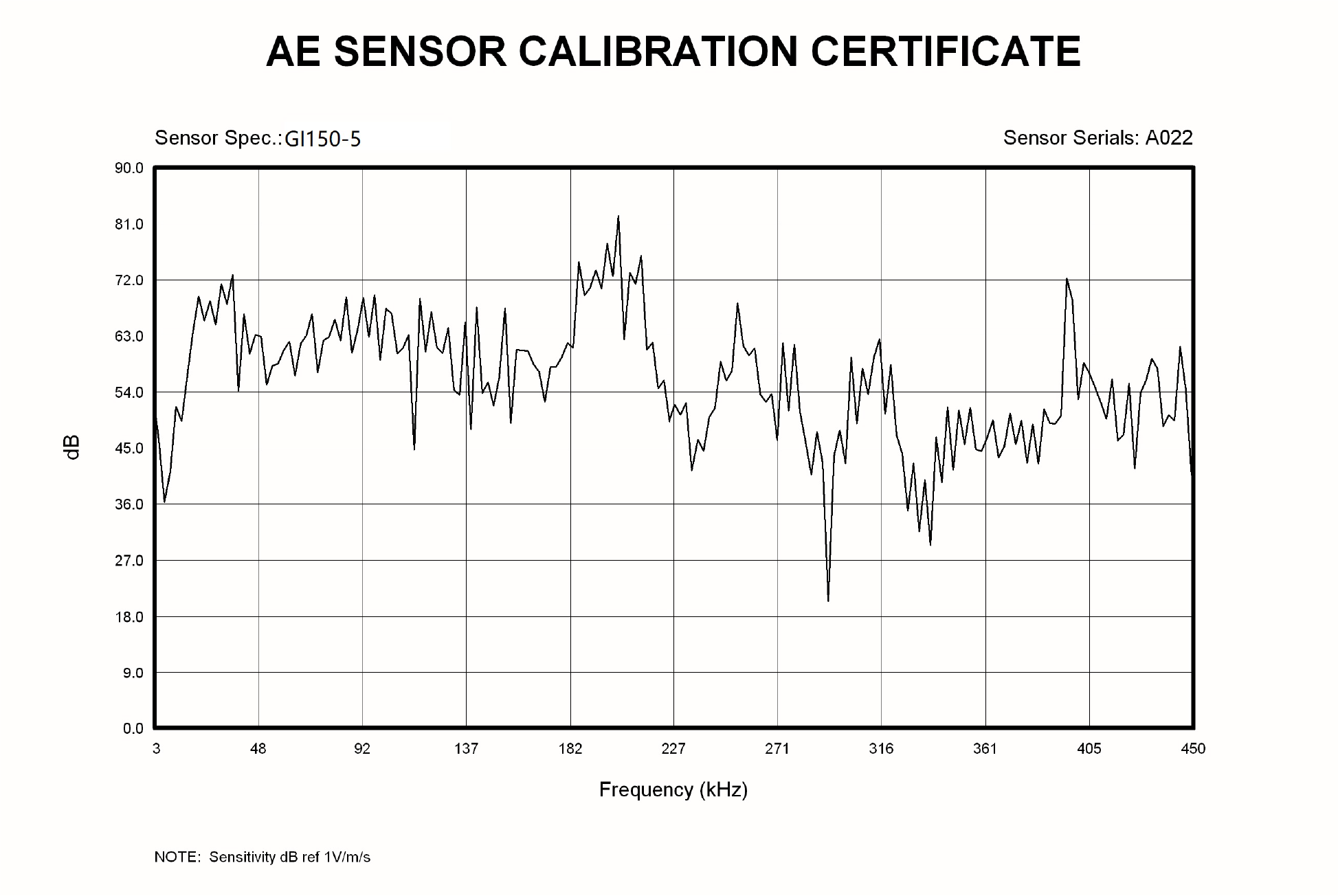

| Calibration standard | ISO12714 |
| GB/T 19801 | |
| GB/T 3836.4-2021 | |
Further Information
Sensor Data Sheet.pdf All stainless steel shell makes it durable and effectively reduce external interference.
