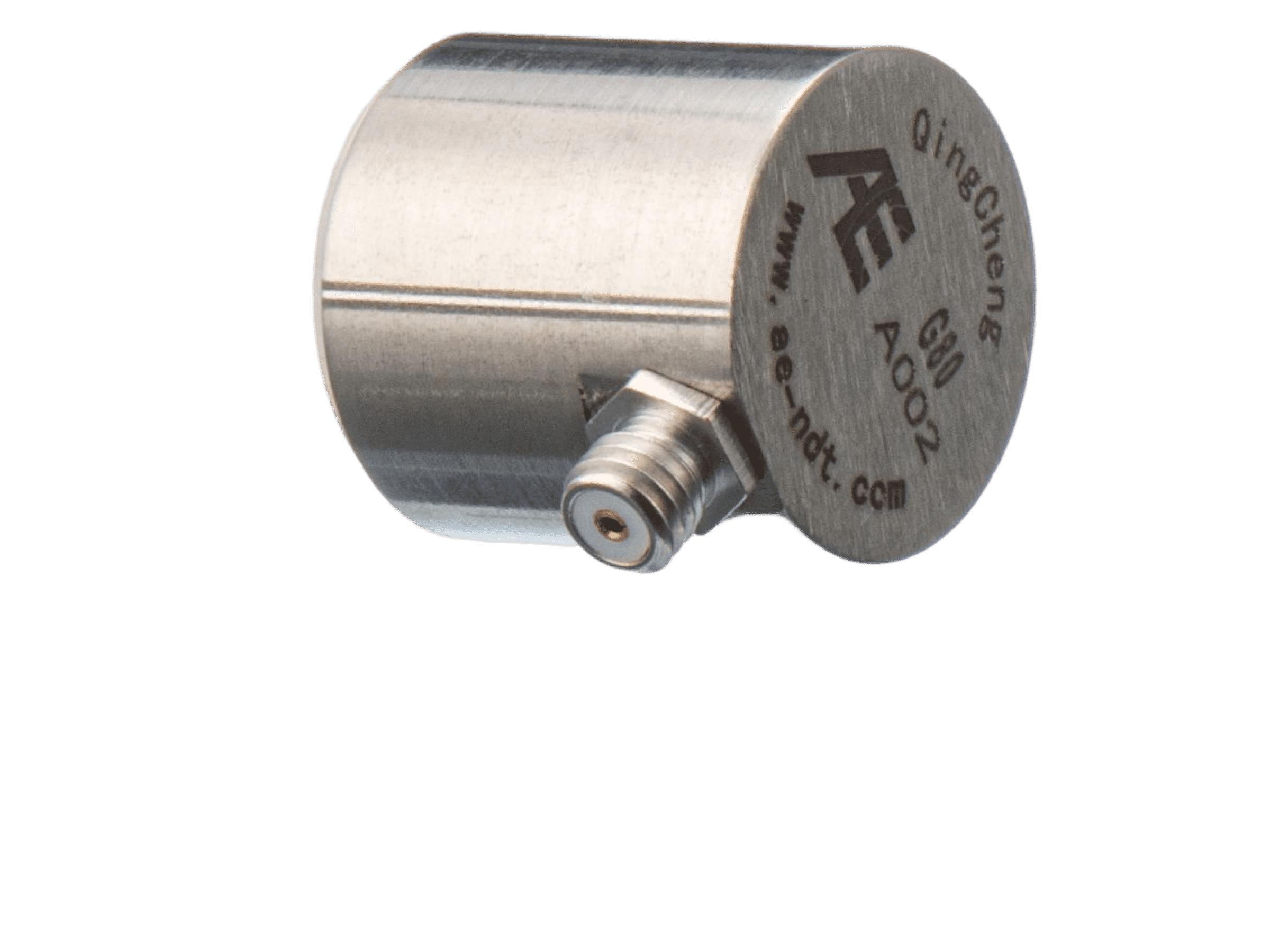

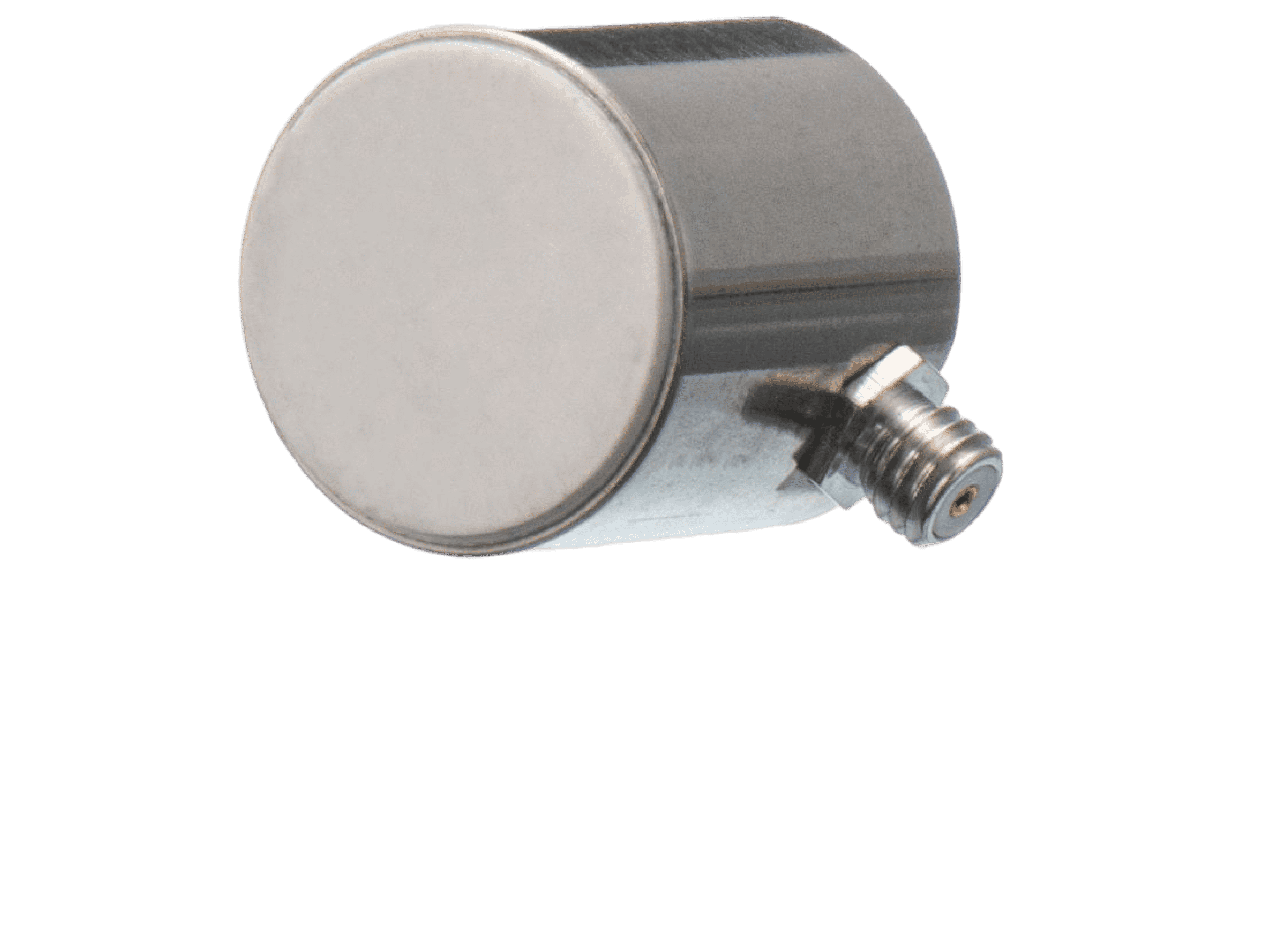

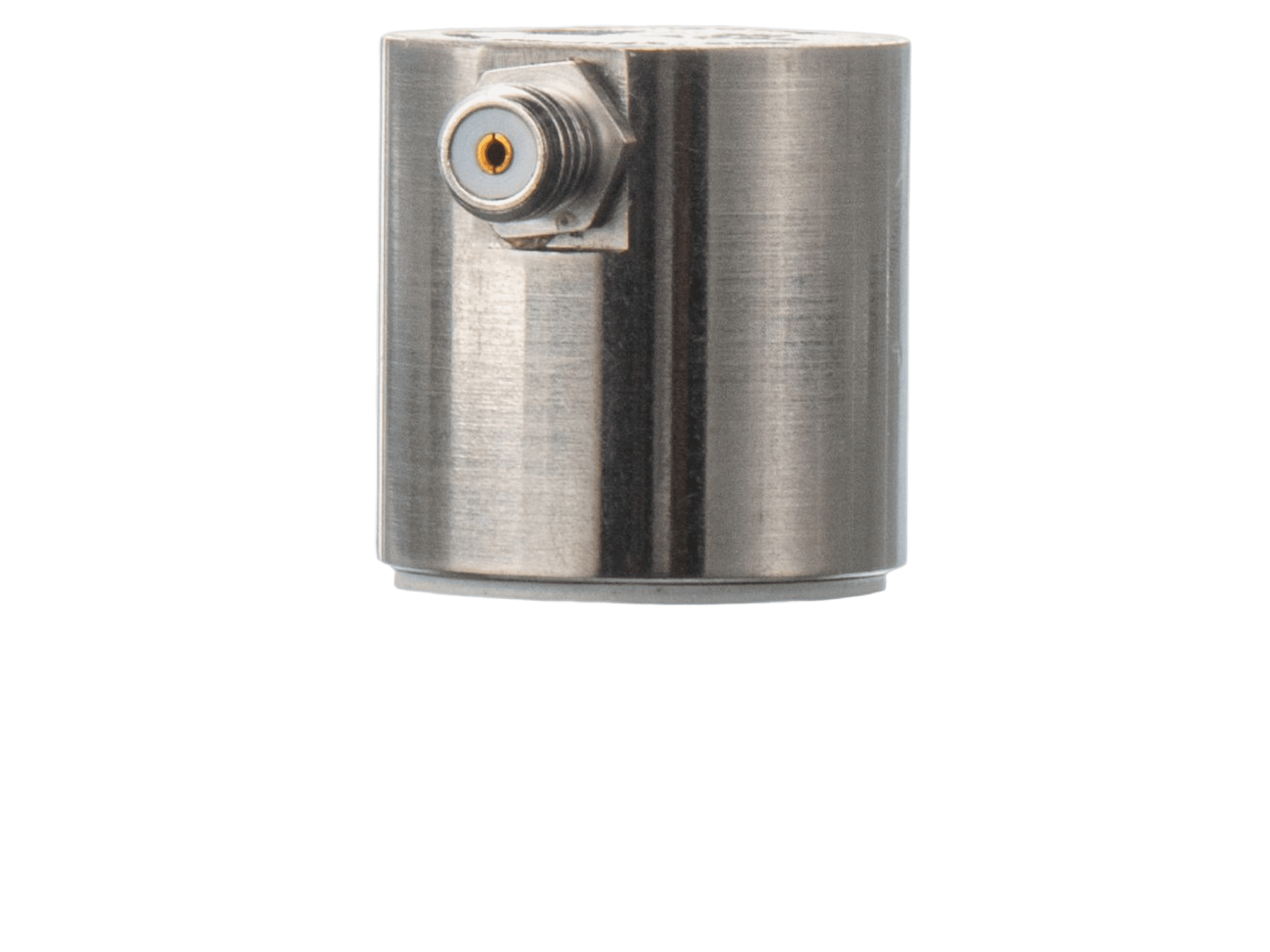

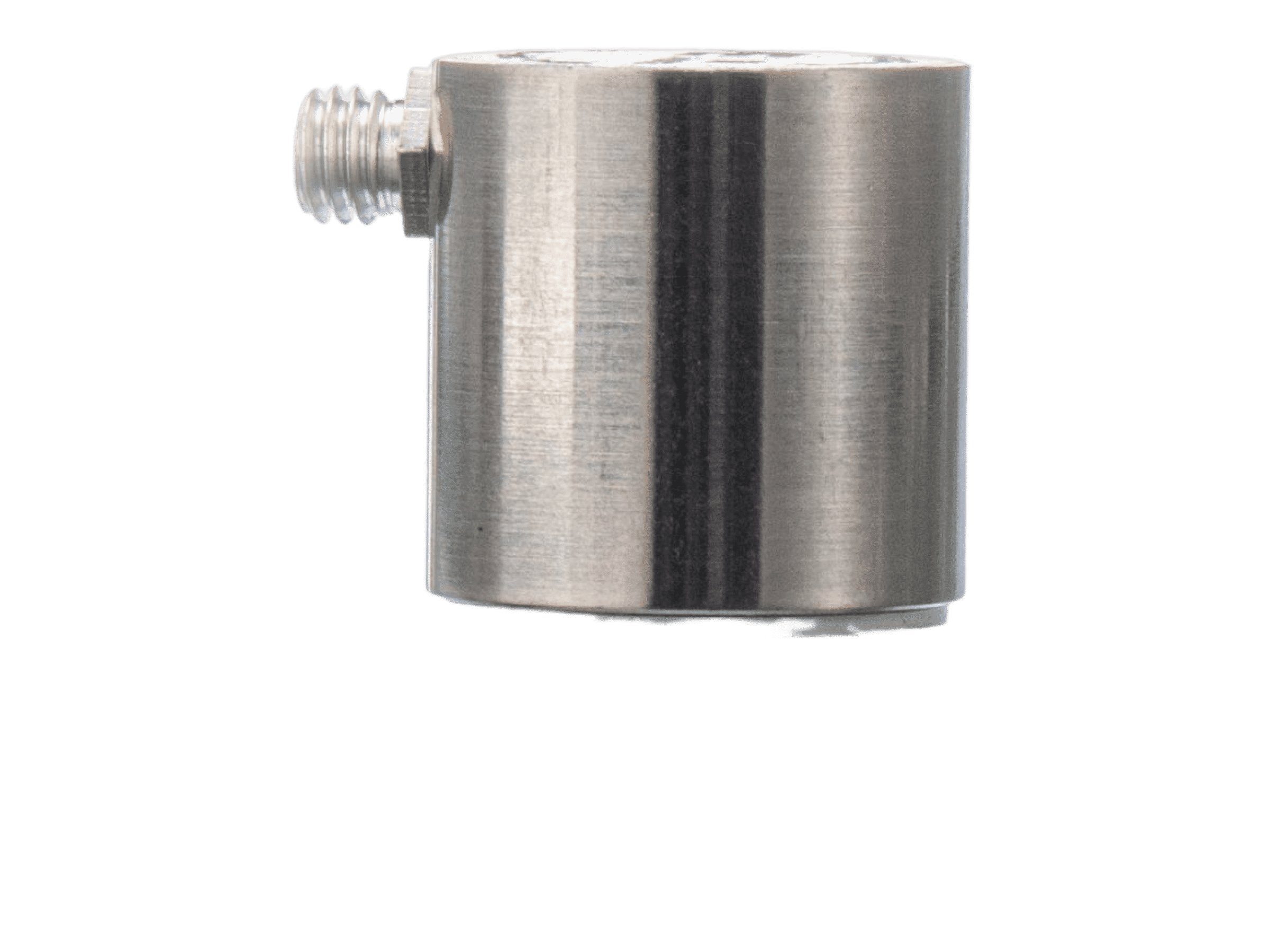

G80 Resonant AE Sensor_20-180kHZ
Model：
G80
Description：
G80 is a passive piezoelectric AE sensor with narrowband. Stainless steel structure makes it reliable and endurable. And 20kHz-180kHz bandwidth makes it suitable for detecting low frequency acoustic emission signals.
Features：
Stainless steel case and ceramic interface, M5 connector. Rugged design, stable performance, good compatibility.
ENQUIRY NOWCONTACT：+86-20-32290092
G80 Resonant AE Sensor 20-180kHZ
Applications
G80 is a passive piezoelectric acoustic emission sensor. The low frequency response makes it suitable for monitoring large objects or objects made of highly attenuating material, such as concrete steel and geologic structures. It also could be used for monitoring leakage of pressure vessels and for detecting partial discharge.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 80kHz |
| Frequency Range | 20kHz-180kHz |
| Sensitivity Peak Ref V/(m/s) | >70dB |
| Working Temp. | -20 to 120℃ |
| Size（DxH） | 19×19.5mm |
| Weight | 33g |
| Case Material | SUS-304 |
| Face Material | Ceramic |
| Protecting Grade | IP62 |
| Connector | M5 |
| Connector Location | Side |
| Accessories | |
| Signal cable model | RG178/RG316 |
| Hold-down | M20A |
| Preamplifier | PAS/PAV |
