AE Signal Processing Overview

Definition

Acoustic emission (AE) signal processing refers to the methods and techniques used to acquire, filter, analyze, and interpret acoustic emission signals generated by materials or structures during active processes such as crack growth, deformation, or leakage.

The goal of AE signal processing is to transform raw waveform data into meaningful information about:

• structural condition,
• damage activity,
• and source behavior.

Why Signal Processing Is Important

Raw AE signals are often:

• weak,
• noisy,
• complex,
• and highly affected by wave propagation.

Without proper processing, it is difficult to:

• distinguish damage from noise,
• identify source characteristics,
• or extract reliable monitoring information.

In practical AE systems, signal processing is the bridge between signal detection and engineering interpretation.

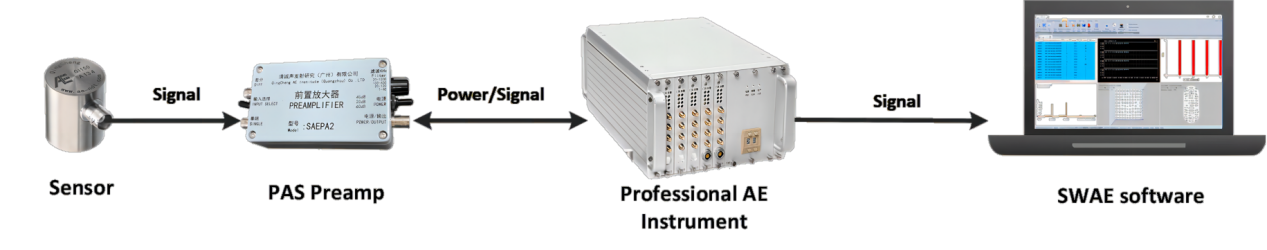

Basic AE Signal Processing Workflow

AE signal processing typically includes several stages.

Standard Workflow

• 1) Signal Detection
• 2) Amplification and Filtering
• 3) Digitization
• 4) Feature Extraction
• 5) Signal Classification
• 6) Source Interpretation

Each stage influences overall monitoring accuracy and reliability.

1. Signal Detection

The first step is detecting transient AE activity using sensors and threshold-based triggering.

Key Elements

• AE sensors
• Pre-amplifiers
• Threshold settings

Only signals exceeding the predefined threshold are processed as AE hits.

Triggering Mechanism

AE systems commonly use threshold triggering.

Process

• Signal exceeds threshold
• System starts acquisition
• Signal parameters are recorded

This allows the system to focus on relevant activity while reducing unnecessary data collection.

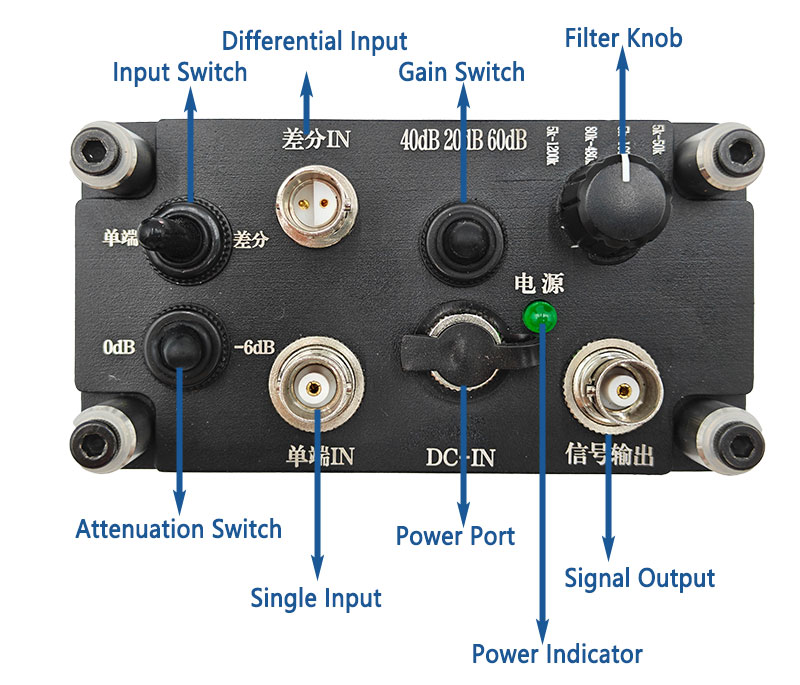

Signal Amplification

AE signals are usually very small and require amplification.

Purpose

• Improve detectability
• Match acquisition system input range

Gain settings strongly affect:

• sensitivity,
• noise level,
• and dynamic range.

Filtering

Filters are used to suppress unwanted frequencies.

Common Filter Types

• High-pass Filter
  Removes low-frequency vibration and mechanical noise.
• Low-pass Filter
  Suppresses high-frequency electronic noise.
• Band-pass Filter
  Keeps only the desired frequency range.This is one of the most commonly used filtering methods in AE systems.


Sampling Rate

The sampling rate determines how accurately waveforms are captured.

Important Considerations

• Higher sampling rates preserve waveform details
• Low sampling rates may distort signals

AE systems often use high-speed acquisition due to the transient nature of AE signals.

Resolution

Analog-to-digital converter (ADC) resolution affects:

• signal precision,
• dynamic range,
• and waveform quality.

Feature extraction converts waveforms into measurable parameters.

This is one of the most important stages in AE analysis.

Common AE Features

• Amplitude
  Maximum signal voltage.
• Duration
  Time interval between first and last threshold crossing.
• Counts
  Number of threshold crossings during a hit.
• Rise Time
  Time from first threshold crossing to peak amplitude.
• Energy
  Measure of signal strength or waveform area.
• Frequency Features
  Characteristics derived from frequency-domain analysis.

Why Feature Extraction Matters

Feature parameters help engineers:

• identify damage trends,
• classify source types,
• and reduce data complexity.

Instead of analyzing every waveform manually, systems can compare extracted features statistically.

Time-domain analysis evaluates signal behavior over time.

Typical Parameters

• Amplitude
• Duration
• Counts
• Rise time
• Energy

Applications

Time-domain analysis is widely used for:

• trend monitoring,
• event detection,
• and alarm systems.

It is computationally efficient and suitable for real-time monitoring.

Frequency-domain analysis studies how signal energy is distributed across frequencies.

Common Methods

• FFT (Fast Fourier Transform)


  Converts time-domain signals into frequency spectra.

• Spectral Analysis

Used to:

• identify dominant frequencies,
• compare signal sources,
• and distinguish noise.

Applications

Frequency analysis is useful for:

• source classification,
• composite material monitoring,
• and leakage detection.

Waveform analysis examines the detailed shape of AE signals.

What It Can Reveal

• Source mechanism behavior
• Signal propagation effects
• Reflection and attenuation characteristics

Limitations

Waveform analysis requires:

• broadband sensors,
• high sampling rates,
• and higher data storage capacity.

Noise management is essential in AE monitoring.

Common Noise Sources

• Mechanical vibration
• Electrical interference
• Environmental disturbances

Noise Reduction Methods

• Threshold Adjustment
  Suppresses low-level noise.
• Frequency Filtering
  Removes unwanted frequency bands.
• Pattern Recognition
  Distinguishes noise from damage-related signals.
• Multi-parameter Analysis
  Uses multiple signal features simultaneously.

Modern AE systems increasingly use advanced methods for source identification.

Classification Approaches

• Rule-Based Methods
  Based on thresholds or feature ranges.
• Statistical Analysis
  Uses clustering and feature distributions.
• Machine Learning
  Applies AI-based models for pattern recognition.

Challenges

Different sources may produce overlapping features, making classification difficult in complex environments.

Many AE applications require real-time signal analysis.

Real-Time Functions

• Hit detection
• Alarm triggering
• Trend monitoring
• Event localization

Applications

• Pressure vessels
• Pipelines
• Bridges
• Industrial process monitoring

AE signal processing is complicated by several factors.

Wave Propagation Effects

Signals change during propagation due to:

• attenuation,
• reflections,
• and mode conversion.

Environmental Noise

Noise may overlap with valid AE activity.

Large Data Volume

Continuous monitoring systems generate significant amounts of data.

Sensor Variability

Different sensors may respond differently to identical signals.

To improve signal processing reliability:

• select appropriate sensors,
• optimize threshold and gain settings,
• use suitable filtering,
• verify data quality regularly,
• and correlate AE data with operating conditions.

Reliable interpretation depends on both:

• signal quality, and
• engineering understanding.
