AE Signal Acquisition and Processing Board

Model:

4-channel AE board

Description:

There are two kinds of AE acquisition and processing boards, standard 4-channel AE board and E X -parameter 4-channel AE board. Both AE boards are compatible with SEAU3H chassis.

Features:

DAQ module, 4 channels per board, independent 16-bit ADC, max sample rate 10M/s per channel and 1Gb independent cache storage.

ENQUIRY NOWCONTACT:+86-20-32290092


Acoustic Emission Acquisition and Processing Board

We produce two kinds of AE acquisition and processing boards, standard 4-channel AE board and EX-parameter 4-channel AE board. Both AE boards are compatible with SEAU3H chassis. And different combinations of AE board can be selected to meet different requirements.

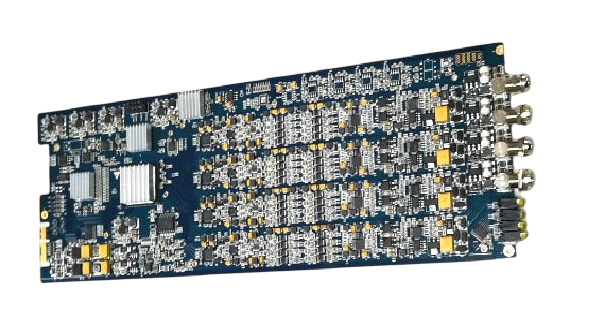

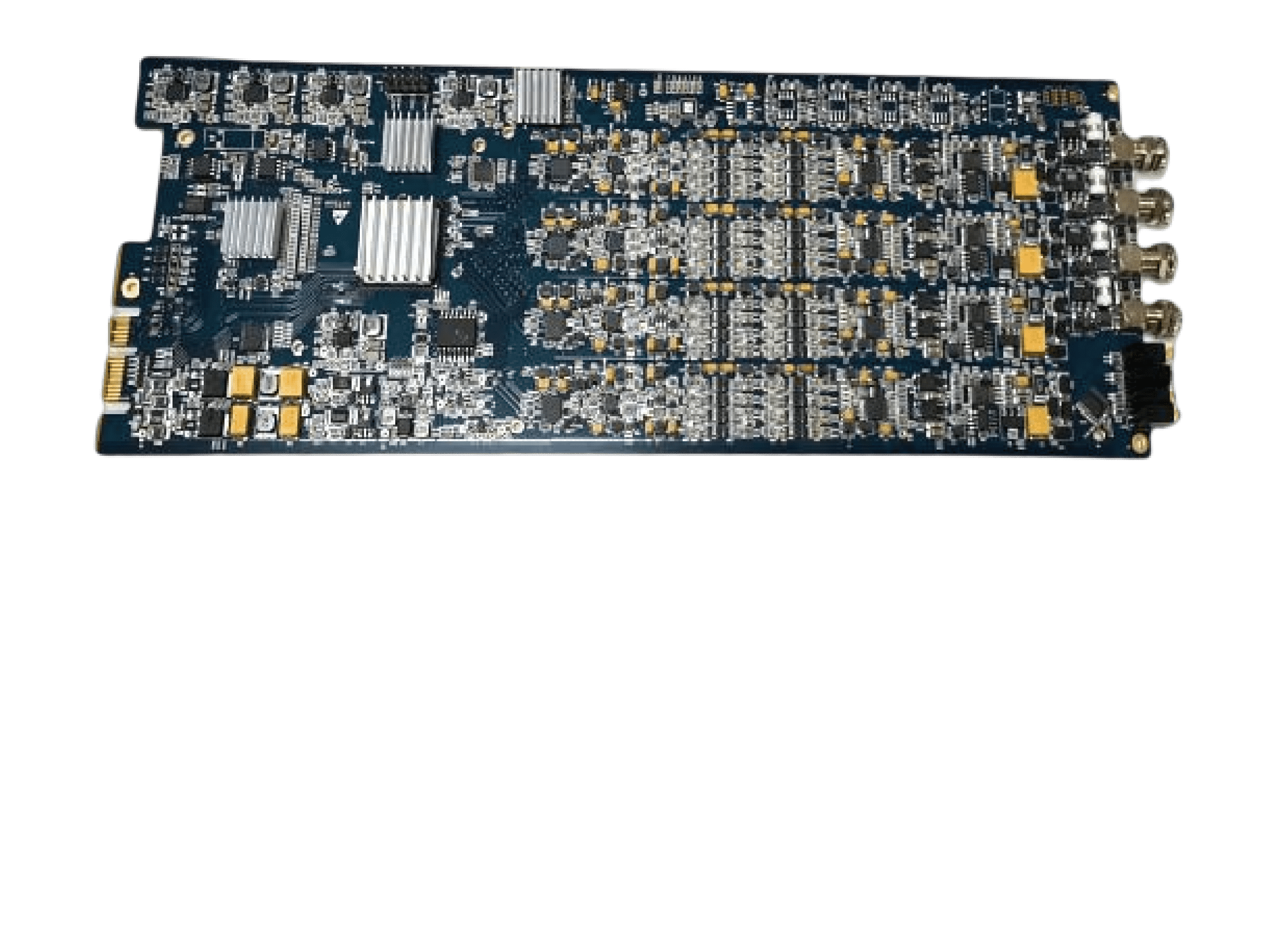

Standard 4-channel AE board

The standard AE board adopts the design of 4 channels per board, each channel has maximum sampling rate of 10M/s, 16-bit independent ADC, high-speed signal processing, 1GB independent cache board, to ensure that data is not lost; unique hardware real-time digital filter can arbitrarily control the signal bandwidth.

Acoustic Emission Acquisition and Processing Board

Technical Specifications

Sampling Specifications
Sampling Rate maximum 10MSP/s (sample points per second) per channel;
the sampling rate is continuously adjustable;
each channel can be set independently
Sampling Accuracy 16 bits
Dynamic Range 85dB
Noise Level <15dB (No load)
Maximum Signal Amplitude 100dB (40dB gain, corresponding to the sensor output of 100mV)
Waveform Sampling Length The maximum single waveform sampling length, each channel can be up to 128k sampling points, the channel can be set independently
Trigger Mode Threshold trigger, time trigger, external trigger, manual trigger
Analog Filter 20kHz, 100kHz, 400kHz three high-pass filters;
100kHz, 400kHz, 1200kHz three low-pass filters;
any combination of the two kinds to be set in the software;
each channel is independent
Hardware Real-time Digital Filter From 1KHz-2.5MHz frequency range, any value can be set as the pass-through, high-pass, low-pass, band-pass or band-stop filter.
AE Module Memory Capacity 1Gb each AE acquisition board
AE Signal Processing Each acquisition board hardware has AE feature parameters real-time extraction function; the channel can be set independently
Waveform Pre-sample Function Pre-sample length can be up to 128k sampling points. The channel can be set independently
AE Feature Parameters Arrival time, amplitude, counts, duration, energy, rise counts, rise time, RMS, ASL, 12 external parametric, center frequency, peak frequency, 5 partial powers
Electrical Specifications
Board Input Voltage 5V DC
Number of Channels per AE Board Each acquisition board has 4 independent channels
AE Signal Input Range ±10V, it can adjust the signal input voltage range down to ± 5V, ± 2V, ± 1V, or ± 0.1V; the channel can be set independently
Response Frequency 1kHz-2.5MHz (-3dB bandwidth)
Preamplifier Power Supply 28V or 5V phantom power through coaxial cables to the preamplifier or turn off (0V)
Input Impedance 50Ω
Power Consumption 10.5W (4 channels for continuous sampling)
LED Indicator Light Each channel has two indicators, green LED for exceeding the threshold and yellow LED for preamplifier supply
Physical
Dimension 300mm X 100mm
Weight 186g
Environment:
Operating Temperature -10℃ ~ +45℃

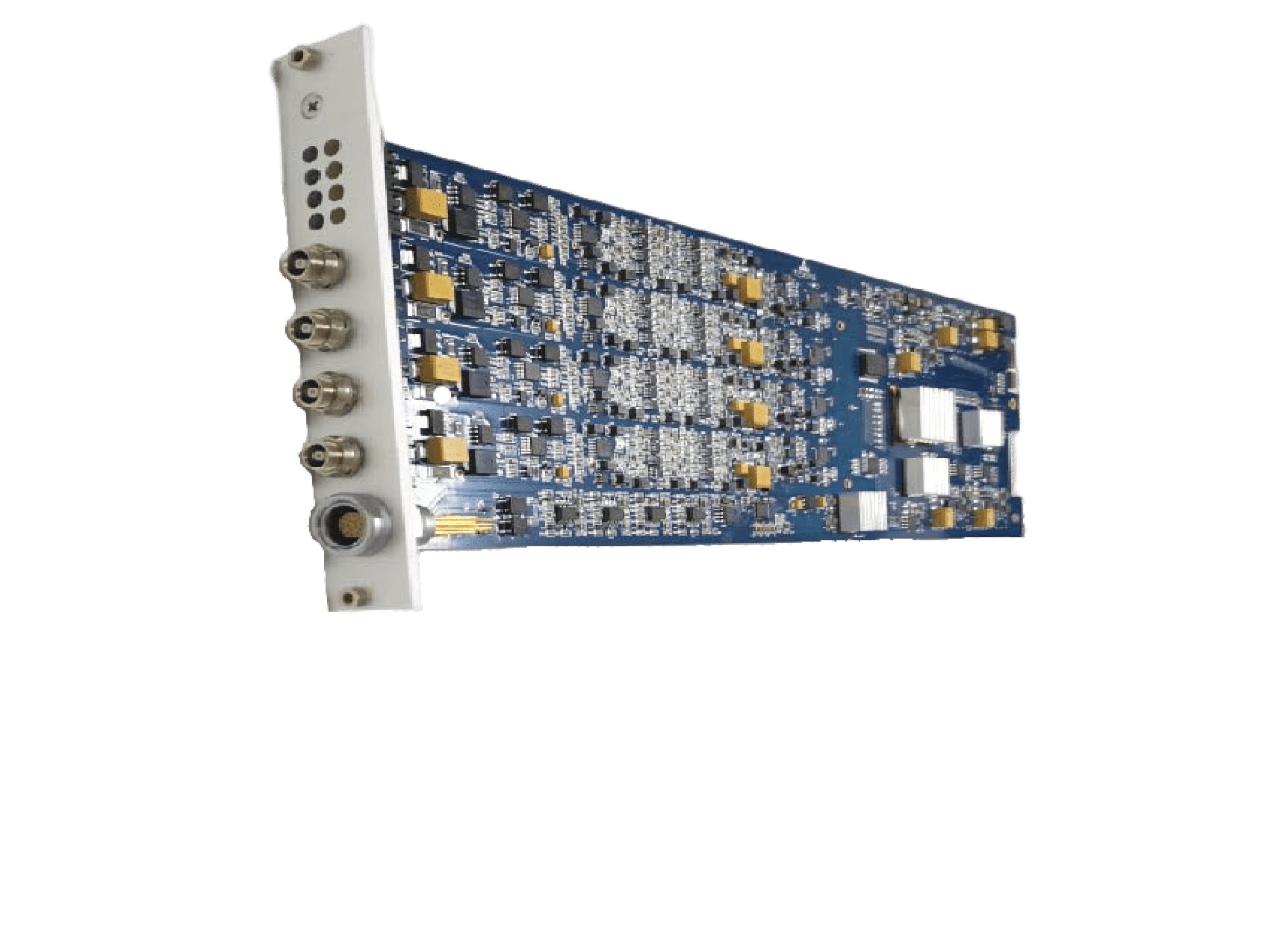

EX-Parameter 4-Channel AE Board

The EX-Parameter AE board is the standard AE board plus an input port for external inputs. The interface of the external port under the four AE input ports is a 16-pin LEMO female connector, which can acquire the external ±10V analog signals.

If there is external sensor inputs requirement, the EX-Parameter AE board should be used. In every defined time, the system will read the external sensors trough the external parameter port and display the result readings in the software, together with the AE feature parameters.

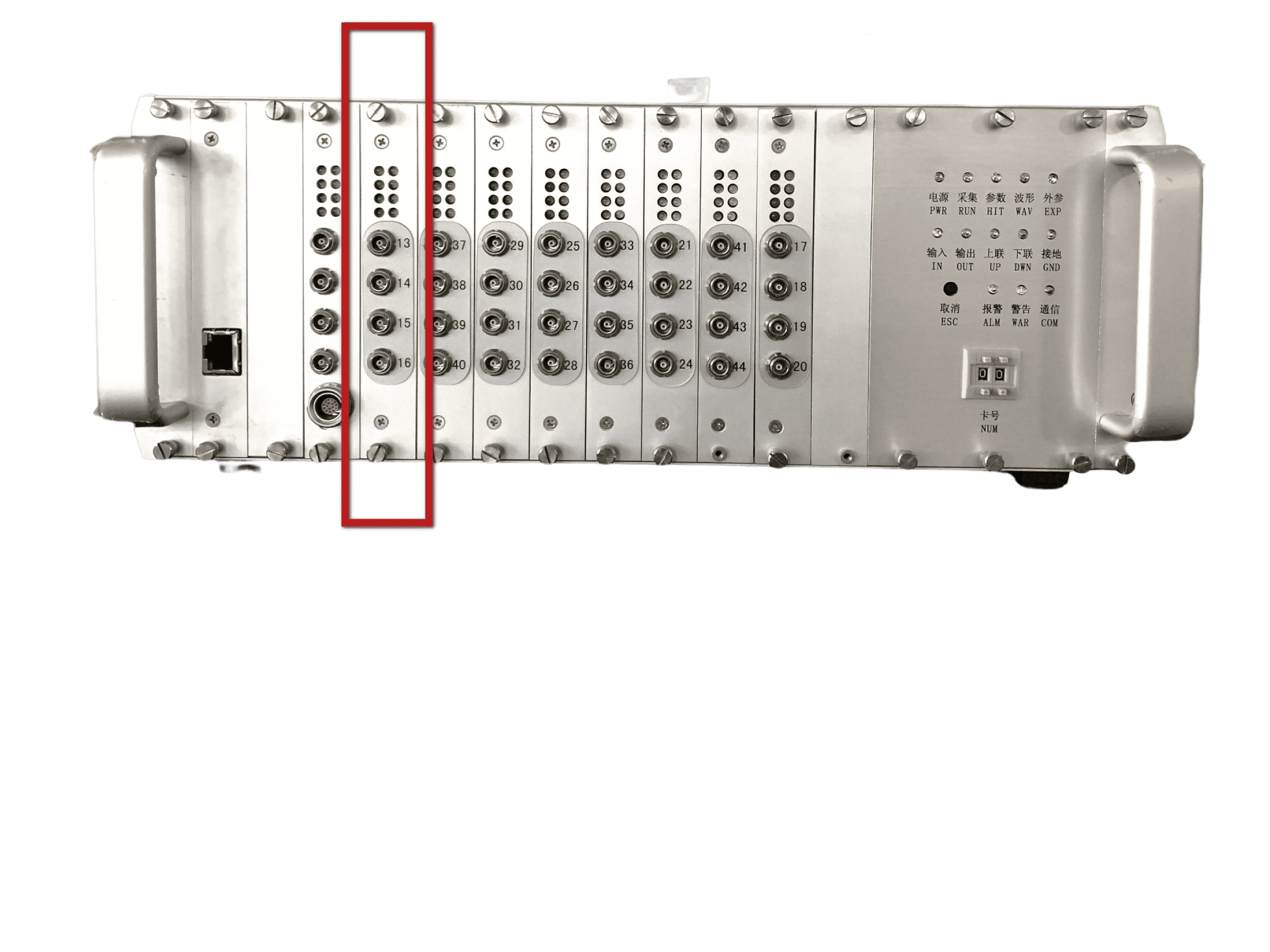

The EX-Parameter AE board is required to occupy the first board slot followed by the standard 4-channel AE board. The EX-PARA Box is provided for wiring connection to the external input LEMO port.

EX-Parameter 4-Channel AE Board


Electrical Specifications
External Parameter Acquisition Supports up to 12 analog external parameters input channels, total external parametric sampling rate 1M
External Input Range ±10V
Physical
Dimension 300mm X 100mm
Weight 186g
Environment:
Operating Temperature -10℃ ~ +45℃

Further Information

Ext Para Box Setup.pdf
